This class implements a tag that carries the dest address of a packet and the packet type. More...
#include <packet-socket.h>
Public Member Functions | |
PacketSocketTag () | |
Create an empty PacketSocketTag. More... | |
virtual void | Deserialize (TagBuffer i) |
Address | GetDestAddress (void) const |
Get the destination address of the corresponding packet. More... | |
virtual TypeId | GetInstanceTypeId (void) const |
NetDevice::PacketType | GetPacketType (void) const |
Get the packet type. More... | |
virtual uint32_t | GetSerializedSize (void) const |
virtual void | Print (std::ostream &os) const |
virtual void | Serialize (TagBuffer i) const |
void | SetDestAddress (Address a) |
Set the destination address of the corresponding packet. More... | |
void | SetPacketType (NetDevice::PacketType t) |
Set the packet type. More... | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. More... | |
void | GetAttribute (std::string name, AttributeValue &value) const |
bool | GetAttributeFailSafe (std::string name, AttributeValue &attribute) const |
void | SetAttribute (std::string name, const AttributeValue &value) |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Static Public Member Functions | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Static Public Member Functions inherited from ns3::Tag | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Private Attributes | |
Address | m_destAddr |
Destination address. More... | |
NetDevice::PacketType | m_packetType |
Packet type. More... | |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
virtual void | NotifyConstructionCompleted (void) |
This method is invoked once all member attributes have been initialized. More... | |
This class implements a tag that carries the dest address of a packet and the packet type.
Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Definition at line 203 of file packet-socket.h.
ns3::PacketSocketTag::PacketSocketTag | ( | ) |
Create an empty PacketSocketTag.
Definition at line 511 of file packet-socket.cc.
|
virtual |
i | the buffer to read data from. |

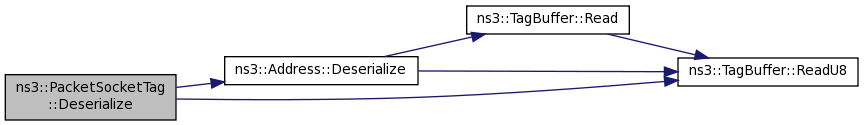

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.
Implements ns3::Tag.
Definition at line 567 of file packet-socket.cc.
References ns3::Address::Deserialize(), m_destAddr, m_packetType, and ns3::TagBuffer::ReadU8().
Address ns3::PacketSocketTag::GetDestAddress | ( | void | ) | const |
Get the destination address of the corresponding packet.
Definition at line 534 of file packet-socket.cc.
References m_destAddr.
|
virtual |
This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
Implements ns3::ObjectBase.
Definition at line 551 of file packet-socket.cc.
References GetTypeId().
NetDevice::PacketType ns3::PacketSocketTag::GetPacketType | ( | void | ) | const |
Get the packet type.
Definition at line 522 of file packet-socket.cc.
References m_packetType.
|
virtual |
This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.
Implements ns3::Tag.
Definition at line 556 of file packet-socket.cc.
References ns3::Address::GetSerializedSize(), and m_destAddr.
|
static |
Get the type ID.
Definition at line 542 of file packet-socket.cc.
References ns3::TypeId::SetParent().
Referenced by GetInstanceTypeId().
|
virtual |
os | the stream to print to |
This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.
Implements ns3::Tag.
Definition at line 573 of file packet-socket.cc.
References m_packetType.
|
virtual |
i | the buffer to write data into. |
Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.
Implements ns3::Tag.
Definition at line 561 of file packet-socket.cc.
References m_destAddr, m_packetType, ns3::Address::Serialize(), and ns3::TagBuffer::WriteU8().
void ns3::PacketSocketTag::SetDestAddress | ( | Address | a | ) |
Set the destination address of the corresponding packet.
a | the destination address of the corresponding packet |
Definition at line 528 of file packet-socket.cc.
References m_destAddr.
Referenced by ns3::PacketSocket::ForwardUp().
void ns3::PacketSocketTag::SetPacketType | ( | NetDevice::PacketType | t | ) |

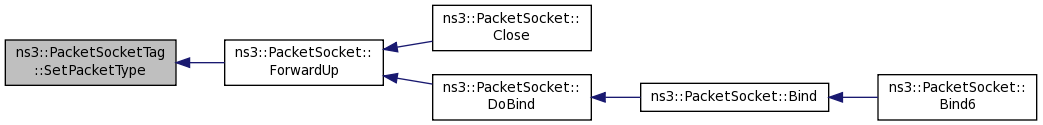

Set the packet type.
t | the packet type of the corresponding packet |
Definition at line 516 of file packet-socket.cc.
References m_packetType.
Referenced by ns3::PacketSocket::ForwardUp().
|
private |
Destination address.
Definition at line 244 of file packet-socket.h.
Referenced by Deserialize(), GetDestAddress(), GetSerializedSize(), Serialize(), and SetDestAddress().
|
private |
Packet type.
Definition at line 243 of file packet-socket.h.
Referenced by Deserialize(), GetPacketType(), Print(), Serialize(), and SetPacketType().
