Concrete IPv4 specific PbbMessage. More...

#include <packetbb.h>

Inheritance diagram for ns3::PbbMessageIpv4:

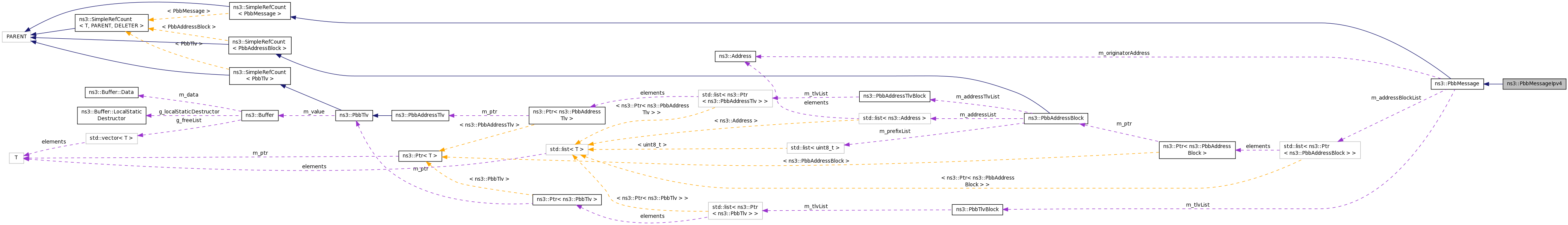

Collaboration diagram for ns3::PbbMessageIpv4:

Public Member Functions
	PbbMessageIpv4 ()

virtual	~PbbMessageIpv4 ()

Public Member Functions inherited from ns3::PbbMessage
	PbbMessage ()

virtual	~PbbMessage ()

Ptr< PbbAddressBlock >	AddressBlockBack (void)

const Ptr< PbbAddressBlock >	AddressBlockBack (void) const

AddressBlockIterator	AddressBlockBegin ()

ConstAddressBlockIterator	AddressBlockBegin () const

void	AddressBlockClear (void)
	Removes all address blocks from this message. More...

bool	AddressBlockEmpty (void) const

AddressBlockIterator	AddressBlockEnd ()

ConstAddressBlockIterator	AddressBlockEnd () const

AddressBlockIterator	AddressBlockErase (AddressBlockIterator position)
	Removes the address block at the specified position. More...

AddressBlockIterator	AddressBlockErase (AddressBlockIterator first, AddressBlockIterator last)
	Removes all address blocks from [first, last) (includes first, not includes last). More...

Ptr< PbbAddressBlock >	AddressBlockFront (void)

const Ptr< PbbAddressBlock >	AddressBlockFront (void) const

void	AddressBlockPopBack (void)
	Removes an address block from the back of this message. More...

void	AddressBlockPopFront (void)
	Removes an address block from the front of this message. More...

void	AddressBlockPushBack (Ptr< PbbAddressBlock > block)
	Appends an address block to the front of this message. More...

void	AddressBlockPushFront (Ptr< PbbAddressBlock > block)
	Prepends an address block to the front of this message. More...

int	AddressBlockSize (void) const

void	Deserialize (Buffer::Iterator &start)
	Deserializes a message from the specified buffer. More...

uint8_t	GetHopCount (void) const

uint8_t	GetHopLimit (void) const

Address	GetOriginatorAddress (void) const

uint16_t	GetSequenceNumber (void) const

uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const

bool	HasHopCount (void) const
	Tests whether or not this message has a hop count. More...

bool	HasHopLimit (void) const
	Tests whether or not this message has a hop limit. More...

bool	HasOriginatorAddress (void) const
	Tests whether or not this message has an originator address. More...

bool	HasSequenceNumber (void) const
	Tests whether or not this message has a sequence number. More...

bool	operator!= (const PbbMessage &other) const
	Inequality operator for PbbMessage. More...

bool	operator== (const PbbMessage &other) const
	Equality operator for PbbMessage. More...

void	Print (std::ostream &os) const
	Pretty-prints the contents of this message. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this message, with specified indentation. More...

void	Serialize (Buffer::Iterator &start) const
	Serializes this message into the specified buffer. More...

void	SetHopCount (uint8_t hopcount)
	Sets the current number of hops this message has traveled. More...

void	SetHopLimit (uint8_t hoplimit)
	Sets the maximum number of hops this message should travel. More...

void	SetOriginatorAddress (Address address)
	Sets the address for the node that created this packet. More...

void	SetSequenceNumber (uint16_t seqnum)
	Sets the sequence number of this message. More...

void	SetType (uint8_t type)
	Sets the type for this message. More...

Ptr< PbbTlv >	TlvBack (void)

const Ptr< PbbTlv >	TlvBack (void) const

TlvIterator	TlvBegin ()

ConstTlvIterator	TlvBegin () const

void	TlvClear (void)
	Removes all message TLVs from this block. More...

bool	TlvEmpty (void) const

TlvIterator	TlvEnd ()

ConstTlvIterator	TlvEnd () const

TlvIterator	TlvErase (TlvIterator position)
	Removes the message TLV at the specified position. More...

TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all message TLVs from [first, last) (includes first, not includes last). More...

Ptr< PbbTlv >	TlvFront (void)

const Ptr< PbbTlv >	TlvFront (void) const

void	TlvPopBack (void)
	Removes a message TLV from the back of this message. More...

void	TlvPopFront (void)
	Removes a message TLV from the front of this message. More...

void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a message TLV to the back of this message. More...

void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a message TLV to the front of this message. More...

int	TlvSize (void) const

Public Member Functions inherited from ns3::SimpleRefCount< PbbMessage >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Protected Member Functions
virtual Ptr< PbbAddressBlock >	AddressBlockDeserialize (Buffer::Iterator &start) const
	Deserialize an address block. More...

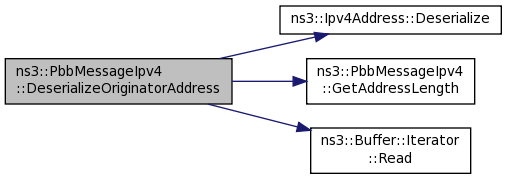

virtual Address	DeserializeOriginatorAddress (Buffer::Iterator &start) const
	Deserialize the originator address. More...

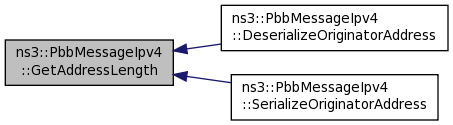

virtual PbbAddressLength	GetAddressLength (void) const
	Returns address length (IPV4 3 or IPV6 15) More...

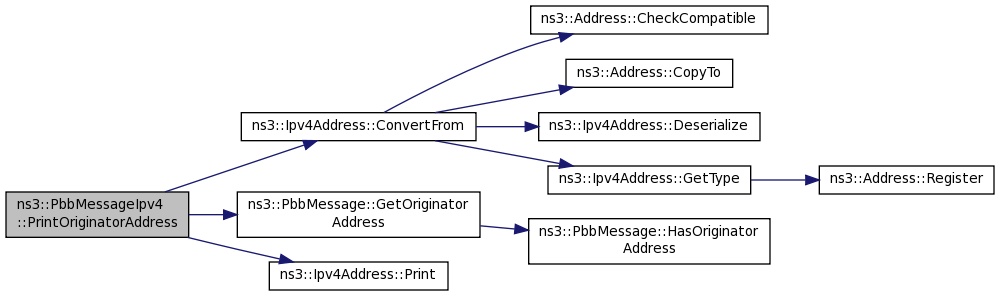

virtual void	PrintOriginatorAddress (std::ostream &os) const
	Print the originator address. More...

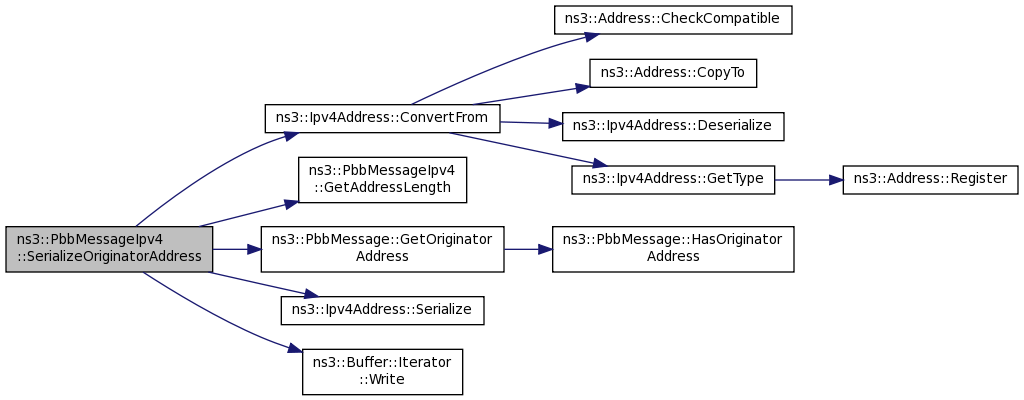

virtual void	SerializeOriginatorAddress (Buffer::Iterator &start) const
	Serialize the originator address. More...

Additional Inherited Members
Public Types inherited from ns3::PbbMessage
typedef std::list< Ptr < PbbAddressBlock > >::iterator	AddressBlockIterator
	PbbAddressBlock iterator. More...

typedef std::list< Ptr < PbbAddressBlock > >::const_iterator	ConstAddressBlockIterator
	PbbAddressBlock const iterator. More...

typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
	PbbTlv const iterator. More...

typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator
	PbbTlv iterator. More...

Static Public Member Functions inherited from ns3::PbbMessage
static Ptr< PbbMessage >	DeserializeMessage (Buffer::Iterator &start)
	Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< PbbMessage >
static void	Cleanup (void)
	Noop. More...
