A class that wraps a PcapFile as an ns3::Object and provides a higher-layer ns-3 interface to the low-level public methods of PcapFile. More...

#include <pcap-file-wrapper.h>

Inheritance diagram for ns3::PcapFileWrapper:

Collaboration diagram for ns3::PcapFileWrapper:

Public Member Functions
	PcapFileWrapper ()

	~PcapFileWrapper ()

void	Clear (void)
	Clear all state bits of the underlying iostream. More...

void	Close (void)
	Close the underlying pcap file. More...

bool	Eof (void) const

bool	Fail (void) const

uint32_t	GetDataLinkType (void)
	Returns the data link type field of the pcap file as defined by the network field in the pcap global header. More...

uint32_t	GetMagic (void)
	Returns the magic number of the pcap file as defined by the magic_number field in the pcap global header. More...

uint32_t	GetSigFigs (void)
	Returns the accuracy of timestamps field of the pcap file as defined by the sigfigs field in the pcap global header. More...

uint32_t	GetSnapLen (void)
	Returns the max length of saved packets field of the pcap file as defined by the snaplen field in the pcap global header. More...

int32_t	GetTimeZoneOffset (void)
	Returns the time zone offset of the pcap file as defined by the thiszone field in the pcap global header. More...

uint16_t	GetVersionMajor (void)
	Returns the major version of the pcap file as defined by the version_major field in the pcap global header. More...

uint16_t	GetVersionMinor (void)
	Returns the minor version of the pcap file as defined by the version_minor field in the pcap global header. More...

void	Init (uint32_t dataLinkType, uint32_t snapLen=std::numeric_limits< uint32_t >::max(), int32_t tzCorrection=PcapFile::ZONE_DEFAULT)
	Initialize the pcap file associated with this wrapper. More...

void	Open (std::string const &filename, std::ios::openmode mode)
	Create a new pcap file or open an existing pcap file. More...

void	Write (Time t, Ptr< const Packet > p)
	Write the next packet to file. More...

void	Write (Time t, Header &header, Ptr< const Packet > p)
	Write the provided header along with the packet to the pcap file. More...

void	Write (Time t, uint8_t const *buffer, uint32_t length)
	Write the provided data buffer to the pcap file. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
PcapFile	m_file
	Pcap file. More...

uint32_t	m_snapLen
	max length of saved packets More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

A class that wraps a PcapFile as an ns3::Object and provides a higher-layer ns-3 interface to the low-level public methods of PcapFile.

Doxygen introspection did not find any typical Config paths.

Users are encouraged to use this object instead of class ns3::PcapFile in ns-3 public APIs.

Attributes

CaptureSize: Maximum length of captured packets (cf. pcap snaplen)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:65535
- Initial value: 65535
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 39 of file pcap-file-wrapper.h.

Constructor & Destructor Documentation

ns3::PcapFileWrapper::PcapFileWrapper ( )

Definition at line 47 of file pcap-file-wrapper.cc.

References NS_LOG_FUNCTION.

ns3::PcapFileWrapper::~PcapFileWrapper ( )

Definition at line 52 of file pcap-file-wrapper.cc.

References Close(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

void ns3::PcapFileWrapper::Clear ( void )

Clear all state bits of the underlying iostream.

Definition at line 72 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Clear(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PcapFileWrapper::Close ( void )

Close the underlying pcap file.

Definition at line 79 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Close(), m_file, and NS_LOG_FUNCTION.

Referenced by ~PcapFileWrapper().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PcapFileWrapper::Eof ( void ) const

Returns: true if the 'eof' bit is set in the underlying iostream, false otherwise.

Definition at line 66 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Eof(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::PcapFileWrapper::Fail ( void ) const

Returns: true if the 'fail' bit is set in the underlying iostream, false otherwise.

Definition at line 60 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Fail(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::PcapFileWrapper::GetDataLinkType ( void )

Returns the data link type field of the pcap file as defined by the network field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: data link type field

Definition at line 187 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetDataLinkType(), m_file, and NS_LOG_FUNCTION.

Referenced by ns3::PcapSniffRxEvent(), and ns3::PcapSniffTxEvent().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::PcapFileWrapper::GetMagic ( void )

Returns the magic number of the pcap file as defined by the magic_number field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: magic number

Definition at line 145 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetMagic(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::PcapFileWrapper::GetSigFigs ( void )

Returns the accuracy of timestamps field of the pcap file as defined by the sigfigs field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: accuracy of timestamps

Definition at line 173 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetSigFigs(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::PcapFileWrapper::GetSnapLen ( void )

Returns the max length of saved packets field of the pcap file as defined by the snaplen field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: max length of saved packets field

Definition at line 180 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetSnapLen(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

int32_t ns3::PcapFileWrapper::GetTimeZoneOffset ( void )

Returns the time zone offset of the pcap file as defined by the thiszone field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: time zone offset

Definition at line 166 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetTimeZoneOffset(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::PcapFileWrapper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 32 of file pcap-file-wrapper.cc.

References m_snapLen, ns3::TypeId::SetParent(), and ns3::PcapFile::SNAPLEN_DEFAULT.

Here is the call graph for this function:

uint16_t ns3::PcapFileWrapper::GetVersionMajor ( void )

Returns the major version of the pcap file as defined by the version_major field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: major version

Definition at line 152 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetVersionMajor(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::PcapFileWrapper::GetVersionMinor ( void )

Returns the minor version of the pcap file as defined by the version_minor field in the pcap global header.

See http://wiki.wireshark.org/Development/LibpcapFileFormat

Returns: minor version

Definition at line 159 of file pcap-file-wrapper.cc.

References ns3::PcapFile::GetVersionMinor(), m_file, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PcapFileWrapper::Init	(	uint32_t	dataLinkType,
		uint32_t	snapLen = `std::numeric_limits<uint32_t>::max ()`,
		int32_t	tzCorrection = `PcapFile::ZONE_DEFAULT`
	)

Initialize the pcap file associated with this wrapper.

This file must have been previously opened with write permissions.

Parameters

dataLinkType	A data link type as defined in the pcap library. If you want to make resulting pcap files visible in existing tools, the data link type must match existing definitions, such as PCAP_ETHERNET, PCAP_PPP, PCAP_80211, etc. If you are storing different kinds of packet data, such as naked TCP headers, you are at liberty to locally define your own data link types. According to the pcap-linktype man page, "well-known" pcap linktypes range from 0 to 177. If you use a large random number for your type, chances are small for a collision.
snapLen	An optional maximum size for packets written to the file. Defaults to 65535. If packets exceed this length they are truncated.
tzCorrection	An integer describing the offset of your local time zone from UTC/GMT. For example, Pacific Standard Time in the US is GMT-8, so one would enter -8 for that correction. Defaults to 0 (UTC).

Warning: Calling this method on an existing file will result in the loss any existing data.

Definition at line 93 of file pcap-file-wrapper.cc.

References ns3::PcapFile::Init(), m_file, m_snapLen, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PcapFileWrapper::Open	(	std::string const &	filename,
		std::ios::openmode	mode
	)

Create a new pcap file or open an existing pcap file.

Semantics are similar to the stdc++ io stream classes.

Since a pcap file is always a binary file, the file type is automatically selected as a binary file (fstream::binary is automatically ored with the mode field).

Parameters

filename	String containing the name of the file.
mode	String containing the access mode for the file.

Definition at line 86 of file pcap-file-wrapper.cc.

References m_file, NS_LOG_FUNCTION, and ns3::PcapFile::Open().

Here is the call graph for this function:

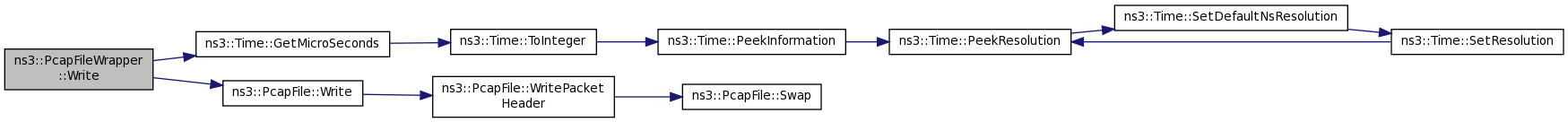

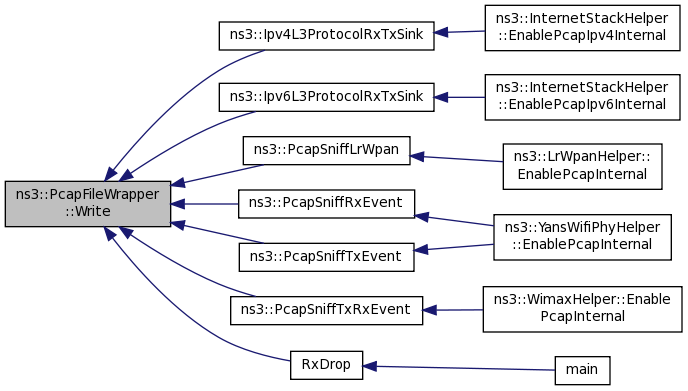

void ns3::PcapFileWrapper::Write	(	Time	t,
		Ptr< const Packet >	p
	)

Write the next packet to file.

Parameters

t	Packet timestamp as ns3::Time.
p	Packet to write to the pcap file.

Definition at line 112 of file pcap-file-wrapper.cc.

References current, ns3::Time::GetMicroSeconds(), m_file, NS_LOG_FUNCTION, s, and ns3::PcapFile::Write().

Referenced by ns3::Ipv4L3ProtocolRxTxSink(), ns3::Ipv6L3ProtocolRxTxSink(), ns3::PcapSniffLrWpan(), ns3::PcapSniffRxEvent(), ns3::PcapSniffTxEvent(), ns3::PcapSniffTxRxEvent(), and RxDrop().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PcapFileWrapper::Write	(	Time	t,
		Header &	header,
		Ptr< const Packet >	p
	)

Write the provided header along with the packet to the pcap file.

It is the case that adding a header to a packet prior to writing it to a file must trigger a deep copy in the Packet. By providing the header separately, we can avoid that copy.

Parameters
