ns3::PdcpTag Class Reference

Tag to calculate the per-PDU delay from eNb PDCP to UE PDCP. More...

#include <lte-pdcp-tag.h>

+ Inheritance diagram for ns3::PdcpTag:

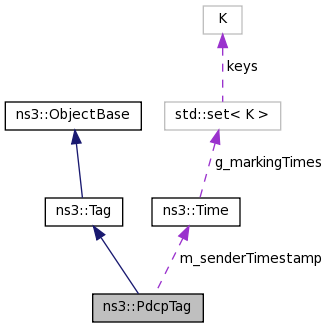

+ Collaboration diagram for ns3::PdcpTag:

Public Member Functions

 PdcpTag ()
 Create an empty PDCP tag. More...

 PdcpTag (Time senderTimestamp)
 Create an PDCP tag with the given senderTimestamp. More...

virtual void Deserialize (TagBuffer i)

virtual TypeId GetInstanceTypeId (void) const

Time GetSenderTimestamp (void) const
 Get the instant when the PDCP delivers the PDU to the MAC SAP provider. More...

virtual uint32_t GetSerializedSize () const

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void SetSenderTimestamp (Time senderTimestamp)
 Set the sender timestamp. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Time m_senderTimestamp


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Tag to calculate the per-PDU delay from eNb PDCP to UE PDCP.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 37 of file lte-pdcp-tag.h.

Constructor & Destructor Documentation

ns3::PdcpTag::PdcpTag ( )

Create an empty PDCP tag.

Definition at line 30 of file lte-pdcp-tag.cc.

ns3::PdcpTag::PdcpTag ( Time  senderTimestamp)

Create an PDCP tag with the given senderTimestamp.

Definition at line 37 of file lte-pdcp-tag.cc.

Member Function Documentation

void ns3::PdcpTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 73 of file lte-pdcp-tag.cc.

References m_senderTimestamp, and ns3::TagBuffer::Read().

+ Here is the call graph for this function:

TypeId ns3::PdcpTag::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 54 of file lte-pdcp-tag.cc.

References GetTypeId().

+ Here is the call graph for this function:

Time ns3::PdcpTag::GetSenderTimestamp ( void  ) const

Get the instant when the PDCP delivers the PDU to the MAC SAP provider.

Returns
the sender timestamp

Definition at line 88 of file lte-pdcp-tag.cc.

References m_senderTimestamp.

uint32_t ns3::PdcpTag::GetSerializedSize ( ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 60 of file lte-pdcp-tag.cc.

TypeId ns3::PdcpTag::GetTypeId ( void  )
static

Definition at line 45 of file lte-pdcp-tag.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::PdcpTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 82 of file lte-pdcp-tag.cc.

References m_senderTimestamp.

void ns3::PdcpTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 66 of file lte-pdcp-tag.cc.

References ns3::Time::GetNanoSeconds(), m_senderTimestamp, and ns3::TagBuffer::Write().

+ Here is the call graph for this function:

void ns3::PdcpTag::SetSenderTimestamp ( Time  senderTimestamp)

Set the sender timestamp.

Parameters
senderTimestamptime stamp of the instant when the PDCP delivers the PDU to the MAC SAP provider

Definition at line 94 of file lte-pdcp-tag.cc.

References m_senderTimestamp.

Member Data Documentation

Time ns3::PdcpTag::m_senderTimestamp
private

Definition at line 70 of file lte-pdcp-tag.h.

Referenced by Deserialize(), GetSenderTimestamp(), Print(), Serialize(), and SetSenderTimestamp().


The documentation for this class was generated from the following files:
