Takes care of storing the information generated at PHY layer regarding transmission. More...

#include <phy-tx-stats-calculator.h>

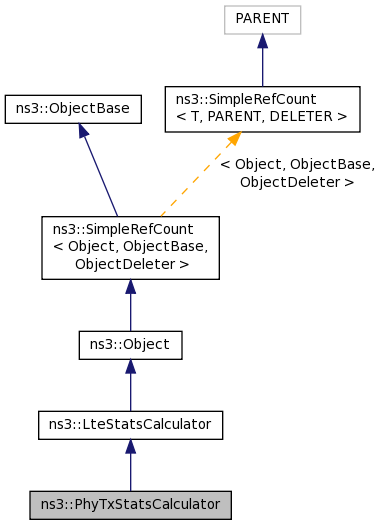

Inheritance diagram for ns3::PhyTxStatsCalculator:

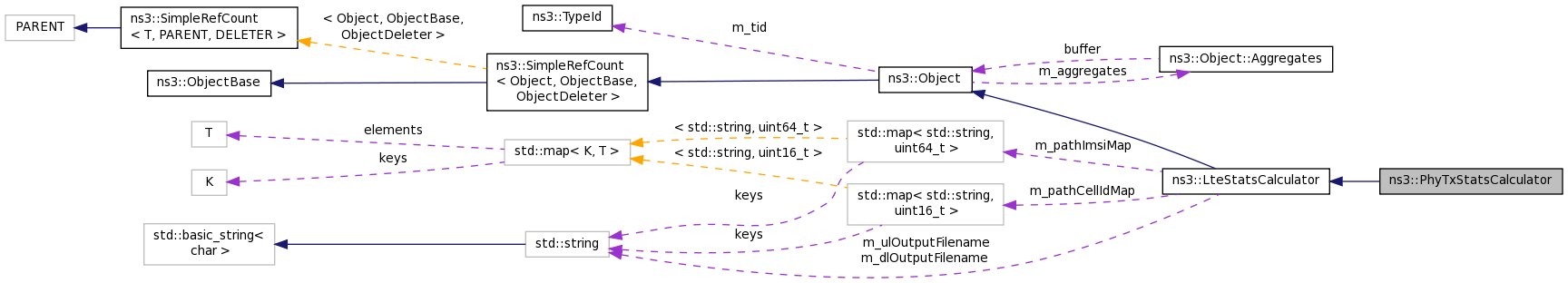

Collaboration diagram for ns3::PhyTxStatsCalculator:

Public Member Functions
	PhyTxStatsCalculator ()
	Constructor. More...

virtual	~PhyTxStatsCalculator ()
	Destructor. More...

void	DlPhyTransmission (PhyTransmissionStatParameters params)
	Notifies the stats calculator that an downlink trasmission has occurred. More...

std::string	GetDlTxOutputFilename (void)
	Get the name of the file where the DL TX PHY statistics will be stored. More...

std::string	GetUlTxOutputFilename (void)
	Get the name of the file where the UL RX PHY statistics will be stored. More...

void	SetDlTxOutputFilename (std::string outputFilename)
	Set the name of the file where the DL TX PHY statistics will be stored. More...

void	SetUlTxOutputFilename (std::string outputFilename)
	Set the name of the file where the UL Tx PHY statistics will be stored. More...

void	UlPhyTransmission (PhyTransmissionStatParameters params)
	Notifies the stats calculator that an uplink trasmission has occurred. More...

Public Member Functions inherited from ns3::LteStatsCalculator
	LteStatsCalculator ()
	Constructor. More...

virtual	~LteStatsCalculator ()
	Destructor. More...

bool	ExistsCellIdPath (std::string path)
	Checks if there is an already stored cell id for the given path. More...

bool	ExistsImsiPath (std::string path)
	Checks if there is an already stored IMSI for the given path. More...

uint16_t	GetCellIdPath (std::string path)
	Retrieves the cell id information for the given path. More...

std::string	GetDlOutputFilename (void)
	Get the name of the file where the downlink statistics will be stored. More...

uint64_t	GetImsiPath (std::string path)
	Retrieves the imsi information for the given path. More...

std::string	GetUlOutputFilename (void)
	Get the name of the file where the uplink statistics will be stored. More...

void	SetCellIdPath (std::string path, uint16_t cellId)
	Stores the (path, cellId) pairs in a map. More...

void	SetDlOutputFilename (std::string outputFilename)
	Set the name of the file where the downlink statistics will be stored. More...

void	SetImsiPath (std::string path, uint64_t imsi)
	Stores the (path, imsi) pairs in a map. More...

void	SetUlOutputFilename (std::string outputFilename)
	Set the name of the file where the uplink statistics will be stored. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static void	DlPhyTransmissionCallback (Ptr< PhyTxStatsCalculator > phyTxStats, std::string path, PhyTransmissionStatParameters params)
	trace sink More...

static TypeId	GetTypeId (void)

static void	UlPhyTransmissionCallback (Ptr< PhyTxStatsCalculator > phyTxStats, std::string path, PhyTransmissionStatParameters params)
	trace sink More...

Static Public Member Functions inherited from ns3::LteStatsCalculator
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_dlTxFirstWrite

bool	m_ulTxFirstWrite

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Static Protected Member Functions inherited from ns3::LteStatsCalculator
static uint16_t	FindCellIdFromEnbMac (std::string path, uint16_t rnti)

static uint16_t	FindCellIdFromEnbRlcPath (std::string path)

static uint64_t	FindImsiForEnb (std::string path, uint16_t rnti)

static uint64_t	FindImsiForUe (std::string path, uint16_t rnti)

static uint64_t	FindImsiFromEnbMac (std::string path, uint16_t rnti)

static uint64_t	FindImsiFromEnbRlcPath (std::string path)

static uint64_t	FindImsiFromLteNetDevice (std::string path)

static uint64_t	FindImsiFromUePhy (std::string path)

Detailed Description

Takes care of storing the information generated at PHY layer regarding transmission.

Doxygen introspection did not find any typical Config paths.

Metrics saved are:

Timestamp (in seconds)
Frame index
Subframe index
C-RNTI
MCS for transport block 1
Size of transport block 1
MCS for transport block 2 (0 if not used)
Size of transport block 2 (0 if not used)

Attributes

DlTxOutputFilename: Name of the file where the downlink results will be saved.
- Set with class: StringValue
- Underlying type:
- Initial value: DlTxPhyStats.txt
- Flags: construct write
UlTxOutputFilename: Name of the file where the uplink results will be saved.
- Set with class: StringValue
- Underlying type:
- Initial value: UlTxPhyStats.txt
- Flags: construct write

No TraceSources are defined for this type.

Definition at line 50 of file phy-tx-stats-calculator.h.

Constructor & Destructor Documentation

ns3::PhyTxStatsCalculator::PhyTxStatsCalculator ( )

Constructor.

Definition at line 34 of file phy-tx-stats-calculator.cc.

References NS_LOG_FUNCTION.

ns3::PhyTxStatsCalculator::~PhyTxStatsCalculator ( )

virtual

Destructor.

Definition at line 42 of file phy-tx-stats-calculator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::PhyTxStatsCalculator::DlPhyTransmission ( PhyTransmissionStatParameters params )

Notifies the stats calculator that an downlink trasmission has occurred.

Parameters

params Trace information regarding PHY transmission stats

Definition at line 92 of file phy-tx-stats-calculator.cc.

Here is the call graph for this function:

void ns3::PhyTxStatsCalculator::DlPhyTransmissionCallback	(	Ptr< PhyTxStatsCalculator >	phyTxStats,
		std::string	path,
		PhyTransmissionStatParameters	params
	)

static

trace sink

Parameters

phyTxStats
path
params

Definition at line 180 of file phy-tx-stats-calculator.cc.

References ns3::LteStatsCalculator::FindImsiForEnb(), ns3::PhyTransmissionStatParameters::m_imsi, ns3::PhyTransmissionStatParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::EnableDlTxPhyTraces().

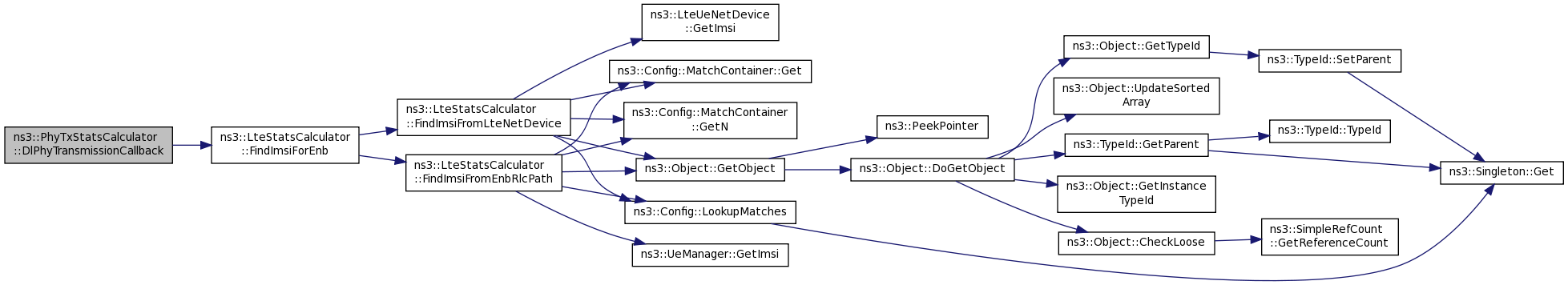

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::PhyTxStatsCalculator::GetDlTxOutputFilename ( void )

Get the name of the file where the DL TX PHY statistics will be stored.

Returns: the name of the file where the DL TX PHY statistics will be stored

Definition at line 86 of file phy-tx-stats-calculator.cc.

References ns3::LteStatsCalculator::GetDlOutputFilename().

Referenced by DlPhyTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::PhyTxStatsCalculator::GetTypeId ( void )

static

Definition at line 48 of file phy-tx-stats-calculator.cc.

References SetDlTxOutputFilename(), ns3::TypeId::SetParent(), and SetUlTxOutputFilename().

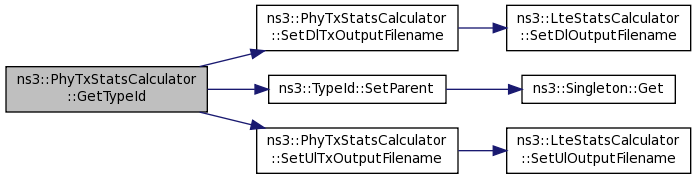

Here is the call graph for this function:

std::string ns3::PhyTxStatsCalculator::GetUlTxOutputFilename ( void )

Get the name of the file where the UL RX PHY statistics will be stored.

Returns: the name of the file where the UL RX PHY statistics will be stored

Definition at line 74 of file phy-tx-stats-calculator.cc.

References ns3::LteStatsCalculator::GetUlOutputFilename().

Referenced by UlPhyTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PhyTxStatsCalculator::SetDlTxOutputFilename ( std::string outputFilename )

Set the name of the file where the DL TX PHY statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 80 of file phy-tx-stats-calculator.cc.

References ns3::LteStatsCalculator::SetDlOutputFilename().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PhyTxStatsCalculator::SetUlTxOutputFilename ( std::string outputFilename )

Set the name of the file where the UL Tx PHY statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 68 of file phy-tx-stats-calculator.cc.

References ns3::LteStatsCalculator::SetUlOutputFilename().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PhyTxStatsCalculator::UlPhyTransmission ( PhyTransmissionStatParameters params )

Notifies the stats calculator that an uplink trasmission has occurred.

Parameters

params Trace information regarding PHY transmission stats

Definition at line 136 of file phy-tx-stats-calculator.cc.

Here is the call graph for this function:

void ns3::PhyTxStatsCalculator::UlPhyTransmissionCallback	(	Ptr< PhyTxStatsCalculator >	phyTxStats,
		std::string	path,
		PhyTransmissionStatParameters	params
	)
