ns3::RandomRoomPositionAllocator Class Reference

Allocate each position by randomly chosing a room from the list of all buildings, and then randomly chosing a position inside the room. More...

#include <building-position-allocator.h>

+ Inheritance diagram for ns3::RandomRoomPositionAllocator:
+ Collaboration diagram for ns3::RandomRoomPositionAllocator:

Classes

struct  RoomInfo


Public Member Functions

 RandomRoomPositionAllocator ()

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

virtual Vector GetNext (void) const

- Public Member Functions inherited from ns3::PositionAllocator
 PositionAllocator ()

virtual ~PositionAllocator ()

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Ptr< UniformRandomVariablem_rand
 Provides uniform random variables. More...

std::vector< RoomInfom_roomListWithoutReplacement


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Allocate each position by randomly chosing a room from the list of all buildings, and then randomly chosing a position inside the room.

The selection of the room is always done without replacement.

Config Paths

ns3::RandomRoomPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRoomPositionAllocator

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 76 of file building-position-allocator.h.

Constructor & Destructor Documentation

RandomRoomPositionAllocator::RandomRoomPositionAllocator ( )

Definition at line 110 of file building-position-allocator.cc.

References m_rand.

Member Function Documentation

int64_t RandomRoomPositionAllocator::AssignStreams ( int64_t  stream)
virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 185 of file building-position-allocator.cc.

References m_rand, and ns3::RandomVariableStream::SetStream().

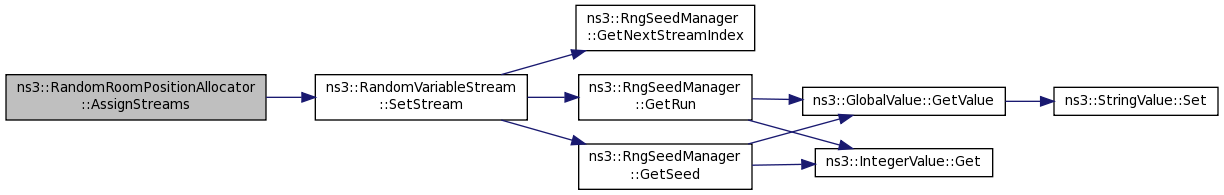

+ Here is the call graph for this function:

TypeId RandomRoomPositionAllocator::GetTypeId ( void  )
static

Definition at line 116 of file building-position-allocator.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

Member Data Documentation

Ptr<UniformRandomVariable> ns3::RandomRoomPositionAllocator::m_rand
private

Provides uniform random variables.

Definition at line 109 of file building-position-allocator.h.

Referenced by AssignStreams(), GetNext(), and RandomRoomPositionAllocator().

std::vector<RoomInfo> ns3::RandomRoomPositionAllocator::m_roomListWithoutReplacement
mutableprivate

Definition at line 106 of file building-position-allocator.h.

Referenced by GetNext().


The documentation for this class was generated from the following files:
