RIPng Routing Protocol, defined in {2080}. More...

#include <ripng.h>

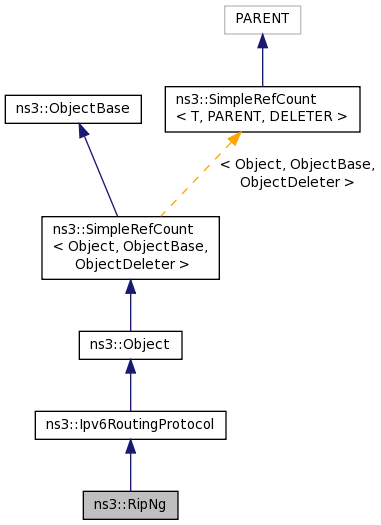

Inheritance diagram for ns3::RipNg:

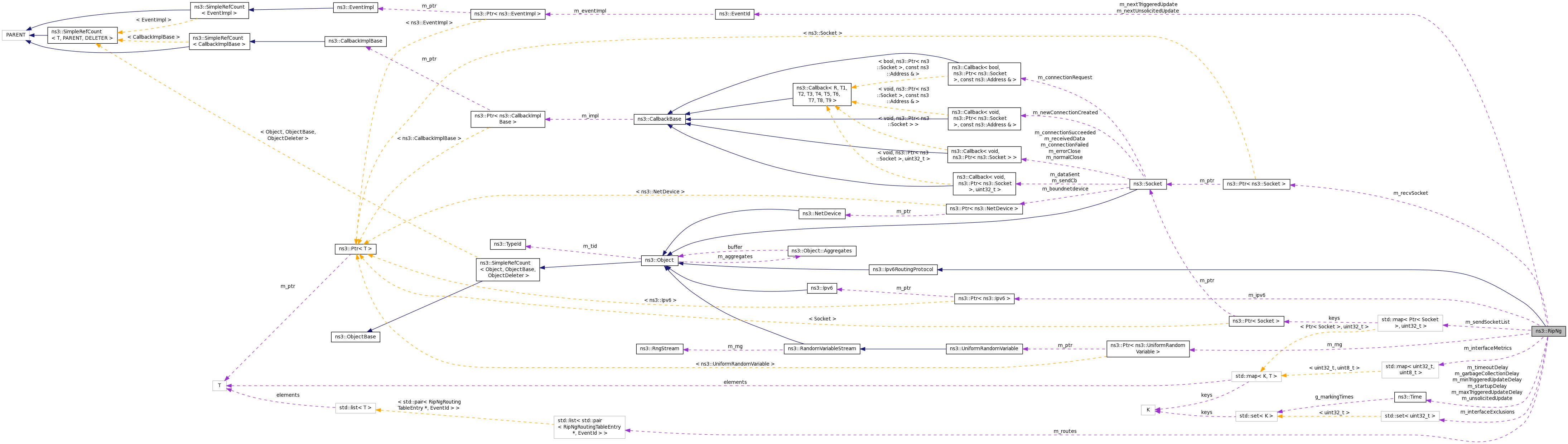

Collaboration diagram for ns3::RipNg:

Public Types
enum	SplitHorizonType_e { NO_SPLIT_HORIZON, SPLIT_HORIZON, POISON_REVERSE }

Public Types inherited from ns3::Ipv6RoutingProtocol
typedef Callback< void, Ptr < const Packet >, const Ipv6Header &, Socket::SocketErrno >	ErrorCallback
	Callback for routing errors (e.g., no route found) More...

typedef Callback< void, Ptr < const Packet >, const Ipv6Header &, uint32_t >	LocalDeliverCallback
	Callback for packets to be locally delivered. More...

typedef Callback< void, Ptr < const NetDevice >, Ptr < Ipv6MulticastRoute >, Ptr < const Packet >, const Ipv6Header & >	MulticastForwardCallback
	Callback for multicast packets to be forwarded. More...

typedef Callback< void, Ptr < const NetDevice >, Ptr < Ipv6Route >, Ptr< const Packet >, const Ipv6Header & >	UnicastForwardCallback
	Callback for unicast packets to be forwarded. More...

Public Member Functions
	RipNg ()

virtual	~RipNg ()

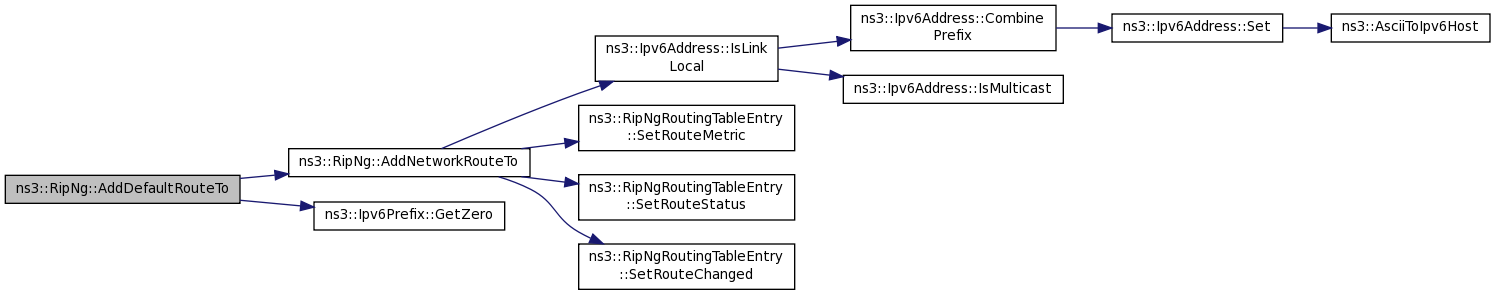

void	AddDefaultRouteTo (Ipv6Address nextHop, uint32_t interface)
	Add a default route to the router through the nextHop located on interface. More...

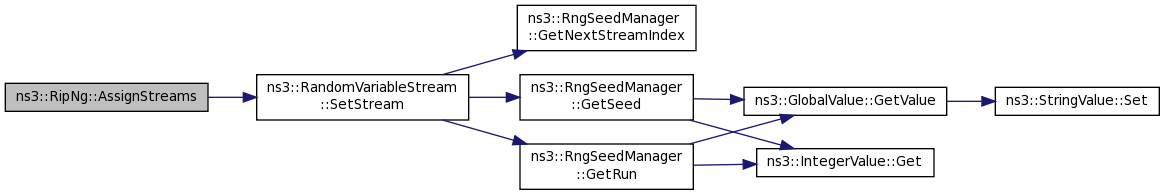

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

std::set< uint32_t >	GetInterfaceExclusions () const
	Get the set of interface excluded from the protocol. More...

uint8_t	GetInterfaceMetric (uint32_t interface) const
	Get the metric for an interface. More...

void	SetInterfaceExclusions (std::set< uint32_t > exceptions)
	Set the set of interface excluded from the protocol. More...

void	SetInterfaceMetric (uint32_t interface, uint8_t metric)
	Set the metric for an interface. More...

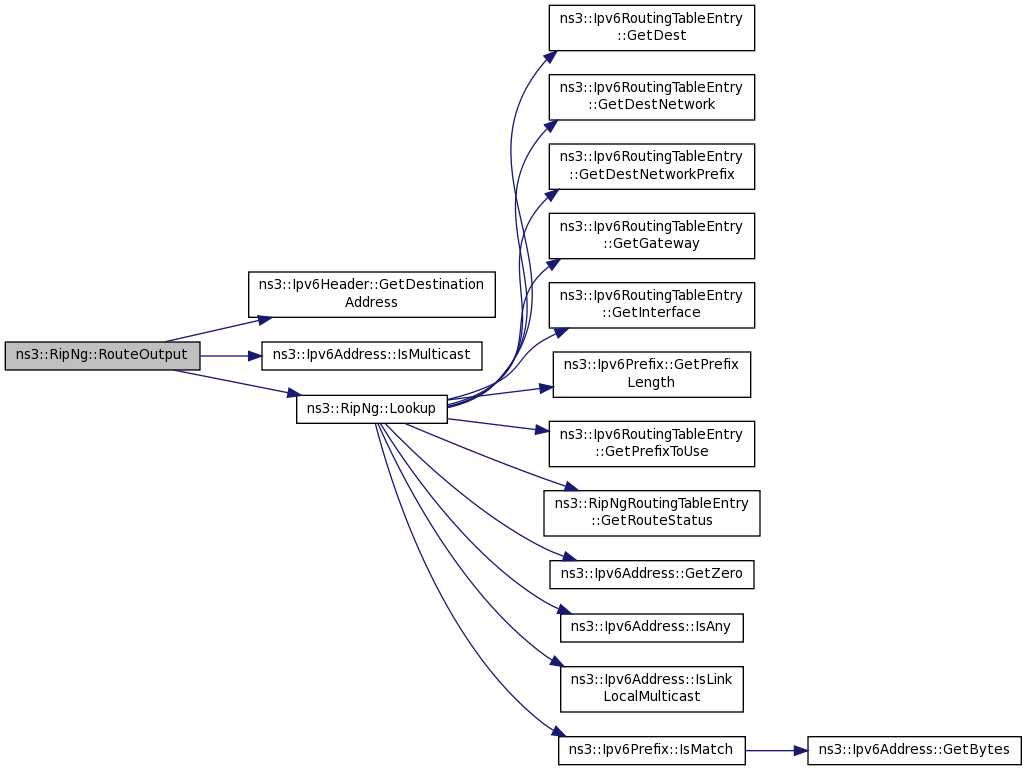

Ptr< Ipv6Route >	RouteOutput (Ptr< Packet > p, const Ipv6Header &header, Ptr< NetDevice > oif, Socket::SocketErrno &sockerr)
	Query routing cache for an existing route, for an outbound packet. More...

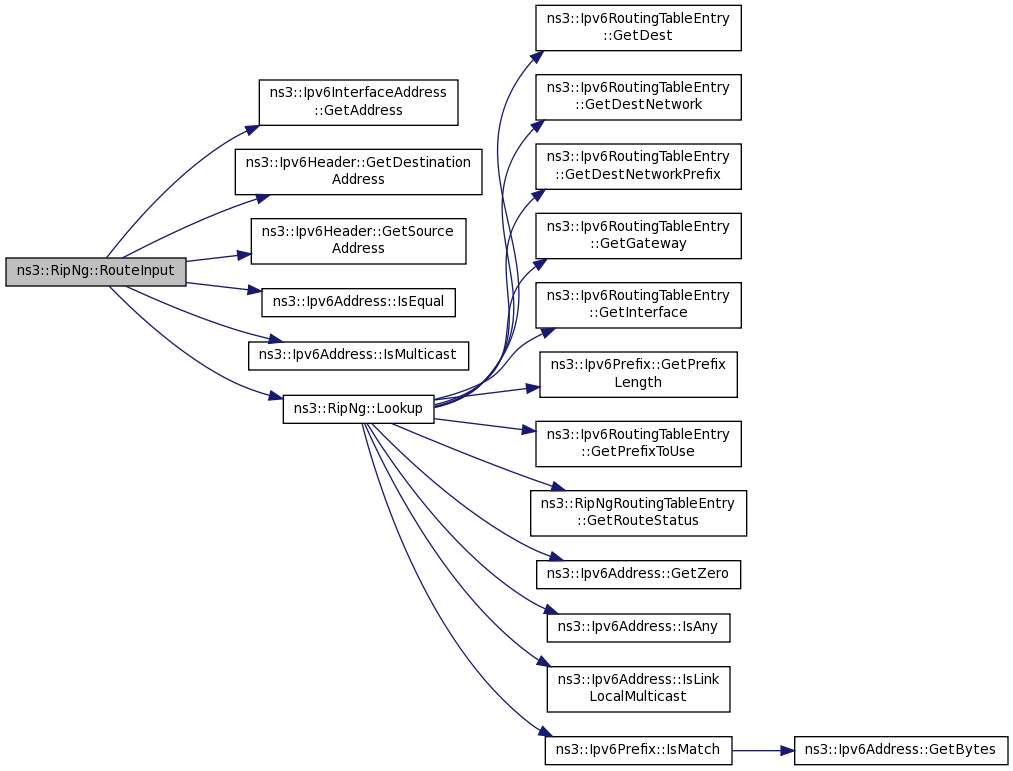

bool	RouteInput (Ptr< const Packet > p, const Ipv6Header &header, Ptr< const NetDevice > idev, UnicastForwardCallback ucb, MulticastForwardCallback mcb, LocalDeliverCallback lcb, ErrorCallback ecb)
	Route an input packet (to be forwarded or locally delivered) More...

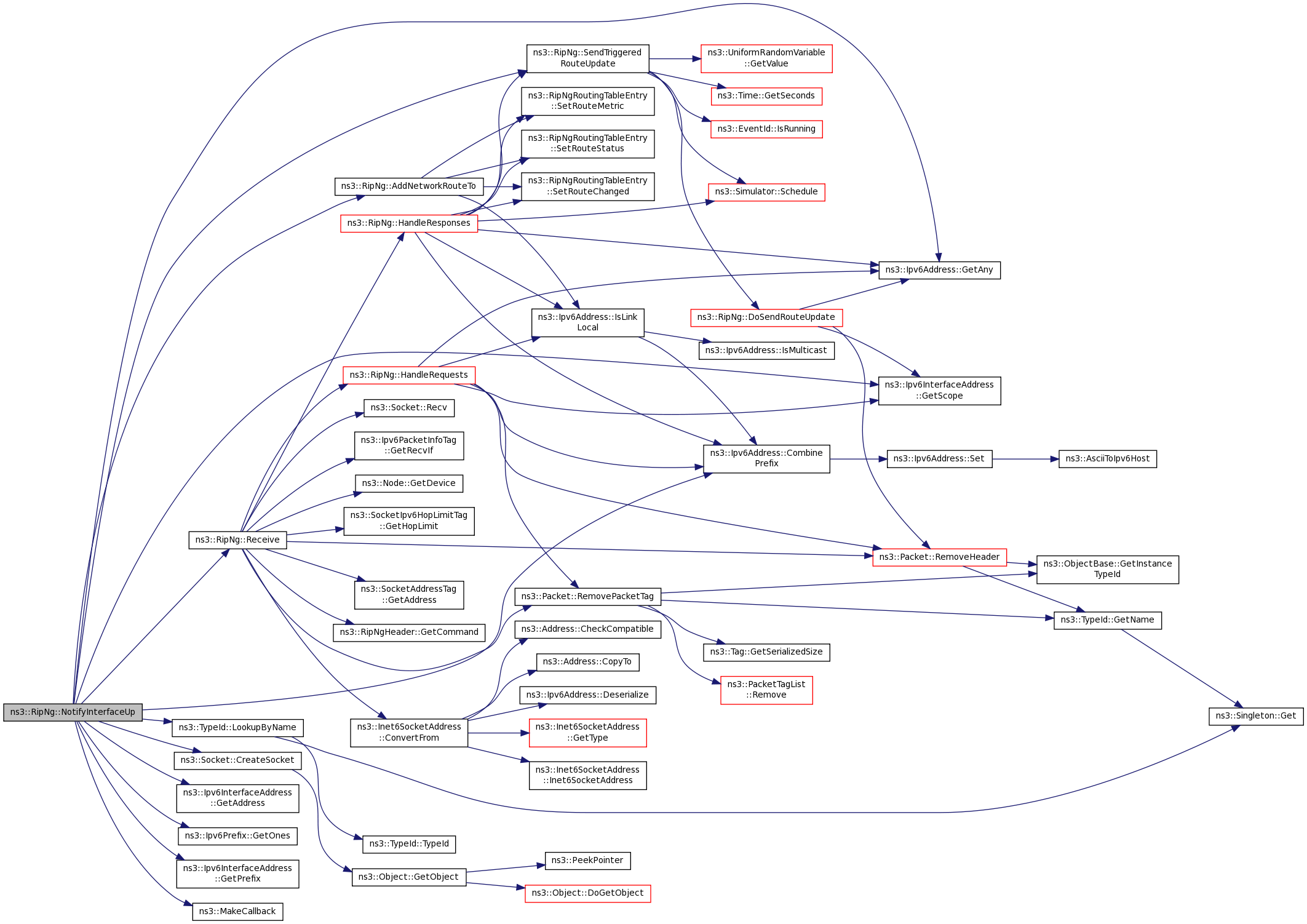

virtual void	NotifyInterfaceUp (uint32_t interface)
	Notify when specified interface goes UP. More...

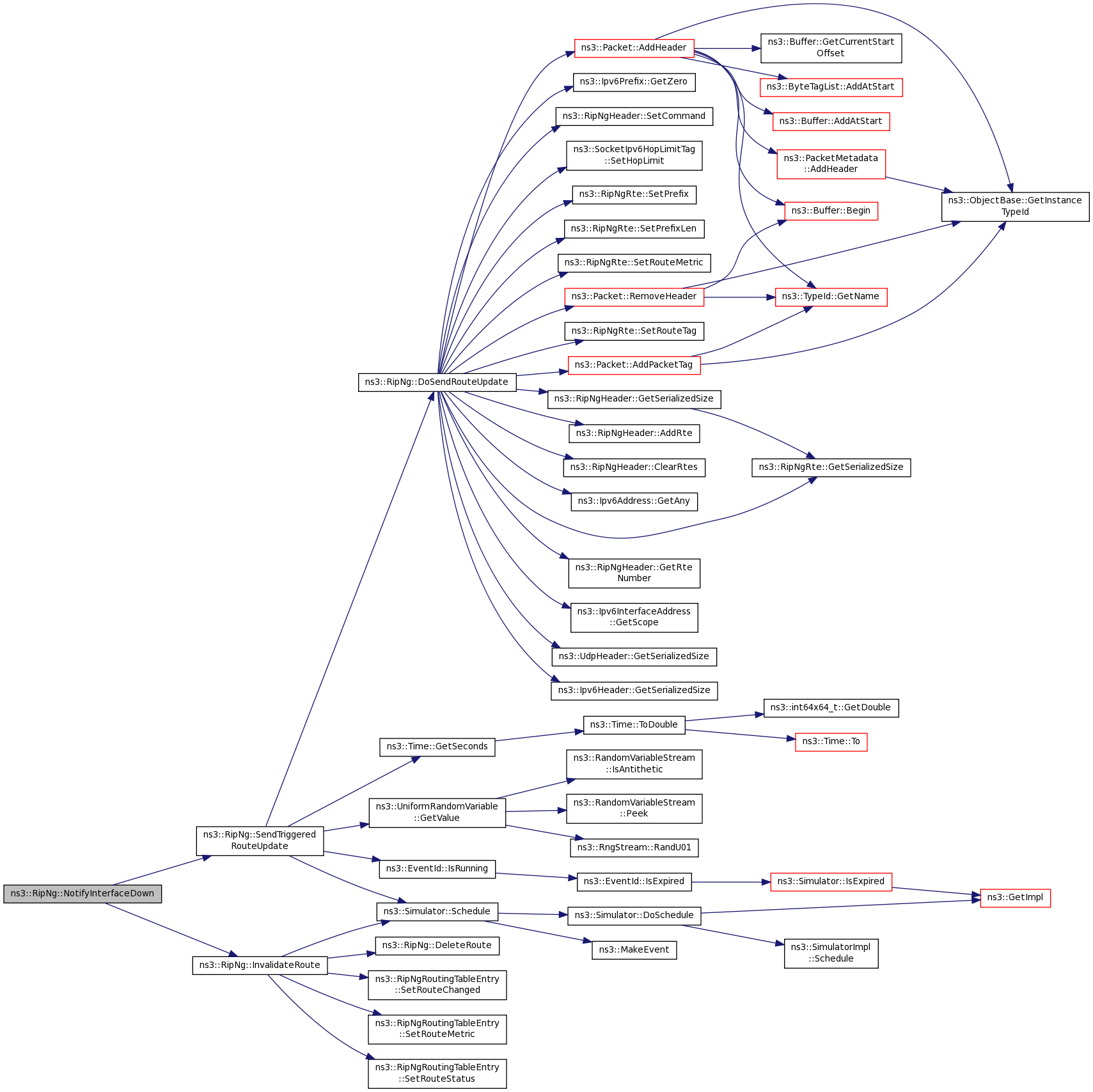

virtual void	NotifyInterfaceDown (uint32_t interface)
	Notify when specified interface goes DOWN. More...

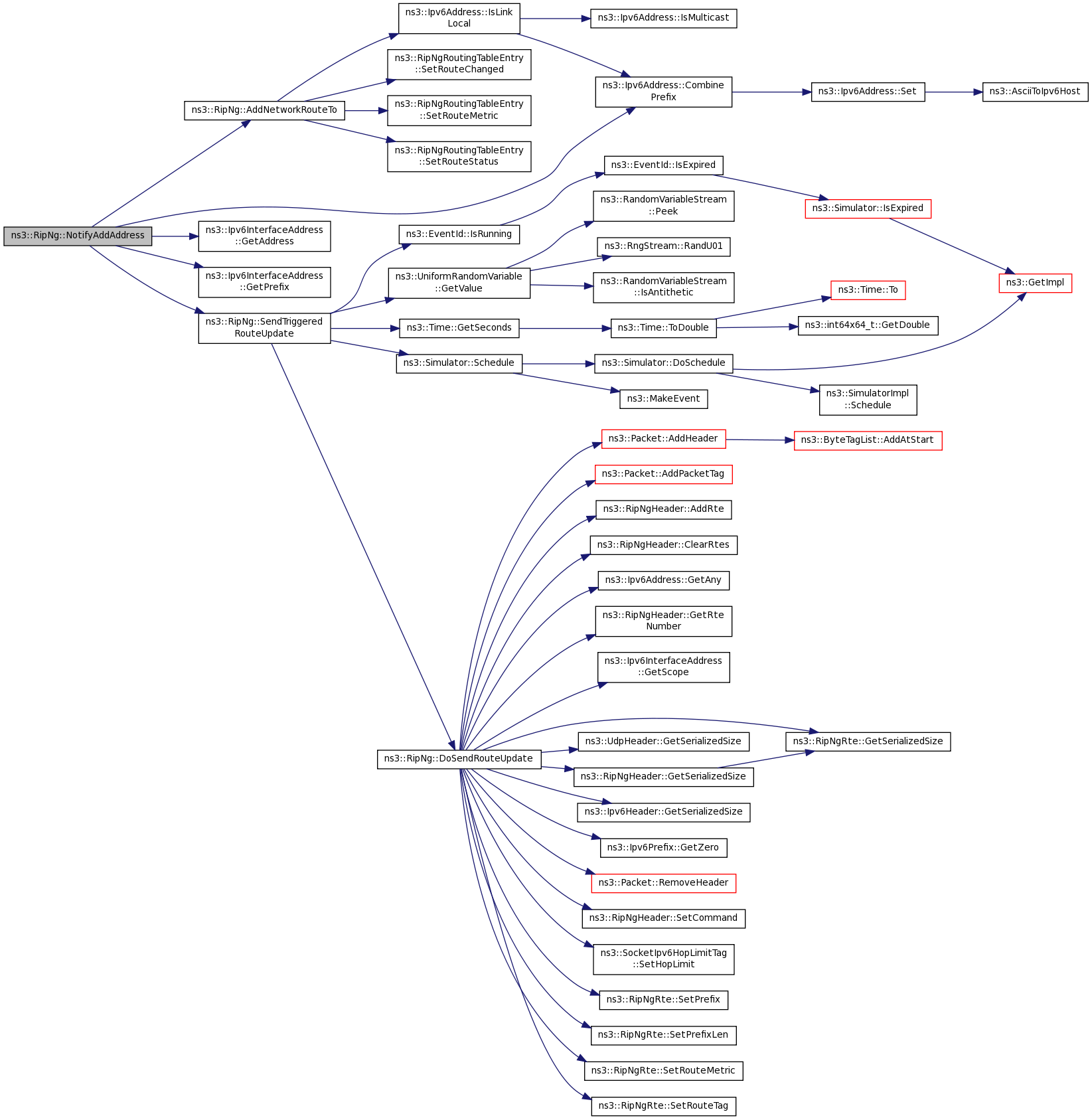

virtual void	NotifyAddAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address. More...

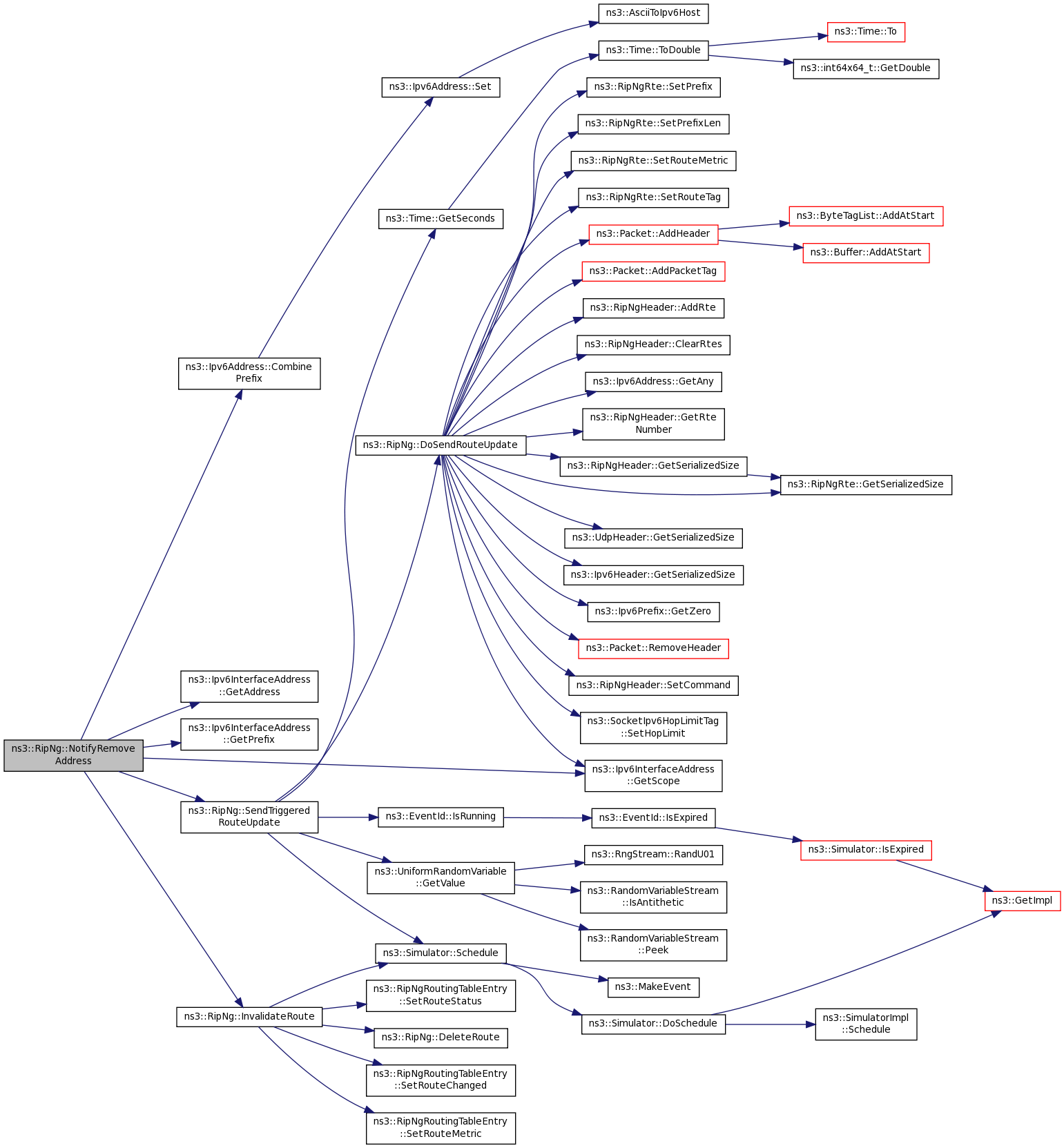

virtual void	NotifyRemoveAddress (uint32_t interface, Ipv6InterfaceAddress address)
	Notify when specified interface add an address. More...

virtual void	NotifyAddRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify a new route. More...

virtual void	NotifyRemoveRoute (Ipv6Address dst, Ipv6Prefix mask, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address::GetZero())
	Notify route removing. More...

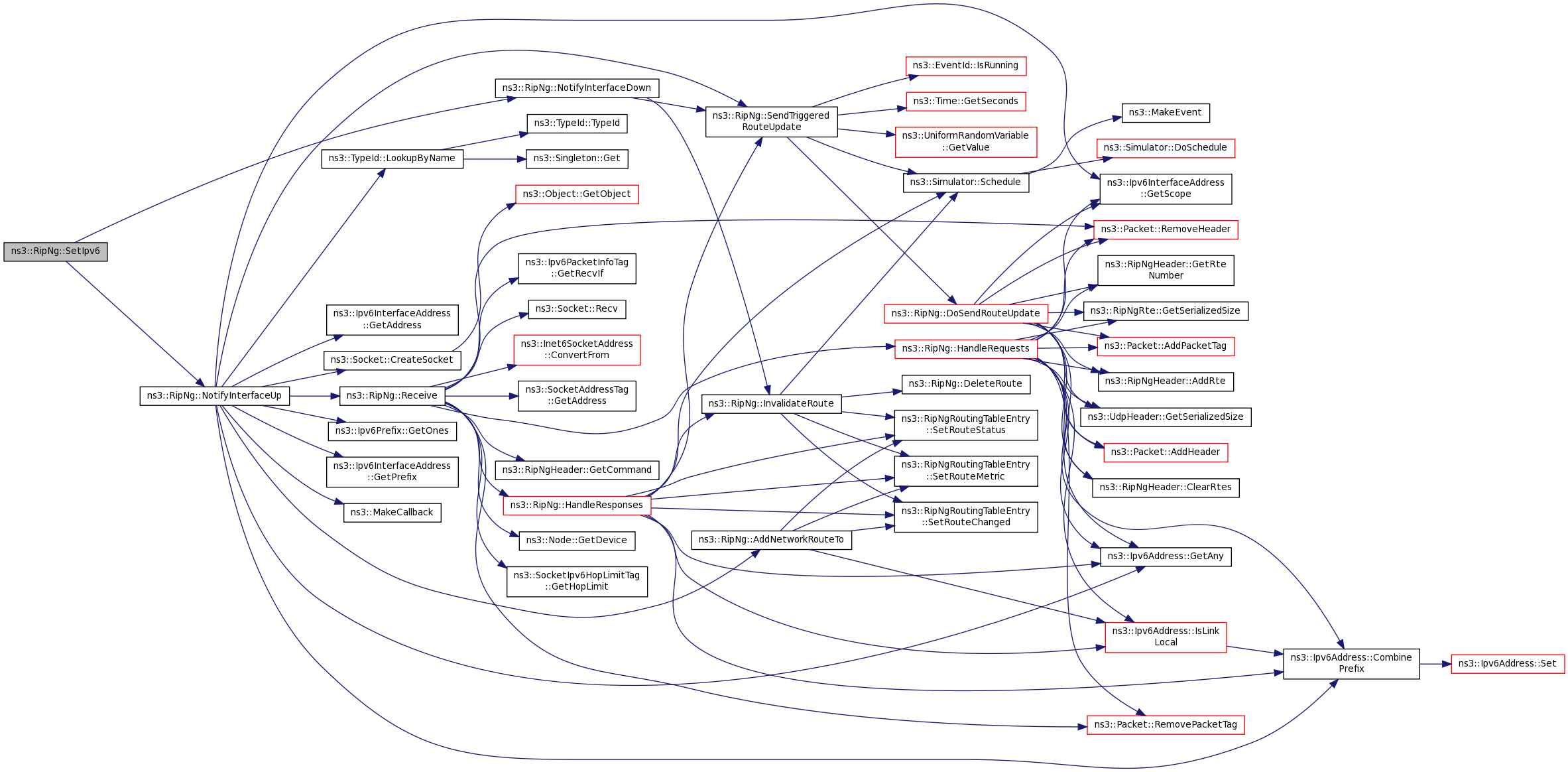

virtual void	SetIpv6 (Ptr< Ipv6 > ipv6)
	Typically, invoked directly or indirectly from ns3::Ipv6::SetRoutingProtocol. More...

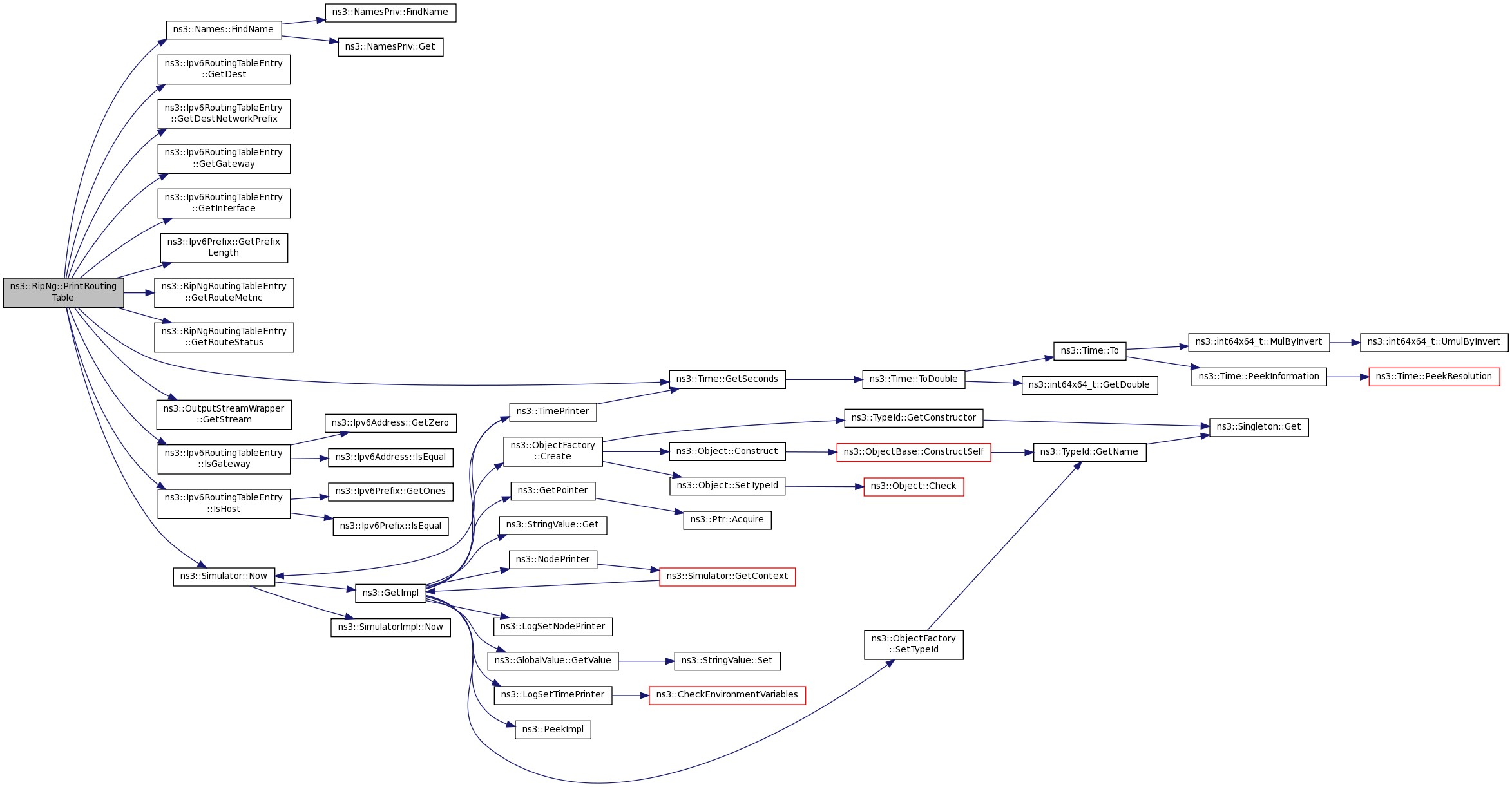

virtual void	PrintRoutingTable (Ptr< OutputStreamWrapper > stream) const
	Print the Routing Table entries. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

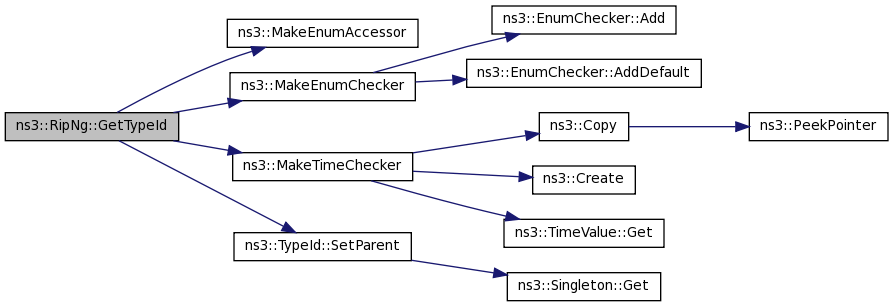

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Ipv6RoutingProtocol
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

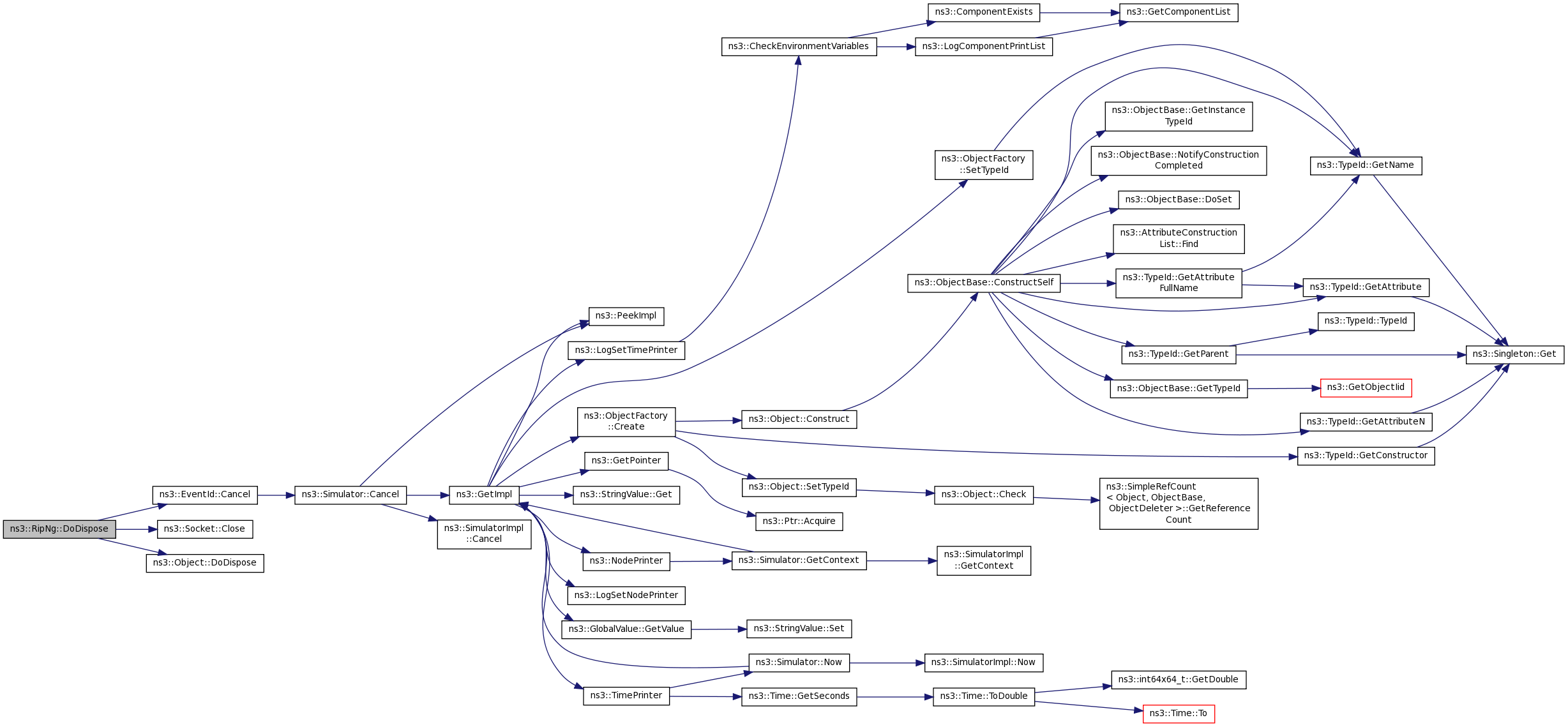

virtual void	DoDispose ()
	Dispose this object. More...

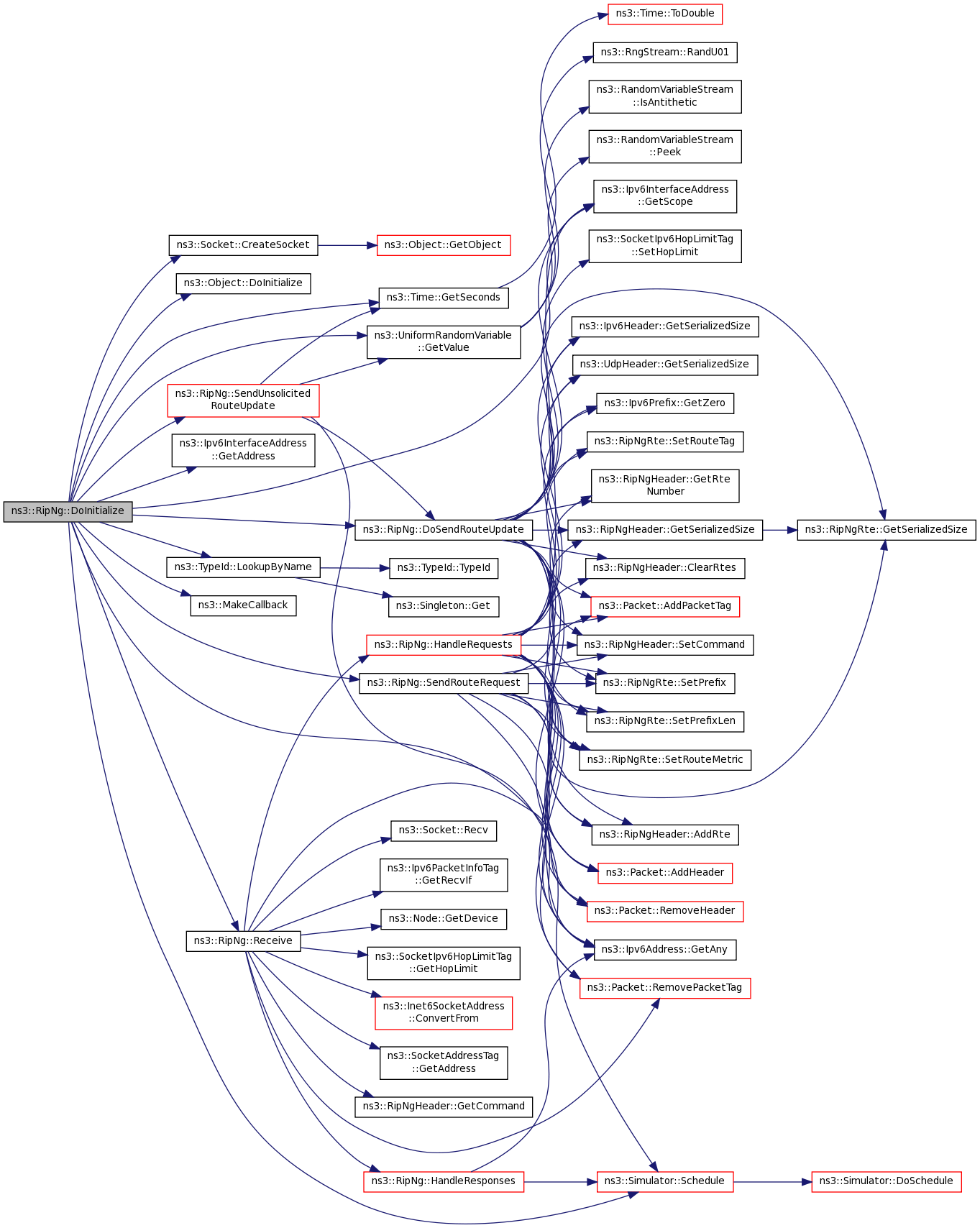

void	DoInitialize ()
	Start protocol operation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Types
typedef std::list< std::pair < RipNgRoutingTableEntry *, EventId > >	Routes
	Container for the network routes - pair RipNgRoutingTableEntry *, EventId (update event) More...

typedef std::list< std::pair < RipNgRoutingTableEntry *, EventId > >::const_iterator	RoutesCI
	Const Iterator for container for the network routes. More...

typedef std::list< std::pair < RipNgRoutingTableEntry *, EventId > >::iterator	RoutesI
	Iterator for container for the network routes. More...

typedef std::map< Ptr< Socket > , uint32_t >	SocketList
	Socket list type. More...

typedef std::map< Ptr< Socket > , uint32_t >::const_iterator	SocketListCI
	Socket list type const iterator. More...

typedef std::map< Ptr< Socket > , uint32_t >::iterator	SocketListI
	Socket list type iterator. More...

Private Member Functions

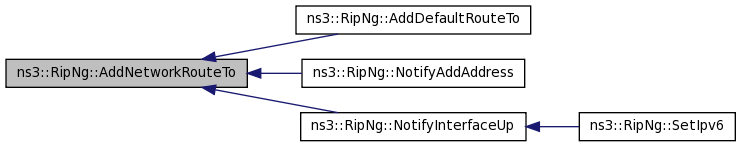

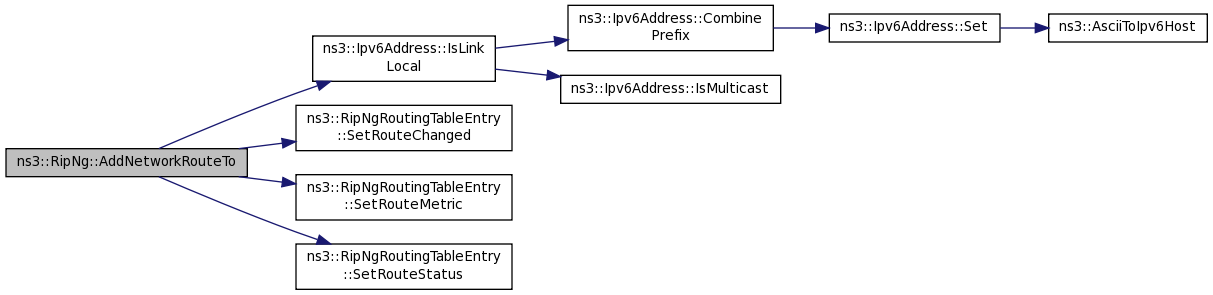

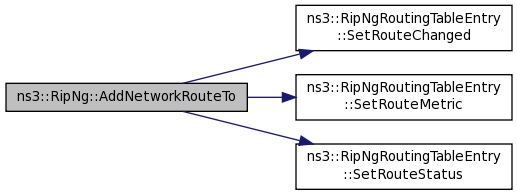

void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse)
	Add route to network. More...

void	AddNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface)
	Add route to network. More...

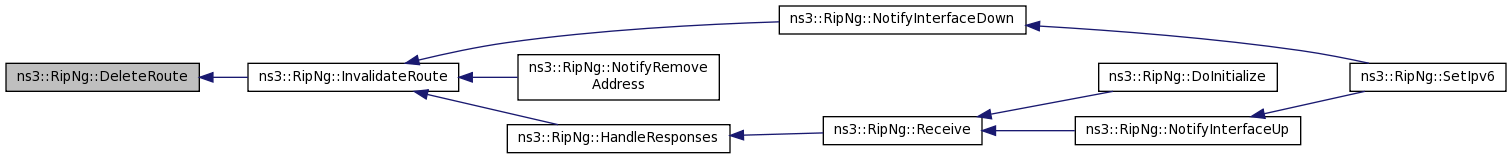

void	DeleteRoute (RipNgRoutingTableEntry *route)
	Delete a route. More...

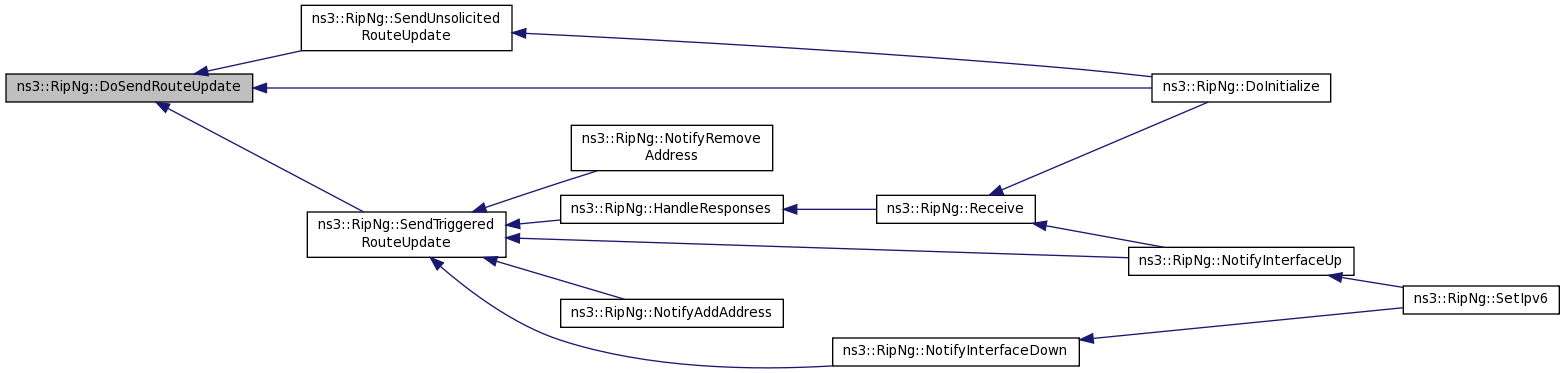

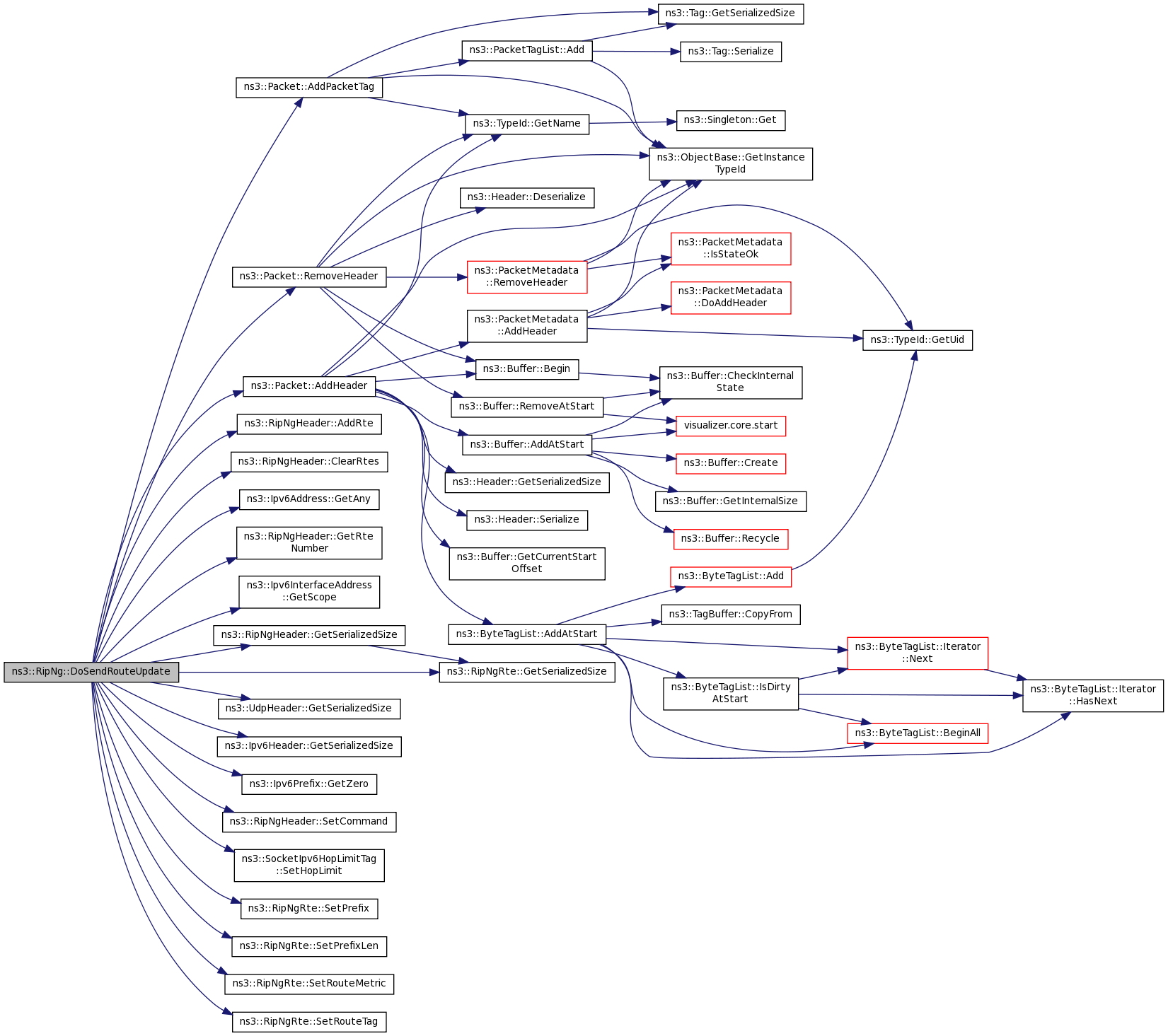

void	DoSendRouteUpdate (bool periodic)
	Send Routing Updates on all interfaces. More...

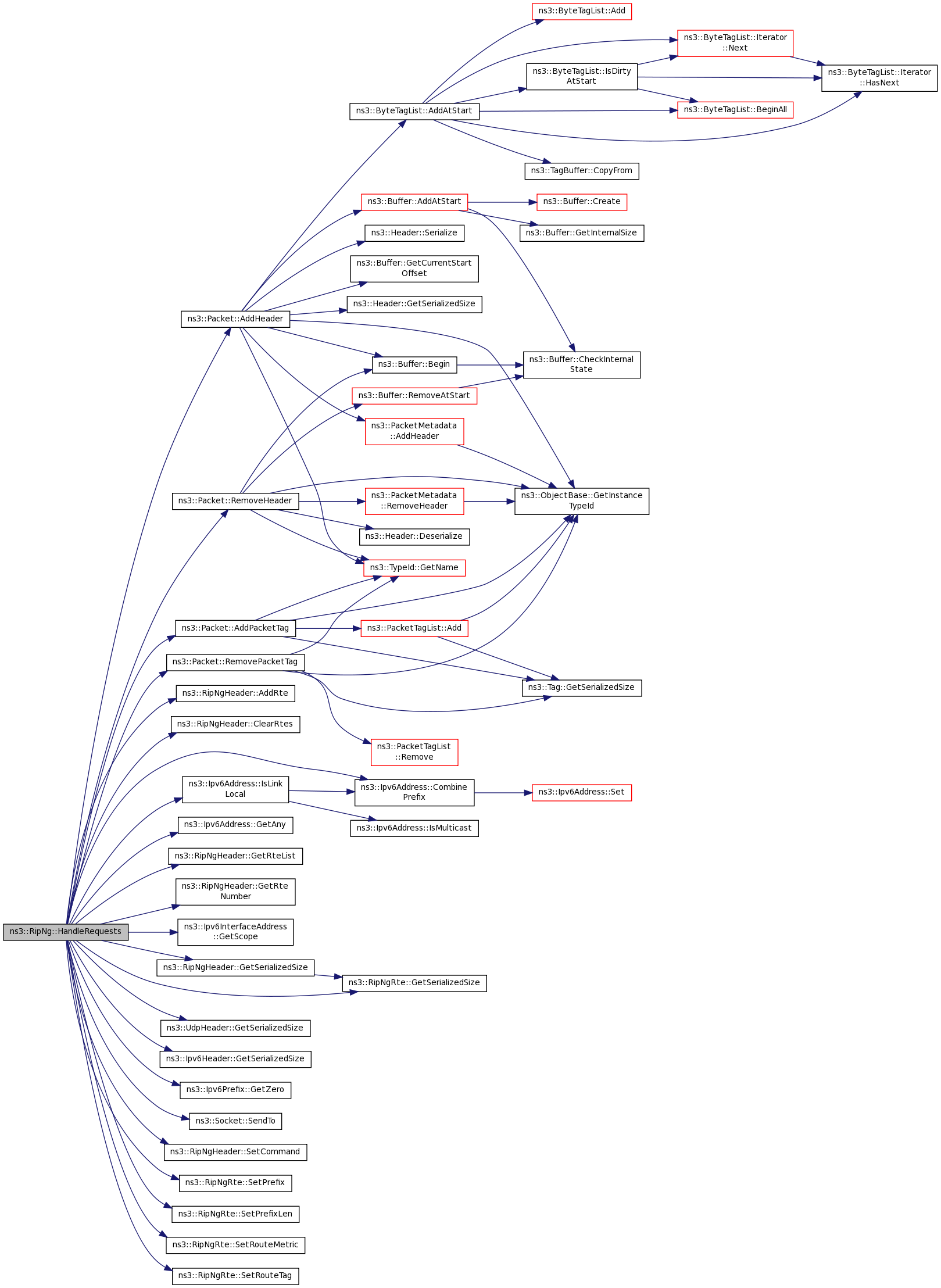

void	HandleRequests (RipNgHeader hdr, Ipv6Address senderAddress, uint16_t senderPort, uint32_t incomingInterface, uint8_t hopLimit)
	Handle RIPng requests. More...

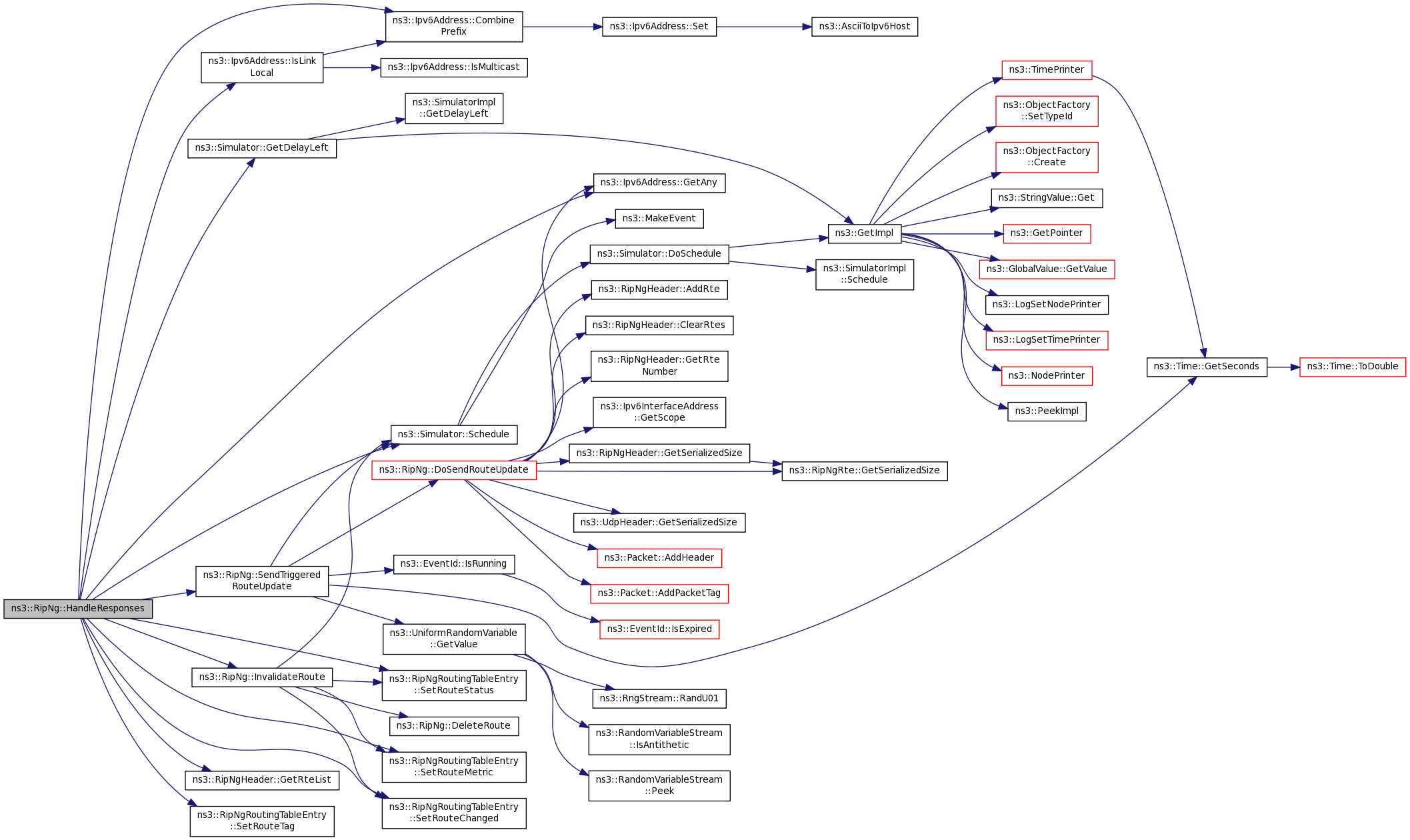

void	HandleResponses (RipNgHeader hdr, Ipv6Address senderAddress, uint32_t incomingInterface, uint8_t hopLimit)
	Handle RIPng responses. More...

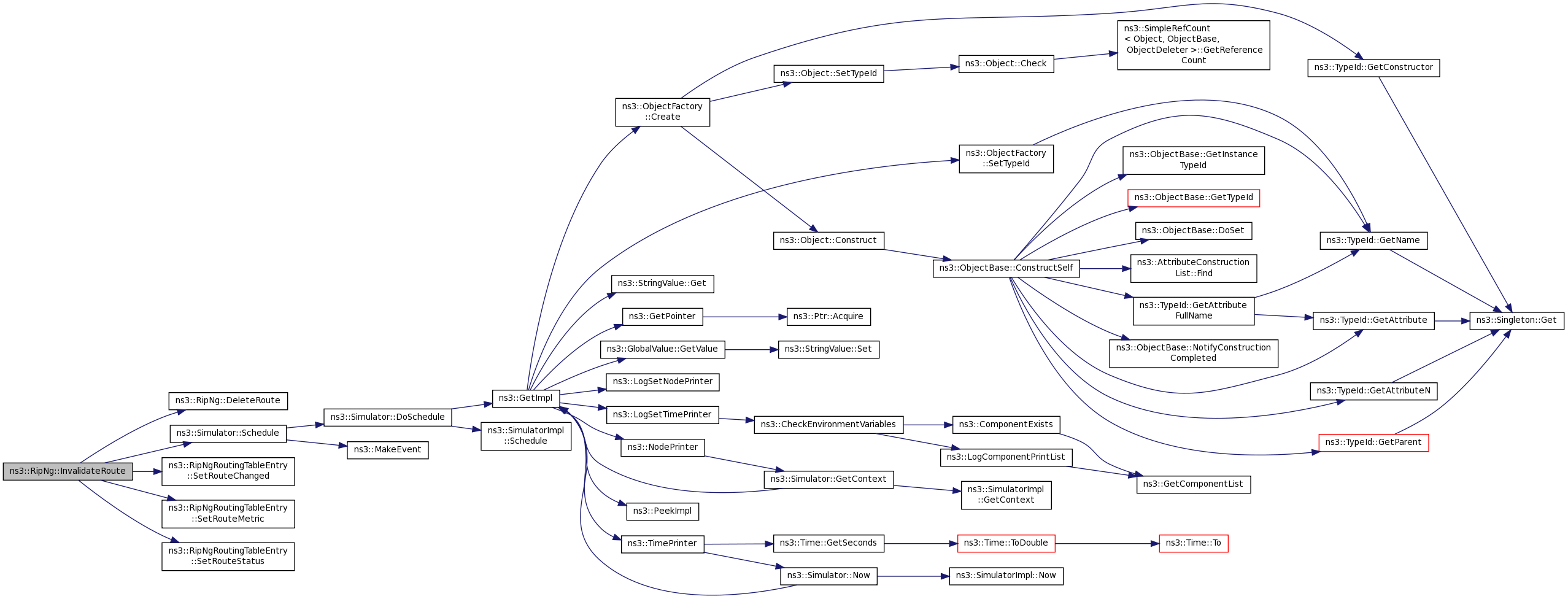

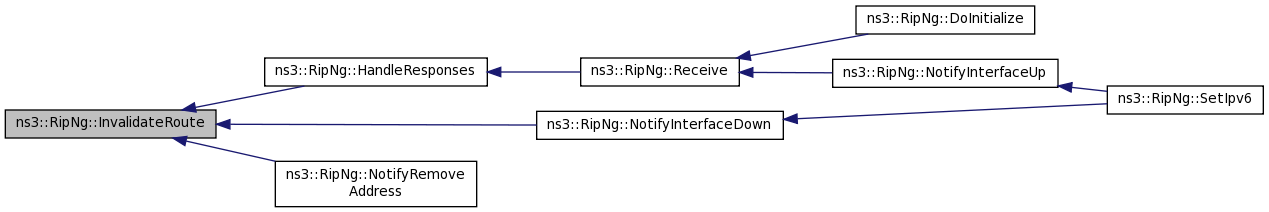

void	InvalidateRoute (RipNgRoutingTableEntry *route)
	Invalidate a route. More...

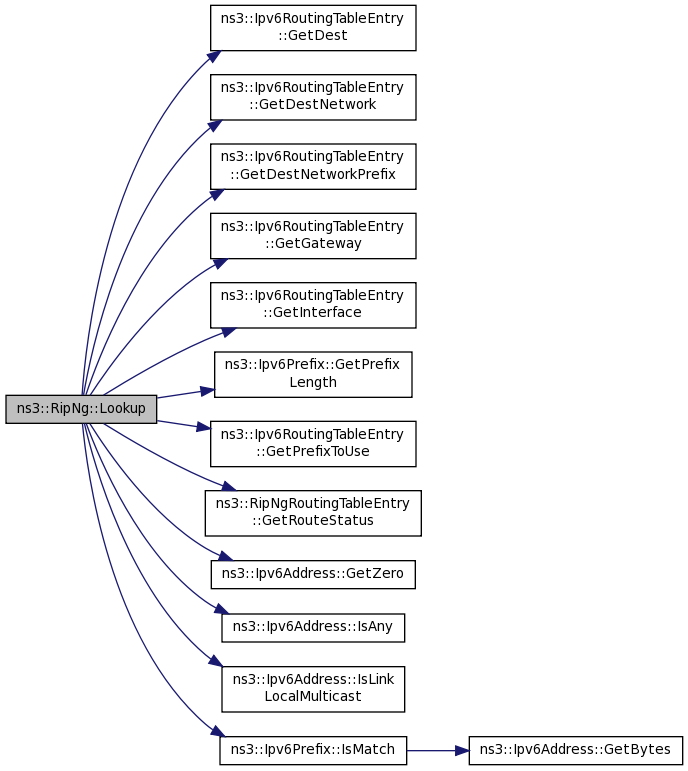

Ptr< Ipv6Route >	Lookup (Ipv6Address dest, Ptr< NetDevice >=0)
	Lookup in the forwarding table for destination. More...

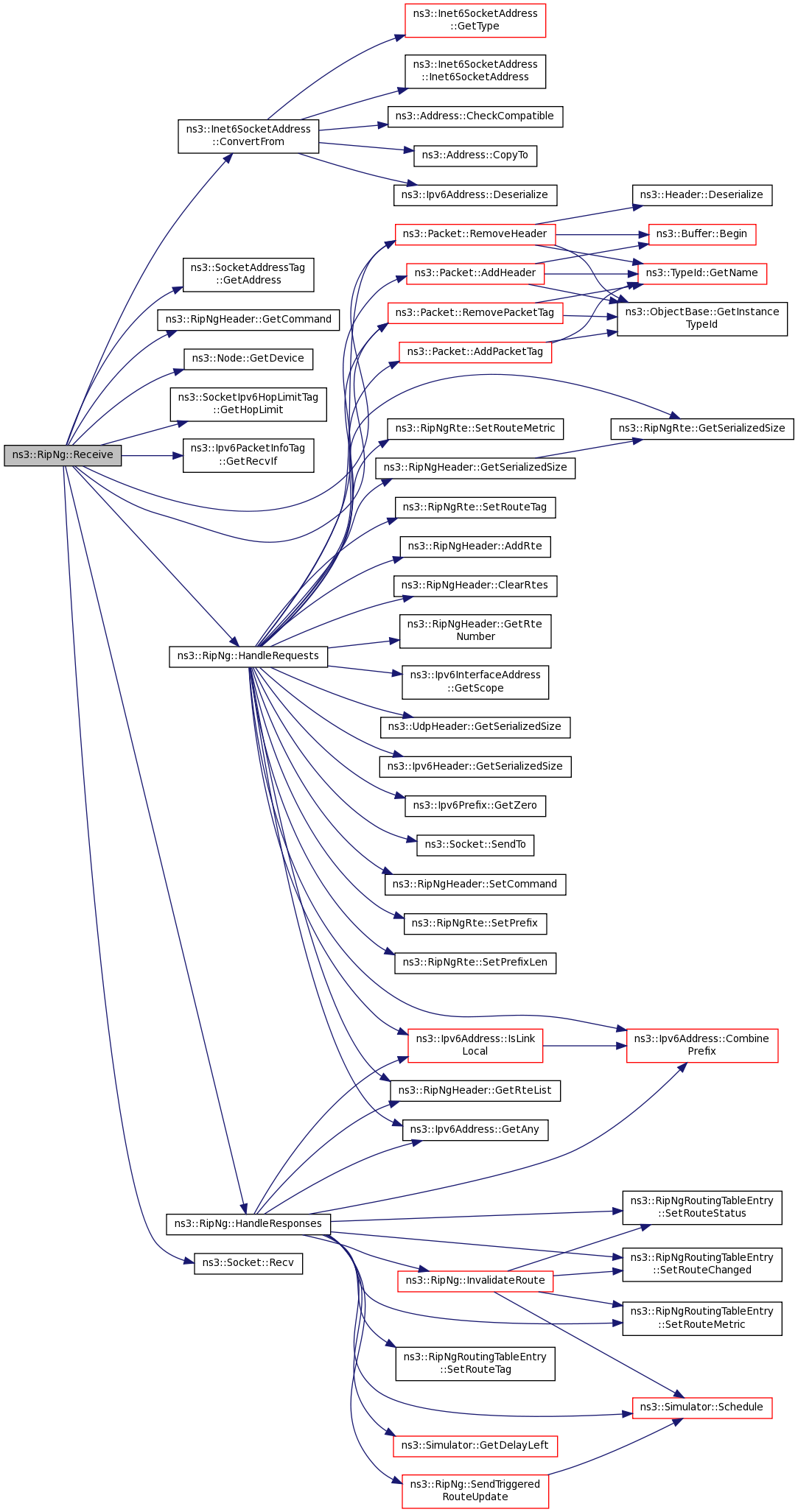

void	Receive (Ptr< Socket > socket)
	Receive RIPng packets. More...

void	RecvMulticastRipng (Ptr< Socket > socket)
	Receive and process multicast packet. More...

void	RecvUnicastRipng (Ptr< Socket > socket)
	Receive and process unicast packet. More...

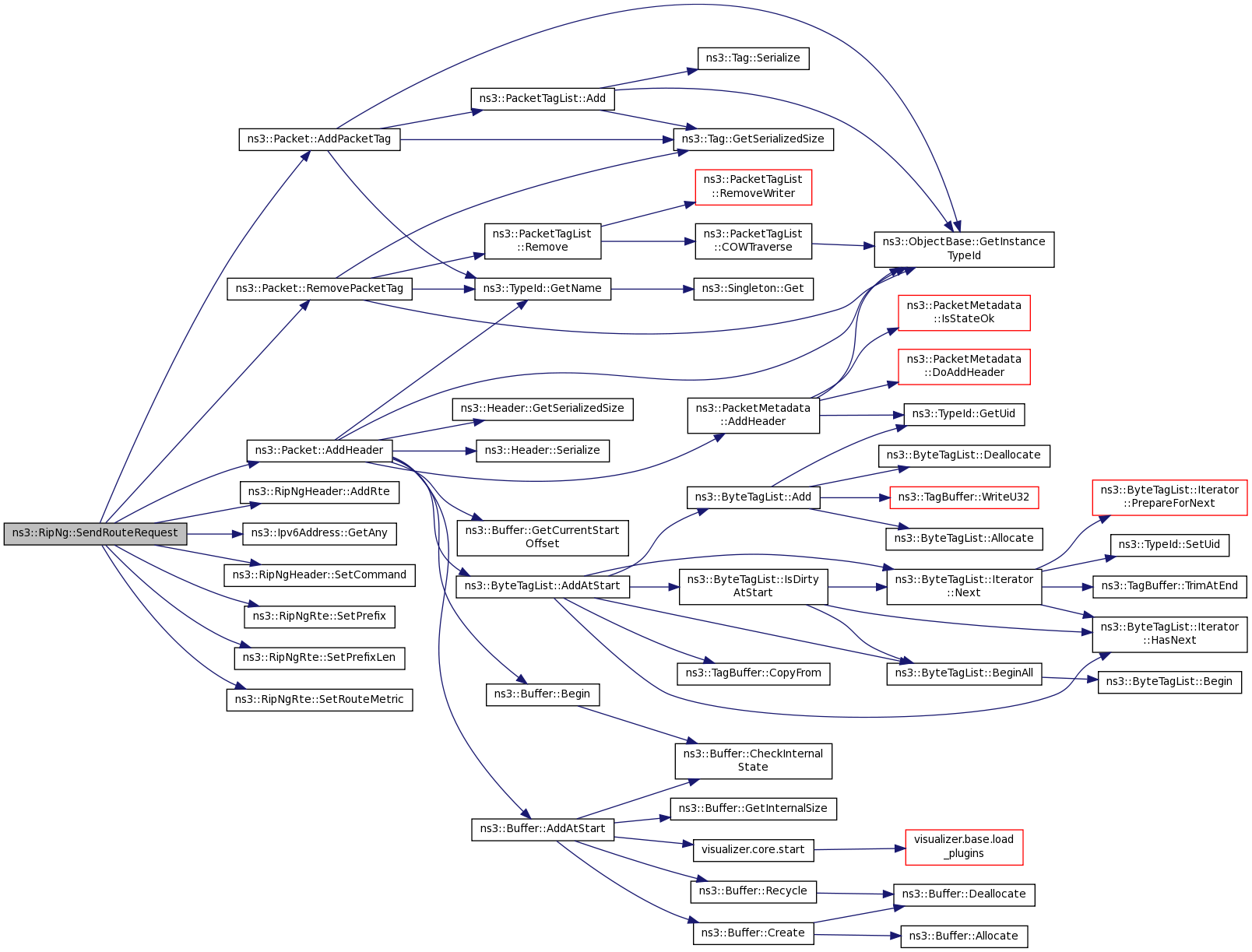

void	SendRouteRequest ()
	Send Routing Request on all interfaces. More...

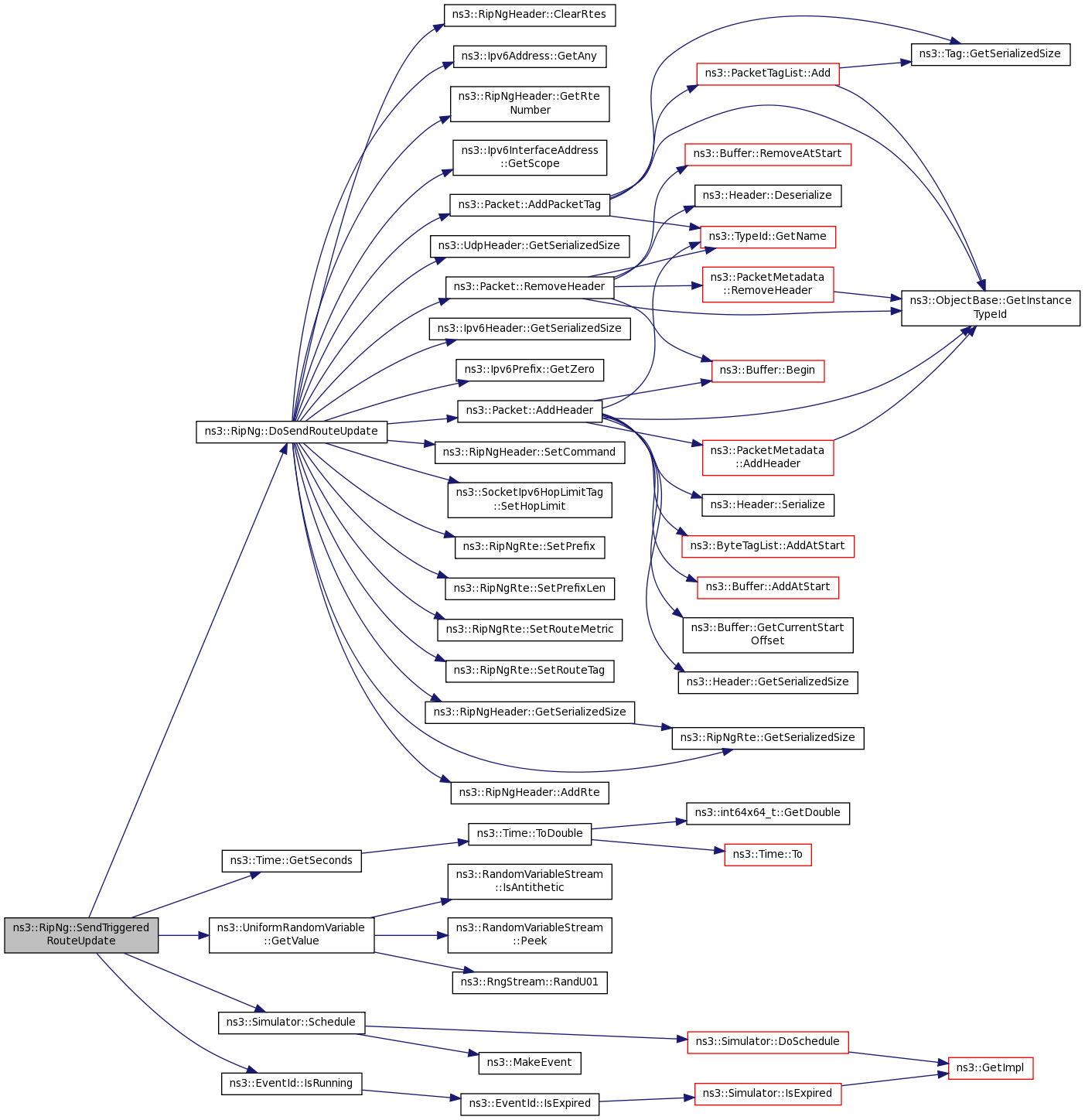

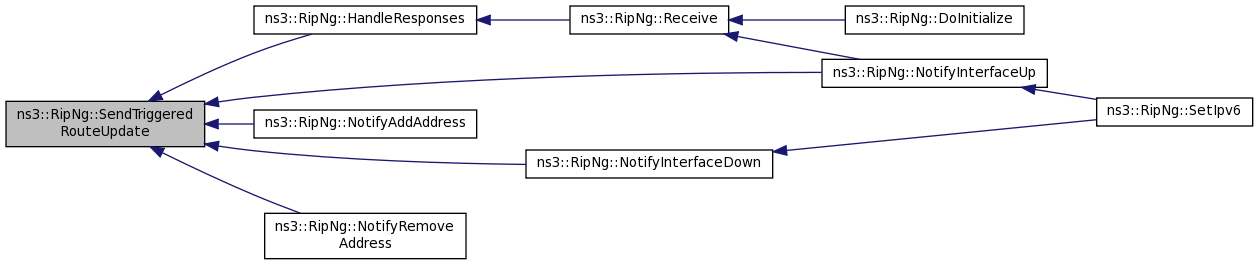

void	SendTriggeredRouteUpdate ()
	Send Triggered Routing Updates on all interfaces. More...

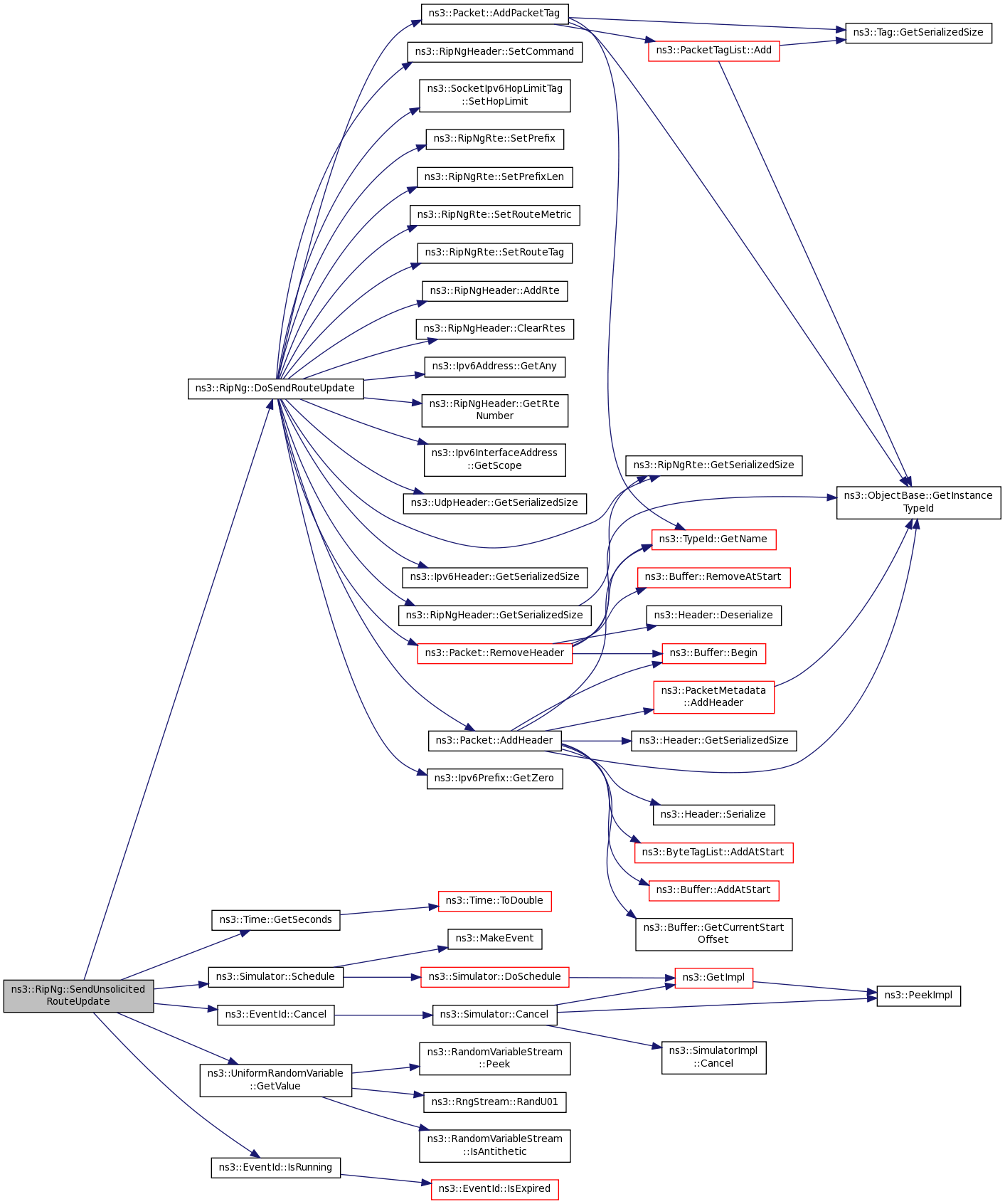

void	SendUnsolicitedRouteUpdate (void)
	Send Unsolicited Routing Updates on all interfaces. More...

Private Attributes
Time	m_garbageCollectionDelay
	Delay before deleting an INVALID route. More...

bool	m_initialized

std::set< uint32_t >	m_interfaceExclusions

std::map< uint32_t, uint8_t >	m_interfaceMetrics

Ptr< Ipv6 >	m_ipv6
	IPv6 reference. More...

Time	m_maxTriggeredUpdateDelay
	Max cooldown delay after a Triggered Update. More...

Time	m_minTriggeredUpdateDelay
	Min cooldown delay after a Triggered Update. More...

EventId	m_nextTriggeredUpdate
	Next Triggered Update event. More...

EventId	m_nextUnsolicitedUpdate
	Next Unsolicited Update event. More...

Ptr< Socket >	m_recvSocket

Ptr< UniformRandomVariable >	m_rng
	Rng stream. More...

Routes	m_routes
	the forwarding table for network. More...

SocketList	m_sendSocketList
	list of sockets for sending (socket, interface index) More...

SplitHorizonType_e	m_splitHorizonStrategy

Time	m_startupDelay
	Random delay before protocol startup. More...

Time	m_timeoutDelay
	Delay before invalidating a route. More...

Time	m_unsolicitedUpdate
	time between two Unsolicited Routing Updates More...

Detailed Description

RIPng Routing Protocol, defined in {2080}.

Doxygen introspection did not find any typical Config paths.

Attributes

UnsolicitedRoutingUpdate: The time between two Unsolicited Routing Updates.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000000.0ns
- Flags: construct write read
StartupDelay: Maximum random delay for protocol startup (send route requests).
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
TimeoutDelay: The delay to invalidate a route.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +180000000000.0ns
- Flags: construct write read
GarbageCollectionDelay: The delay to delete an expired route.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +120000000000.0ns
- Flags: construct write read
MinTriggeredCooldown: Min cooldown delay after a Triggered Update.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
MaxTriggeredCooldown: Max cooldown delay after a Triggered Update.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +5000000000.0ns
- Flags: construct write read
SplitHorizon: Split Horizon strategy.
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: PoisonReverse
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 173 of file ripng.h.

Member Typedef Documentation

typedef std::list<std::pair <RipNgRoutingTableEntry *, EventId> > ns3::RipNg::Routes

private

Container for the network routes - pair RipNgRoutingTableEntry *, EventId (update event)

Definition at line 267 of file ripng.h.

typedef std::list<std::pair <RipNgRoutingTableEntry *, EventId> >::const_iterator ns3::RipNg::RoutesCI

private

Const Iterator for container for the network routes.

Definition at line 270 of file ripng.h.

typedef std::list<std::pair <RipNgRoutingTableEntry *, EventId> >::iterator ns3::RipNg::RoutesI

private

Iterator for container for the network routes.

Definition at line 273 of file ripng.h.

typedef std::map< Ptr<Socket>, uint32_t> ns3::RipNg::SocketList

private

Socket list type.

Definition at line 387 of file ripng.h.

typedef std::map<Ptr<Socket>, uint32_t>::const_iterator ns3::RipNg::SocketListCI

private

Socket list type const iterator.

Definition at line 391 of file ripng.h.

typedef std::map<Ptr<Socket>, uint32_t>::iterator ns3::RipNg::SocketListI

private

Socket list type iterator.

Definition at line 389 of file ripng.h.

Member Enumeration Documentation

enum ns3::RipNg::SplitHorizonType_e

Enumerator
NO_SPLIT_HORIZON
SPLIT_HORIZON
POISON_REVERSE

Definition at line 201 of file ripng.h.

Constructor & Destructor Documentation

ns3::RipNg::RipNg ( )

Definition at line 47 of file ripng.cc.

References m_rng.

ns3::RipNg::~RipNg ( )

virtual

Definition at line 53 of file ripng.cc.

Member Function Documentation

void ns3::RipNg::AddDefaultRouteTo	(	Ipv6Address	nextHop,
		uint32_t	interface
	)

Add a default route to the router through the nextHop located on interface.

The default route is usually installed manually, or it is the result of some "other" routing protocol (e.g., BGP).

Parameters

nextHop	the next hop
interface	the interface

Definition at line 1285 of file ripng.cc.

References AddNetworkRouteTo(), ns3::Ipv6Prefix::GetZero(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::RipNg::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)

private

Add route to network.

Parameters

network	network address
networkPrefix	network prefix*
nextHop	next hop address to route the packet.
interface	interface index
prefixToUse	prefix that should be used for source address for this destination
metric	metric of route in case of multiple routes to same destination

Definition at line 651 of file ripng.cc.

References ns3::Ipv6Address::IsLinkLocal(), m_routes, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::RipNgRoutingTableEntry::RIPNG_VALID, ns3::RipNgRoutingTableEntry::SetRouteChanged(), ns3::RipNgRoutingTableEntry::SetRouteMetric(), and ns3::RipNgRoutingTableEntry::SetRouteStatus().

Referenced by AddDefaultRouteTo(), NotifyAddAddress(), and NotifyInterfaceUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::AddNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		uint32_t	interface
	)

private

Add route to network.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index
metric	metric of route in case of multiple routes to same destination

Definition at line 668 of file ripng.cc.

References m_routes, NS_LOG_FUNCTION, ns3::RipNgRoutingTableEntry::RIPNG_VALID, ns3::RipNgRoutingTableEntry::SetRouteChanged(), ns3::RipNgRoutingTableEntry::SetRouteMetric(), and ns3::RipNgRoutingTableEntry::SetRouteStatus().

Here is the call graph for this function:

int64_t ns3::RipNg::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 97 of file ripng.cc.

References m_rng, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::RipNg::DeleteRoute ( RipNgRoutingTableEntry * route )

private

Delete a route.

Parameters

route the route to be removed

Definition at line 702 of file ripng.cc.

References m_routes, NS_ABORT_MSG, and NS_LOG_FUNCTION.

Referenced by InvalidateRoute().

Here is the caller graph for this function:

void ns3::RipNg::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 543 of file ripng.cc.

References ns3::EventId::Cancel(), ns3::Socket::Close(), ns3::Object::DoDispose(), m_ipv6, m_nextTriggeredUpdate, m_nextUnsolicitedUpdate, m_recvSocket, m_routes, m_sendSocketList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::RipNg::DoInitialize ( void )

protectedvirtual

Start protocol operation.

Reimplemented from ns3::Object.

Definition at line 105 of file ripng.cc.

References first::address, ns3::Socket::CreateSocket(), ns3::Object::DoInitialize(), DoSendRouteUpdate(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Address::GetAny(), ns3::Ipv6InterfaceAddress::GetScope(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::Ipv6InterfaceAddress::GLOBAL, ns3::Ipv6InterfaceAddress::LINKLOCAL, ns3::TypeId::LookupByName(), m_initialized, m_interfaceExclusions, m_ipv6, m_maxTriggeredUpdateDelay, m_minTriggeredUpdateDelay, m_nextTriggeredUpdate, m_nextUnsolicitedUpdate, m_recvSocket, m_rng, m_sendSocketList, m_startupDelay, m_unsolicitedUpdate, ns3::MakeCallback(), NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, Receive(), RIPNG_PORT, ns3::Simulator::Schedule(), SendRouteRequest(), and SendUnsolicitedRouteUpdate().

Here is the call graph for this function:

void ns3::RipNg::DoSendRouteUpdate ( bool periodic )

private

Send Routing Updates on all interfaces.

Definition at line 1093 of file ripng.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::RipNgHeader::AddRte(), ns3::RipNgHeader::ClearRtes(), ns3::Ipv6Address::GetAny(), ns3::RipNgHeader::GetRteNumber(), ns3::Ipv6InterfaceAddress::GetScope(), ns3::RipNgRte::GetSerializedSize(), ns3::UdpHeader::GetSerializedSize(), ns3::RipNgHeader::GetSerializedSize(), ns3::Ipv6Header::GetSerializedSize(), ns3::Ipv6Prefix::GetZero(), ns3::Ipv6InterfaceAddress::GLOBAL, m_interfaceExclusions, m_ipv6, m_routes, m_sendSocketList, m_splitHorizonStrategy, NS_LOG_DEBUG, NS_LOG_FUNCTION, POISON_REVERSE, ns3::Packet::RemoveHeader(), ns3::RipNgHeader::RESPONSE, RIPNG_ALL_NODE, RIPNG_PORT, ns3::RipNgHeader::SetCommand(), ns3::SocketIpv6HopLimitTag::SetHopLimit(), ns3::RipNgRte::SetPrefix(), ns3::RipNgRte::SetPrefixLen(), ns3::RipNgRte::SetRouteMetric(), ns3::RipNgRte::SetRouteTag(), and SPLIT_HORIZON.

Referenced by DoInitialize(), SendTriggeredRouteUpdate(), and SendUnsolicitedRouteUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

std::set< uint32_t > ns3::RipNg::GetInterfaceExclusions ( ) const

Get the set of interface excluded from the protocol.

Returns: the set of excluded interfaces

Definition at line 1218 of file ripng.cc.

References m_interfaceExclusions.

uint8_t ns3::RipNg::GetInterfaceMetric ( uint32_t interface ) const

Get the metric for an interface.

Parameters

interface the interface

Returns: the interface metric

Definition at line 1230 of file ripng.cc.

References m_interfaceMetrics, and NS_LOG_FUNCTION.

TypeId ns3::RipNg::GetTypeId ( void )

static

Definition at line 58 of file ripng.cc.

References m_garbageCollectionDelay, m_maxTriggeredUpdateDelay, m_minTriggeredUpdateDelay, m_splitHorizonStrategy, m_startupDelay, m_timeoutDelay, m_unsolicitedUpdate, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeChecker(), NO_SPLIT_HORIZON, POISON_REVERSE, ns3::TypeId::SetParent(), and SPLIT_HORIZON.

Here is the call graph for this function:

void ns3::RipNg::HandleRequests	(	RipNgHeader	hdr,
		Ipv6Address	senderAddress,
		uint16_t	senderPort,
		uint32_t	incomingInterface,
		uint8_t	hopLimit
	)

private

Handle RIPng requests.

Parameters

hdr	message header (including RTEs)
senderAddress	sender address
senderPort	sender port
incomingInterface	incoming interface
hopLimit	packet's hop limit

Definition at line 776 of file ripng.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::RipNgHeader::AddRte(), ns3::RipNgHeader::ClearRtes(), ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6Address::GetAny(), ns3::RipNgHeader::GetRteList(), ns3::RipNgHeader::GetRteNumber(), ns3::Ipv6InterfaceAddress::GetScope(), ns3::RipNgRte::GetSerializedSize(), ns3::UdpHeader::GetSerializedSize(), ns3::RipNgHeader::GetSerializedSize(), ns3::Ipv6Header::GetSerializedSize(), ns3::Ipv6Prefix::GetZero(), ns3::Ipv6InterfaceAddress::GLOBAL, ns3::Ipv6Address::IsLinkLocal(), m_interfaceExclusions, m_ipv6, m_recvSocket, m_routes, m_sendSocketList, m_splitHorizonStrategy, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, POISON_REVERSE, ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::RipNgHeader::RESPONSE, RIPNG_PORT, ns3::RipNgRoutingTableEntry::RIPNG_VALID, ns3::Socket::SendTo(), ns3::RipNgHeader::SetCommand(), ns3::RipNgRte::SetPrefix(), ns3::RipNgRte::SetPrefixLen(), ns3::RipNgRte::SetRouteMetric(), ns3::RipNgRte::SetRouteTag(), and SPLIT_HORIZON.

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::HandleResponses	(	RipNgHeader	hdr,
		Ipv6Address	senderAddress,
		uint32_t	incomingInterface,
		uint8_t	hopLimit
	)

private

Handle RIPng responses.

Parameters

hdr	message header (including RTEs)
senderAddress	sender address
incomingInterface	incoming interface
hopLimit	packet's hop limit

Definition at line 941 of file ripng.cc.

References ns3::Ipv6Address::CombinePrefix(), first, ns3::Ipv6Address::GetAny(), ns3::Simulator::GetDelayLeft(), ns3::RipNgHeader::GetRteList(), InvalidateRoute(), ns3::Ipv6Address::IsLinkLocal(), m_interfaceExclusions, m_interfaceMetrics, m_routes, m_timeoutDelay, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::RipNgRoutingTableEntry::RIPNG_VALID, ns3::Simulator::Schedule(), SendTriggeredRouteUpdate(), ns3::RipNgRoutingTableEntry::SetRouteChanged(), ns3::RipNgRoutingTableEntry::SetRouteMetric(), ns3::RipNgRoutingTableEntry::SetRouteStatus(), and ns3::RipNgRoutingTableEntry::SetRouteTag().

Referenced by Receive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::InvalidateRoute ( RipNgRoutingTableEntry * route )

private

Invalidate a route.

Parameters

route the route to be removed

Definition at line 680 of file ripng.cc.

References DeleteRoute(), m_garbageCollectionDelay, m_routes, NS_ABORT_MSG, NS_LOG_FUNCTION, ns3::RipNgRoutingTableEntry::RIPNG_INVALID, ns3::Simulator::Schedule(), ns3::RipNgRoutingTableEntry::SetRouteChanged(), ns3::RipNgRoutingTableEntry::SetRouteMetric(), and ns3::RipNgRoutingTableEntry::SetRouteStatus().

Referenced by HandleResponses(), NotifyInterfaceDown(), and NotifyRemoveAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Ipv6Route > ns3::RipNg::Lookup	(	Ipv6Address	dest,
		Ptr< NetDevice >	interface = `0`
	)

private

Lookup in the forwarding table for destination.

Parameters

dest	destination address
interface	output interface if any (put 0 otherwise)

Returns: Ipv6Route to route the packet to reach dest address

Definition at line 573 of file ripng.cc.

References ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetDestNetwork(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetGateway(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Prefix::GetPrefixLength(), ns3::Ipv6RoutingTableEntry::GetPrefixToUse(), ns3::RipNgRoutingTableEntry::GetRouteStatus(), ns3::Ipv6Address::GetZero(), ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsLinkLocalMulticast(), ns3::Ipv6Prefix::IsMatch(), m_ipv6, m_routes, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::RipNgRoutingTableEntry::RIPNG_VALID.

Referenced by RouteInput(), and RouteOutput().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::NotifyAddAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)

virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is added to an interface. Typically used to add a 'network route' on an interface. Can be invoked on an up or down interface.

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 393 of file ripng.cc.

References AddNetworkRouteTo(), ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetPrefix(), m_interfaceExclusions, m_ipv6, NS_LOG_FUNCTION, and SendTriggeredRouteUpdate().

Here is the call graph for this function:

void ns3::RipNg::NotifyAddRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)

virtual

Notify a new route.

Typically this is used to add another route from IPv6 stack (i.e. ICMPv6 redirect case, ...).

Parameters

dst	destination address
mask	destination mask
nextHop	nextHop for this destination
interface	output interface
prefixToUse	prefix to use as source with this route

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 455 of file ripng.cc.

References NS_LOG_INFO.

void ns3::RipNg::NotifyInterfaceDown ( uint32_t interface )

virtual

Notify when specified interface goes DOWN.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters

interface the index of the interface we are being notified about

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 362 of file ripng.cc.

References InvalidateRoute(), m_interfaceExclusions, m_routes, m_sendSocketList, NS_LOG_FUNCTION, NS_LOG_INFO, and SendTriggeredRouteUpdate().

Referenced by SetIpv6().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::NotifyInterfaceUp ( uint32_t interface )

virtual

Notify when specified interface goes UP.

Protocols are expected to implement this method to be notified of the state change of an interface in a node.

Parameters

interface the index of the interface we are being notified about

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 275 of file ripng.cc.

References AddNetworkRouteTo(), first::address, ns3::Ipv6Address::CombinePrefix(), ns3::Socket::CreateSocket(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Address::GetAny(), ns3::Ipv6Prefix::GetOnes(), ns3::Ipv6InterfaceAddress::GetPrefix(), ns3::Ipv6InterfaceAddress::GetScope(), ns3::Ipv6InterfaceAddress::GLOBAL, ns3::Ipv6InterfaceAddress::LINKLOCAL, ns3::TypeId::LookupByName(), m_initialized, m_interfaceExclusions, m_ipv6, m_recvSocket, m_sendSocketList, ns3::MakeCallback(), NS_LOG_FUNCTION, NS_LOG_LOGIC, Receive(), RIPNG_PORT, and SendTriggeredRouteUpdate().

Referenced by SetIpv6().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::NotifyRemoveAddress	(	uint32_t	interface,
		Ipv6InterfaceAddress	address
	)

virtual

Notify when specified interface add an address.

Protocols are expected to implement this method to be notified whenever a new address is removed from an interface. Typically used to remove the 'network route' of an interface. Can be invoked on an up or down interface.

Parameters

interface	the index of the interface we are being notified about
address	a new address being added to an interface

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 418 of file ripng.cc.

References ns3::Ipv6Address::CombinePrefix(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetPrefix(), ns3::Ipv6InterfaceAddress::GetScope(), ns3::Ipv6InterfaceAddress::GLOBAL, InvalidateRoute(), m_interfaceExclusions, m_ipv6, m_routes, NS_LOG_FUNCTION, and SendTriggeredRouteUpdate().

Here is the call graph for this function:

void ns3::RipNg::NotifyRemoveRoute	(	Ipv6Address	dst,
		Ipv6Prefix	mask,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = `Ipv6Address::GetZero()`
	)

virtual

Notify route removing.

Parameters

dst	destination address
mask	destination mask
nextHop	nextHop for this destination
interface	output interface
prefixToUse	prefix to use as source with this route

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 461 of file ripng.cc.

References NS_LOG_FUNCTION.

void ns3::RipNg::PrintRoutingTable ( Ptr< OutputStreamWrapper > stream ) const

virtual

Print the Routing Table entries.

Parameters

stream the ostream the Routing table is printed to

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 488 of file ripng.cc.

References ns3::Names::FindName(), ns3::Ipv6RoutingTableEntry::GetDest(), ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix(), ns3::Ipv6RoutingTableEntry::GetGateway(), ns3::Ipv6RoutingTableEntry::GetInterface(), ns3::Ipv6Prefix::GetPrefixLength(), ns3::RipNgRoutingTableEntry::GetRouteMetric(), ns3::RipNgRoutingTableEntry::GetRouteStatus(), ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Ipv6RoutingTableEntry::IsGateway(), ns3::Ipv6RoutingTableEntry::IsHost(), m_ipv6, m_routes, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::RipNgRoutingTableEntry::RIPNG_VALID.

Here is the call graph for this function:

void ns3::RipNg::Receive ( Ptr< Socket > socket )

private

Receive RIPng packets.

Parameters

socket the socket the packet was received to.

Definition at line 719 of file ripng.cc.

References ns3::Inet6SocketAddress::ConvertFrom(), ns3::SocketAddressTag::GetAddress(), ns3::RipNgHeader::GetCommand(), ns3::Node::GetDevice(), ns3::SocketIpv6HopLimitTag::GetHopLimit(), ns3::Ipv6PacketInfoTag::GetRecvIf(), HandleRequests(), HandleResponses(), m_ipv6, NS_ABORT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Socket::Recv(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::RipNgHeader::REQUEST, and ns3::RipNgHeader::RESPONSE.

Referenced by DoInitialize(), and NotifyInterfaceUp().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RipNg::RecvMulticastRipng ( Ptr< Socket > socket )

private

Receive and process multicast packet.

Parameters

socket socket where packet is arrived

void ns3::RipNg::RecvUnicastRipng ( Ptr< Socket > socket )

private

Receive and process unicast packet.

Parameters

socket socket where packet is arrived

bool ns3::RipNg::RouteInput	(	Ptr< const Packet >	p,
		const Ipv6Header &	header,
		Ptr< const NetDevice >	idev,
		UnicastForwardCallback	ucb,
		MulticastForwardCallback	mcb,
		LocalDeliverCallback	lcb,
		ErrorCallback	ecb
	)

virtual

Route an input packet (to be forwarded or locally delivered)

This lookup is used in the forwarding process. The packet is handed over to the Ipv6RoutingProtocol, and will get forwarded onward by one of the callbacks. The Linux equivalent is ip_route_input (). There are four valid outcomes, and a matching callbacks to handle each.

Parameters

p	received packet
header	input parameter used to form a search key for a route
idev	Pointer to ingress network device
ucb	Callback for the case in which the packet is to be forwarded as unicast
mcb	Callback for the case in which the packet is to be forwarded as multicast
lcb	Callback for the case in which the packet is to be locally delivered
ecb	Callback to call if there is an error in forwarding

Returns: true if the Ipv6RoutingProtocol takes responsibility for forwarding or delivering the packet, false otherwise

Todo:: Configurable option to enable RFC 1222 Strong End System Model

Implements ns3::Ipv6RoutingProtocol.

Definition at line 205 of file ripng.cc.

References ns3::Socket::ERROR_NOROUTETOHOST, ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), ns3::Ipv6Address::IsEqual(), ns3::Ipv6Address::IsMulticast(), Lookup(), m_ipv6, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

Ptr< Ipv6Route > ns3::RipNg::RouteOutput	(	Ptr< Packet >	p,
		const Ipv6Header &	header,
		Ptr< NetDevice >	oif,
		Socket::SocketErrno &	sockerr
	)

virtual

Query routing cache for an existing route, for an outbound packet.

This lookup is used by transport protocols. It does not cause any packet to be forwarded, and is synchronous. Can be used for multicast or unicast. The Linux equivalent is ip_route_output ()

Parameters

p	packet to be routed. Note that this method may modify the packet. Callers may also pass in a null pointer.
header	input parameter (used to form key to search for the route)
oif	Output interface device. May be zero, or may be bound via socket options to a particular output interface.
sockerr	Output parameter; socket errno
