Abstract model for broadcasting the System Information Block Type 1 (SIB1) within the control channel (BCCH). More...

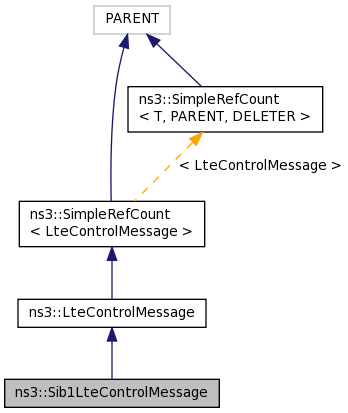

Inheritance diagram for ns3::Sib1LteControlMessage:

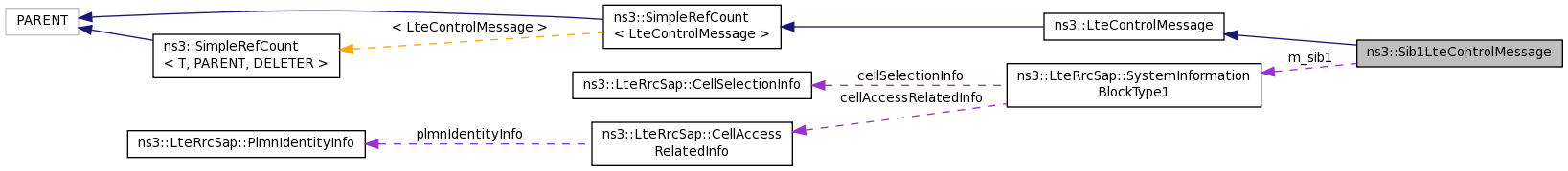

Collaboration diagram for ns3::Sib1LteControlMessage:

Public Member Functions
	Sib1LteControlMessage (void)
	Create a new instance of SIB1 control message. More...

LteRrcSap::SystemInformationBlockType1	GetSib1 () const
	Retrieve the SIB1 content from this control message. More...

void	SetSib1 (LteRrcSap::SystemInformationBlockType1 sib1)
	Replace the SIB1 content of this control message. More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
LteRrcSap::SystemInformationBlockType1	m_sib1

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR, DL_HARQ, RACH_PREAMBLE, RAR, MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Abstract model for broadcasting the System Information Block Type 1 (SIB1) within the control channel (BCCH).

SIB1 is transmitted by eNodeB RRC and received by UE RRC at the 6th subframe of every odd-numbered radio frame, i.e., every 20 milliseconds.

See also: LteEnbRrc::SetSystemInformationBlockType1, LteEnbPhy::StartSubFrame, LteUeRrc::DoRecvSystemInformationBlockType1

Definition at line 380 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::Sib1LteControlMessage::Sib1LteControlMessage ( void )

Create a new instance of SIB1 control message.

Definition at line 265 of file lte-control-messages.cc.

Here is the call graph for this function:

LteRrcSap::SystemInformationBlockType1 ns3::Sib1LteControlMessage::GetSib1 ( ) const

Retrieve the SIB1 content from this control message.

Definition at line 278 of file lte-control-messages.cc.

References m_sib1.

void ns3::Sib1LteControlMessage::SetSib1 ( LteRrcSap::SystemInformationBlockType1 sib1 )

Replace the SIB1 content of this control message.

Parameters

sib1	the desired SIB1 content

Definition at line 272 of file lte-control-messages.cc.

References m_sib1.

private

Definition at line 401 of file lte-control-messages.h.

Referenced by GetSib1(), and SetSib1().

The documentation for this class was generated from the following files:
