ns3::UdpHeader Class Reference

Packet header for UDP packets. More...

#include <udp-header.h>

+ Inheritance diagram for ns3::UdpHeader:

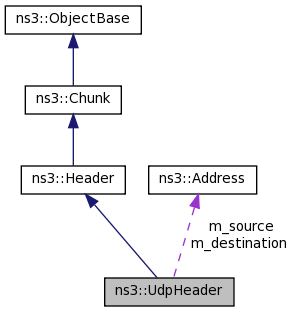

+ Collaboration diagram for ns3::UdpHeader:

Public Member Functions

 UdpHeader ()
 Constructor. More...

 ~UdpHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

void EnableChecksums (void)
 Enable checksum calculation for UDP. More...

void ForceChecksum (uint16_t checksum)
 Force the UDP checksum to a given value. More...

void ForcePayloadSize (uint16_t payloadSize)
 Force the UDP payload length to a given value. More...

uint16_t GetChecksum ()
 Return the checksum (only known after a Deserialize) More...

uint16_t GetDestinationPort (void) const

virtual TypeId GetInstanceTypeId (void) const

virtual uint32_t GetSerializedSize (void) const

uint16_t GetSourcePort (void) const

void InitializeChecksum (Address source, Address destination, uint8_t protocol)

void InitializeChecksum (Ipv4Address source, Ipv4Address destination, uint8_t protocol)

void InitializeChecksum (Ipv6Address source, Ipv6Address destination, uint8_t protocol)

bool IsChecksumOk (void) const
 Is the UDP checksum correct ? More...

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetDestinationPort (uint16_t port)

void SetSourcePort (uint16_t port)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

uint16_t CalculateHeaderChecksum (uint16_t size) const
 Calculate the header checksum. More...


Private Attributes

bool m_calcChecksum
 Flag to calculate checksum. More...

uint16_t m_checksum
 Forced Checksum value. More...

Address m_destination
 Destination IP address. More...

uint16_t m_destinationPort
 Destination port. More...

bool m_goodChecksum
 Flag to indicate that checksum is correct. More...

uint16_t m_payloadSize
 Payload size. More...

uint8_t m_protocol
 Protocol number. More...

Address m_source
 Source IP address. More...

uint16_t m_sourcePort
 Source port. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Packet header for UDP packets.

Doxygen introspection did not find any typical Config paths.

This class has fields corresponding to those in a network UDP header (port numbers, payload size, checksum) as well as methods for serialization to and deserialization from a byte buffer.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file udp-header.h.

Constructor & Destructor Documentation

ns3::UdpHeader::UdpHeader ( )

Constructor.

Creates a null header

Definition at line 32 of file udp-header.cc.

ns3::UdpHeader::~UdpHeader ( )

Definition at line 41 of file udp-header.cc.

References m_destinationPort, m_payloadSize, and m_sourcePort.

Member Function Documentation

uint16_t ns3::UdpHeader::CalculateHeaderChecksum ( uint16_t  size) const
private

Calculate the header checksum.

Parameters
sizepacket size
Returns
the checksum

Definition at line 102 of file udp-header.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Ipv4Address::IsMatchingType(), ns3::Ipv6Address::IsMatchingType(), m_destination, m_protocol, m_source, ns3::Address::MAX_SIZE, ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by Deserialize(), and Serialize().

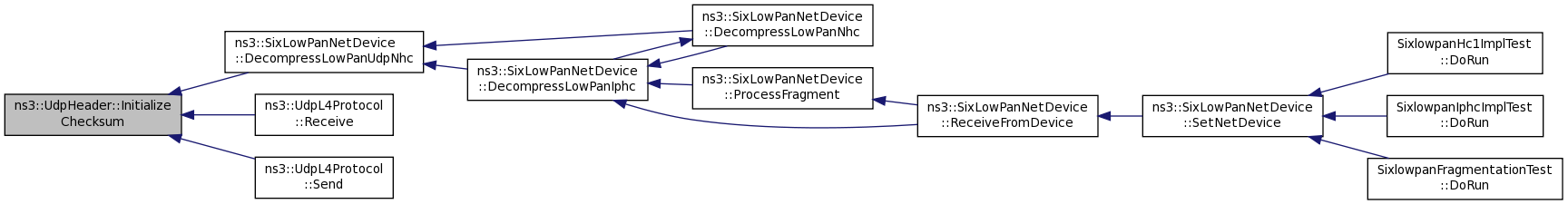

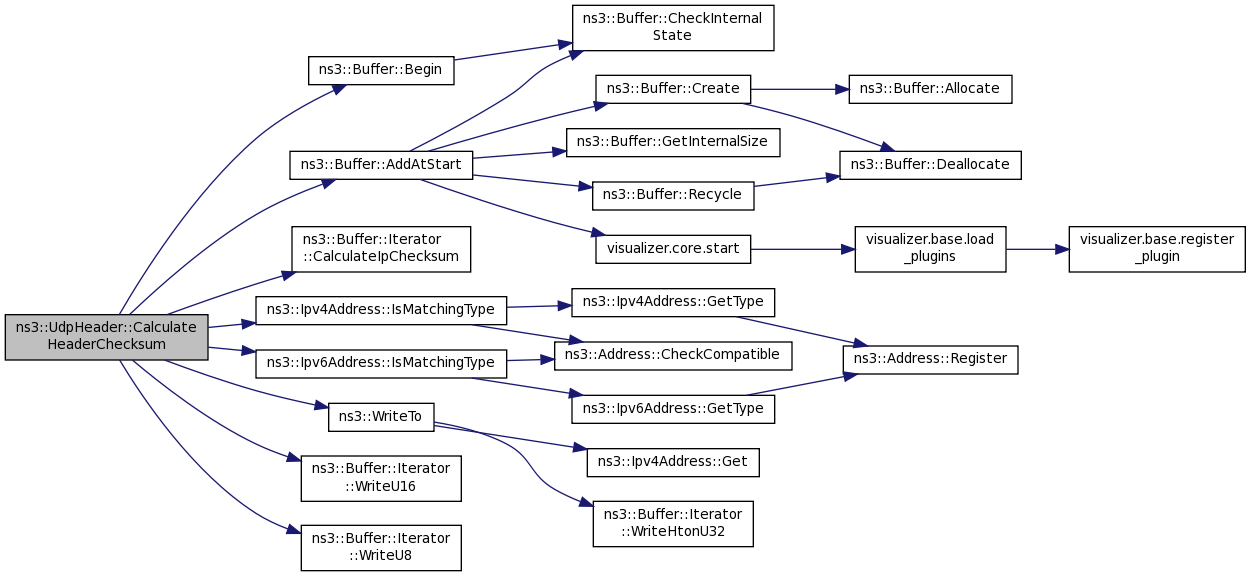

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t ns3::UdpHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should written.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 219 of file udp-header.cc.

References CalculateHeaderChecksum(), GetSerializedSize(), ns3::Buffer::Iterator::GetSize(), m_calcChecksum, m_checksum, m_destinationPort, m_goodChecksum, m_payloadSize, m_sourcePort, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU16(), and visualizer.core::start().

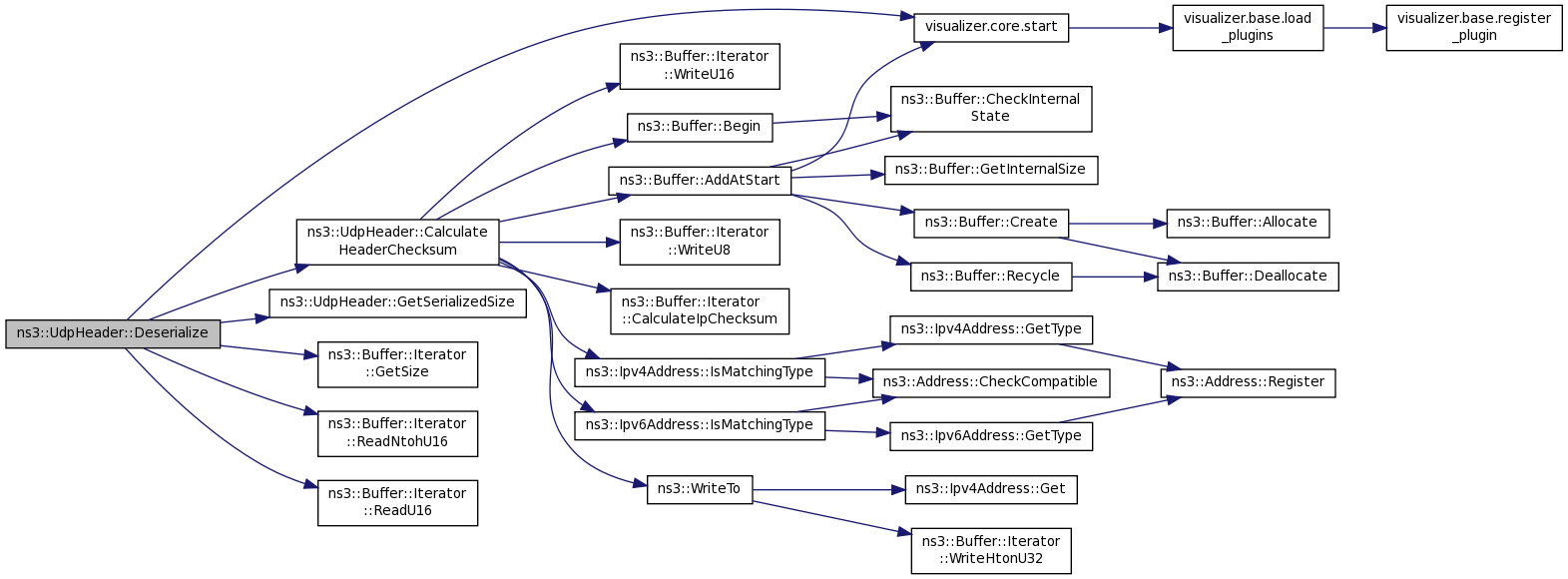

+ Here is the call graph for this function:

void ns3::UdpHeader::EnableChecksums ( void  )

Enable checksum calculation for UDP.

Definition at line 49 of file udp-header.cc.

References m_calcChecksum.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc(), ns3::UdpL4Protocol::Receive(), and ns3::UdpL4Protocol::Send().

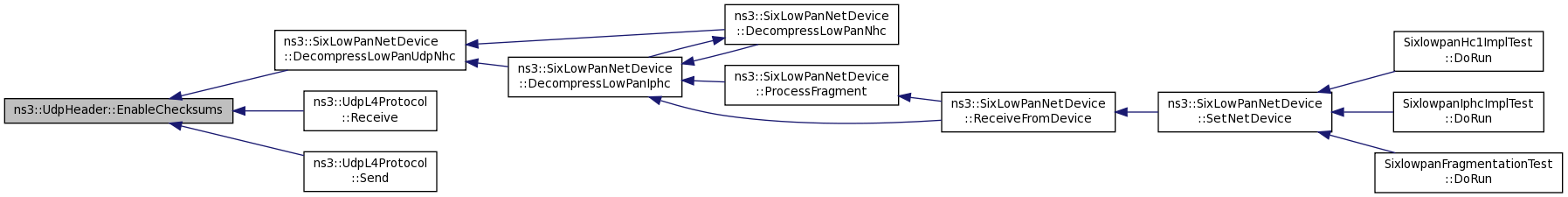

+ Here is the caller graph for this function:

void ns3::UdpHeader::ForceChecksum ( uint16_t  checksum)

Force the UDP checksum to a given value.

This might be useful for test purposes or to restore the UDP checksum when the UDP header has been compressed (e.g., in 6LoWPAN). Note that, normally, the header checksum is calculated on the fly when the packet is serialized.

When this option is used, the UDP checksum is written in the header, regardless of the global ChecksumEnabled option.

Note
The checksum value must be a big endian number.
Parameters
checksumthe checksum to use (big endian).

Definition at line 142 of file udp-header.cc.

References m_checksum.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc().

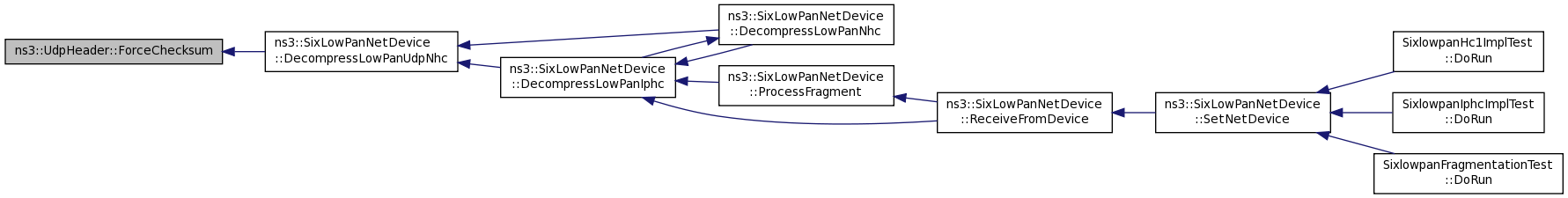

+ Here is the caller graph for this function:

void ns3::UdpHeader::ForcePayloadSize ( uint16_t  payloadSize)

Force the UDP payload length to a given value.

This might be useful when forging a packet for test purposes.

Parameters
payloadSizethe payload length to use.

Definition at line 148 of file udp-header.cc.

References m_payloadSize.

uint16_t ns3::UdpHeader::GetChecksum ( )

Return the checksum (only known after a Deserialize)

Returns
The checksum for this UdpHeader

Definition at line 240 of file udp-header.cc.

References m_checksum.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanUdpNhc().

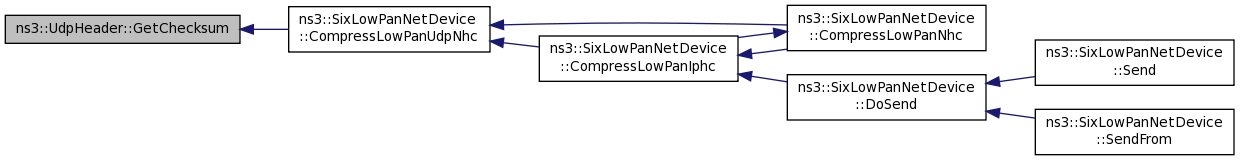

+ Here is the caller graph for this function:

uint16_t ns3::UdpHeader::GetDestinationPort ( void  ) const
Returns
the destination port for this UdpHeader

Definition at line 70 of file udp-header.cc.

References m_destinationPort.

Referenced by ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), ns3::SixLowPanNetDevice::CompressLowPanUdpNhc(), and ns3::UdpL4Protocol::Receive().

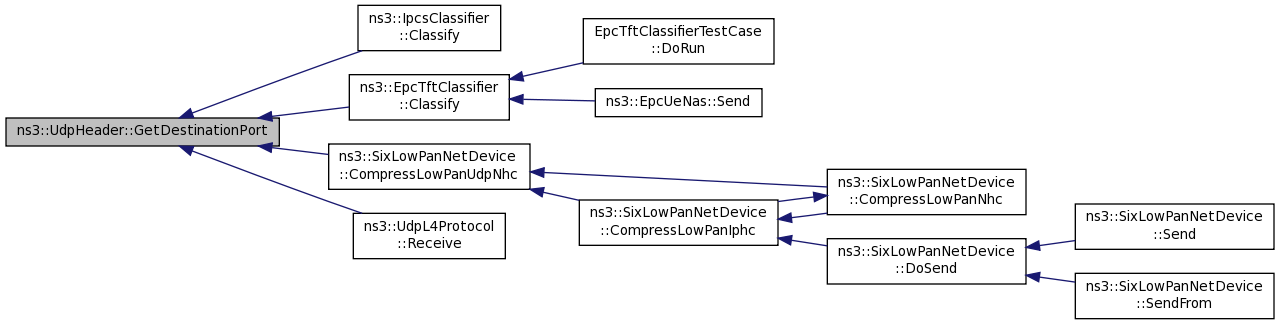

+ Here is the caller graph for this function:

TypeId ns3::UdpHeader::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 163 of file udp-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::UdpHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 177 of file udp-header.cc.

Referenced by Deserialize(), ns3::RipNg::DoSendRouteUpdate(), ns3::RipNg::HandleRequests(), and Print().

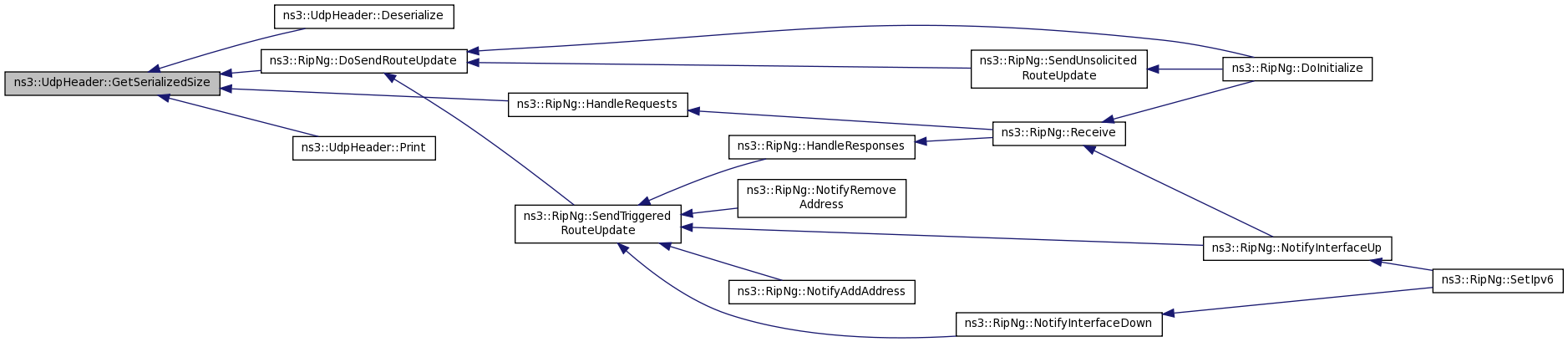

+ Here is the caller graph for this function:

uint16_t ns3::UdpHeader::GetSourcePort ( void  ) const
Returns
The source port for this UdpHeader

Definition at line 65 of file udp-header.cc.

References m_sourcePort.

Referenced by ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), ns3::SixLowPanNetDevice::CompressLowPanUdpNhc(), and ns3::UdpL4Protocol::Receive().

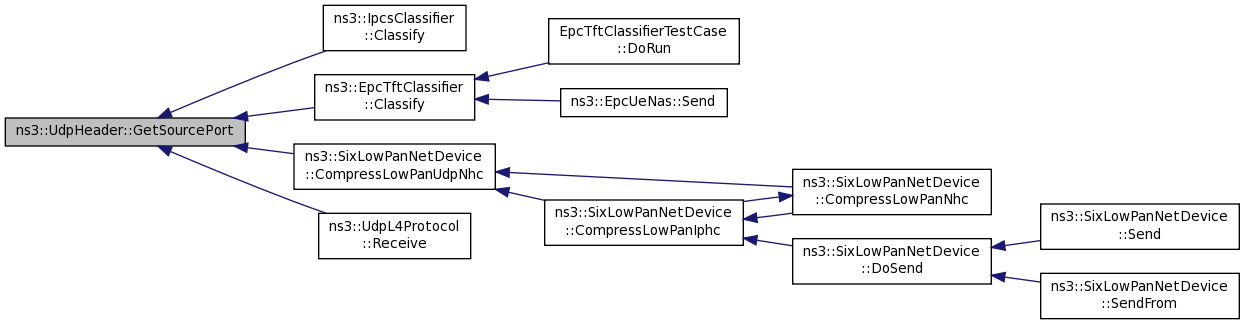

+ Here is the caller graph for this function:

TypeId ns3::UdpHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 154 of file udp-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::UdpHeader::InitializeChecksum ( Address  source,
Address  destination,
uint8_t  protocol
)
Parameters
sourcethe ip source to use in the underlying ip packet.
destinationthe ip destination to use in the underlying ip packet.
protocolthe protocol number to use in the underlying ip packet.

If you want to use udp checksums, you should call this method prior to adding the header to a packet.

Definition at line 75 of file udp-header.cc.

References m_destination, m_protocol, and m_source.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc(), ns3::UdpL4Protocol::Receive(), and ns3::UdpL4Protocol::Send().

+ Here is the caller graph for this function:

void ns3::UdpHeader::InitializeChecksum ( Ipv4Address  source,
Ipv4Address  destination,
uint8_t  protocol
)
Parameters
sourcethe ip source to use in the underlying ip packet.
destinationthe ip destination to use in the underlying ip packet.
protocolthe protocol number to use in the underlying ip packet.

If you want to use udp checksums, you should call this method prior to adding the header to a packet.

Definition at line 84 of file udp-header.cc.

References m_destination, m_protocol, and m_source.

void ns3::UdpHeader::InitializeChecksum ( Ipv6Address  source,
Ipv6Address  destination,
uint8_t  protocol
)
Parameters
sourcethe ip source to use in the underlying ip packet.
destinationthe ip destination to use in the underlying ip packet.
protocolthe protocol number to use in the underlying ip packet.

If you want to use udp checksums, you should call this method prior to adding the header to a packet.

Definition at line 93 of file udp-header.cc.

References m_destination, m_protocol, and m_source.

bool ns3::UdpHeader::IsChecksumOk ( void  ) const

Is the UDP checksum correct ?

Returns
true if the checksum is correct, false otherwise.

Definition at line 136 of file udp-header.cc.

References m_goodChecksum.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanUdpNhc(), ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc(), and ns3::UdpL4Protocol::Receive().

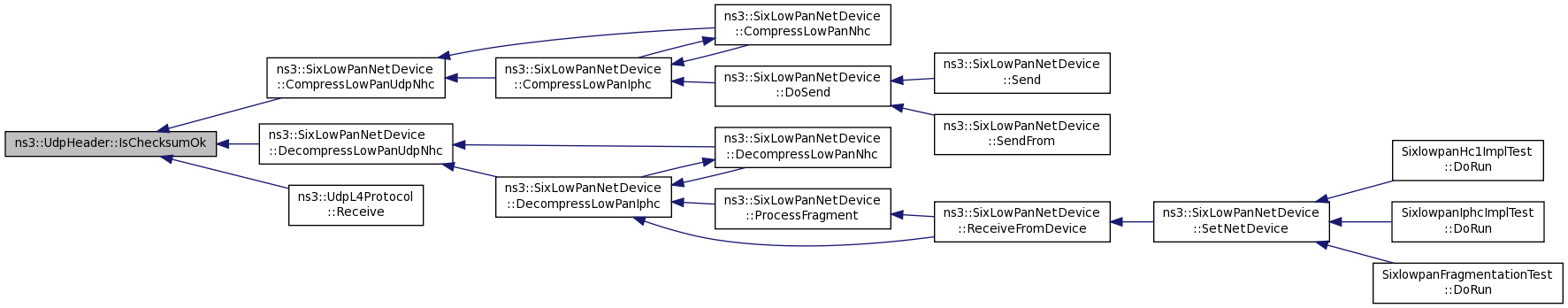

+ Here is the caller graph for this function:

void ns3::UdpHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 168 of file udp-header.cc.

References GetSerializedSize(), m_destinationPort, m_payloadSize, and m_sourcePort.

+ Here is the call graph for this function:

void ns3::UdpHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 183 of file udp-header.cc.

References CalculateHeaderChecksum(), ns3::Buffer::Iterator::GetSize(), m_calcChecksum, m_checksum, m_destinationPort, m_payloadSize, m_sourcePort, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU16().

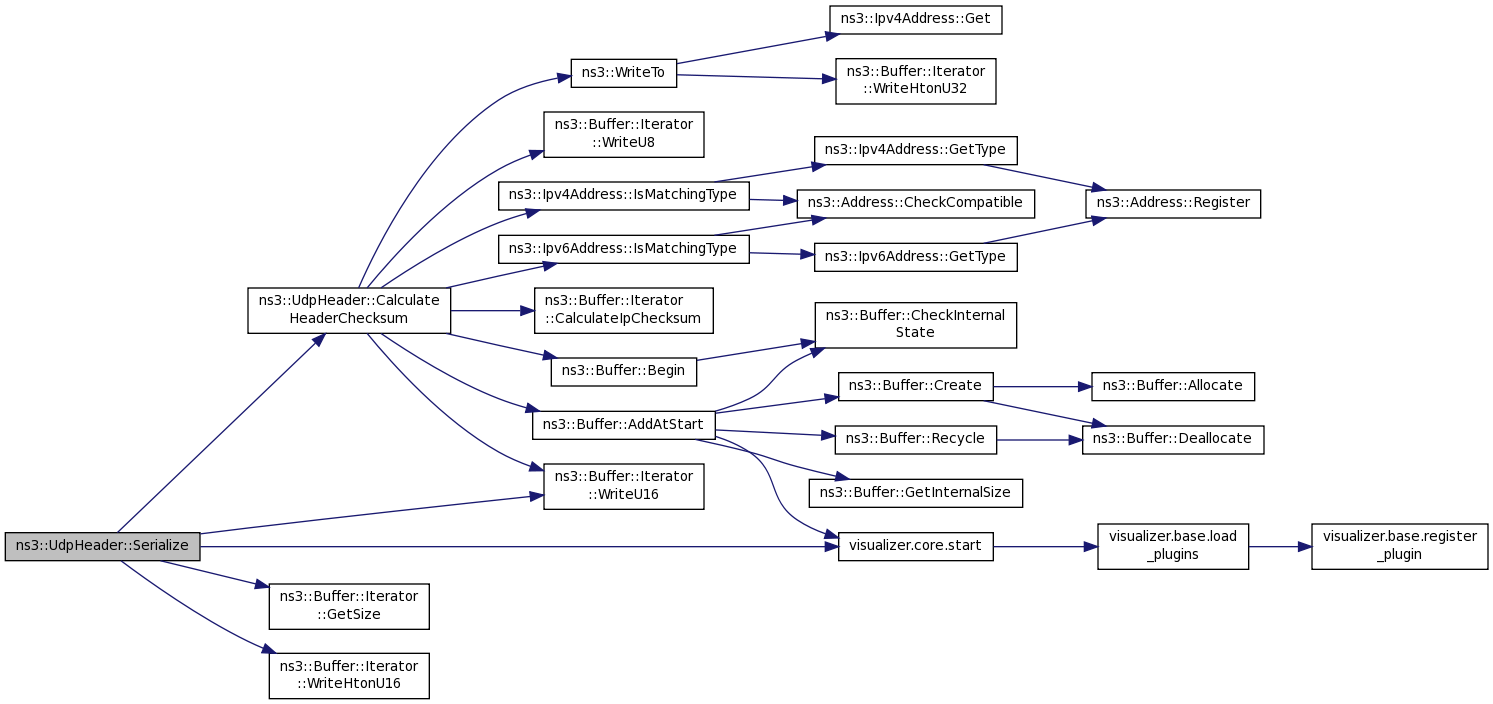

+ Here is the call graph for this function:

void ns3::UdpHeader::SetDestinationPort ( uint16_t  port)
Parameters
portthe destination port for this UdpHeader

Definition at line 55 of file udp-header.cc.

References m_destinationPort, and port.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc(), EpcTftClassifierTestCase::EpcTftClassifierTestCase(), and ns3::UdpL4Protocol::Send().

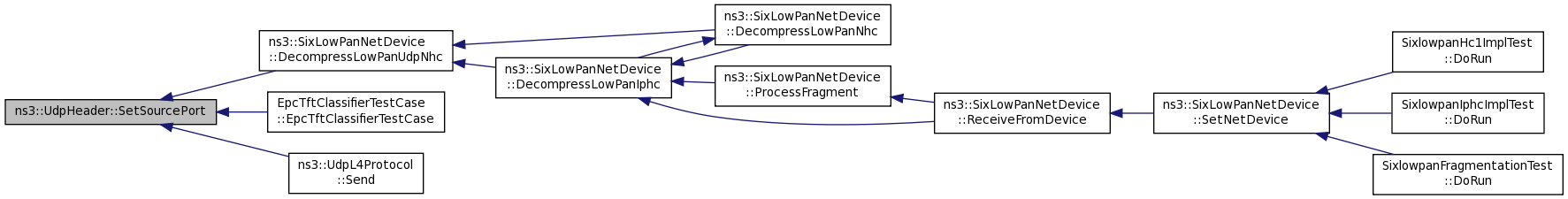

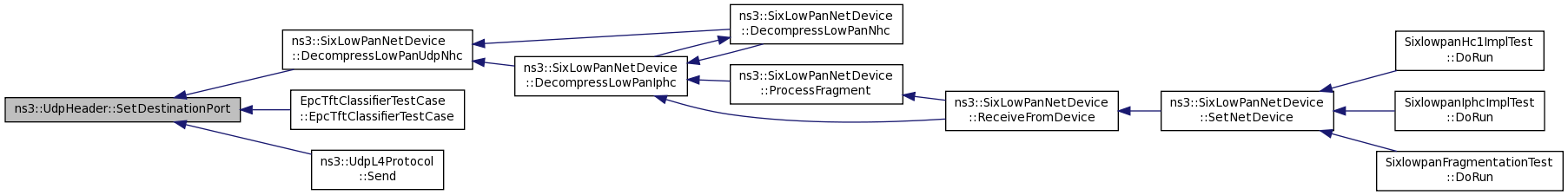

+ Here is the caller graph for this function:

void ns3::UdpHeader::SetSourcePort ( uint16_t  port)
Parameters
portThe source port for this UdpHeader

Definition at line 60 of file udp-header.cc.

References m_sourcePort, and port.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanUdpNhc(), EpcTftClassifierTestCase::EpcTftClassifierTestCase(), and ns3::UdpL4Protocol::Send().

+ Here is the caller graph for this function:

Member Data Documentation

bool ns3::UdpHeader::m_calcChecksum
private

Flag to calculate checksum.

Definition at line 184 of file udp-header.h.

Referenced by Deserialize(), EnableChecksums(), and Serialize().

uint16_t ns3::UdpHeader::m_checksum
private

Forced Checksum value.

Definition at line 183 of file udp-header.h.

Referenced by Deserialize(), ForceChecksum(), GetChecksum(), and Serialize().

Address ns3::UdpHeader::m_destination
private

Destination IP address.

Definition at line 181 of file udp-header.h.

Referenced by CalculateHeaderChecksum(), and InitializeChecksum().

uint16_t ns3::UdpHeader::m_destinationPort
private

Destination port.

Definition at line 177 of file udp-header.h.

Referenced by Deserialize(), GetDestinationPort(), Print(), Serialize(), SetDestinationPort(), and ~UdpHeader().

bool ns3::UdpHeader::m_goodChecksum
private

Flag to indicate that checksum is correct.

Definition at line 185 of file udp-header.h.

Referenced by Deserialize(), and IsChecksumOk().

uint16_t ns3::UdpHeader::m_payloadSize
private

Payload size.

Definition at line 178 of file udp-header.h.

Referenced by Deserialize(), ForcePayloadSize(), Print(), Serialize(), and ~UdpHeader().

uint8_t ns3::UdpHeader::m_protocol
private

Protocol number.

Definition at line 182 of file udp-header.h.

Referenced by CalculateHeaderChecksum(), and InitializeChecksum().

Address ns3::UdpHeader::m_source
private

Source IP address.

Definition at line 180 of file udp-header.h.

Referenced by CalculateHeaderChecksum(), and InitializeChecksum().

uint16_t ns3::UdpHeader::m_sourcePort
private

Source port.

Definition at line 176 of file udp-header.h.

Referenced by Deserialize(), GetSourcePort(), Print(), Serialize(), SetSourcePort(), and ~UdpHeader().


The documentation for this class was generated from the following files:
