ns3::UlMap Class Reference

Doxygen introspection did not find any typical Config paths. More...

#include <ul-mac-messages.h>

+ Inheritance diagram for ns3::UlMap:

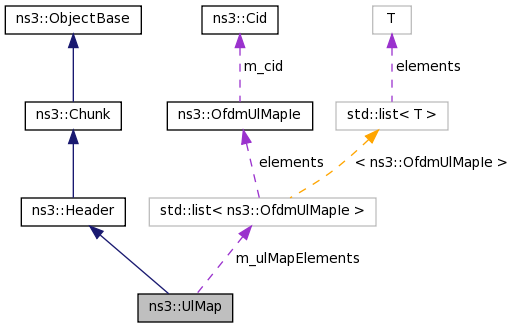

+ Collaboration diagram for ns3::UlMap:

Public Member Functions

 UlMap (void)
 This class implements the UL-MAP_IE message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.2 Compressed UL-MAP, page 404. More...

virtual ~UlMap (void)

void AddUlMapElement (OfdmUlMapIe ulMapElement)

uint32_t Deserialize (Buffer::Iterator start)

uint32_t GetAllocationStartTime (void) const

virtual TypeId GetInstanceTypeId (void) const

std::string GetName (void) const

uint32_t GetSerializedSize (void) const

uint8_t GetUcdCount (void) const

std::list< OfdmUlMapIeGetUlMapElements (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetAllocationStartTime (uint32_t allocationStartTime)

void SetUcdCount (uint8_t ucdCount)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint32_t m_allocationStartTime

uint8_t m_reserved

uint8_t m_ucdCount

std::list< OfdmUlMapIem_ulMapElements


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 315 of file ul-mac-messages.h.

Constructor & Destructor Documentation

ns3::UlMap::UlMap ( void  )

This class implements the UL-MAP_IE message as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 8.2.1.8.2 Compressed UL-MAP, page 404.

Definition at line 582 of file ul-mac-messages.cc.

ns3::UlMap::~UlMap ( void  )
virtual

Definition at line 589 of file ul-mac-messages.cc.

Member Function Documentation

void ns3::UlMap::AddUlMapElement ( OfdmUlMapIe  ulMapElement)

Definition at line 606 of file ul-mac-messages.cc.

References m_ulMapElements.

Referenced by ns3::BaseStationNetDevice::CreateUlMap(), and Deserialize().

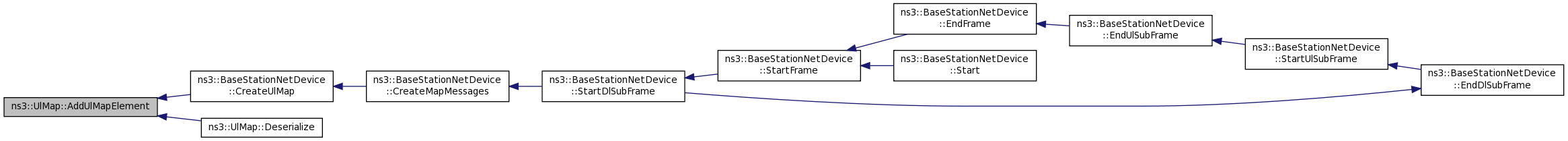

+ Here is the caller graph for this function:

uint32_t ns3::UlMap::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should written.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 690 of file ul-mac-messages.cc.

References AddUlMapElement(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::OfdmUlMapIe::GetUiuc(), m_allocationStartTime, m_reserved, m_ucdCount, m_ulMapElements, ns3::OfdmUlMapIe::Read(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

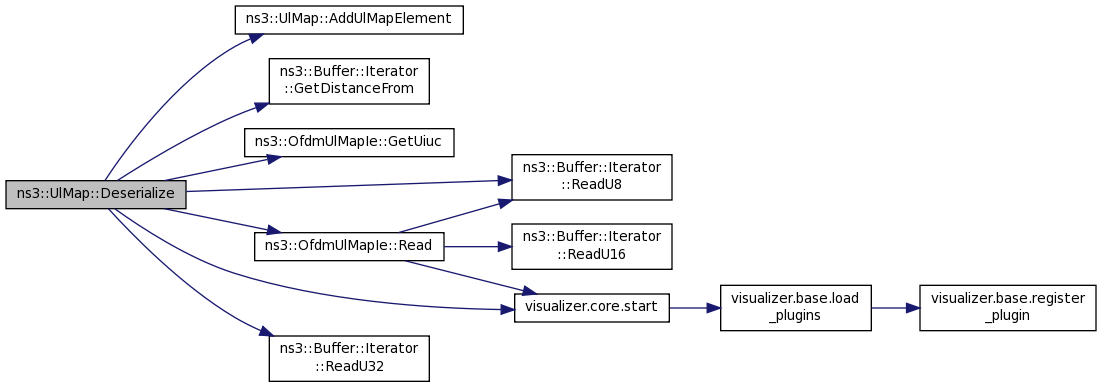

+ Here is the call graph for this function:

uint32_t ns3::UlMap::GetAllocationStartTime ( void  ) const

Definition at line 618 of file ul-mac-messages.cc.

References m_allocationStartTime.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

+ Here is the caller graph for this function:

TypeId ns3::UlMap::GetInstanceTypeId ( void  ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 646 of file ul-mac-messages.cc.

References GetTypeId().

+ Here is the call graph for this function:

std::string ns3::UlMap::GetName ( void  ) const

Definition at line 630 of file ul-mac-messages.cc.

uint32_t ns3::UlMap::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 660 of file ul-mac-messages.cc.

References ns3::OfdmUlMapIe::GetSize(), and m_ulMapElements.

+ Here is the call graph for this function:

TypeId ns3::UlMap::GetTypeId ( void  )
static

Definition at line 636 of file ul-mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::UlMap::GetUcdCount ( void  ) const

Definition at line 612 of file ul-mac-messages.cc.

References m_ucdCount.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

+ Here is the caller graph for this function:

std::list< OfdmUlMapIe > ns3::UlMap::GetUlMapElements ( void  ) const

Definition at line 624 of file ul-mac-messages.cc.

References m_ulMapElements.

Referenced by ns3::SubscriberStationNetDevice::ProcessUlMap().

+ Here is the caller graph for this function:

void ns3::UlMap::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 652 of file ul-mac-messages.cc.

References m_allocationStartTime, m_ucdCount, and m_ulMapElements.

void ns3::UlMap::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 674 of file ul-mac-messages.cc.

References m_allocationStartTime, m_reserved, m_ucdCount, m_ulMapElements, visualizer.core::start(), ns3::OfdmUlMapIe::Write(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

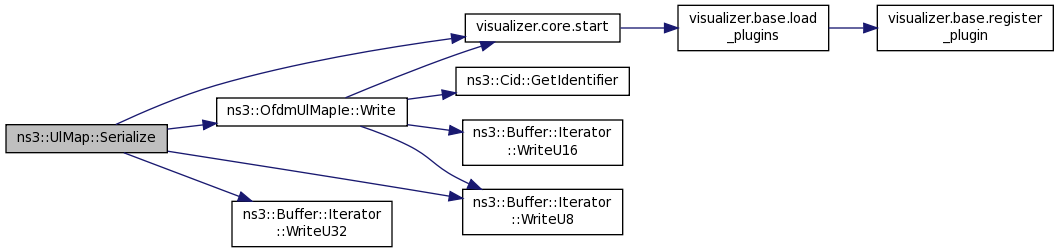

+ Here is the call graph for this function:

void ns3::UlMap::SetAllocationStartTime ( uint32_t  allocationStartTime)

Definition at line 600 of file ul-mac-messages.cc.

References m_allocationStartTime.

Referenced by ns3::BaseStationNetDevice::CreateUlMap().

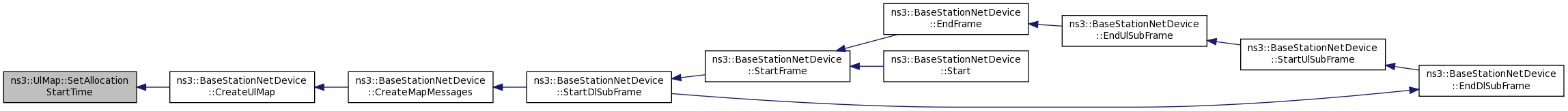

+ Here is the caller graph for this function:

void ns3::UlMap::SetUcdCount ( uint8_t  ucdCount)

Definition at line 594 of file ul-mac-messages.cc.

References m_ucdCount.

Referenced by ns3::BaseStationNetDevice::CreateUlMap().

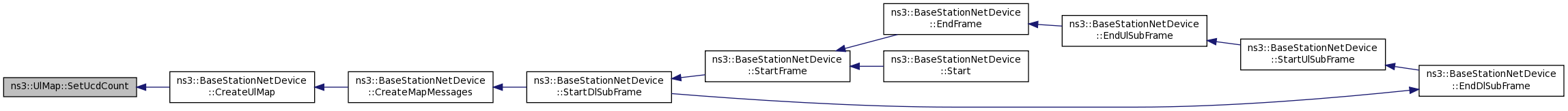

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::UlMap::m_allocationStartTime
private
uint8_t ns3::UlMap::m_reserved
private

Definition at line 343 of file ul-mac-messages.h.

Referenced by Deserialize(), and Serialize().

uint8_t ns3::UlMap::m_ucdCount
private

Definition at line 345 of file ul-mac-messages.h.

Referenced by Deserialize(), GetUcdCount(), Print(), Serialize(), and SetUcdCount().

std::list<OfdmUlMapIe> ns3::UlMap::m_ulMapElements
private

The documentation for this class was generated from the following files:
