See IEEE 802.11-2007 chapter 7.3.1.11 and 7.4.5 also IEEE 802.11p-2010 chapter 7.4.5 Although WifiActionHeader has been defined in wifi mgt-header.h/.cc, it is not a good way to inherit from it or add vendor specific action support. More...

#include <vendor-specific-action.h>

Inheritance diagram for ns3::VendorSpecificActionHeader:

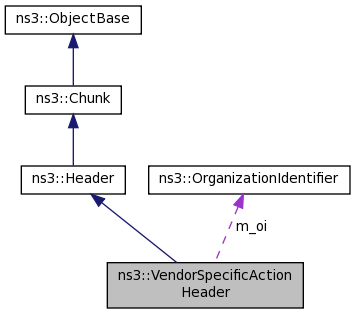

Collaboration diagram for ns3::VendorSpecificActionHeader:

Public Member Functions
	VendorSpecificActionHeader (void)

virtual	~VendorSpecificActionHeader (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)

uint8_t	GetCategory () const
	the category field shall be CATEGORY_OF_VSA More...

virtual TypeId	GetInstanceTypeId (void) const

OrganizationIdentifier	GetOrganizationIdentifier (void) const

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetOrganizationIdentifier (OrganizationIdentifier oi)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_category

OrganizationIdentifier	m_oi

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

See IEEE 802.11-2007 chapter 7.3.1.11 and 7.4.5 also IEEE 802.11p-2010 chapter 7.4.5 Although WifiActionHeader has been defined in wifi mgt-header.h/.cc, it is not a good way to inherit from it or add vendor specific action support.

Doxygen introspection did not find any typical Config paths.

The reason is Action field. Other Action frames contains Action field, and the VSA frame contains OUI or variable OrganizationIdentifier instead of one byte Action field. Header format: | Category | Organization IdentifierType | Vendor Specific content | Octets: 1 j Variable

In ns-3, VSA frame will be divided into VendorSpecificActionHeader vsaHeader and Packet vsc that indicates vendor specific content.

This frame is used by IEEE 1609.4 to send WSA packet of IEEE 1609.3, and if users want to send management information without customized management frames, he can use VSA frames.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 125 of file vendor-specific-action.h.

Constructor & Destructor Documentation

ns3::VendorSpecificActionHeader::VendorSpecificActionHeader ( void )

Definition at line 219 of file vendor-specific-action.cc.

References NS_LOG_FUNCTION.

ns3::VendorSpecificActionHeader::~VendorSpecificActionHeader ( void )

virtual

Definition at line 226 of file vendor-specific-action.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::VendorSpecificActionHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 296 of file vendor-specific-action.cc.

References ns3::CATEGORY_OF_VSA, ns3::OrganizationIdentifier::Deserialize(), GetSerializedSize(), m_category, m_oi, NS_LOG_FUNCTION, and ns3::Buffer::Iterator::ReadU8().

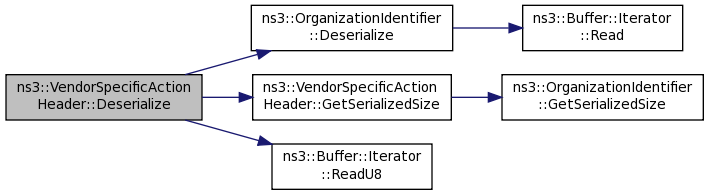

Here is the call graph for this function:

uint8_t ns3::VendorSpecificActionHeader::GetCategory ( void ) const

the category field shall be CATEGORY_OF_VSA

Definition at line 257 of file vendor-specific-action.cc.

References m_category, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::VendorSpecificActionHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 264 of file vendor-specific-action.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

OrganizationIdentifier ns3::VendorSpecificActionHeader::GetOrganizationIdentifier ( void ) const

Returns: current OrganizationIdentifier of the VSA header

Definition at line 239 of file vendor-specific-action.cc.

References m_oi, and NS_LOG_FUNCTION.

Referenced by ns3::OcbWifiMac::Receive().

Here is the caller graph for this function:

uint32_t ns3::VendorSpecificActionHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 281 of file vendor-specific-action.cc.

References ns3::OrganizationIdentifier::GetSerializedSize(), m_category, m_oi, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::VendorSpecificActionHeader::GetTypeId ( void )

static

Definition at line 246 of file vendor-specific-action.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::VendorSpecificActionHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 271 of file vendor-specific-action.cc.

References m_category, m_oi, and NS_LOG_FUNCTION.

void ns3::VendorSpecificActionHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 288 of file vendor-specific-action.cc.

References m_category, m_oi, NS_LOG_FUNCTION, ns3::OrganizationIdentifier::Serialize(), and ns3::Buffer::Iterator::WriteU8().

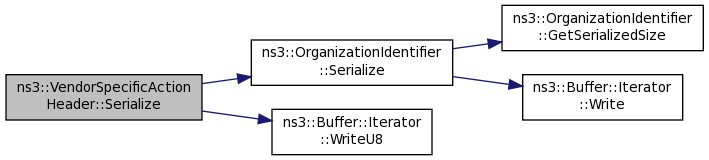

Here is the call graph for this function:
