Route Reply (RREP) Message Format. More...

#include <aodv-packet.h>

Inheritance diagram for ns3::aodv::RrepHeader:

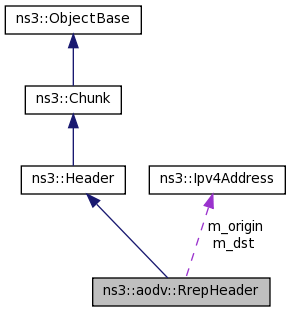

Collaboration diagram for ns3::aodv::RrepHeader:

Public Member Functions
	RrepHeader (uint8_t prefixSize=0, uint8_t hopCount=0, Ipv4Address dst=Ipv4Address(), uint32_t dstSeqNo=0, Ipv4Address origin=Ipv4Address(), Time lifetime=MilliSeconds(0))
	c-tor More...

bool	operator== (RrepHeader const &o) const

void	SetHello (Ipv4Address src, uint32_t srcSeqNo, Time lifetime)
	Configure RREP to be a Hello message. More...

Fields
void	SetHopCount (uint8_t count)

uint8_t	GetHopCount () const

void	SetDst (Ipv4Address a)

Ipv4Address	GetDst () const

void	SetDstSeqno (uint32_t s)

uint32_t	GetDstSeqno () const

void	SetOrigin (Ipv4Address a)

Ipv4Address	GetOrigin () const

void	SetLifeTime (Time t)

Time	GetLifeTime () const

Flags

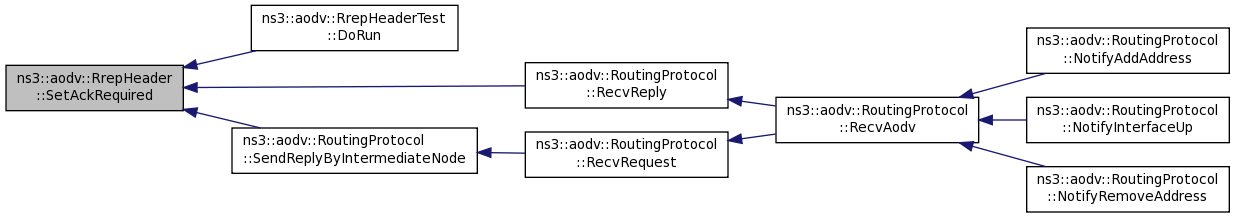

void	SetAckRequired (bool f)

bool	GetAckRequired () const

void	SetPrefixSize (uint8_t sz)

uint8_t	GetPrefixSize () const

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Attributes
Ipv4Address	m_dst
	Destination IP Address. More...

uint32_t	m_dstSeqNo
	Destination Sequence Number. More...

uint8_t	m_flags
	A - acknowledgment required flag. More...

uint8_t	m_hopCount
	Hop Count. More...

uint32_t	m_lifeTime
	Lifetime (in milliseconds) More...

Ipv4Address	m_origin
	Source IP Address. More...

uint8_t	m_prefixSize
	Prefix Size. More...

Header serialization/deserialization
TypeId	GetInstanceTypeId () const

uint32_t	GetSerializedSize () const

void	Serialize (Buffer::Iterator start) const

uint32_t	Deserialize (Buffer::Iterator start)

void	Print (std::ostream &os) const

static TypeId	GetTypeId ()

Additional Inherited Members
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Route Reply (RREP) Message Format.

Doxygen introspection did not find any typical Config paths.

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|     Type      |R|A|    Reserved     |Prefix Sz|   Hop Count   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                     Destination IP address                    |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Destination Sequence Number                  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Originator IP address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                           Lifetime                            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 180 of file aodv-packet.h.

Constructor & Destructor Documentation

ns3::aodv::RrepHeader::RrepHeader	(	uint8_t	prefixSize = `0`,
		uint8_t	hopCount = `0`,
		Ipv4Address	dst = `Ipv4Address ()`,
		uint32_t	dstSeqNo = `0`,
		Ipv4Address	origin = `Ipv4Address ()`,
		Time	lifetime = `MilliSeconds (0)`
	)

c-tor

Definition at line 280 of file aodv-packet.cc.

References ns3::Time::GetMilliSeconds(), and m_lifeTime.

Here is the call graph for this function:

Member Function Documentation

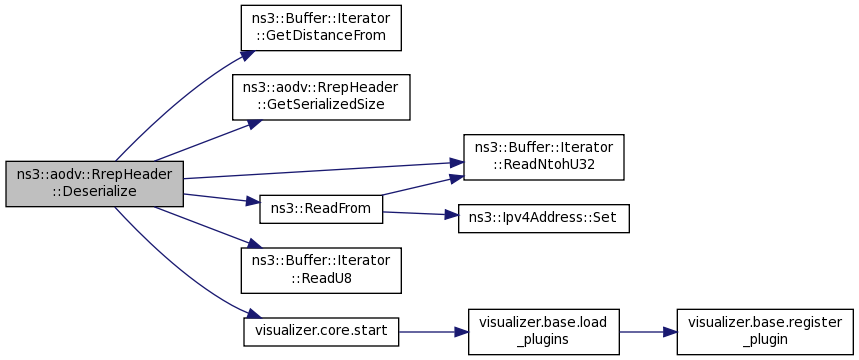

uint32_t ns3::aodv::RrepHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 325 of file aodv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, m_prefixSize, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

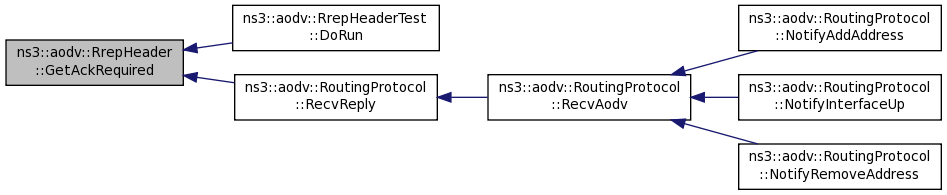

bool ns3::aodv::RrepHeader::GetAckRequired ( ) const

Definition at line 377 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

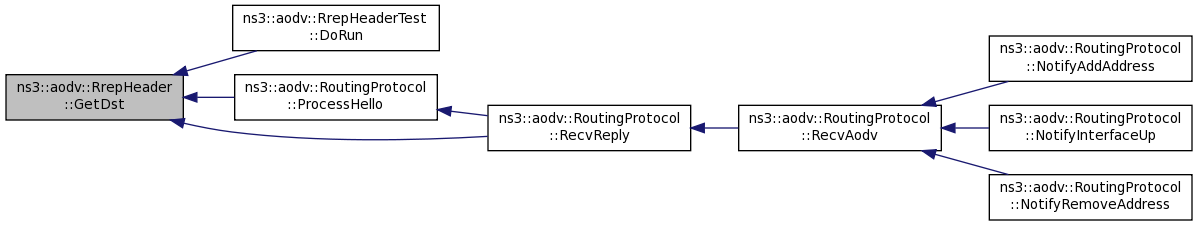

Ipv4Address ns3::aodv::RrepHeader::GetDst ( ) const

inline

Definition at line 202 of file aodv-packet.h.

References m_dst.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

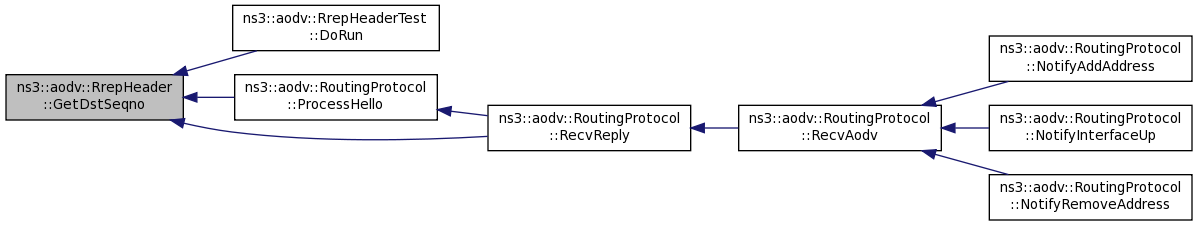

uint32_t ns3::aodv::RrepHeader::GetDstSeqno ( ) const

inline

Definition at line 204 of file aodv-packet.h.

References m_dstSeqNo.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

uint8_t ns3::aodv::RrepHeader::GetHopCount ( ) const

inline

Definition at line 200 of file aodv-packet.h.

References m_hopCount.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

TypeId ns3::aodv::RrepHeader::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 301 of file aodv-packet.cc.

References GetTypeId().

Here is the call graph for this function:

Time ns3::aodv::RrepHeader::GetLifeTime ( ) const

Definition at line 361 of file aodv-packet.cc.

References m_lifeTime.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

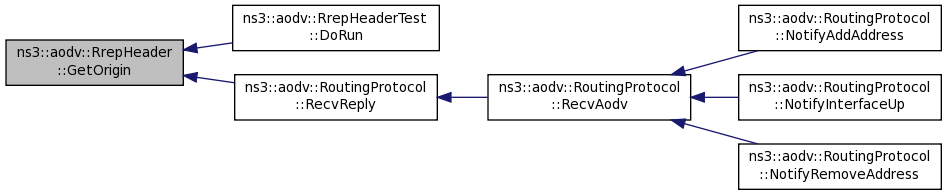

Ipv4Address ns3::aodv::RrepHeader::GetOrigin ( ) const

inline

Definition at line 206 of file aodv-packet.h.

References m_origin.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

uint8_t ns3::aodv::RrepHeader::GetPrefixSize ( ) const

Definition at line 389 of file aodv-packet.cc.

References m_prefixSize.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

Here is the caller graph for this function:

uint32_t ns3::aodv::RrepHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 307 of file aodv-packet.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::aodv::RrepHeader::GetTypeId ( void )

static

Definition at line 291 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RrepHeader::operator== ( RrepHeader const & o ) const

Definition at line 395 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, and m_prefixSize.

void ns3::aodv::RrepHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 343 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_lifeTime, m_origin, and m_prefixSize.

Referenced by ns3::aodv::operator<<().

Here is the caller graph for this function:

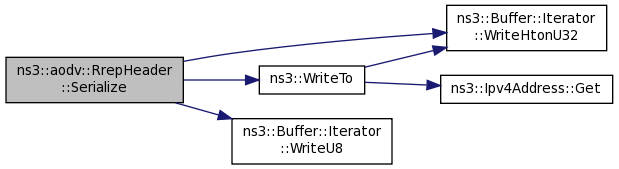

void ns3::aodv::RrepHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 313 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, m_prefixSize, ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
