ns3::aodv::TypeHeader Class Reference

AODV types. More...

#include <aodv-packet.h>

+ Inheritance diagram for ns3::aodv::TypeHeader:
+ Collaboration diagram for ns3::aodv::TypeHeader:

Public Member Functions

 TypeHeader (MessageType t=AODVTYPE_RREQ)
 c-tor More...

MessageType Get () const
 Return type. More...

bool IsValid () const
 Check that type if valid. More...

bool operator== (TypeHeader const &o) const

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Private Attributes

MessageType m_type

bool m_valid


Header serialization/deserialization

TypeId GetInstanceTypeId () const

uint32_t GetSerializedSize () const

void Serialize (Buffer::Iterator start) const

uint32_t Deserialize (Buffer::Iterator start)

void Print (std::ostream &os) const

static TypeId GetTypeId ()


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

AODV types.

Doxygen introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 53 of file aodv-packet.h.

Constructor & Destructor Documentation

ns3::aodv::TypeHeader::TypeHeader ( MessageType  t = AODVTYPE_RREQ)

c-tor

Definition at line 39 of file aodv-packet.cc.

Member Function Documentation

uint32_t ns3::aodv::TypeHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should written.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 73 of file aodv-packet.cc.

References ns3::aodv::AODVTYPE_RERR, ns3::aodv::AODVTYPE_RREP, ns3::aodv::AODVTYPE_RREP_ACK, ns3::aodv::AODVTYPE_RREQ, ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_type, m_valid, NS_ASSERT, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

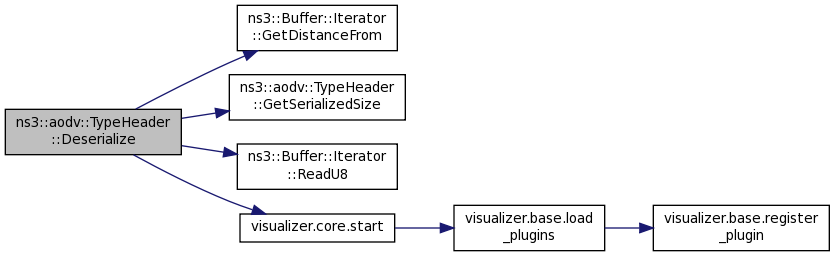

+ Here is the call graph for this function:

MessageType ns3::aodv::TypeHeader::Get ( ) const
inline

Return type.

Definition at line 70 of file aodv-packet.h.

References m_type.

Referenced by ns3::aodv::TypeHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvAodv().

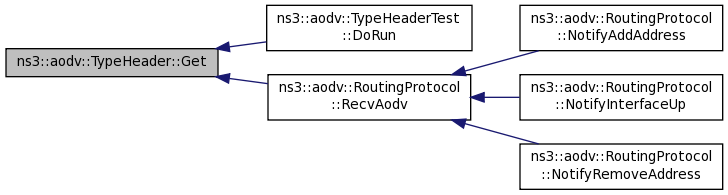

+ Here is the caller graph for this function:

TypeId ns3::aodv::TypeHeader::GetInstanceTypeId ( ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 55 of file aodv-packet.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::aodv::TypeHeader::GetSerializedSize ( ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 61 of file aodv-packet.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

TypeId ns3::aodv::TypeHeader::GetTypeId ( void  )
static

Definition at line 45 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

bool ns3::aodv::TypeHeader::IsValid ( ) const
inline

Check that type if valid.

Definition at line 72 of file aodv-packet.h.

References m_valid.

Referenced by ns3::aodv::TypeHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvAodv().

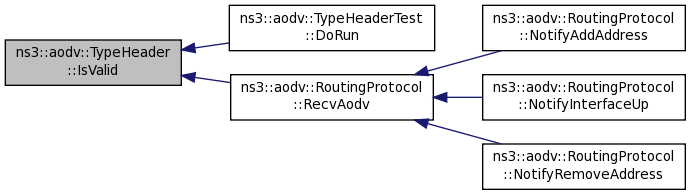

+ Here is the caller graph for this function:

bool ns3::aodv::TypeHeader::operator== ( TypeHeader const &  o) const

Definition at line 127 of file aodv-packet.cc.

References m_type, and m_valid.

void ns3::aodv::TypeHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 97 of file aodv-packet.cc.

References ns3::aodv::AODVTYPE_RERR, ns3::aodv::AODVTYPE_RREP, ns3::aodv::AODVTYPE_RREP_ACK, ns3::aodv::AODVTYPE_RREQ, and m_type.

Referenced by ns3::aodv::operator<<().

+ Here is the caller graph for this function:

void ns3::aodv::TypeHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 67 of file aodv-packet.cc.

References m_type, and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

Member Data Documentation

MessageType ns3::aodv::TypeHeader::m_type
private

Definition at line 75 of file aodv-packet.h.

Referenced by Deserialize(), Get(), operator==(), Print(), and Serialize().

bool ns3::aodv::TypeHeader::m_valid
private

Definition at line 76 of file aodv-packet.h.

Referenced by Deserialize(), IsValid(), and operator==().


The documentation for this class was generated from the following files:
