ns3::dot11s::PeerLinkFrameStart Class Reference

802.11s Peer link management frame More...

#include <peer-link-frame.h>

+ Inheritance diagram for ns3::dot11s::PeerLinkFrameStart:

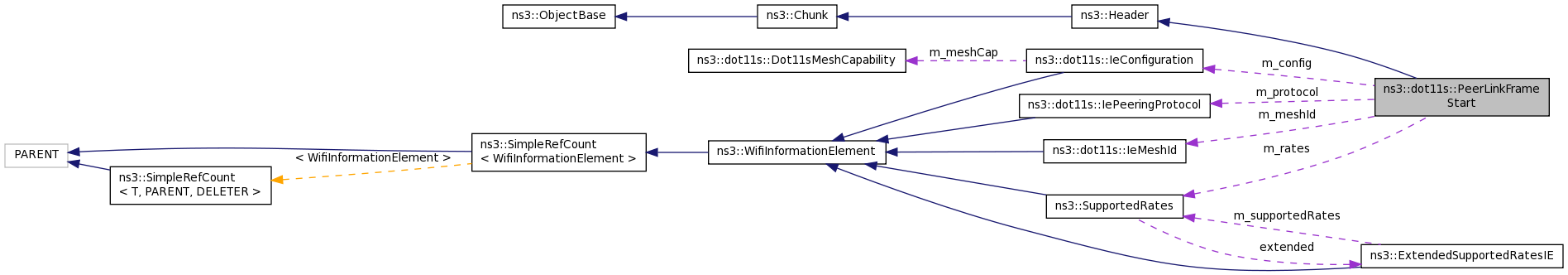

+ Collaboration diagram for ns3::dot11s::PeerLinkFrameStart:

Classes

struct  PlinkFrameStartFields
 fields: More...


Public Member Functions

 PeerLinkFrameStart ()

PlinkFrameStartFields GetFields () const

void SetPlinkFrameStart (PlinkFrameStartFields)

void SetPlinkFrameSubtype (uint8_t subtype)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Private Member Functions

 PeerLinkFrameStart (const PeerLinkFrameStart &)

PeerLinkFrameStartoperator= (const PeerLinkFrameStart &)


Private Attributes

uint16_t m_aid

uint16_t m_capability

IeConfiguration m_config

IeMeshId m_meshId

IePeeringProtocol m_protocol

SupportedRates m_rates

uint16_t m_reasonCode

uint8_t m_subtype


Friends

bool operator== (const PeerLinkFrameStart &a, const PeerLinkFrameStart &b)


Inherited from header:

virtual TypeId GetInstanceTypeId () const

virtual void Print (std::ostream &os) const

virtual uint32_t GetSerializedSize () const

virtual void Serialize (Buffer::Iterator start) const

virtual uint32_t Deserialize (Buffer::Iterator start)

static TypeId GetTypeId ()


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

802.11s Peer link management frame

Doxygen introspection did not find any typical Config paths.

Peer link management frame included the following (see chapters 7.4.12.1-7.4.12.3 of 802.11s):

  • Subtype field
  • Association ID field
  • Supported rates
  • Mesh ID of mesh


No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 45 of file peer-link-frame.h.

Constructor & Destructor Documentation

ns3::dot11s::PeerLinkFrameStart::PeerLinkFrameStart ( )

Definition at line 31 of file peer-link-frame.cc.

ns3::dot11s::PeerLinkFrameStart::PeerLinkFrameStart ( const PeerLinkFrameStart )
private

Member Function Documentation

TypeId ns3::dot11s::PeerLinkFrameStart::GetInstanceTypeId ( ) const
virtual
Returns
the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 93 of file peer-link-frame.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint32_t ns3::dot11s::PeerLinkFrameStart::GetSerializedSize ( ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 108 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_config, m_meshId, m_rates, m_subtype, NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, and ns3::WifiActionHeader::PEER_LINK_CONFIRM.

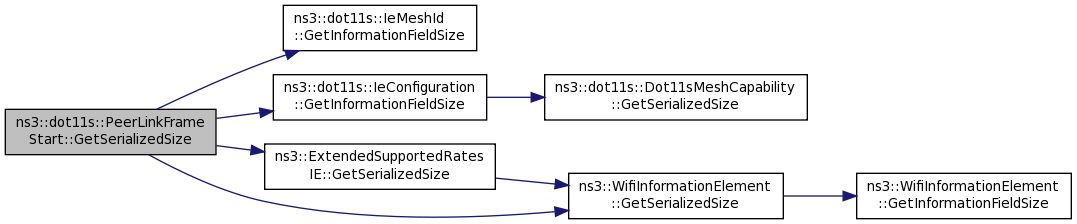

+ Here is the call graph for this function:

TypeId ns3::dot11s::PeerLinkFrameStart::GetTypeId ( void  )
static

Definition at line 86 of file peer-link-frame.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

PeerLinkFrameStart& ns3::dot11s::PeerLinkFrameStart::operator= ( const PeerLinkFrameStart )
private
void ns3::dot11s::PeerLinkFrameStart::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 98 of file peer-link-frame.cc.

References m_aid, m_capability, m_config, m_meshId, m_rates, m_reasonCode, m_subtype, ns3::dot11s::IeMeshId::Print(), and ns3::dot11s::IeConfiguration::Print().

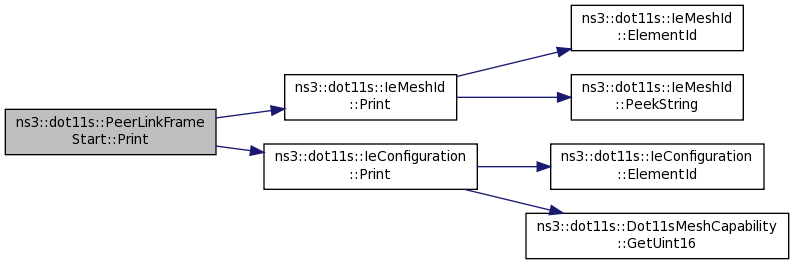

+ Here is the call graph for this function:

void ns3::dot11s::PeerLinkFrameStart::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 140 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, m_aid, m_capability, m_config, m_meshId, m_protocol, m_rates, m_reasonCode, m_subtype, NS_ASSERT, ns3::WifiActionHeader::PEER_LINK_CLOSE, ns3::WifiActionHeader::PEER_LINK_CONFIRM, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

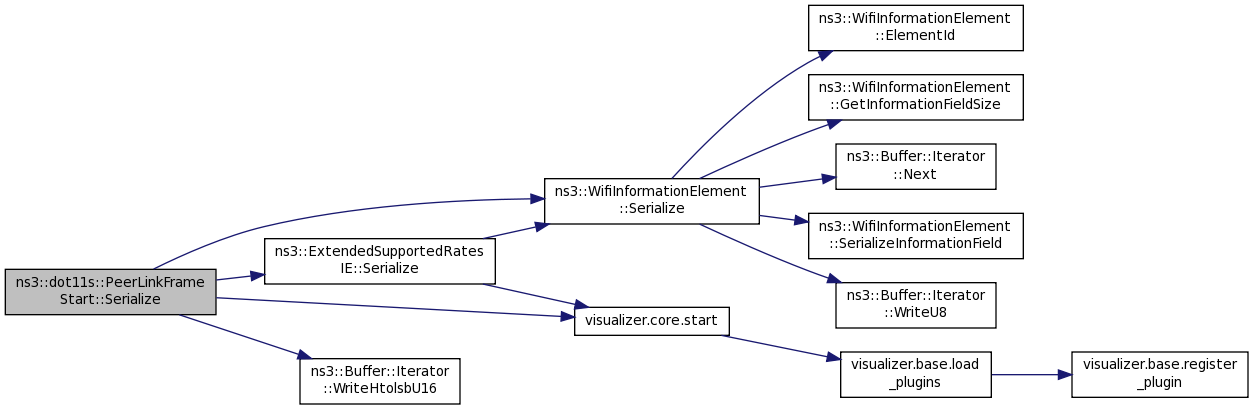

+ Here is the call graph for this function:

void ns3::dot11s::PeerLinkFrameStart::SetPlinkFrameSubtype ( uint8_t  subtype)
Attention
: must be set before deserialize, before only multihop

Definition at line 37 of file peer-link-frame.cc.

References m_subtype.

Referenced by PeerLinkFrameStartTest::DoRun(), and ns3::dot11s::PeerManagementProtocolMac::Receive().

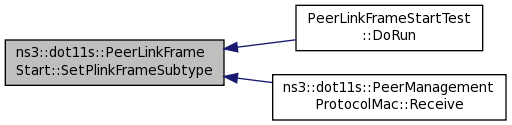

+ Here is the caller graph for this function:

Friends And Related Function Documentation

bool operator== ( const PeerLinkFrameStart a,
const PeerLinkFrameStart b
)
friend

Definition at line 228 of file peer-link-frame.cc.

Member Data Documentation

uint16_t ns3::dot11s::PeerLinkFrameStart::m_aid
private
uint16_t ns3::dot11s::PeerLinkFrameStart::m_capability
private
IeConfiguration ns3::dot11s::PeerLinkFrameStart::m_config
private
IeMeshId ns3::dot11s::PeerLinkFrameStart::m_meshId
private
IePeeringProtocol ns3::dot11s::PeerLinkFrameStart::m_protocol
private

Definition at line 80 of file peer-link-frame.h.

Referenced by Deserialize(), Serialize(), and SetPlinkFrameStart().

SupportedRates ns3::dot11s::PeerLinkFrameStart::m_rates
private
uint16_t ns3::dot11s::PeerLinkFrameStart::m_reasonCode
private
uint8_t ns3::dot11s::PeerLinkFrameStart::m_subtype
private

The documentation for this class was generated from the following files:
