Flame header. More...

#include <flame-header.h>

Inheritance diagram for ns3::flame::FlameHeader:

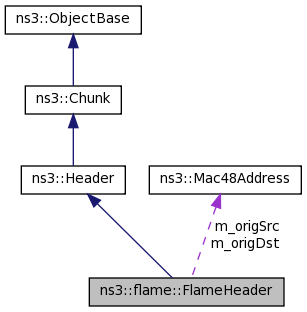

Collaboration diagram for ns3::flame::FlameHeader:

Public Member Functions
	FlameHeader ()

	~FlameHeader ()

Seeters/Getters for fields:
void	AddCost (uint8_t cost)

uint8_t	GetCost () const

void	SetSeqno (uint16_t seqno)

uint16_t	GetSeqno () const

void	SetOrigDst (Mac48Address dst)

Mac48Address	GetOrigDst () const

void	SetOrigSrc (Mac48Address OrigSrc)

Mac48Address	GetOrigSrc () const

void	SetProtocol (uint16_t protocol)

uint16_t	GetProtocol () const

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Private Attributes
uint8_t	m_cost

Mac48Address	m_origDst

Mac48Address	m_origSrc

uint16_t	m_protocol

uint16_t	m_seqno

Friends
bool	operator== (const FlameHeader &a, const FlameHeader &b)

Inherited from Header class:
virtual TypeId	GetInstanceTypeId (void) const

virtual void	Print (std::ostream &os) const

virtual uint32_t	GetSerializedSize (void) const

virtual void	Serialize (Buffer::Iterator start) const

virtual uint32_t	Deserialize (Buffer::Iterator start)

static TypeId	GetTypeId (void)

Additional Inherited Members
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Flame header.

Doxygen introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 37 of file flame-header.h.

Constructor & Destructor Documentation

ns3::flame::FlameHeader::FlameHeader ( )

Definition at line 31 of file flame-header.cc.

ns3::flame::FlameHeader::~FlameHeader ( )

Definition at line 35 of file flame-header.cc.

Member Function Documentation

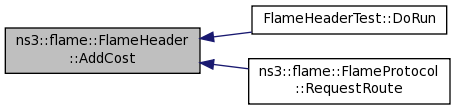

void ns3::flame::FlameHeader::AddCost ( uint8_t cost )

Definition at line 92 of file flame-header.cc.

References m_cost.

Referenced by FlameHeaderTest::DoRun(), and ns3::flame::FlameProtocol::RequestRoute().

Here is the caller graph for this function:

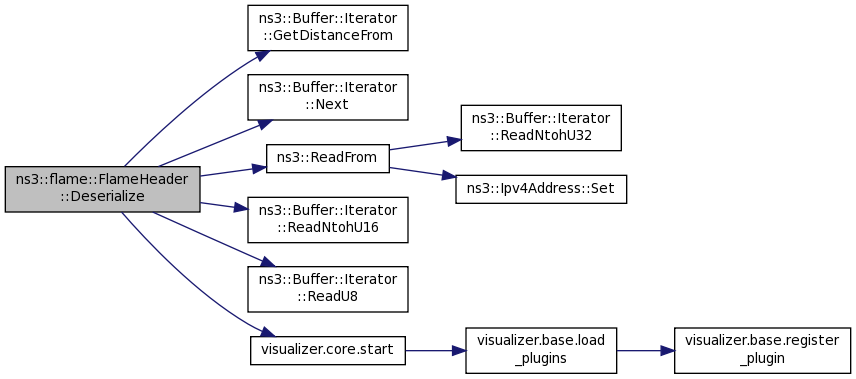

uint32_t ns3::flame::FlameHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 80 of file flame-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_cost, m_origDst, m_origSrc, m_protocol, m_seqno, ns3::Buffer::Iterator::Next(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

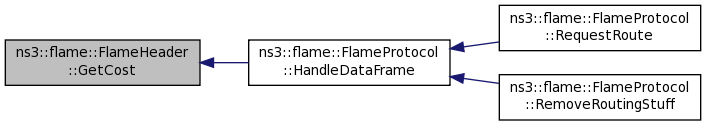

uint8_t ns3::flame::FlameHeader::GetCost ( ) const

Definition at line 97 of file flame-header.cc.

References m_cost.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame().

Here is the caller graph for this function:

TypeId ns3::flame::FlameHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 47 of file flame-header.cc.

References GetTypeId().

Here is the call graph for this function:

Mac48Address ns3::flame::FlameHeader::GetOrigDst ( ) const

Definition at line 117 of file flame-header.cc.

References m_origDst.

Mac48Address ns3::flame::FlameHeader::GetOrigSrc ( ) const

Definition at line 127 of file flame-header.cc.

References m_origSrc.

uint16_t ns3::flame::FlameHeader::GetProtocol ( void ) const

Definition at line 137 of file flame-header.cc.

References m_protocol.

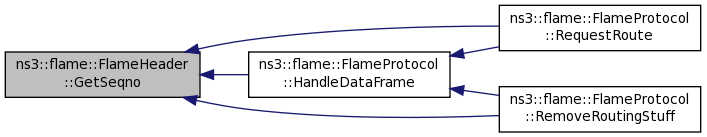

uint16_t ns3::flame::FlameHeader::GetSeqno ( ) const

Definition at line 107 of file flame-header.cc.

References m_seqno.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), ns3::flame::FlameProtocol::RemoveRoutingStuff(), and ns3::flame::FlameProtocol::RequestRoute().

Here is the caller graph for this function:

uint32_t ns3::flame::FlameHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 58 of file flame-header.cc.

TypeId ns3::flame::FlameHeader::GetTypeId ( void )

static

Definition at line 39 of file flame-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::flame::FlameHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 52 of file flame-header.cc.

References m_cost, m_origDst, m_origSrc, and m_seqno.

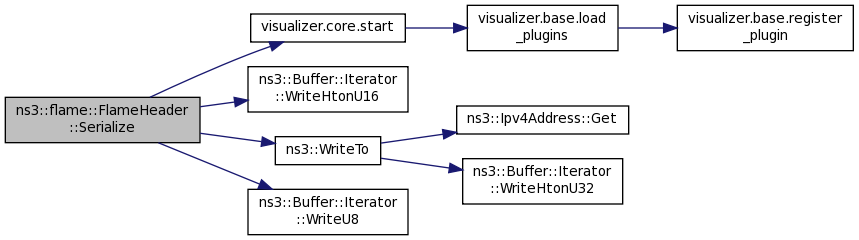

void ns3::flame::FlameHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 69 of file flame-header.cc.

References m_cost, m_origDst, m_origSrc, m_protocol, m_seqno, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
