ns3::flame::FlameRtable Class Reference

Routing table for FLAME. More...

#include <flame-rtable.h>

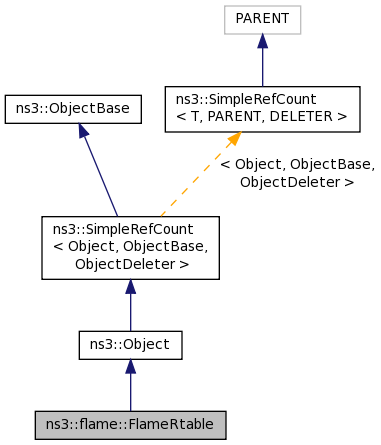

+ Inheritance diagram for ns3::flame::FlameRtable:

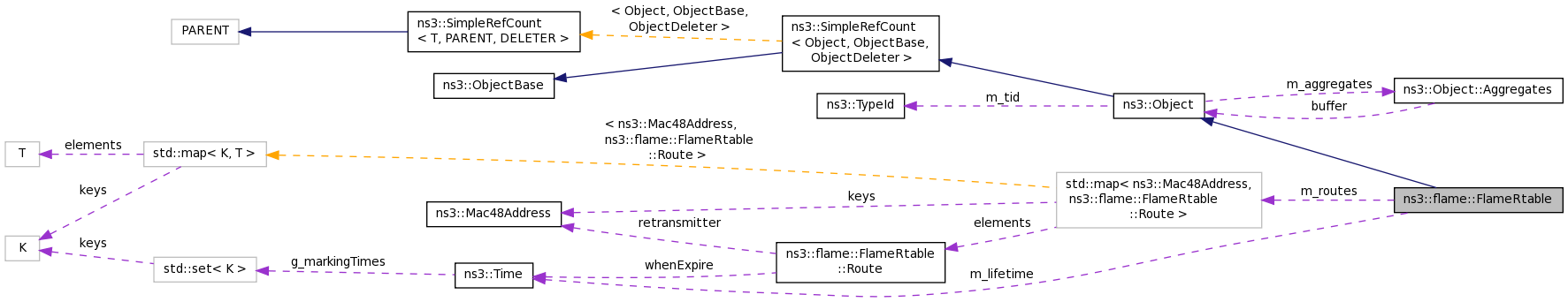

+ Collaboration diagram for ns3::flame::FlameRtable:

Classes

struct  LookupResult
 Route lookup result, return type of LookupXXX methods. More...

struct  Route
 Routing table entry. More...


Public Member Functions

 FlameRtable ()

 ~FlameRtable ()

void AddPath (const Mac48Address destination, const Mac48Address retransmitter, const uint32_t interface, const uint8_t cost, const uint16_t seqnum)
 Add path. More...

void DoDispose ()
 This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

LookupResult Lookup (Mac48Address destination)
 Lookup path to destination. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)
 Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)
 This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Public Attributes

static const uint32_t INTERFACE_ANY = 0xffffffff
 Means all interfaces. More...

static const uint32_t MAX_COST = 0xff
 Maximum (the best?) path cost. More...


Private Member Functions

 FlameRtable (const FlameRtable &)

FlameRtableoperator= (const FlameRtable &)


Private Attributes

Time m_lifetime
 Lifetime parameter. More...

std::map< Mac48Address, Routem_routes
 List of routes. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)
 This method is called only once by Object::Initialize. More...

virtual void NotifyNewAggregate (void)
 This method is invoked whenever two sets of objects are aggregated together. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)
 This method is invoked once all member attributes have been initialized. More...


Detailed Description

Routing table for FLAME.

Doxygen introspection did not find any typical Config paths.


Attributes

  • Lifetime: The lifetime of the routing enrty
    • Set with class: ns3::TimeValue
    • Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
    • Initial value: +120000000000.0ns
    • Flags: construct write read

No TraceSources are defined for this type.

Definition at line 36 of file flame-rtable.h.

Constructor & Destructor Documentation

ns3::flame::FlameRtable::FlameRtable ( )

Definition at line 48 of file flame-rtable.cc.

ns3::flame::FlameRtable::~FlameRtable ( )

Definition at line 52 of file flame-rtable.cc.

ns3::flame::FlameRtable::FlameRtable ( const FlameRtable )
private

Member Function Documentation

void ns3::flame::FlameRtable::AddPath ( const Mac48Address  destination,
const Mac48Address  retransmitter,
const uint32_t  interface,
const uint8_t  cost,
const uint16_t  seqnum
)
void ns3::flame::FlameRtable::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 56 of file flame-rtable.cc.

References m_routes.

TypeId ns3::flame::FlameRtable::GetTypeId ( void  )
static

Definition at line 34 of file flame-rtable.cc.

References m_lifetime, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

FlameRtable::LookupResult ns3::flame::FlameRtable::Lookup ( Mac48Address  destination)

Lookup path to destination.

Returns
Broadcast if not found

Definition at line 84 of file flame-rtable.cc.

References m_routes, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by ns3::flame::FlameProtocol::HandleDataFrame(), ns3::flame::FlameProtocol::RequestRoute(), FlameRtableTest::TestExpire(), and FlameRtableTest::TestLookup().

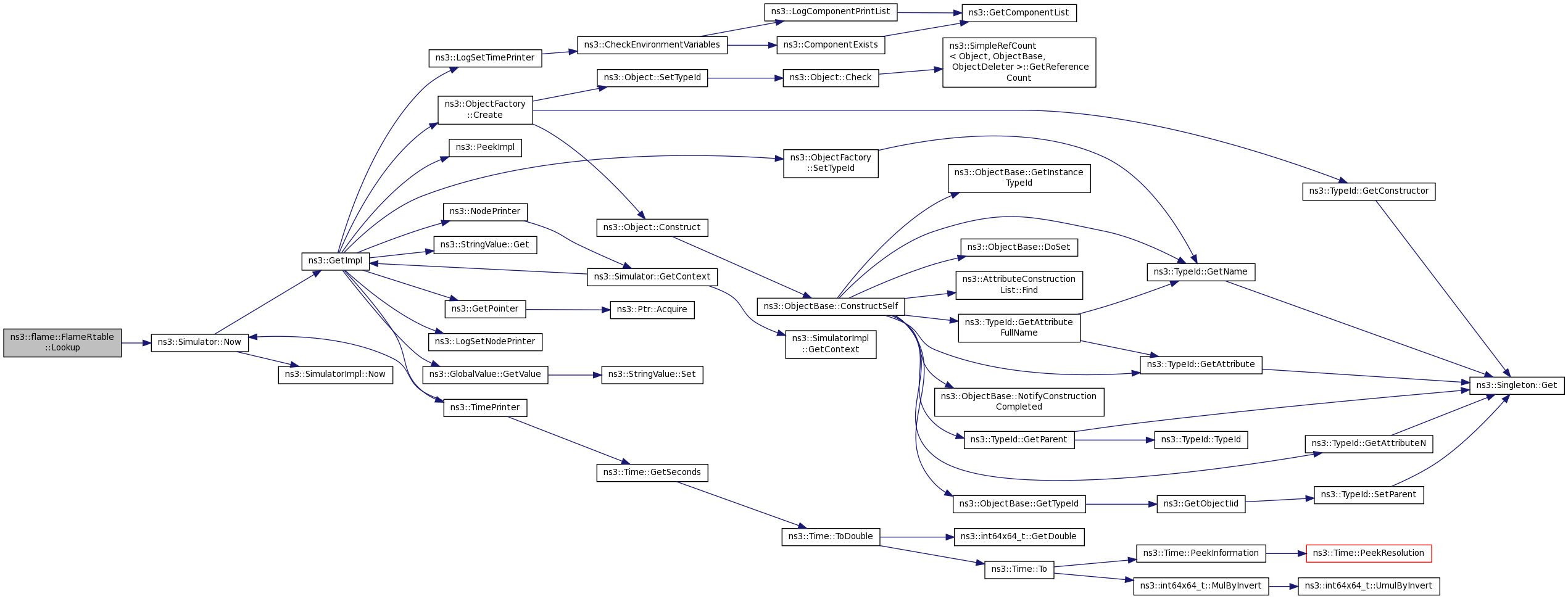

+ Here is the call graph for this function:

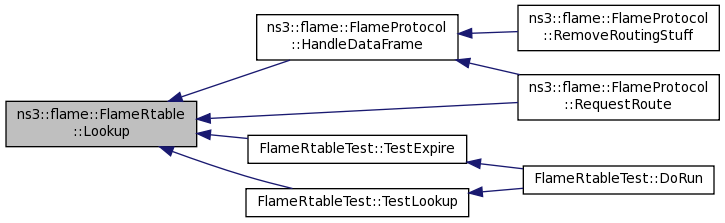

+ Here is the caller graph for this function:

FlameRtable& ns3::flame::FlameRtable::operator= ( const FlameRtable )
private

Member Data Documentation

const uint32_t ns3::flame::FlameRtable::INTERFACE_ANY = 0xffffffff
static

Means all interfaces.

Definition at line 40 of file flame-rtable.h.

Referenced by ns3::flame::FlameRtable::LookupResult::IsValid(), and ns3::flame::FlameProtocol::RequestRoute().

Time ns3::flame::FlameRtable::m_lifetime
private

Lifetime parameter.

Definition at line 99 of file flame-rtable.h.

Referenced by AddPath(), and GetTypeId().

std::map<Mac48Address, Route> ns3::flame::FlameRtable::m_routes
private

List of routes.

Definition at line 101 of file flame-rtable.h.

Referenced by AddPath(), DoDispose(), and Lookup().

const uint32_t ns3::flame::FlameRtable::MAX_COST = 0xff
static

Maximum (the best?) path cost.

Definition at line 42 of file flame-rtable.h.

Referenced by ns3::flame::FlameRtable::LookupResult::IsValid().


The documentation for this class was generated from the following files:
