ns3::olsr::TcRegressionTest Class Reference

Less trivial test of OLSR Topology Control message generation. More...

#include <tc-regression-test.h>

Inheritance diagram for ns3::olsr::TcRegressionTest:

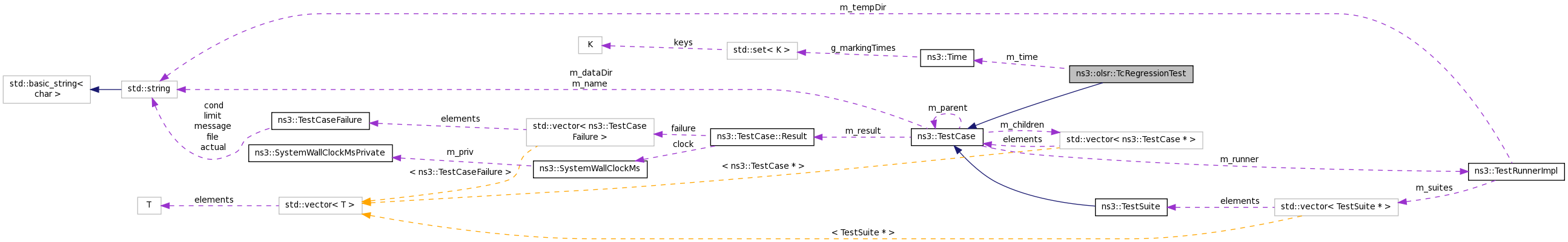

Collaboration diagram for ns3::olsr::TcRegressionTest:

Public Member Functions
	TcRegressionTest ()
	~TcRegressionTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	CheckResults ()
	Compare traces with reference ones. More...
void	CreateNodes ()
	Create & configure test network. More...
void	DoRun ()
	Go. More...

Private Attributes
const double	m_step
	Distance between nodes in meters, 0.8 of RX range is recommended. More...
const Time	m_time
	Total simulation time. More...

Static Private Attributes
static const char *const	PREFIX = "olsr-tc-regression-test"
	Unique PCAP files prefix for this test. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
bool	GetErrorStatus (void) const NS_DEPRECATED
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Less trivial test of OLSR Topology Control message generation.

This test creates 3 WiFi stations with chain topology and runs OLSR without any extra traffic. It is expected that only second station will send TC messages.

Expected trace (20 seconds, note random b-cast jitter):

       1       2       3
       |<------|------>|              HELLO (empty) src = 10.1.1.2
       |       |<------|------>       HELLO (empty) src = 10.1.1.3
<------|------>|       |              HELLO (empty) src = 10.1.1.1
<------|------>|       |              HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.3; Link Type: Asymmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
       |<------|------>|              HELLO (Link Type: Asymmetric, Neighbor: 10.1.1.3; Link Type: Asymmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: Symmetric, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<======|======>|              TC (10.1.1.3; 10.1.1.1) + HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
       |<======|======>|              TC (10.1.1.3; 10.1.1.1) src = 10.1.1.2
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2
<------|------>|       |              HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.1
       |       |<------|------>       HELLO (Link Type: MPR Link, Neighbor: 10.1.1.2) src = 10.1.1.3
       |<------|------>|              HELLO (Link Type: Symmetric, Neighbor: 10.1.1.3; Link Type: Symmetric, Neighbor: 10.1.1.1) src = 10.1.1.2

Definition at line 75 of file tc-regression-test.h.

Constructor & Destructor Documentation

ns3::olsr::TcRegressionTest::TcRegressionTest

(

)

Definition at line 47 of file tc-regression-test.cc.

ns3::olsr::TcRegressionTest::~TcRegressionTest

(

)

Definition at line 54 of file tc-regression-test.cc.

Member Function Documentation

void ns3::olsr::TcRegressionTest::CheckResults ( )

private

Compare traces with reference ones.

Definition at line 122 of file tc-regression-test.cc.

References NS_PCAP_TEST_EXPECT_EQ, and PREFIX.

Referenced by DoRun().

Here is the caller graph for this function:

void ns3::olsr::TcRegressionTest::CreateNodes ( void  )

private

Create & configure test network.

Definition at line 73 of file tc-regression-test.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::OlsrHelper::AssignStreams(), ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::NqosWifiMacHelper::Default(), ns3::YansWifiChannelHelper::Default(), ns3::WifiHelper::Default(), ns3::YansWifiPhyHelper::Default(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::InternetStackHelper::Install(), ns3::WifiHelper::Install(), ns3::MobilityHelper::Install(), m_step, NS_TEST_EXPECT_MSG_EQ, PREFIX, ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::YansWifiPhyHelper::SetErrorRateModel(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::WifiHelper::SetRemoteStationManager(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::WifiHelper::SetStandard(), ns3::NqosWifiMacHelper::SetType(), and ns3::WIFI_PHY_STANDARD_80211a.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::olsr::TcRegressionTest::DoRun ( void  )

privatevirtual

Go.

Implements ns3::TestCase.

Definition at line 59 of file tc-regression-test.cc.

References CheckResults(), CreateNodes(), ns3::Simulator::Destroy(), m_time, ns3::Simulator::Run(), ns3::RngSeedManager::SetRun(), ns3::RngSeedManager::SetSeed(), and ns3::Simulator::Stop().

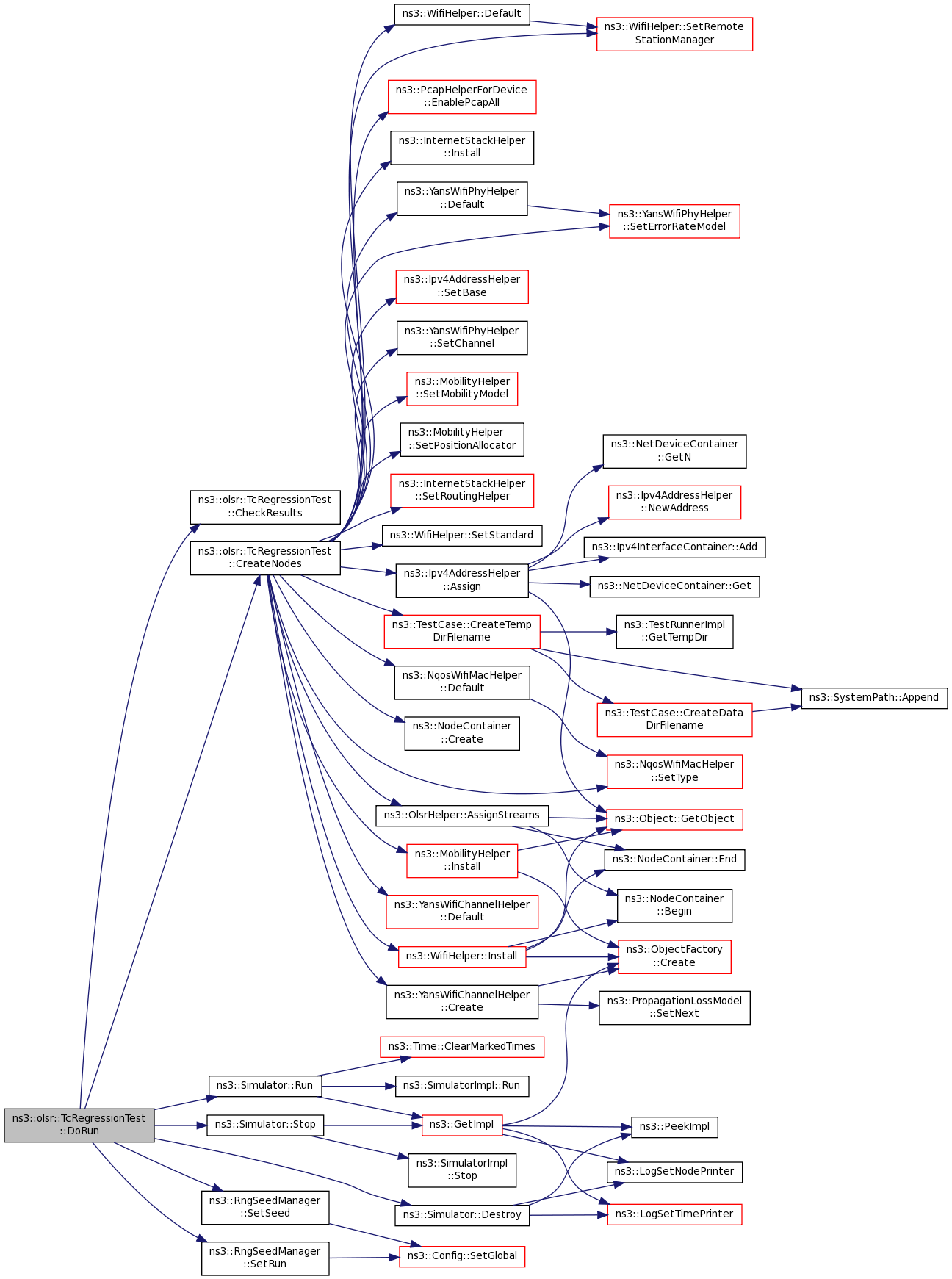

Here is the call graph for this function:

Member Data Documentation

const double ns3::olsr::TcRegressionTest::m_step

private

Distance between nodes in meters, 0.8 of RX range is recommended.

Definition at line 86 of file tc-regression-test.h.

Referenced by CreateNodes().

const Time ns3::olsr::TcRegressionTest::m_time

private

Total simulation time.

Definition at line 84 of file tc-regression-test.h.

Referenced by DoRun().

const char *const ns3::olsr::TcRegressionTest::PREFIX = "olsr-tc-regression-test"

staticprivate

Unique PCAP files prefix for this test.

Definition at line 82 of file tc-regression-test.h.

Referenced by CheckResults(), and CreateNodes().

---

The documentation for this class was generated from the following files:

• src/olsr/test/tc-regression-test.h
• src/olsr/test/tc-regression-test.cc
