ns3::olsr::MessageHeader::Hello Struct Reference

#include <olsr-header.h>

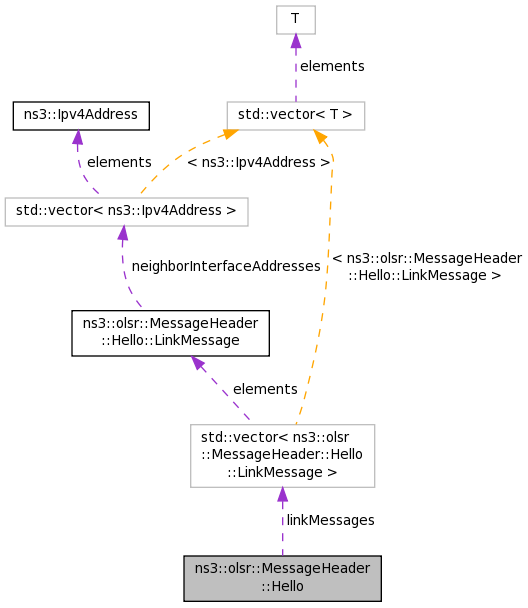

Collaboration diagram for ns3::olsr::MessageHeader::Hello:

Classes
struct	LinkMessage

Public Member Functions
uint32_t	Deserialize (Buffer::Iterator start, uint32_t messageSize)
Time	GetHTime () const
uint32_t	GetSerializedSize (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const
void	SetHTime (Time time)

Public Attributes
uint8_t	hTime
std::vector< LinkMessage >	linkMessages
uint8_t	willingness

Detailed Description

Definition at line 258 of file olsr-header.h.

Member Function Documentation

uint32_t ns3::olsr::MessageHeader::Hello::Deserialize	(	Buffer::Iterator	start,
		uint32_t	messageSize
	)

Definition at line 378 of file olsr-header.cc.

References IPV4_ADDRESS_SIZE, ns3::olsr::MessageHeader::Hello::LinkMessage::linkCode, ns3::olsr::MessageHeader::Hello::LinkMessage::neighborInterfaceAddresses, NS_ASSERT, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

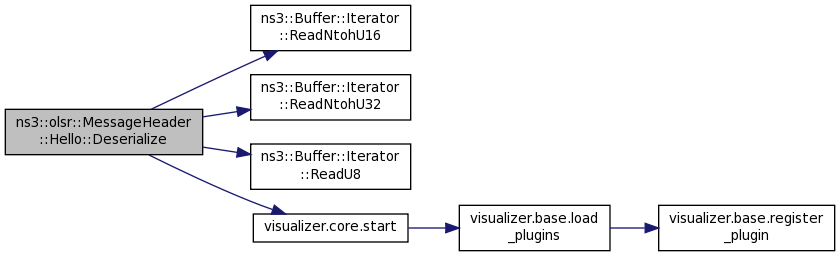

Here is the call graph for this function:

Time ns3::olsr::MessageHeader::Hello::GetHTime ( ) const

inline

Definition at line 270 of file olsr-header.h.

References ns3::olsr::EmfToSeconds(), and hTime.

Referenced by OlsrHelloTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::olsr::MessageHeader::Hello::GetSerializedSize

(

void

)

const

Definition at line 327 of file olsr-header.cc.

References IPV4_ADDRESS_SIZE, and ns3::olsr::MessageHeader::Hello::LinkMessage::neighborInterfaceAddresses.

void ns3::olsr::MessageHeader::Hello::Print

(

std::ostream &

os

)

const

Todo:

Definition at line 341 of file olsr-header.cc.

void ns3::olsr::MessageHeader::Hello::Serialize

(

Buffer::Iterator

start

)

const

Definition at line 347 of file olsr-header.cc.

References IPV4_ADDRESS_SIZE, ns3::olsr::MessageHeader::Hello::LinkMessage::linkCode, ns3::olsr::MessageHeader::Hello::LinkMessage::neighborInterfaceAddresses, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

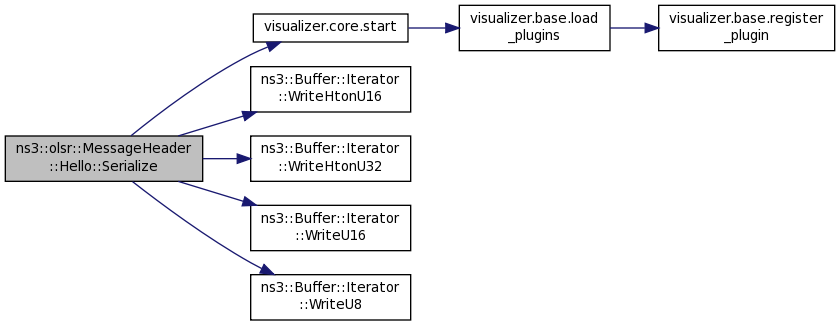

Here is the call graph for this function:

void ns3::olsr::MessageHeader::Hello::SetHTime ( Time  time )

inline

Definition at line 266 of file olsr-header.h.

References ns3::Time::GetSeconds(), hTime, and ns3::olsr::SecondsToEmf().

Referenced by OlsrHelloTestCase::DoRun(), and ns3::olsr::RoutingProtocol::SendHello().

Here is the call graph for this function:

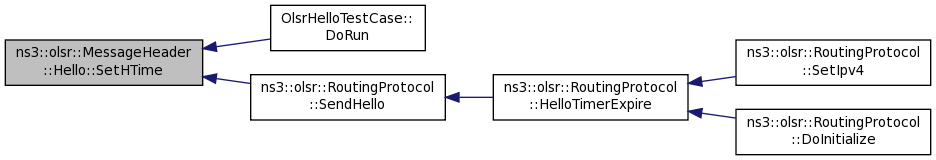

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::olsr::MessageHeader::Hello::hTime

Definition at line 265 of file olsr-header.h.

Referenced by GetHTime(), and SetHTime().

std::vector<LinkMessage> ns3::olsr::MessageHeader::Hello::linkMessages

Definition at line 276 of file olsr-header.h.

Referenced by OlsrHelloTestCase::DoRun(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::PopulateMprSelectorSet(), ns3::olsr::RoutingProtocol::PopulateTwoHopNeighborSet(), and ns3::olsr::RoutingProtocol::SendHello().

uint8_t ns3::olsr::MessageHeader::Hello::willingness

Definition at line 275 of file olsr-header.h.

Referenced by OlsrHelloTestCase::DoRun(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::olsr::RoutingProtocol::PopulateNeighborSet(), and ns3::olsr::RoutingProtocol::SendHello().

---

The documentation for this struct was generated from the following files:

• src/olsr/model/olsr-header.h
• src/olsr/model/olsr-header.cc
