General error model that can be used to corrupt packets. More...

#include <error-model.h>

Inheritance diagram for ns3::ErrorModel:

Collaboration diagram for ns3::ErrorModel:

Public Member Functions
	ErrorModel ()

virtual	~ErrorModel ()

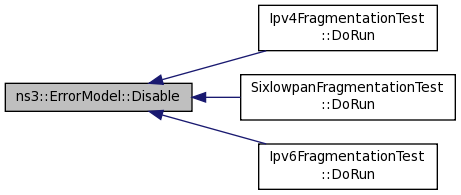

void	Disable (void)
	Disable the error model. More...

void	Enable (void)
	Enable the error model. More...

bool	IsCorrupt (Ptr< Packet > pkt)
	Note: Depending on the error model, this function may or may not alter the contents of the packet upon returning true. More...

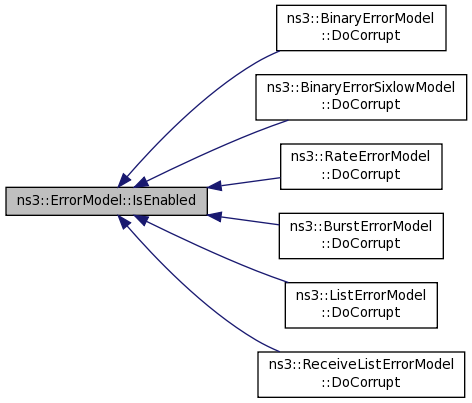

bool	IsEnabled (void) const

void	Reset (void)
	Reset any state associated with the error model. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
virtual bool	DoCorrupt (Ptr< Packet > p)=0
	Corrupt a packet according to the specified model. More...

virtual void	DoReset (void)=0
	Re-initialize any state. More...

Private Attributes
bool	m_enable
	True if the error model is enabled. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

General error model that can be used to corrupt packets.

This object is used to flag packets as being lost/errored or not. It is part of the Object framework and can be aggregated to other ns3 objects and handled by the Ptr class.

The main method is IsCorrupt(Ptr<Packet> p) which returns true if the packet is to be corrupted according to the underlying model. Depending on the error model, the packet itself may have its packet data buffer errored or not, or side information may be returned to the client in the form of a packet tag. (Note: No such error models that actually error the bits in a packet presently exist). The object can have state (resettable by Reset()). The object can also be enabled and disabled via two public member functions.

Typical code (simplified) to use an ErrorModel may look something like this:

Ptr<ErrorModel> rem = CreateObject<RateErrorModel> ();
Ptr<UniformRandomVariable> uv = CreateObject<UniformRandomVariable> ();
rem->SetRandomVariable (uv);
rem->SetRate (0.001);
...
Ptr<Packet> p;
if (rem->IsCorrupt (p))
  {
    dropTrace(p);
  } else {
    Forward (p);
  }

Four practical error models, a RateErrorModel, a BurstErrorModel, a ListErrorModel, and a ReceiveListErrorModel, are currently implemented.

Config Paths

ns3::ErrorModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel

Attributes

IsEnabled: Whether this ErrorModel is enabled or not.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
