Provide a list of Packet uids to corrupt. More...

#include <error-model.h>

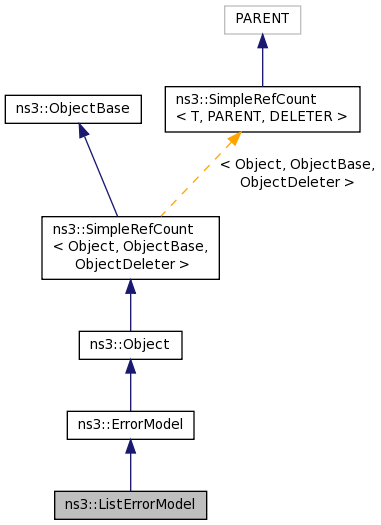

Inheritance diagram for ns3::ListErrorModel:

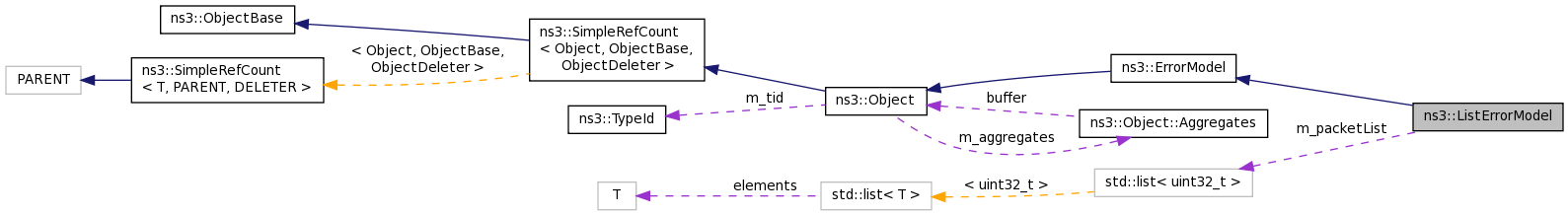

Collaboration diagram for ns3::ListErrorModel:

Public Member Functions
	ListErrorModel ()

virtual	~ListErrorModel ()

std::list< uint32_t >	GetList (void) const

void	SetList (const std::list< uint32_t > &packetlist)

Public Member Functions inherited from ns3::ErrorModel
	ErrorModel ()

virtual	~ErrorModel ()

void	Disable (void)
	Disable the error model. More...

void	Enable (void)
	Enable the error model. More...

bool	IsCorrupt (Ptr< Packet > pkt)
	Note: Depending on the error model, this function may or may not alter the contents of the packet upon returning true. More...

bool	IsEnabled (void) const

void	Reset (void)
	Reset any state associated with the error model. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ErrorModel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::list< uint32_t >	PacketList
	Typedef: packet Uid list. More...

typedef std::list< uint32_t > ::const_iterator	PacketListCI
	Typedef: packet Uid list const iterator. More...

Private Member Functions
virtual bool	DoCorrupt (Ptr< Packet > p)
	Corrupt a packet according to the specified model. More...

virtual void	DoReset (void)
	Re-initialize any state. More...

Private Attributes
PacketList	m_packetList
	container of Uid of packets to corrupt More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Provide a list of Packet uids to corrupt.

This object is used to flag packets as being lost/errored or not. A note on performance: the list is assumed to be unordered, and in general, Packet uids received may be unordered. Therefore, each call to IsCorrupt() will result in a walk of the list with the present underlying implementation.

Note also that if one wants to target multiple packets from looking at an (unerrored) trace file, the act of erroring a given packet may cause subsequent packet uids to change. For instance, suppose one wants to error packets 11 and 17 on a given device. It may be that erroring packet 11 will cause the subsequent uid stream to change and 17 may no longer correspond to the second packet that one wants to lose. Therefore, be advised that it might take some trial and error to select the right uids when multiple are provided.

Reset() on this model will clear the list

IsCorrupt() will not modify the packet data buffer

Config Paths

ns3::ListErrorModel is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::ListErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::ListErrorModel
/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::ListErrorModel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 379 of file error-model.h.
