The LteAmc class implements the Adaptive Modulation And Coding Scheme as proposed in 3GPP TSG-RAN WG1 - R1-081483 http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip. More...

#include <lte-amc.h>

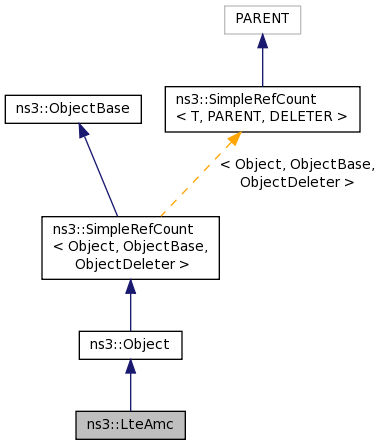

Inheritance diagram for ns3::LteAmc:

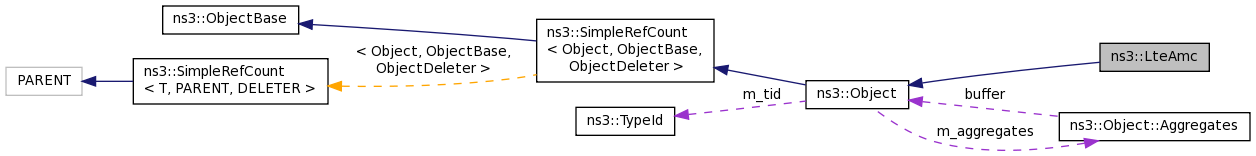

Collaboration diagram for ns3::LteAmc:

Public Types
enum	AmcModel { PiroEW2010, MiErrorModel }

Public Member Functions
	LteAmc ()

virtual	~LteAmc ()

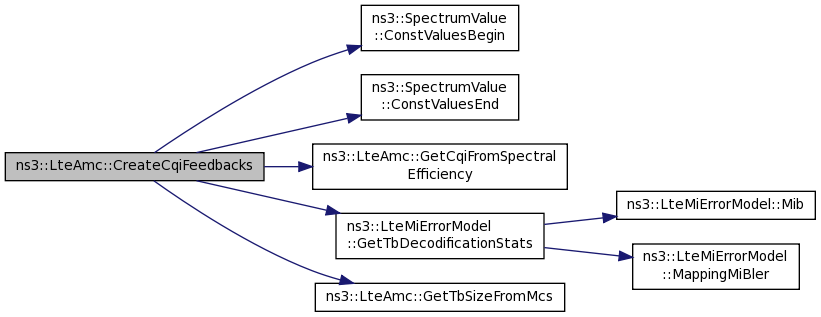

std::vector< int >	CreateCqiFeedbacks (const SpectrumValue &sinr, uint8_t rbgSize=0)
	Create a message with CQI feedback. More...

int	GetCqiFromSpectralEfficiency (double s)
	Get a proper CQI for the spectrale efficiency value. More...

int	GetMcsFromCqi (int cqi)
	Get the Modulation anc Coding Scheme for a CQI value. More...

double	GetSpectralEfficiencyFromCqi (int cqi)
	Get the spectral efficiency value associated to the received CQI. More...

int	GetTbSizeFromMcs (int mcs, int nprb)
	Get the Transport Block Size for a selected MCS and number of PRB (table 7.1.7.2.1-1 of 36.213) More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

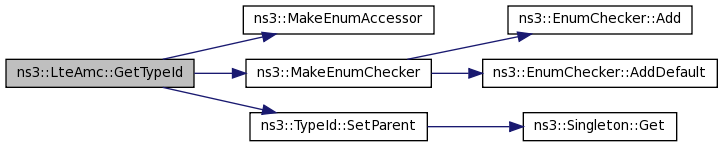

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
AmcModel	m_amcModel

double	m_ber

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

The LteAmc class implements the Adaptive Modulation And Coding Scheme as proposed in 3GPP TSG-RAN WG1 - R1-081483 http://www.3gpp.org/ftp/tsg_ran/WG1_RL1/TSGR1_52b/Docs/R1-081483.zip.

Doxygen introspection did not find any typical Config paths.

Note: All the methods of this class are static, so you'll never need to create and manage instances of this class.

Attributes

Ber: The requested BER in assigning MCS (default is 0.00005).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5e-05
- Flags: construct write read
AmcModel: AMC model used to assign CQI
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: Vienna
- Flags: construct write read
