Simple Frequency Reuse algorithm implementation which uses only 1 sub-band. More...

#include <lte-ffr-simple.h>

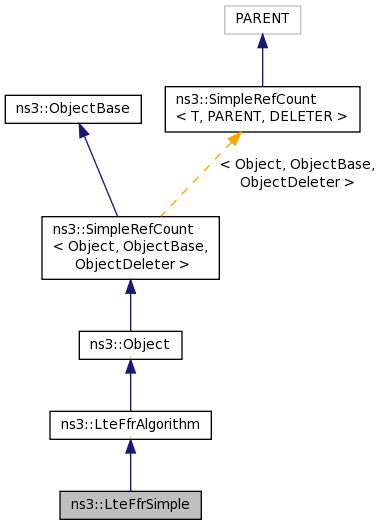

Inheritance diagram for ns3::LteFfrSimple:

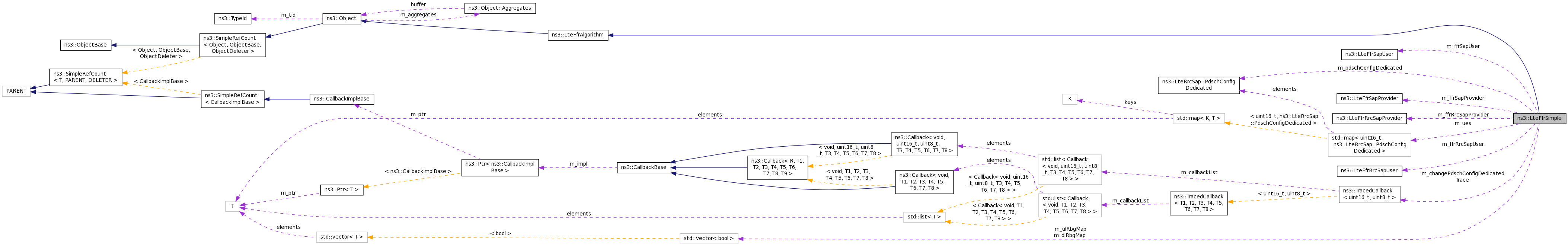

Collaboration diagram for ns3::LteFfrSimple:

Public Member Functions
	LteFfrSimple ()
	Creates a trivial ffr algorithm instance. More...

virtual	~LteFfrSimple ()

void	ChangePdschConfigDedicated (bool change)

virtual LteFfrRrcSapProvider *	GetLteFfrRrcSapProvider ()
	Export the "provider" part of the LteFfrRrcSap interface. More...

virtual LteFfrSapProvider *	GetLteFfrSapProvider ()
	Export the "provider" part of the LteFfrSap interface. More...

virtual void	SetLteFfrRrcSapUser (LteFfrRrcSapUser *s)
	Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with. More...

virtual void	SetLteFfrSapUser (LteFfrSapUser *s)
	Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with. More...

void	SetPdschConfigDedicated (LteRrcSap::PdschConfigDedicated pdschConfigDedicated)

void	SetTpc (uint32_t tpc, uint32_t num, bool acculumatedMode)

Public Member Functions inherited from ns3::LteFfrAlgorithm
	LteFfrAlgorithm ()

virtual	~LteFfrAlgorithm ()

uint8_t	GetDlBandwidth () const

uint8_t	GetFrCellTypeId () const

uint8_t	GetUlBandwidth () const

void	SetDlBandwidth (uint8_t bw)

void	SetFrCellTypeId (uint8_t cellTypeId)

void	SetUlBandwidth (uint8_t bw)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::LteFfrAlgorithm
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

virtual std::vector< bool >	DoGetAvailableDlRbg ()
	Implementation of LteFfrSapProvider::GetAvailableDlRbg. More...

virtual std::vector< bool >	DoGetAvailableUlRbg ()
	Implementation of LteFfrSapProvider::GetAvailableUlRbg. More...

virtual uint8_t	DoGetMinContinuousUlBandwidth ()
	DoGetMinContinuousUlBandwidth in number of RB. More...

virtual uint8_t	DoGetTpc (uint16_t rnti)
	DoGetTpc for UE. More...

virtual void	DoInitialize ()
	This method is called only once by Object::Initialize. More...

virtual bool	DoIsDlRbgAvailableForUe (int i, uint16_t rnti)
	Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe. More...

virtual bool	DoIsUlRbgAvailableForUe (int i, uint16_t rnti)
	Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe. More...

virtual void	DoRecvLoadInformation (EpcX2Sap::LoadInformationParams params)
	DoRecvLoadInformation. More...

virtual void	DoReportDlCqiInfo (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
	DoReportDlCqiInfo. More...

virtual void	DoReportUeMeas (uint16_t rnti, LteRrcSap::MeasResults measResults)
	Implementation of LteFfrRrcSapProvider::ReportUeMeas. More...

virtual void	DoReportUlCqiInfo (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
	DoReportUlCqiInfo. More...

virtual void	DoReportUlCqiInfo (std::map< uint16_t, std::vector< double > > ulCqiMap)
	DoReportUlCqiInfo. More...

virtual void	Reconfigure ()
	Automatic FR reconfiguration. More...

Protected Member Functions inherited from ns3::LteFfrAlgorithm
virtual void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)
	Implementation of LteFfrRrcSapProvider::SetBandwidth. More...

virtual void	DoSetCellId (uint16_t cellId)
	SetCellId. More...

int	GetRbgSize (int dlbandwidth)
	Get RBG size for DL Bandwidth according to table 7.1.6.1-1 of 36.213. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
void	UpdatePdschConfigDedicated ()

Private Attributes
bool	m_acculumatedMode

bool	m_changePdschConfigDedicated

TracedCallback< uint16_t, uint8_t >	m_changePdschConfigDedicatedTrace

uint8_t	m_dlOffset

std::vector< bool >	m_dlRbgMap

uint8_t	m_dlSubBand

LteFfrRrcSapProvider *	m_ffrRrcSapProvider

LteFfrRrcSapUser *	m_ffrRrcSapUser

LteFfrSapProvider *	m_ffrSapProvider

LteFfrSapUser *	m_ffrSapUser

uint8_t	m_measId

LteRrcSap::PdschConfigDedicated	m_pdschConfigDedicated

uint32_t	m_tpc

uint32_t	m_tpcNum

std::map< uint16_t, LteRrcSap::PdschConfigDedicated >	m_ues

uint8_t	m_ulOffset

std::vector< bool >	m_ulRbgMap

uint8_t	m_ulSubBand

Friends
class	MemberLteFfrRrcSapProvider< LteFfrSimple >

class	MemberLteFfrSapProvider< LteFfrSimple >

Additional Inherited Members
Protected Attributes inherited from ns3::LteFfrAlgorithm
uint16_t	m_cellId

uint8_t	m_dlBandwidth
	downlink bandwidth in RBs More...

bool	m_enabledInUplink
	If true FR algorithm will also work in Uplink. More...

uint8_t	m_frCellTypeId
	FFR cell type ID for automatic configuration. More...

bool	m_needReconfiguration
	If true FR algorithm will be reconfigured. More...

uint8_t	m_ulBandwidth
	uplink bandwidth in RBs More...

Detailed Description

Simple Frequency Reuse algorithm implementation which uses only 1 sub-band.

Used to test Downlink Power Allocation. When Simple FR receives UE measurements it immediately call functions to change PdschConfigDedicated (i.e. P_A) value for this UE.

Definition at line 42 of file lte-ffr-simple.h.

Constructor & Destructor Documentation

ns3::LteFfrSimple::LteFfrSimple ( )

Creates a trivial ffr algorithm instance.

Definition at line 33 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, and NS_LOG_FUNCTION.

ns3::LteFfrSimple::~LteFfrSimple ( )

virtual

Definition at line 52 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteFfrSimple::ChangePdschConfigDedicated ( bool change )

Definition at line 158 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicated.

Referenced by LteDownlinkPowerControlTestCase::DoRun(), and LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun().

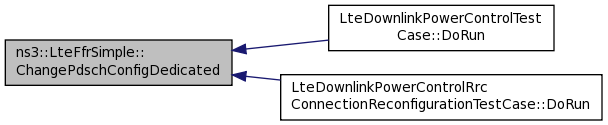

Here is the caller graph for this function:

void ns3::LteFfrSimple::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::LteFfrAlgorithm.

Definition at line 59 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, m_ffrSapProvider, and NS_LOG_FUNCTION.

std::vector< bool > ns3::LteFfrSimple::DoGetAvailableDlRbg ( )

protectedvirtual

Implementation of LteFfrSapProvider::GetAvailableDlRbg.

Returns: vector of size (m_dlBandwidth/RbgSize); false indicates that RBG is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 178 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::GetRbgSize(), ns3::LteFfrAlgorithm::m_dlBandwidth, m_dlOffset, m_dlRbgMap, m_dlSubBand, and NS_LOG_FUNCTION.

Here is the call graph for this function:

std::vector< bool > ns3::LteFfrSimple::DoGetAvailableUlRbg ( )

protectedvirtual

Implementation of LteFfrSapProvider::GetAvailableUlRbg.

Returns: vector of size m_ulBandwidth; false indicates that RB is free to use, true otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 205 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, m_ulOffset, m_ulRbgMap, m_ulSubBand, and NS_LOG_FUNCTION.

uint8_t ns3::LteFfrSimple::DoGetMinContinuousUlBandwidth ( )

protectedvirtual

DoGetMinContinuousUlBandwidth in number of RB.

Returns: number of RB in min continous UL Bandwidth

Implements ns3::LteFfrAlgorithm.

Definition at line 273 of file lte-ffr-simple.cc.

References ns3::LteFfrAlgorithm::m_ulBandwidth, and NS_LOG_FUNCTION.

uint8_t ns3::LteFfrSimple::DoGetTpc ( uint16_t rnti )

protectedvirtual

DoGetTpc for UE.

Parameters

rnti

Returns: TPC value

Implements ns3::LteFfrAlgorithm.

Definition at line 248 of file lte-ffr-simple.cc.

References m_acculumatedMode, m_tpc, m_tpcNum, and NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoInitialize ( void )

protectedvirtual

This method is called only once by Object::Initialize.

If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 133 of file lte-ffr-simple.cc.

References ns3::LteFfrRrcSapUser::AddUeMeasReportConfigForFfr(), ns3::LteRrcSap::ThresholdEutra::choice, ns3::LteRrcSap::PdschConfigDedicated::dB0, ns3::Object::DoInitialize(), ns3::LteRrcSap::ReportConfigEutra::EVENT_A1, ns3::LteRrcSap::ReportConfigEutra::eventId, m_ffrRrcSapUser, m_measId, m_pdschConfigDedicated, ns3::LteRrcSap::ReportConfigEutra::MS120, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteRrcSap::PdschConfigDedicated::pa, ns3::LteRrcSap::ThresholdEutra::range, ns3::LteRrcSap::ReportConfigEutra::reportInterval, ns3::LteRrcSap::ReportConfigEutra::RSRQ, ns3::LteRrcSap::ReportConfigEutra::threshold1, ns3::LteRrcSap::ThresholdEutra::THRESHOLD_RSRQ, and ns3::LteRrcSap::ReportConfigEutra::triggerQuantity.

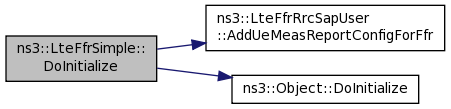

Here is the call graph for this function:

bool ns3::LteFfrSimple::DoIsDlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

protectedvirtual

Implementation of LteFfrSapProvider::IsDlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 198 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

bool ns3::LteFfrSimple::DoIsUlRbgAvailableForUe	(	int	rbId,
		uint16_t	rnti
	)

protectedvirtual

Implementation of LteFfrSapProvider::IsUlRbgAvailableForUe.

Parameters

rbId
rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from

Returns: true if UE can be served on i-th RB, false otherwise

Implements ns3::LteFfrAlgorithm.

Definition at line 223 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoRecvLoadInformation ( EpcX2Sap::LoadInformationParams params )

protectedvirtual

DoRecvLoadInformation.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 321 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoReportDlCqiInfo ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

protectedvirtual

DoReportDlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 230 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoReportUeMeas	(	uint16_t	rnti,
		LteRrcSap::MeasResults	measResults
	)

protectedvirtual

Implementation of LteFfrRrcSapProvider::ReportUeMeas.

Parameters

rnti	Radio Network Temporary Identity, an integer identifying the UE where the report originates from
measResults	a single report of one measurement identity

Implements ns3::LteFfrAlgorithm.

Definition at line 280 of file lte-ffr-simple.cc.

References ns3::LteRrcSap::PdschConfigDedicated::dB0, m_changePdschConfigDedicated, m_ues, ns3::LteRrcSap::MeasResults::measId, NS_LOG_FUNCTION, ns3::LteRrcSap::PdschConfigDedicated::pa, and UpdatePdschConfigDedicated().

Here is the call graph for this function:

void ns3::LteFfrSimple::DoReportUlCqiInfo ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

protectedvirtual

DoReportUlCqiInfo.

Parameters

params

Implements ns3::LteFfrAlgorithm.

Definition at line 236 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::DoReportUlCqiInfo ( std::map< uint16_t, std::vector< double > > ulCqiMap )

protectedvirtual

DoReportUlCqiInfo.

Parameters

ulCqiMap

Implements ns3::LteFfrAlgorithm.

Definition at line 242 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

LteFfrRrcSapProvider * ns3::LteFfrSimple::GetLteFfrRrcSapProvider ( )

virtual

Export the "provider" part of the LteFfrRrcSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 125 of file lte-ffr-simple.cc.

References m_ffrRrcSapProvider, and NS_LOG_FUNCTION.

LteFfrSapProvider * ns3::LteFfrSimple::GetLteFfrSapProvider ( )

virtual

Export the "provider" part of the LteFfrSap interface.

Returns: the reference to the "provider" part of the interface, typically to be kept by an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 110 of file lte-ffr-simple.cc.

References m_ffrSapProvider, and NS_LOG_FUNCTION.

TypeId ns3::LteFfrSimple::GetTypeId ( void )

static

Definition at line 68 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicatedTrace, m_dlOffset, m_dlSubBand, m_ulOffset, m_ulSubBand, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

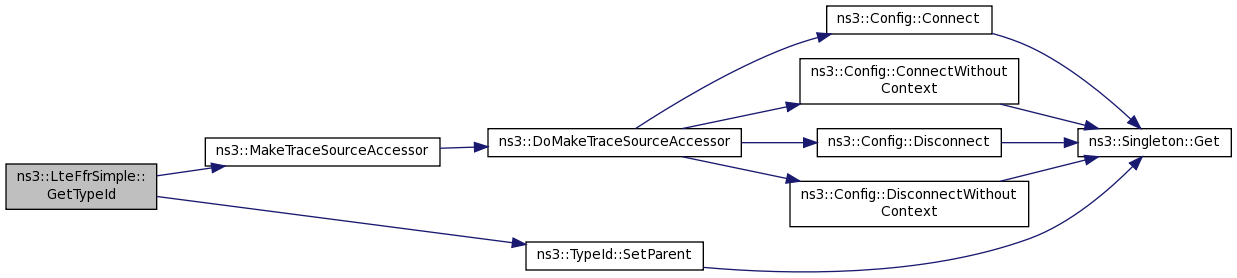

Here is the call graph for this function:

void ns3::LteFfrSimple::Reconfigure ( )

protectedvirtual

Automatic FR reconfiguration.

Implements ns3::LteFfrAlgorithm.

Definition at line 152 of file lte-ffr-simple.cc.

References NS_LOG_FUNCTION.

void ns3::LteFfrSimple::SetLteFfrRrcSapUser ( LteFfrRrcSapUser * s )

virtual

Set the "user" part of the LteFfrRrcSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an LteEnbRrc instance

Implements ns3::LteFfrAlgorithm.

Definition at line 117 of file lte-ffr-simple.cc.

References m_ffrRrcSapUser, NS_LOG_FUNCTION, and s.

void ns3::LteFfrSimple::SetLteFfrSapUser ( LteFfrSapUser * s )

virtual

Set the "user" part of the LteFfrSap interface that this frequency reuse algorithm instance will interact with.

Parameters

s	a reference to the "user" part of the interface, typically a member of an Scheduler instance

Implements ns3::LteFfrAlgorithm.

Definition at line 102 of file lte-ffr-simple.cc.

References m_ffrSapUser, NS_LOG_FUNCTION, and s.

void ns3::LteFfrSimple::SetPdschConfigDedicated ( LteRrcSap::PdschConfigDedicated pdschConfigDedicated )

Definition at line 164 of file lte-ffr-simple.cc.

References m_pdschConfigDedicated.

Referenced by LteDownlinkPowerControlTestCase::DoRun(), and LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun().

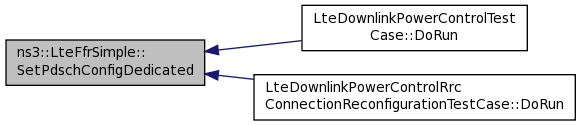

Here is the caller graph for this function:

void ns3::LteFfrSimple::SetTpc	(	uint32_t	tpc,
		uint32_t	num,
		bool	acculumatedMode
	)

Definition at line 170 of file lte-ffr-simple.cc.

References m_acculumatedMode, m_tpc, and m_tpcNum.

Referenced by LteUplinkPowerControlTestCase::SetTpcConfiguration().

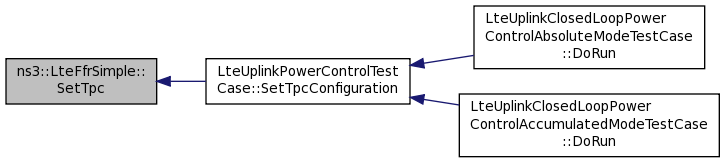

Here is the caller graph for this function:

void ns3::LteFfrSimple::UpdatePdschConfigDedicated ( )

private

Definition at line 304 of file lte-ffr-simple.cc.

References m_changePdschConfigDedicatedTrace, m_ffrRrcSapUser, m_pdschConfigDedicated, m_ues, NS_LOG_FUNCTION, ns3::LteRrcSap::PdschConfigDedicated::pa, and ns3::LteFfrRrcSapUser::SetPdschConfigDedicated().

Referenced by DoReportUeMeas().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemberLteFfrRrcSapProvider< LteFfrSimple >

friend

Definition at line 69 of file lte-ffr-simple.h.

friend class MemberLteFfrSapProvider< LteFfrSimple >

friend

Definition at line 68 of file lte-ffr-simple.h.

Member Data Documentation

bool ns3::LteFfrSimple::m_acculumatedMode

private

Definition at line 129 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

bool ns3::LteFfrSimple::m_changePdschConfigDedicated

private

Definition at line 119 of file lte-ffr-simple.h.

Referenced by ChangePdschConfigDedicated(), and DoReportUeMeas().

TracedCallback<uint16_t, uint8_t> ns3::LteFfrSimple::m_changePdschConfigDedicatedTrace

private

Definition at line 123 of file lte-ffr-simple.h.

Referenced by GetTypeId(), and UpdatePdschConfigDedicated().

uint8_t ns3::LteFfrSimple::m_dlOffset

private

Definition at line 105 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg(), and GetTypeId().

std::vector<bool> ns3::LteFfrSimple::m_dlRbgMap

private

Definition at line 111 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg().

uint8_t ns3::LteFfrSimple::m_dlSubBand

private

Definition at line 106 of file lte-ffr-simple.h.

Referenced by DoGetAvailableDlRbg(), and GetTypeId().

LteFfrRrcSapProvider* ns3::LteFfrSimple::m_ffrRrcSapProvider

private

Definition at line 103 of file lte-ffr-simple.h.

Referenced by DoDispose(), GetLteFfrRrcSapProvider(), and LteFfrSimple().

LteFfrRrcSapUser* ns3::LteFfrSimple::m_ffrRrcSapUser

private

Definition at line 102 of file lte-ffr-simple.h.

Referenced by DoInitialize(), SetLteFfrRrcSapUser(), and UpdatePdschConfigDedicated().

LteFfrSapProvider* ns3::LteFfrSimple::m_ffrSapProvider

private

Definition at line 99 of file lte-ffr-simple.h.

Referenced by DoDispose(), GetLteFfrSapProvider(), and LteFfrSimple().

LteFfrSapUser* ns3::LteFfrSimple::m_ffrSapUser

private

Definition at line 98 of file lte-ffr-simple.h.

Referenced by SetLteFfrSapUser().

uint8_t ns3::LteFfrSimple::m_measId

private

Definition at line 117 of file lte-ffr-simple.h.

Referenced by DoInitialize().

LteRrcSap::PdschConfigDedicated ns3::LteFfrSimple::m_pdschConfigDedicated

private

Definition at line 121 of file lte-ffr-simple.h.

Referenced by DoInitialize(), SetPdschConfigDedicated(), and UpdatePdschConfigDedicated().

uint32_t ns3::LteFfrSimple::m_tpc

private

Definition at line 127 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

uint32_t ns3::LteFfrSimple::m_tpcNum

private

Definition at line 128 of file lte-ffr-simple.h.

Referenced by DoGetTpc(), and SetTpc().

std::map<uint16_t, LteRrcSap::PdschConfigDedicated> ns3::LteFfrSimple::m_ues

private

Definition at line 114 of file lte-ffr-simple.h.

Referenced by DoReportUeMeas(), and UpdatePdschConfigDedicated().

uint8_t ns3::LteFfrSimple::m_ulOffset

private

Definition at line 108 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg(), and GetTypeId().

std::vector<bool> ns3::LteFfrSimple::m_ulRbgMap

private

Definition at line 112 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg().

uint8_t ns3::LteFfrSimple::m_ulSubBand

private

Definition at line 109 of file lte-ffr-simple.h.

Referenced by DoGetAvailableUlRbg(), and GetTypeId().

The documentation for this class was generated from the following files:

src/lte/test/lte-ffr-simple.h
src/lte/test/lte-ffr-simple.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
