The LTE Radio Resource Control entity at the eNB. More...

#include <lte-enb-rrc.h>

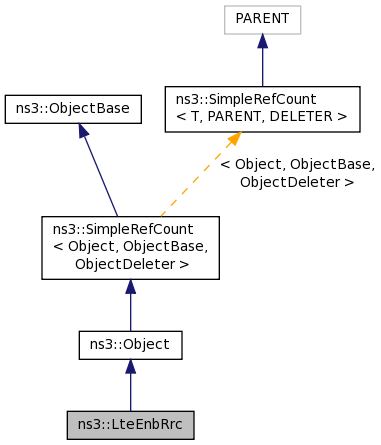

Inheritance diagram for ns3::LteEnbRrc:

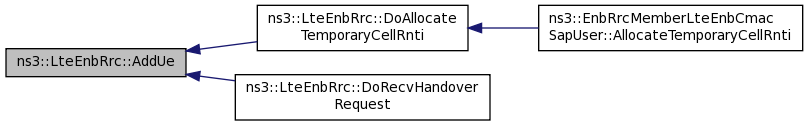

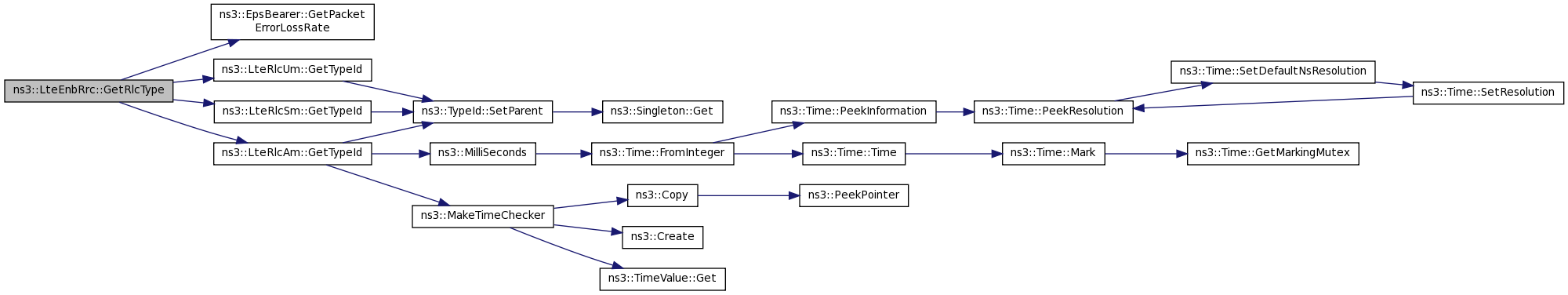

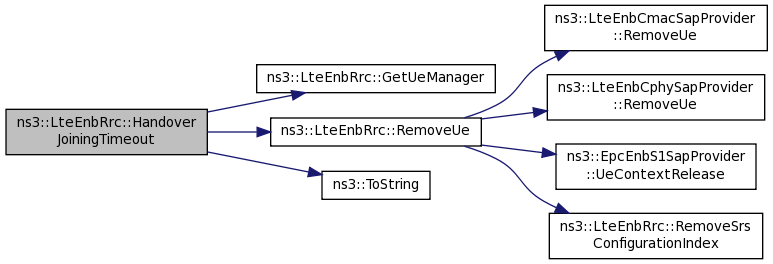

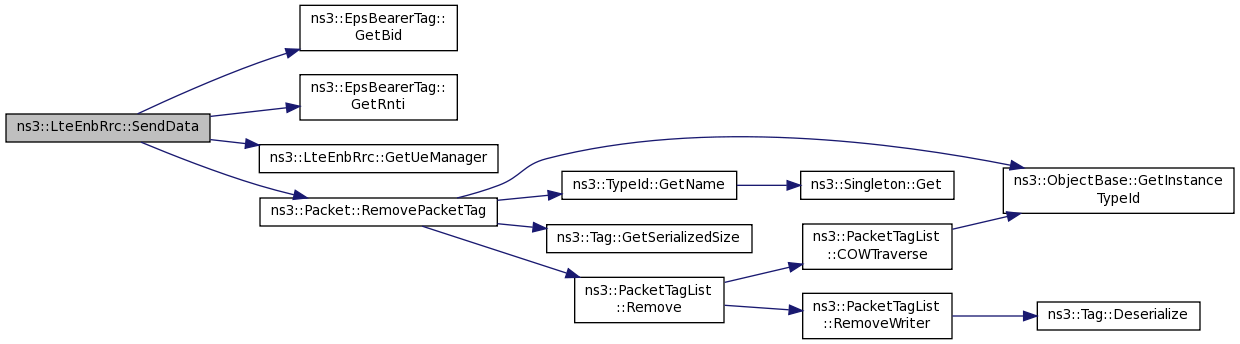

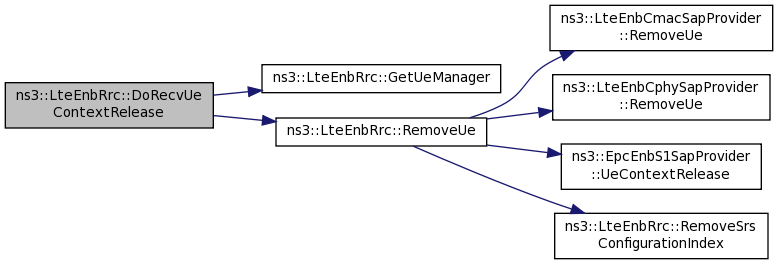

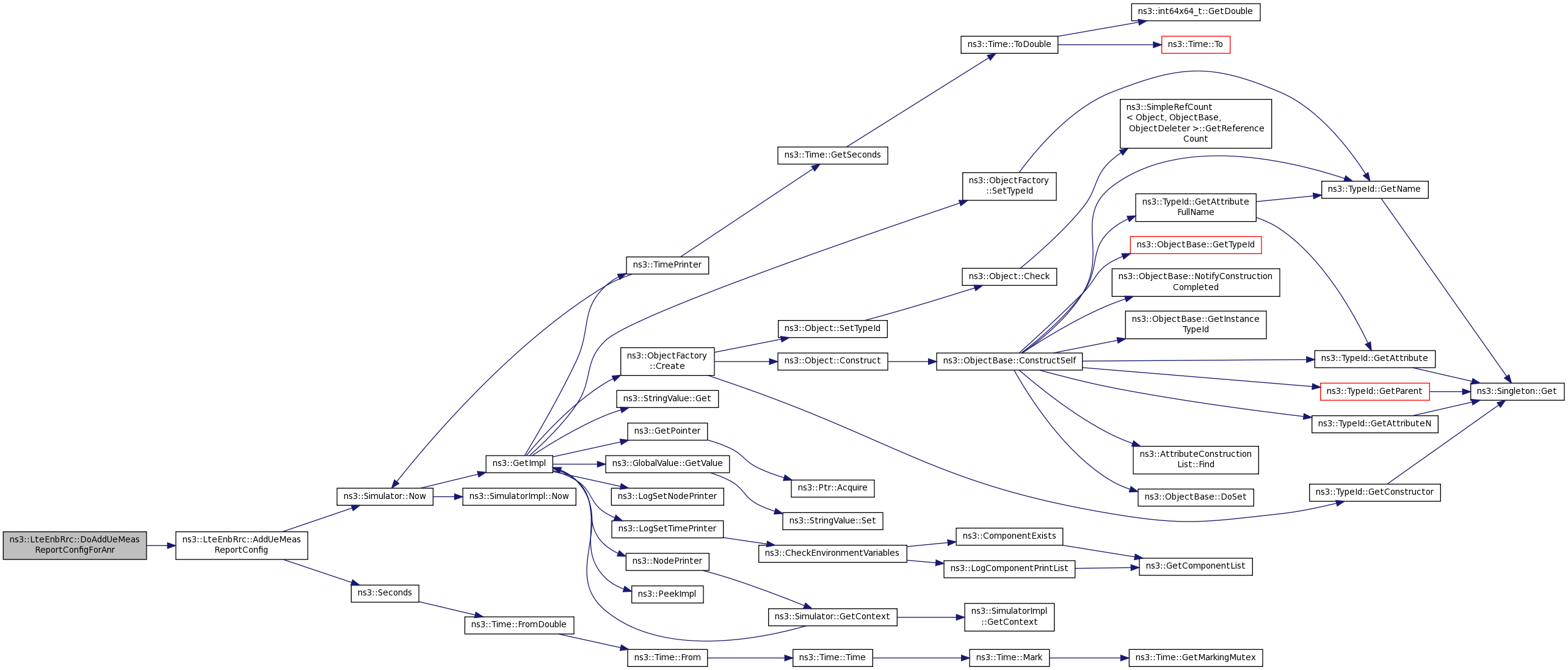

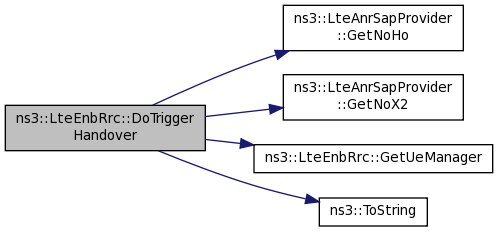

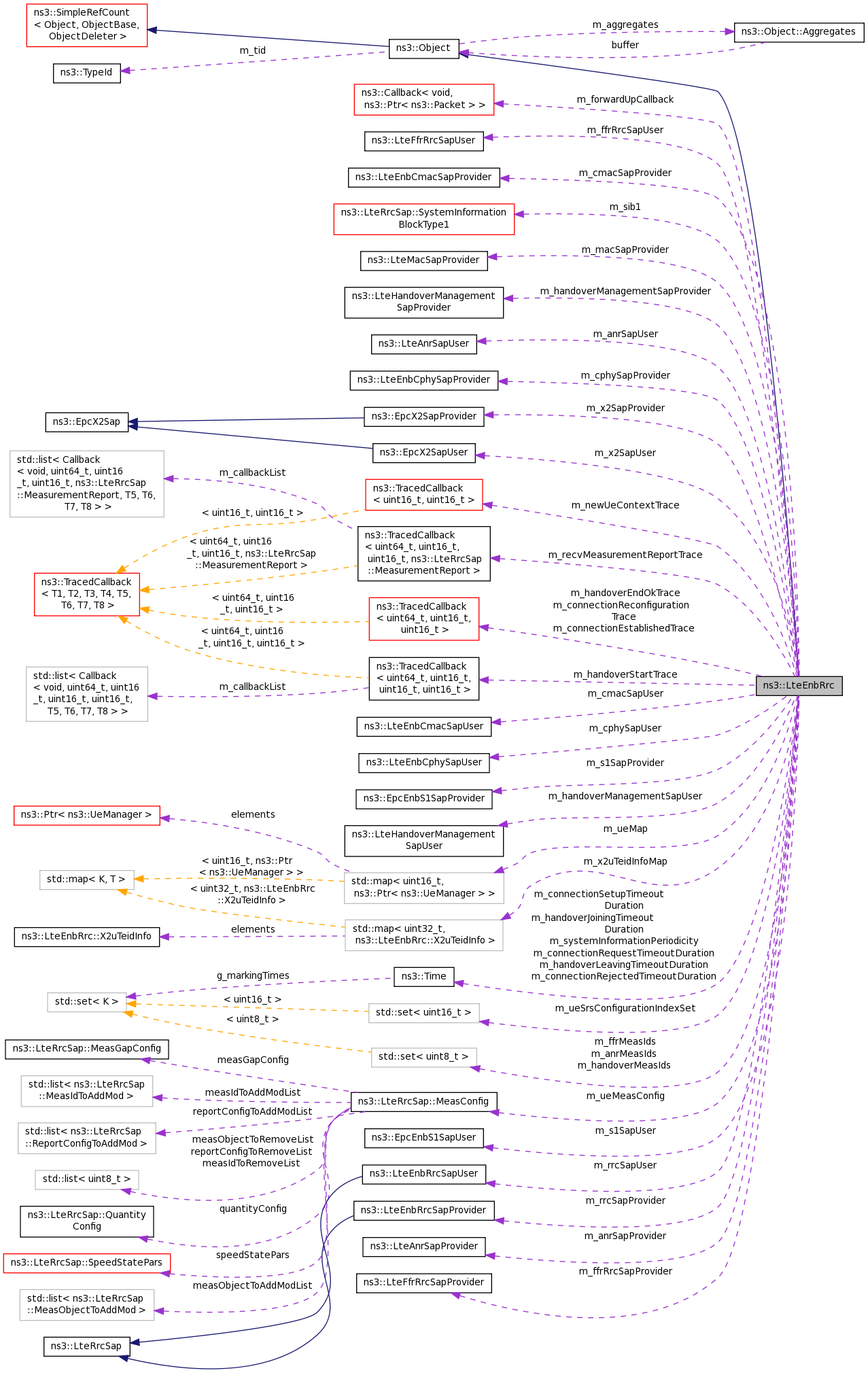

Collaboration diagram for ns3::LteEnbRrc:

Classes
struct	X2uTeidInfo

Public Types
enum	LteEpsBearerToRlcMapping_t { RLC_SM_ALWAYS = 1, RLC_UM_ALWAYS = 2, RLC_AM_ALWAYS = 3, PER_BASED = 4 }
	Identifies how EPS Bearer parameters are mapped to different RLC types. More...

Public Member Functions
	LteEnbRrc ()
	create an RRC instance for use within an eNB More...

virtual	~LteEnbRrc ()
	Destructor. More...

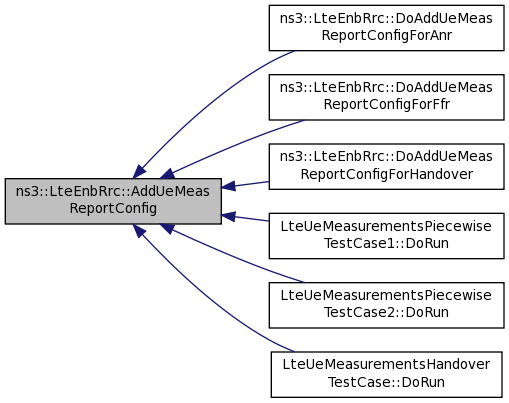

uint8_t	AddUeMeasReportConfig (LteRrcSap::ReportConfigEutra config)
	Add a new UE measurement reporting configuration. More...

void	AddX2Neighbour (uint16_t cellId)
	Add a neighbour with an X2 interface. More...

void	ConfigureCell (uint8_t ulBandwidth, uint8_t dlBandwidth, uint16_t ulEarfcn, uint16_t dlEarfcn, uint16_t cellId)
	Configure cell-specific parameters. More...

void	ConnectionRejectedTimeout (uint16_t rnti)
	Method triggered a while after sending RRC Connection Rejected. More...

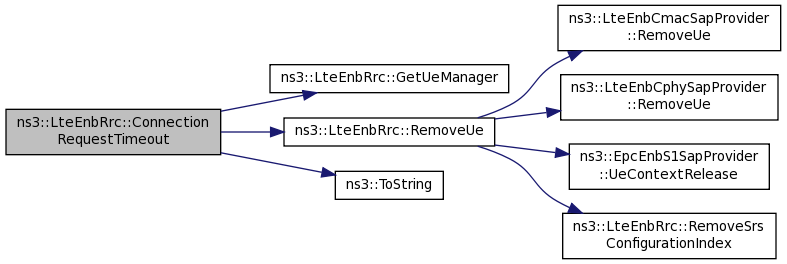

void	ConnectionRequestTimeout (uint16_t rnti)
	Method triggered when a UE is expected to request for connection but does not do so in a reasonable time. More...

void	ConnectionSetupTimeout (uint16_t rnti)
	Method triggered when a UE is expected to complete a connection setup procedure but does not do so in a reasonable time. More...

EpcX2SapUser *	GetEpcX2SapUser ()
	Get the X2 SAP offered by this RRC. More...

LteAnrSapUser *	GetLteAnrSapUser ()
	Get the ANR SAP offered by this RRC. More...

LteEnbCmacSapUser *	GetLteEnbCmacSapUser ()
	Get the CMAC SAP offered by this RRC. More...

LteEnbCphySapUser *	GetLteEnbCphySapUser ()

LteEnbRrcSapProvider *	GetLteEnbRrcSapProvider ()

LteFfrRrcSapUser *	GetLteFfrRrcSapUser ()
	Get the FFR SAP offered by this RRC. More...

LteHandoverManagementSapUser *	GetLteHandoverManagementSapUser ()
	Get the Handover Management SAP offered by this RRC. More...

EpcEnbS1SapUser *	GetS1SapUser ()

uint32_t	GetSrsPeriodicity () const

Ptr< UeManager >	GetUeManager (uint16_t rnti)

void	HandoverJoiningTimeout (uint16_t rnti)
	Method triggered when a UE is expected to join the cell for a handover but does not do so in a reasonable time. More...

void	HandoverLeavingTimeout (uint16_t rnti)
	Method triggered when a UE is expected to leave a cell for a handover but no feedback is received in a reasonable time. More...

bool	HasUeManager (uint16_t rnti) const

bool	SendData (Ptr< Packet > p)
	Enqueue an IP data packet on the proper bearer for downlink transmission. More...

void	SendHandoverRequest (uint16_t rnti, uint16_t cellId)
	Send a HandoverRequest through the X2 SAP interface. More...

void	SetCellId (uint16_t m_cellId)
	set the cell id of this eNB More...

void	SetCsgId (uint32_t csgId, bool csgIndication)
	Associate this RRC entity with a particular CSG information. More...

void	SetEpcX2SapProvider (EpcX2SapProvider *s)
	Set the X2 SAP this RRC should interact with. More...

void	SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)
	set the callback used to forward data packets up the stack More...

void	SetLteAnrSapProvider (LteAnrSapProvider *s)
	set the ANR SAP this RRC should interact with More...

void	SetLteEnbCmacSapProvider (LteEnbCmacSapProvider *s)
	set the CMAC SAP this RRC should interact with More...

void	SetLteEnbCphySapProvider (LteEnbCphySapProvider *s)
	set the CPHY SAP this RRC should use to interact with the PHY More...

void	SetLteEnbRrcSapUser (LteEnbRrcSapUser *s)
	set the RRC SAP this RRC should interact with More...

void	SetLteFfrRrcSapProvider (LteFfrRrcSapProvider *s)
	set the FFR SAP this RRC should interact with More...

void	SetLteHandoverManagementSapProvider (LteHandoverManagementSapProvider *s)
	set the Handover Management SAP this RRC should interact with More...

void	SetLteMacSapProvider (LteMacSapProvider *s)
	set the MAC SAP provider. More...

void	SetS1SapProvider (EpcEnbS1SapProvider *s)
	Set the S1 SAP Provider. More...

void	SetSrsPeriodicity (uint32_t p)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

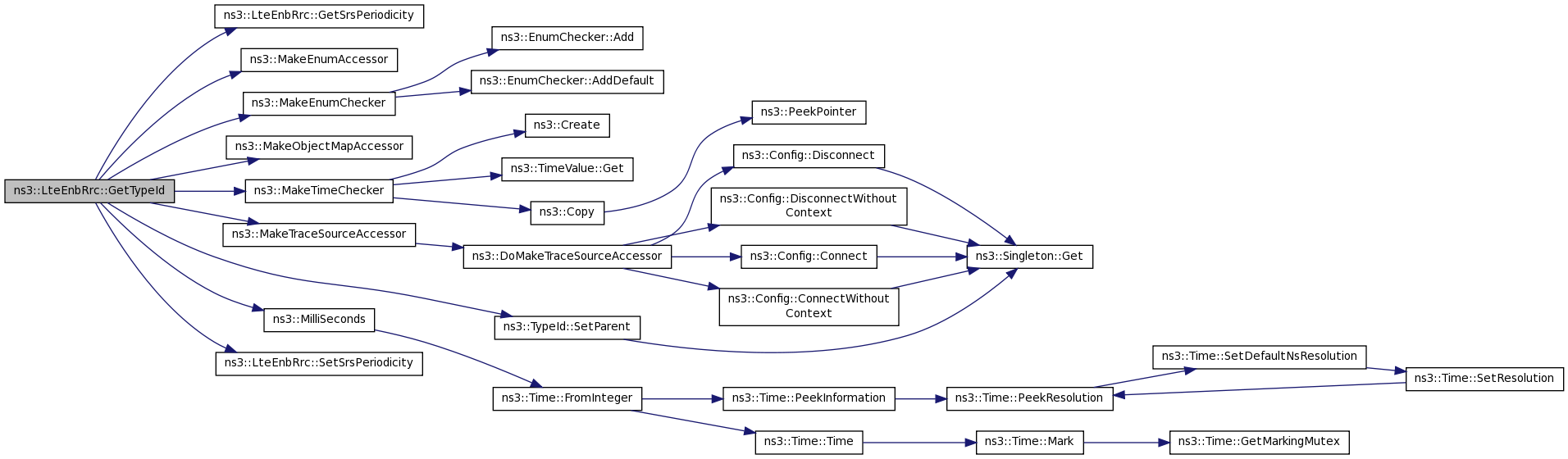

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose (void)
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Private Member Functions
uint16_t	AddUe (UeManager::State state)
	Allocate a new RNTI for a new UE. More...

uint8_t	DoAddUeMeasReportConfigForAnr (LteRrcSap::ReportConfigEutra reportConfig)

uint8_t	DoAddUeMeasReportConfigForFfr (LteRrcSap::ReportConfigEutra reportConfig)

uint8_t	DoAddUeMeasReportConfigForHandover (LteRrcSap::ReportConfigEutra reportConfig)

uint16_t	DoAllocateTemporaryCellRnti ()

void	DoCompleteSetupUe (uint16_t rnti, LteEnbRrcSapProvider::CompleteSetupUeParameters params)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::CompleteSetupUe interface to UeManager::CompleteSetupUe. More...

void	DoDataRadioBearerSetupRequest (EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params)

void	DoNotifyLcConfigResult (uint16_t rnti, uint8_t lcid, bool success)

void	DoPathSwitchRequestAcknowledge (EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params)

void	DoRecvHandoverPreparationFailure (EpcX2SapUser::HandoverPreparationFailureParams params)

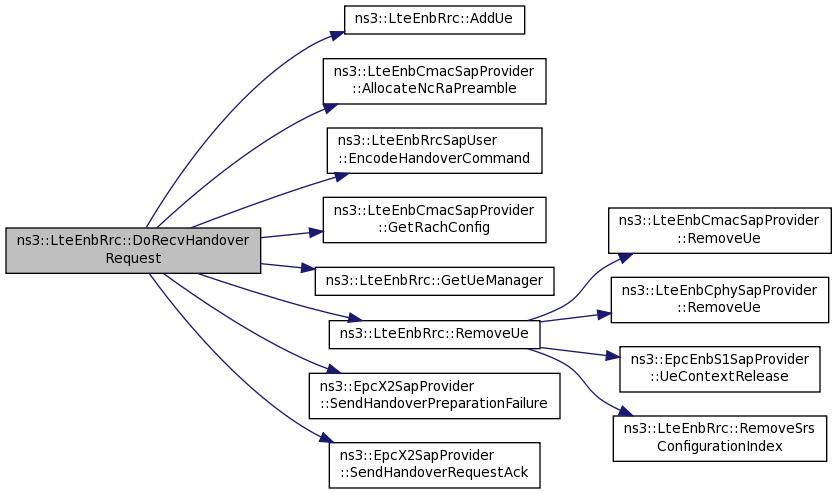

void	DoRecvHandoverRequest (EpcX2SapUser::HandoverRequestParams params)

void	DoRecvHandoverRequestAck (EpcX2SapUser::HandoverRequestAckParams params)

void	DoRecvLoadInformation (EpcX2SapUser::LoadInformationParams params)

void	DoRecvMeasurementReport (uint16_t rnti, LteRrcSap::MeasurementReport msg)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvMeasurementReport interface to UeManager::RecvMeasurementReport. More...

void	DoRecvResourceStatusUpdate (EpcX2SapUser::ResourceStatusUpdateParams params)

void	DoRecvRrcConnectionReconfigurationCompleted (uint16_t rnti, LteRrcSap::RrcConnectionReconfigurationCompleted msg)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface to UeManager::RecvRrcConnectionReconfigurationCompleted. More...

void	DoRecvRrcConnectionReestablishmentComplete (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentComplete msg)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface to UeManager::RecvRrcConnectionReestablishmentComplete. More...

void	DoRecvRrcConnectionReestablishmentRequest (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentRequest msg)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface to UeManager::RecvRrcConnectionReestablishmentRequest. More...

void	DoRecvRrcConnectionRequest (uint16_t rnti, LteRrcSap::RrcConnectionRequest msg)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionRequest interface to UeManager::RecvRrcConnectionRequest. More...

void	DoRecvRrcConnectionSetupCompleted (uint16_t rnti, LteRrcSap::RrcConnectionSetupCompleted msg)
	Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface to UeManager::RecvRrcConnectionSetupCompleted. More...

void	DoRecvSnStatusTransfer (EpcX2SapUser::SnStatusTransferParams params)

void	DoRecvUeContextRelease (EpcX2SapUser::UeContextReleaseParams params)

void	DoRecvUeData (EpcX2SapUser::UeDataParams params)

void	DoRrcConfigurationUpdateInd (LteEnbCmacSapUser::UeConfig params)

void	DoSendLoadInformation (EpcX2Sap::LoadInformationParams params)

void	DoSetPdschConfigDedicated (uint16_t rnti, LteRrcSap::PdschConfigDedicated pa)

void	DoTriggerHandover (uint16_t rnti, uint16_t targetCellId)

uint8_t	GetLogicalChannelGroup (EpsBearer bearer)

uint8_t	GetLogicalChannelPriority (EpsBearer bearer)

uint16_t	GetNewSrsConfigurationIndex (void)
	Allocate a new SRS configuration index for a new UE. More...

TypeId	GetRlcType (EpsBearer bearer)

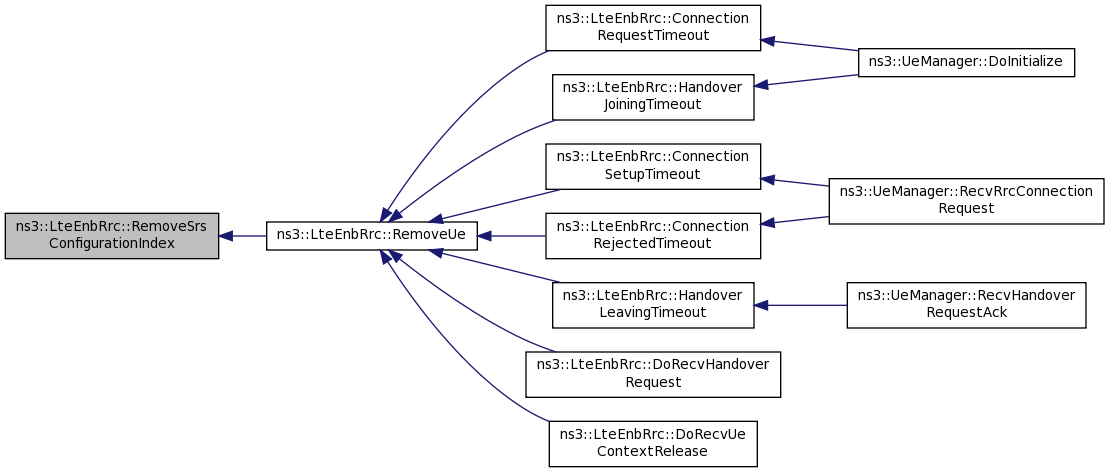

void	RemoveSrsConfigurationIndex (uint16_t srcCi)
	remove a previously allocated SRS configuration index More...

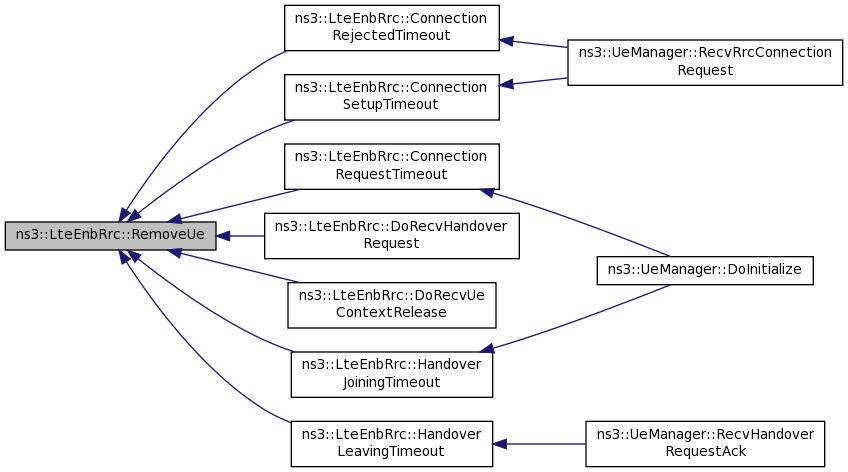

void	RemoveUe (uint16_t rnti)
	remove a UE from the cell More...

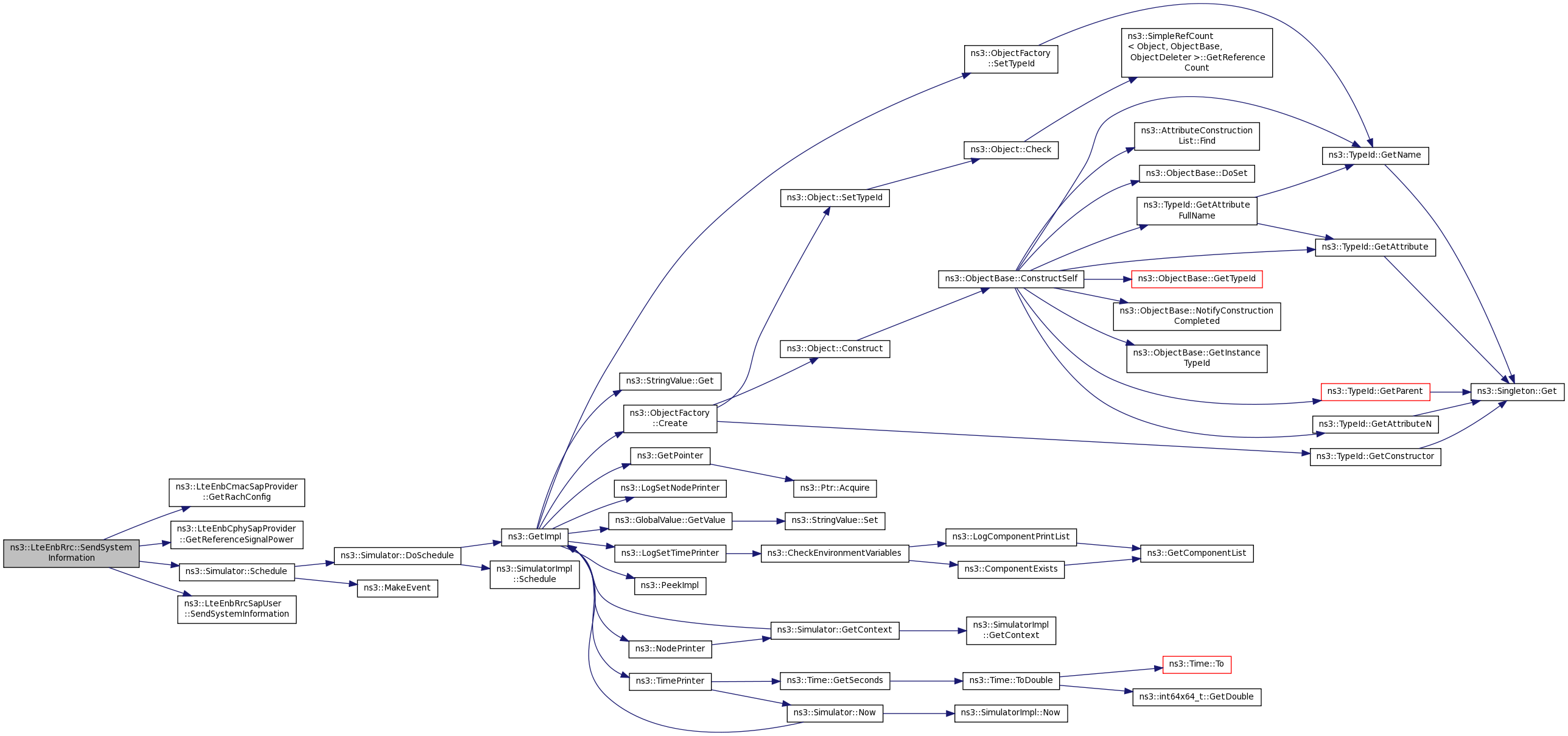

void	SendSystemInformation ()
	method used to periodically send System Information More...

Private Attributes
bool	m_admitHandoverRequest

bool	m_admitRrcConnectionRequest

std::set< uint8_t >	m_anrMeasIds

LteAnrSapProvider *	m_anrSapProvider

LteAnrSapUser *	m_anrSapUser

uint16_t	m_cellId

LteEnbCmacSapProvider *	m_cmacSapProvider

LteEnbCmacSapUser *	m_cmacSapUser

bool	m_configured

TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionEstablishedTrace

TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionReconfigurationTrace

Time	m_connectionRejectedTimeoutDuration

Time	m_connectionRequestTimeoutDuration

Time	m_connectionSetupTimeoutDuration

LteEnbCphySapProvider *	m_cphySapProvider

LteEnbCphySapUser *	m_cphySapUser

uint8_t	m_defaultTransmissionMode

uint16_t	m_dlBandwidth

uint16_t	m_dlEarfcn

enum LteEpsBearerToRlcMapping_t	m_epsBearerToRlcMapping

std::set< uint8_t >	m_ffrMeasIds

LteFfrRrcSapProvider *	m_ffrRrcSapProvider

LteFfrRrcSapUser *	m_ffrRrcSapUser

Callback< void, Ptr< Packet > >	m_forwardUpCallback

TracedCallback< uint64_t, uint16_t, uint16_t >	m_handoverEndOkTrace

Time	m_handoverJoiningTimeoutDuration

Time	m_handoverLeavingTimeoutDuration

LteHandoverManagementSapProvider *	m_handoverManagementSapProvider

LteHandoverManagementSapUser *	m_handoverManagementSapUser

std::set< uint8_t >	m_handoverMeasIds

TracedCallback< uint64_t, uint16_t, uint16_t, uint16_t >	m_handoverStartTrace

uint16_t	m_lastAllocatedConfigurationIndex

uint16_t	m_lastAllocatedRnti

LteMacSapProvider *	m_macSapProvider

TracedCallback< uint16_t, uint16_t >	m_newUeContextTrace

int8_t	m_qRxLevMin

bool	m_reconfigureUes

TracedCallback< uint64_t, uint16_t, uint16_t, LteRrcSap::MeasurementReport >	m_recvMeasurementReportTrace

LteEnbRrcSapProvider *	m_rrcSapProvider

LteEnbRrcSapUser *	m_rrcSapUser

uint8_t	m_rsrpFilterCoefficient

uint8_t	m_rsrqFilterCoefficient

EpcEnbS1SapProvider *	m_s1SapProvider

EpcEnbS1SapUser *	m_s1SapUser

LteRrcSap::SystemInformationBlockType1	m_sib1
	the System Information Block Type 1 that is currently broadcasted over BCH More...

uint16_t	m_srsCurrentPeriodicityId

Time	m_systemInformationPeriodicity

std::map< uint16_t, Ptr < UeManager > >	m_ueMap

LteRrcSap::MeasConfig	m_ueMeasConfig
	List of measurement configuration which are active in every UE attached to this eNodeB instance. More...

std::set< uint16_t >	m_ueSrsConfigurationIndexSet

uint16_t	m_ulBandwidth

uint16_t	m_ulEarfcn

EpcX2SapProvider *	m_x2SapProvider

EpcX2SapUser *	m_x2SapUser

std::map< uint32_t, X2uTeidInfo >	m_x2uTeidInfoMap

Friends
class	EnbRrcMemberLteEnbCmacSapUser

class	EpcX2SpecificEpcX2SapUser< LteEnbRrc >

class	MemberEpcEnbS1SapUser< LteEnbRrc >

class	MemberLteAnrSapUser< LteEnbRrc >

class	MemberLteEnbRrcSapProvider< LteEnbRrc >

class	MemberLteFfrRrcSapUser< LteEnbRrc >

class	MemberLteHandoverManagementSapUser< LteEnbRrc >

class	UeManager

Detailed Description

The LTE Radio Resource Control entity at the eNB.

Config Paths

ns3::LteEnbRrc is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc

Attributes

UeMap: List of UeManager by C-RNTI.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::UeManager>
- Flags: read
DefaultTransmissionMode: The default UEs' transmission mode (0: SISO)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read
EpsBearerToRlcMapping: Specify which type of RLC will be used for each type of EPS bearer.
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: RlcSmAlways
- Flags: construct write read
SystemInformationPeriodicity: The interval for sending system information (Time value)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +80000000.0ns
- Flags: construct write read
SrsPeriodicity: The SRS periodicity in milliseconds
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 40
- Flags: construct write read
ConnectionRequestTimeoutDuration: After a RA attempt, if no RRC CONNECTION REQUEST is received before this time, the UE context is destroyed. Must account for reception of RAR and transmission of RRC CONNECTION REQUEST over UL GRANT.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +15000000.0ns
- Flags: construct write read
ConnectionSetupTimeoutDuration: After accepting connection request, if no RRC CONNECTION SETUP COMPLETE is received before this time, the UE context is destroyed. Must account for the UE's reception of RRC CONNECTION SETUP and transmission of RRC CONNECTION SETUP COMPLETE.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +150000000.0ns
- Flags: construct write read
ConnectionRejectedTimeoutDuration: Time to wait between sending a RRC CONNECTION REJECT and destroying the UE context
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +30000000.0ns
- Flags: construct write read
HandoverJoiningTimeoutDuration: After accepting a handover request, if no RRC CONNECTION RECONFIGURATION COMPLETE is received before this time, the UE context is destroyed. Must account for reception of X2 HO REQ ACK by source eNB, transmission of the Handover Command, non-contention-based random access and reception of the RRC CONNECTION RECONFIGURATION COMPLETE message.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
HandoverLeavingTimeoutDuration: After issuing a Handover Command, if neither RRC CONNECTION RE-ESTABLISHMENT nor X2 UE Context Release has been previously received, the UE context is destroyed.
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read
QRxLevMin: One of information transmitted within the SIB1 message, indicating the required minimum RSRP level that any UE must receive from this cell before it is allowed to camp to this cell. The default value -70 corresponds to -140 dBm and is the lowest possible value as defined by Section 6.3.4 of 3GPP TS 36.133. This restriction, however, only applies to initial cell selection and EPC-enabled simulation.
- Set with class: ns3::IntegerValue
- Underlying type: int8_t -70:-22
- Initial value: -70
- Flags: construct read
AdmitHandoverRequest: Whether to admit an X2 handover request from another eNB
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
AdmitRrcConnectionRequest: Whether to admit a connection request from a UE
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
RsrpFilterCoefficient: Determines the strength of smoothing effect induced by layer 3 filtering of RSRP in all attached UE; if set to 0, no layer 3 filtering is applicable
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 4
- Flags: construct write read
RsrqFilterCoefficient: Determines the strength of smoothing effect induced by layer 3 filtering of RSRQ in all attached UE; if set to 0, no layer 3 filtering is applicable
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 4
- Flags: construct write read

TraceSources

NewUeContext: trace fired upon creation of a new UE context
ConnectionEstablished: trace fired upon successful RRC connection establishment
ConnectionReconfiguration: trace fired upon RRC connection reconfiguration
HandoverStart: trace fired upon start of a handover procedure
HandoverEndOk: trace fired upon successful termination of a handover procedure
RecvMeasurementReport: trace fired when measurement report is received

Definition at line 436 of file lte-enb-rrc.h.

Member Enumeration Documentation

enum ns3::LteEnbRrc::LteEpsBearerToRlcMapping_t

Identifies how EPS Bearer parameters are mapped to different RLC types.

Enumerator
RLC_SM_ALWAYS
RLC_UM_ALWAYS
RLC_AM_ALWAYS
PER_BASED

Definition at line 735 of file lte-enb-rrc.h.

Constructor & Destructor Documentation

ns3::LteEnbRrc::LteEnbRrc ( )

create an RRC instance for use within an eNB

Definition at line 1258 of file lte-enb-rrc.cc.

References EnbRrcMemberLteEnbCmacSapUser, m_anrSapUser, m_cmacSapUser, m_cphySapUser, m_ffrRrcSapUser, m_handoverManagementSapUser, m_rrcSapProvider, m_s1SapUser, m_x2SapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrc::~LteEnbRrc ( )

virtual

Destructor.

Definition at line 1286 of file lte-enb-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint16_t ns3::LteEnbRrc::AddUe ( UeManager::State state )

private

Allocate a new RNTI for a new UE.

This is done in the following cases:

T-C-RNTI allocation upon contention-based MAC Random Access procedure
target cell RNTI allocation upon handover

Parameters

state the initial state of the UeManager

Returns: the newly allocated RNTI

Definition at line 2210 of file lte-enb-rrc.cc.

References m_cellId, m_lastAllocatedRnti, m_newUeContextTrace, m_ueMap, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoAllocateTemporaryCellRnti(), and DoRecvHandoverRequest().

Here is the caller graph for this function:

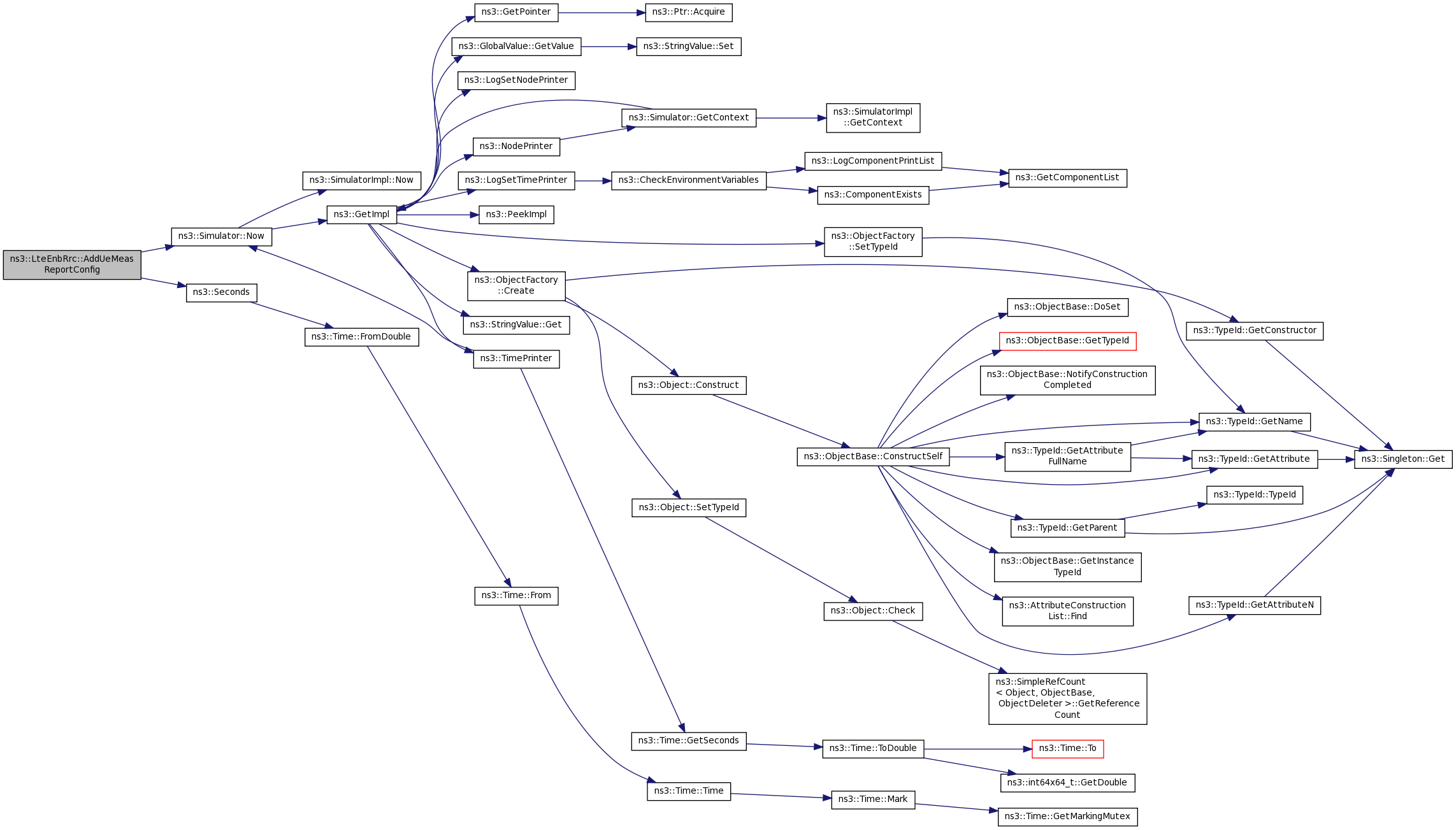

uint8_t ns3::LteEnbRrc::AddUeMeasReportConfig ( LteRrcSap::ReportConfigEutra config )

Add a new UE measurement reporting configuration.

Parameters

config the new reporting configuration

Returns: the measurement ID (measId) referring to the newly added reporting configuration

Assuming intra-frequency environment, the new measurement reporting configuration will be automatically associated to the only measurement object (i.e., a new measurement identity will be automatically created).

Can only be called before the start of simulation.

Definition at line 1591 of file lte-enb-rrc.cc.

Referenced by DoAddUeMeasReportConfigForAnr(), DoAddUeMeasReportConfigForFfr(), DoAddUeMeasReportConfigForHandover(), LteUeMeasurementsPiecewiseTestCase1::DoRun(), LteUeMeasurementsPiecewiseTestCase2::DoRun(), and LteUeMeasurementsHandoverTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::AddX2Neighbour ( uint16_t cellId )

Add a neighbour with an X2 interface.

Parameters

cellId neighbouring cell id

Definition at line 2290 of file lte-enb-rrc.cc.

References ns3::LteAnrSapProvider::AddNeighbourRelation(), m_anrSapProvider, and NS_LOG_FUNCTION.

Here is the call graph for this function:

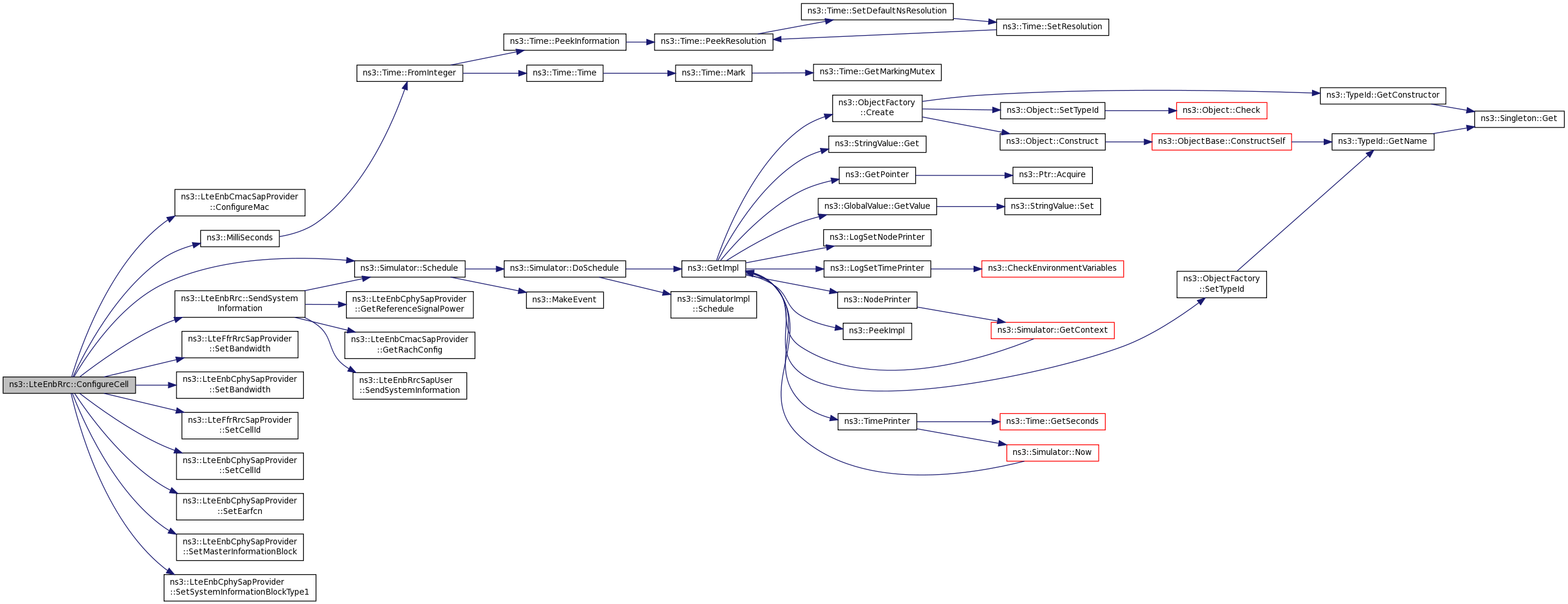

void ns3::LteEnbRrc::ConfigureCell	(	uint8_t	ulBandwidth,
		uint8_t	dlBandwidth,
		uint16_t	ulEarfcn,
		uint16_t	dlEarfcn,
		uint16_t	cellId
	)

Configure cell-specific parameters.

Parameters

ulBandwidth	the uplink bandwidth in number of RB
dlBandwidth	the downlink bandwidth in number of RB
ulEarfcn	the UL EARFCN
dlEarfcn	the DL EARFCN
cellId	the ID of the cell

Configure cell-specific parameters and propagate them to lower layers. The parameters include bandwidth, EARFCN (E-UTRA Absolute Radio Frequency Channel Number), and cell ID.

In addition to parameter configuration, this function also performs several other tasks:

Initializing UE measurement (i.e. measurement object and quantity configuration), which is expected to be further configured through LteEnbRrc::AddUeMeasReportConfig;
Enabling MIB (Master Information Block) broadcast transmission
Enabling SIB (System Information Block) broadcast transmission

Typically runs when the eNodeB NetDevice is installed, for instance by LteHelper::InstallEnbDevice (i.e. before the simulation starts).

Warning: Raises an error when executed more than once.

Definition at line 1679 of file lte-enb-rrc.cc.

Here is the call graph for this function:

void ns3::LteEnbRrc::ConnectionRejectedTimeout ( uint16_t rnti )

Method triggered a while after sending RRC Connection Rejected.

Parameters

rnti	the T-C-RNTI whose timeout expired

Definition at line 1796 of file lte-enb-rrc.cc.

References ns3::UeManager::CONNECTION_REJECTED, GetUeManager(), NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::RecvRrcConnectionRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::ConnectionRequestTimeout ( uint16_t rnti )

Method triggered when a UE is expected to request for connection but does not do so in a reasonable time.

Parameters

rnti	the T-C-RNTI whose timeout expired

Definition at line 1778 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::UeManager::INITIAL_RANDOM_ACCESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::ConnectionSetupTimeout ( uint16_t rnti )

Method triggered when a UE is expected to complete a connection setup procedure but does not do so in a reasonable time.

Parameters

rnti	the T-C-RNTI whose timeout expired

Definition at line 1787 of file lte-enb-rrc.cc.

References ns3::UeManager::CONNECTION_SETUP, GetUeManager(), NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::RecvRrcConnectionRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::LteEnbRrc::DoAddUeMeasReportConfigForAnr ( LteRrcSap::ReportConfigEutra reportConfig )

private

Definition at line 2176 of file lte-enb-rrc.cc.

References AddUeMeasReportConfig(), m_anrMeasIds, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::LteEnbRrc::DoAddUeMeasReportConfigForFfr ( LteRrcSap::ReportConfigEutra reportConfig )

private

Definition at line 2185 of file lte-enb-rrc.cc.

References AddUeMeasReportConfig(), m_ffrMeasIds, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::LteEnbRrc::DoAddUeMeasReportConfigForHandover ( LteRrcSap::ReportConfigEutra reportConfig )

private

Definition at line 2125 of file lte-enb-rrc.cc.

References AddUeMeasReportConfig(), m_handoverMeasIds, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::LteEnbRrc::DoAllocateTemporaryCellRnti ( )

private

Definition at line 2103 of file lte-enb-rrc.cc.

References AddUe(), ns3::UeManager::INITIAL_RANDOM_ACCESS, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::AllocateTemporaryCellRnti().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoCompleteSetupUe	(	uint16_t	rnti,
		LteEnbRrcSapProvider::CompleteSetupUeParameters	params
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::CompleteSetupUe interface to UeManager::CompleteSetupUe.

Definition at line 1835 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoDataRadioBearerSetupRequest ( EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters params )

private

Definition at line 1884 of file lte-enb-rrc.cc.

References ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearer, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::bearerId, GetUeManager(), ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::gtpTeid, ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::rnti, and ns3::EpcEnbS1SapUser::DataRadioBearerSetupRequestParameters::transportLayerAddress.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 1293 of file lte-enb-rrc.cc.

References m_anrSapUser, m_cmacSapUser, m_cphySapUser, m_ffrRrcSapUser, m_handoverManagementSapUser, m_rrcSapProvider, m_s1SapUser, m_ueMap, m_x2SapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::DoNotifyLcConfigResult	(	uint16_t	rnti,
		uint8_t	lcid,
		bool	success
	)

private

Definition at line 2117 of file lte-enb-rrc.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::NotifyLcConfigResult().

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoPathSwitchRequestAcknowledge ( EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters params )

private

Definition at line 1891 of file lte-enb-rrc.cc.

References GetUeManager(), and ns3::EpcEnbS1SapUser::PathSwitchRequestAcknowledgeParameters::rnti.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvHandoverPreparationFailure ( EpcX2SapUser::HandoverPreparationFailureParams params )

private

Definition at line 2005 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::HandoverPreparationFailureParams::cause, ns3::EpcX2Sap::HandoverPreparationFailureParams::criticalityDiagnostics, GetUeManager(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverPreparationFailureParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverPreparationFailureParams::sourceCellId, and ns3::EpcX2Sap::HandoverPreparationFailureParams::targetCellId.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvHandoverRequest ( EpcX2SapUser::HandoverRequestParams params )

private

Definition at line 1898 of file lte-enb-rrc.cc.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvHandoverRequestAck ( EpcX2SapUser::HandoverRequestAckParams params )

private

Definition at line 1988 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, and ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvLoadInformation ( EpcX2SapUser::LoadInformationParams params )

private

Definition at line 2054 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::LoadInformationParams::cellInformationList, m_ffrRrcSapProvider, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LteFfrRrcSapProvider::RecvLoadInformation().

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvMeasurementReport	(	uint16_t	rnti,
		LteRrcSap::MeasurementReport	msg
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvMeasurementReport interface to UeManager::RecvMeasurementReport.

Definition at line 1877 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvResourceStatusUpdate ( EpcX2SapUser::ResourceStatusUpdateParams params )

private

Definition at line 2066 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::ResourceStatusUpdateParams::cellMeasurementResultList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::LteEnbRrc::DoRecvRrcConnectionReconfigurationCompleted	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReconfigurationCompleted	msg
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted interface to UeManager::RecvRrcConnectionReconfigurationCompleted.

Definition at line 1856 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentComplete	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishmentComplete	msg
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete interface to UeManager::RecvRrcConnectionReestablishmentComplete.

Definition at line 1870 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionReestablishmentRequest	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionReestablishmentRequest	msg
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest interface to UeManager::RecvRrcConnectionReestablishmentRequest.

Definition at line 1863 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionRequest	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionRequest	msg
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionRequest interface to UeManager::RecvRrcConnectionRequest.

Definition at line 1842 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvRrcConnectionSetupCompleted	(	uint16_t	rnti,
		LteRrcSap::RrcConnectionSetupCompleted	msg
	)

private

Part of the RRC protocol. Forwarding LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted interface to UeManager::RecvRrcConnectionSetupCompleted.

Definition at line 1849 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvSnStatusTransfer ( EpcX2SapUser::SnStatusTransferParams params )

private

Definition at line 2023 of file lte-enb-rrc.cc.

References ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, GetUeManager(), ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvUeContextRelease ( EpcX2SapUser::UeContextReleaseParams params )

private

Definition at line 2039 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, and RemoveUe().

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRecvUeData ( EpcX2SapUser::UeDataParams params )

private

Definition at line 2078 of file lte-enb-rrc.cc.

References ns3::Packet::GetSize(), GetUeManager(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2uTeidInfoMap, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoRrcConfigurationUpdateInd ( LteEnbCmacSapUser::UeConfig params )

private

Definition at line 2110 of file lte-enb-rrc.cc.

References GetUeManager(), and ns3::LteEnbCmacSapUser::UeConfig::m_rnti.

Referenced by ns3::EnbRrcMemberLteEnbCmacSapUser::RrcConfigurationUpdateInd().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::DoSendLoadInformation ( EpcX2Sap::LoadInformationParams params )

private

Definition at line 2202 of file lte-enb-rrc.cc.

References m_x2SapProvider, NS_LOG_FUNCTION, and ns3::EpcX2SapProvider::SendLoadInformation().

Here is the call graph for this function:

void ns3::LteEnbRrc::DoSetPdschConfigDedicated	(	uint16_t	rnti,
		LteRrcSap::PdschConfigDedicated	pa
	)

private

Definition at line 2194 of file lte-enb-rrc.cc.

References GetUeManager(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbRrc::DoTriggerHandover	(	uint16_t	rnti,
		uint16_t	targetCellId
	)

private

Definition at line 2134 of file lte-enb-rrc.cc.

References ns3::UeManager::CONNECTED_NORMALLY, ns3::LteAnrSapProvider::GetNoHo(), ns3::LteAnrSapProvider::GetNoX2(), GetUeManager(), m_anrSapProvider, m_cellId, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::ToString().

Here is the call graph for this function:

EpcX2SapUser * ns3::LteEnbRrc::GetEpcX2SapUser ( )

Get the X2 SAP offered by this RRC.

Returns: s the X2 SAP User interface offered to the X2 entity by this RRC entity

Definition at line 1462 of file lte-enb-rrc.cc.

References m_x2SapUser, and NS_LOG_FUNCTION.

uint8_t ns3::LteEnbRrc::GetLogicalChannelGroup ( EpsBearer bearer )

private

Parameters

bearer the characteristics of the bearer

Returns: the Logical Channel Group in a bearer with these characteristics is put. Used for MAC Buffer Status Reporting purposes.

Definition at line 2411 of file lte-enb-rrc.cc.

References ns3::EpsBearer::IsGbr().

Here is the call graph for this function:

uint8_t ns3::LteEnbRrc::GetLogicalChannelPriority ( EpsBearer bearer )

private

Parameters

bearer the characteristics of the bearer

Returns: the priority level of a bearer with these characteristics is put. Used for the part of UL MAC Scheduling carried out by the UE

Definition at line 2424 of file lte-enb-rrc.cc.

References ns3::EpsBearer::qci.

LteAnrSapUser * ns3::LteEnbRrc::GetLteAnrSapUser ( )

Get the ANR SAP offered by this RRC.

Returns: s the ANR SAP User interface offered to the ANR instance by this RRC

Definition at line 1504 of file lte-enb-rrc.cc.

References m_anrSapUser, and NS_LOG_FUNCTION.

LteEnbCmacSapUser * ns3::LteEnbRrc::GetLteEnbCmacSapUser ( )

Get the CMAC SAP offered by this RRC.

Returns: s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 1476 of file lte-enb-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LteEnbCphySapUser * ns3::LteEnbRrc::GetLteEnbCphySapUser ( )

Returns: s the CPHY SAP User interface offered to the PHY by this RRC

Definition at line 1566 of file lte-enb-rrc.cc.

References m_cphySapUser, and NS_LOG_FUNCTION.

LteEnbRrcSapProvider * ns3::LteEnbRrc::GetLteEnbRrcSapProvider ( )

Returns: s the RRC SAP Provider interface offered to the MAC by this RRC

Definition at line 1532 of file lte-enb-rrc.cc.

References m_rrcSapProvider, and NS_LOG_FUNCTION.

LteFfrRrcSapUser * ns3::LteEnbRrc::GetLteFfrRrcSapUser ( )

Get the FFR SAP offered by this RRC.

Returns: s the FFR SAP User interface offered to the ANR instance by this RRC

Definition at line 1518 of file lte-enb-rrc.cc.

References m_ffrRrcSapUser, and NS_LOG_FUNCTION.

LteHandoverManagementSapUser * ns3::LteEnbRrc::GetLteHandoverManagementSapUser ( )

Get the Handover Management SAP offered by this RRC.

Returns: s the Handover Management SAP User interface offered to the handover algorithm by this RRC

Definition at line 1490 of file lte-enb-rrc.cc.

References m_handoverManagementSapUser, and NS_LOG_FUNCTION.

uint16_t ns3::LteEnbRrc::GetNewSrsConfigurationIndex ( void )

private

Allocate a new SRS configuration index for a new UE.

Note: this method can have the side effect of updating the SRS configuration index of all UEs

Returns: the newly allocated SRS configuration index

Definition at line 2348 of file lte-enb-rrc.cc.

References ns3::g_srsCiHigh, ns3::g_srsCiLow, ns3::g_srsPeriodicity, m_lastAllocatedConfigurationIndex, m_srsCurrentPeriodicityId, m_ueSrsConfigurationIndexSet, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

TypeId ns3::LteEnbRrc::GetRlcType ( EpsBearer bearer )

private

Parameters

bearer the specification of an EPS bearer

Returns: the type of RLC that is to be created for the given EPS bearer

Definition at line 2255 of file lte-enb-rrc.cc.

References ns3::EpsBearer::GetPacketErrorLossRate(), ns3::LteRlcUm::GetTypeId(), ns3::LteRlcAm::GetTypeId(), ns3::LteRlcSm::GetTypeId(), m_epsBearerToRlcMapping, PER_BASED, RLC_AM_ALWAYS, RLC_SM_ALWAYS, and RLC_UM_ALWAYS.

Here is the call graph for this function:

EpcEnbS1SapUser * ns3::LteEnbRrc::GetS1SapUser ( )

Returns: the S1 SAP user

Definition at line 1553 of file lte-enb-rrc.cc.

References m_s1SapUser.

uint32_t ns3::LteEnbRrc::GetSrsPeriodicity ( ) const

Returns: the current SRS periodicity

Definition at line 2338 of file lte-enb-rrc.cc.

References ns3::g_srsPeriodicity, m_srsCurrentPeriodicityId, NS_ASSERT, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::LteEnbRrc::GetTypeId ( void )

static

Definition at line 1308 of file lte-enb-rrc.cc.

References ns3::TypeId::ATTR_CONSTRUCT, ns3::TypeId::ATTR_GET, GetSrsPeriodicity(), m_admitHandoverRequest, m_admitRrcConnectionRequest, m_connectionEstablishedTrace, m_connectionReconfigurationTrace, m_connectionRejectedTimeoutDuration, m_connectionRequestTimeoutDuration, m_connectionSetupTimeoutDuration, m_defaultTransmissionMode, m_epsBearerToRlcMapping, m_handoverEndOkTrace, m_handoverJoiningTimeoutDuration, m_handoverLeavingTimeoutDuration, m_handoverStartTrace, m_newUeContextTrace, m_qRxLevMin, m_recvMeasurementReportTrace, m_rsrpFilterCoefficient, m_rsrqFilterCoefficient, m_systemInformationPeriodicity, m_ueMap, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeObjectMapAccessor(), ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), ns3::MilliSeconds(), NS_LOG_FUNCTION, PER_BASED, RLC_AM_ALWAYS, RLC_SM_ALWAYS, RLC_UM_ALWAYS, ns3::TypeId::SetParent(), and SetSrsPeriodicity().

Here is the call graph for this function:

Ptr< UeManager > ns3::LteEnbRrc::GetUeManager ( uint16_t rnti )

Parameters

rnti	the identifier of an UE

Returns: the corresponding UeManager instance

Definition at line 1581 of file lte-enb-rrc.cc.

References m_cellId, m_ueMap, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ConnectionRejectedTimeout(), ConnectionRequestTimeout(), ConnectionSetupTimeout(), DoCompleteSetupUe(), DoDataRadioBearerSetupRequest(), DoPathSwitchRequestAcknowledge(), DoRecvHandoverPreparationFailure(), DoRecvHandoverRequest(), DoRecvHandoverRequestAck(), DoRecvMeasurementReport(), DoRecvRrcConnectionReconfigurationCompleted(), DoRecvRrcConnectionReestablishmentComplete(), DoRecvRrcConnectionReestablishmentRequest(), DoRecvRrcConnectionRequest(), DoRecvRrcConnectionSetupCompleted(), DoRecvSnStatusTransfer(), DoRecvUeContextRelease(), DoRecvUeData(), DoRrcConfigurationUpdateInd(), DoSetPdschConfigDedicated(), DoTriggerHandover(), HandoverJoiningTimeout(), HandoverLeavingTimeout(), SendData(), and SendHandoverRequest().

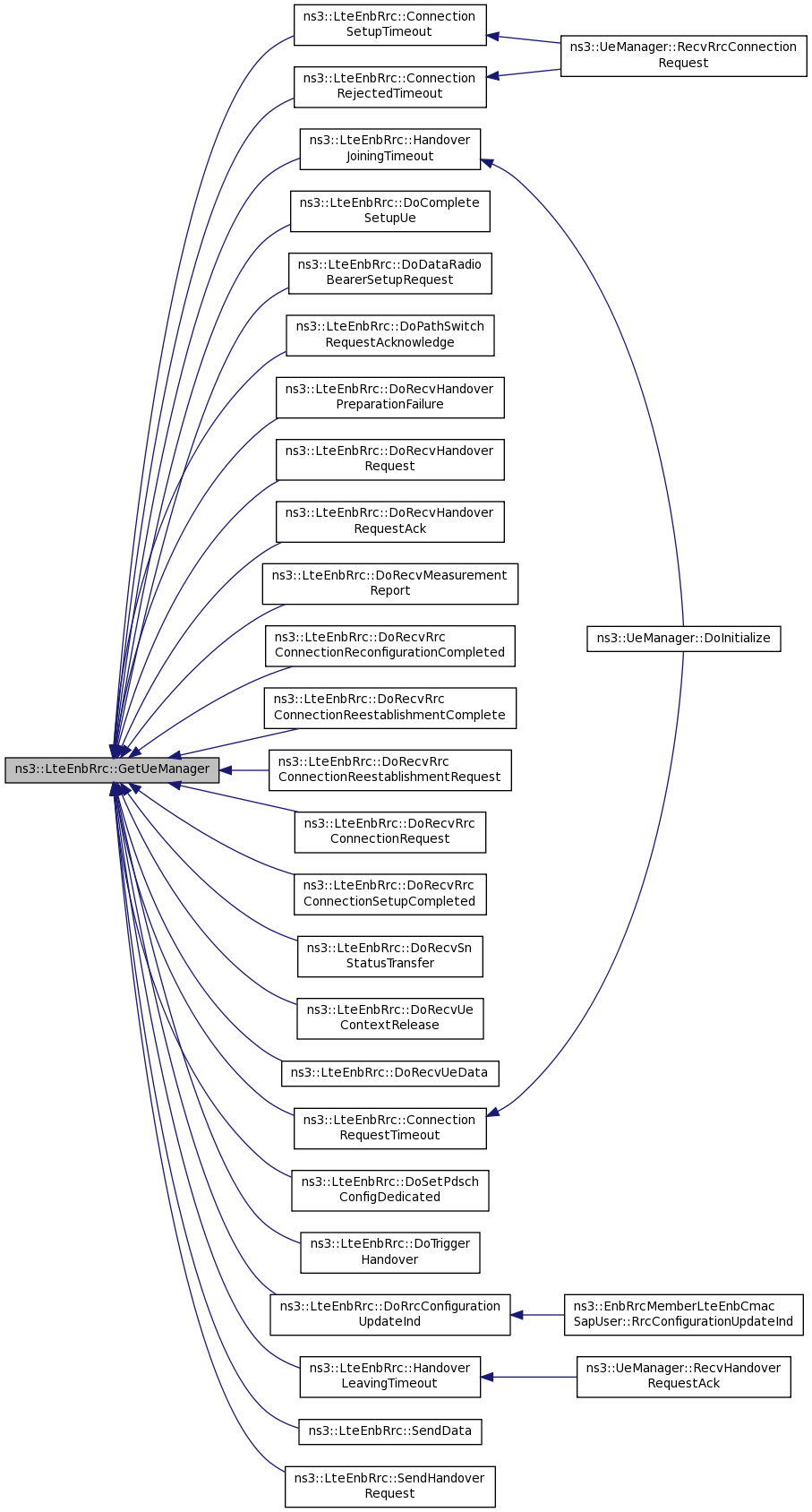

Here is the caller graph for this function:

void ns3::LteEnbRrc::HandoverJoiningTimeout ( uint16_t rnti )

Method triggered when a UE is expected to join the cell for a handover but does not do so in a reasonable time.

Parameters

rnti	the C-RNTI whose timeout expired

Definition at line 1805 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::UeManager::HANDOVER_JOINING, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::HandoverLeavingTimeout ( uint16_t rnti )

Method triggered when a UE is expected to leave a cell for a handover but no feedback is received in a reasonable time.

Parameters

rnti	the C-RNTI whose timeout expired

Definition at line 1814 of file lte-enb-rrc.cc.

References GetUeManager(), ns3::UeManager::HANDOVER_LEAVING, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveUe(), and ns3::ToString().

Referenced by ns3::UeManager::RecvHandoverRequestAck().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteEnbRrc::HasUeManager ( uint16_t rnti ) const

Parameters

rnti	the identifier of an UE

Returns: true if the corresponding UeManager instance exists

Definition at line 1573 of file lte-enb-rrc.cc.

References m_ueMap, and NS_LOG_FUNCTION.

void ns3::LteEnbRrc::RemoveSrsConfigurationIndex ( uint16_t srcCi )

private

remove a previously allocated SRS configuration index

Note: this method can have the side effect of updating the SRS configuration index of all UEs

Parameters

srcCi the indext to be removed

Definition at line 2402 of file lte-enb-rrc.cc.

References m_ueSrsConfigurationIndexSet, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by RemoveUe().

Here is the caller graph for this function:

void ns3::LteEnbRrc::RemoveUe ( uint16_t rnti )

private

remove a UE from the cell

Parameters

rnti	the C-RNTI identiftying the user

Definition at line 2237 of file lte-enb-rrc.cc.

References m_cmacSapProvider, m_cphySapProvider, m_s1SapProvider, m_ueMap, NS_ASSERT_MSG, NS_LOG_FUNCTION, RemoveSrsConfigurationIndex(), ns3::LteEnbCmacSapProvider::RemoveUe(), ns3::LteEnbCphySapProvider::RemoveUe(), and ns3::EpcEnbS1SapProvider::UeContextRelease().

Referenced by ConnectionRejectedTimeout(), ConnectionRequestTimeout(), ConnectionSetupTimeout(), DoRecvHandoverRequest(), DoRecvUeContextRelease(), HandoverJoiningTimeout(), and HandoverLeavingTimeout().

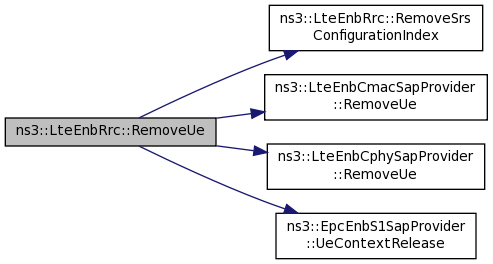

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteEnbRrc::SendData ( Ptr< Packet > p )

Enqueue an IP data packet on the proper bearer for downlink transmission.

Normally expected to be called by the NetDevice forwarding a packet coming from the EpcEnbApplication

Parameters

p	the packet

Returns: true if successful, false if an error occurred

Definition at line 1758 of file lte-enb-rrc.cc.

References ns3::EpsBearerTag::GetBid(), ns3::EpsBearerTag::GetRnti(), GetUeManager(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Packet::RemovePacketTag().

Here is the call graph for this function:

void ns3::LteEnbRrc::SendHandoverRequest	(	uint16_t	rnti,
		uint16_t	cellId
	)

Send a HandoverRequest through the X2 SAP interface.

This method will trigger a handover which is started by the RRC by sending a handover request to the target eNB over the X2 interface

Parameters

rnti	the ID of the UE to be handed over
cellId	the ID of the target eNB

Definition at line 1823 of file lte-enb-rrc.cc.

References GetUeManager(), m_configured, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::LteEnbRrc::SendSystemInformation ( )

private

method used to periodically send System Information

Definition at line 2430 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, ns3::LteEnbCmacSapProvider::GetRachConfig(), ns3::LteEnbCphySapProvider::GetReferenceSignalPower(), ns3::LteRrcSap::SystemInformation::haveSib2, m_cmacSapProvider, m_cphySapProvider, m_rrcSapUser, m_systemInformationPeriodicity, m_ulBandwidth, m_ulEarfcn, ns3::LteEnbCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::LteRrcSap::PdschConfigCommon::pb, ns3::LteRrcSap::RadioResourceConfigCommonSib::pdschConfigCommon, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteEnbCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteEnbCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::LteRrcSap::PdschConfigCommon::referenceSignalPower, ns3::Simulator::Schedule(), ns3::LteEnbRrcSapUser::SendSystemInformation(), ns3::LteRrcSap::SystemInformation::sib2, ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

Referenced by ConfigureCell().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbRrc::SetCellId ( uint16_t m_cellId )

set the cell id of this eNB

Parameters

m_cellId

Definition at line 1748 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::SystemInformationBlockType1::cellAccessRelatedInfo, ns3::LteRrcSap::CellAccessRelatedInfo::cellIdentity, m_cellId, m_cphySapProvider, m_sib1, and ns3::LteEnbCphySapProvider::SetSystemInformationBlockType1().

Here is the call graph for this function:

void ns3::LteEnbRrc::SetCsgId	(	uint32_t	csgId,
		bool	csgIndication
	)

Associate this RRC entity with a particular CSG information.

Parameters

csgId	the intended Closed Subscriber Group identity
csgIndication	if TRUE, only CSG members are allowed to access the cell

CSG identity is a number identifying a Closed Subscriber Group which the cell belongs to. eNodeB is associated with a single CSG identity.

The same CSG identity can also be associated to several UEs, which is equivalent as enlisting these UEs as the members of this particular CSG. When the CSG indication field is set to TRUE, only UEs which are members of the CSG (i.e. same CSG ID) can gain access to the eNodeB, therefore enforcing closed access mode. Otherwise, the eNodeB operates as a non-CSG cell and implements open access mode.

This restriction only applies to initial cell selection and EPC-enabled simulation.

Definition at line 2301 of file lte-enb-rrc.cc.

References ns3::LteRrcSap::SystemInformationBlockType1::cellAccessRelatedInfo, ns3::LteRrcSap::CellAccessRelatedInfo::csgIdentity, ns3::LteRrcSap::CellAccessRelatedInfo::csgIndication, m_cphySapProvider, m_sib1, NS_LOG_FUNCTION, and ns3::LteEnbCphySapProvider::SetSystemInformationBlockType1().

Here is the call graph for this function:

void ns3::LteEnbRrc::SetEpcX2SapProvider ( EpcX2SapProvider * s )

Set the X2 SAP this RRC should interact with.

Parameters

s	the X2 SAP Provider to be used by this RRC entity

Definition at line 1455 of file lte-enb-rrc.cc.

References m_x2SapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetForwardUpCallback ( Callback< void, Ptr< Packet > > cb )

set the callback used to forward data packets up the stack

Parameters

cb

Definition at line 1772 of file lte-enb-rrc.cc.

References m_forwardUpCallback.

void ns3::LteEnbRrc::SetLteAnrSapProvider ( LteAnrSapProvider * s )

set the ANR SAP this RRC should interact with

Parameters

s	the ANR SAP Provider to be used by this RRC

Definition at line 1497 of file lte-enb-rrc.cc.

References m_anrSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteEnbCmacSapProvider ( LteEnbCmacSapProvider * s )

set the CMAC SAP this RRC should interact with

Parameters

s	the CMAC SAP Provider to be used by this RRC

Definition at line 1469 of file lte-enb-rrc.cc.

References m_cmacSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteEnbCphySapProvider ( LteEnbCphySapProvider * s )

set the CPHY SAP this RRC should use to interact with the PHY

Parameters

s	the CPHY SAP Provider

Definition at line 1559 of file lte-enb-rrc.cc.

References m_cphySapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteEnbRrcSapUser ( LteEnbRrcSapUser * s )

set the RRC SAP this RRC should interact with

Parameters

s	the RRC SAP User to be used by this RRC

Definition at line 1525 of file lte-enb-rrc.cc.

References m_rrcSapUser, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteFfrRrcSapProvider ( LteFfrRrcSapProvider * s )

set the FFR SAP this RRC should interact with

Parameters

s	the FFR SAP Provider to be used by this RRC

Definition at line 1511 of file lte-enb-rrc.cc.

References m_ffrRrcSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteHandoverManagementSapProvider ( LteHandoverManagementSapProvider * s )

set the Handover Management SAP this RRC should interact with

Parameters

s	the Handover Management SAP Provider to be used by this RRC

Definition at line 1483 of file lte-enb-rrc.cc.

References m_handoverManagementSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetLteMacSapProvider ( LteMacSapProvider * s )

set the MAC SAP provider.

The eNB RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters

s	the MAC SAP provider that will be used by all newly created RLC instances

Definition at line 1539 of file lte-enb-rrc.cc.

References m_macSapProvider, NS_LOG_FUNCTION, and s.

void ns3::LteEnbRrc::SetS1SapProvider ( EpcEnbS1SapProvider * s )

Set the S1 SAP Provider.

Parameters

s	the S1 SAP Provider

Definition at line 1546 of file lte-enb-rrc.cc.

References m_s1SapProvider, and s.

void ns3::LteEnbRrc::SetSrsPeriodicity ( uint32_t p )

Parameters

p	the SRS periodicity in num TTIs

Definition at line 2317 of file lte-enb-rrc.cc.

References ns3::g_srsPeriodicity, m_srsCurrentPeriodicityId, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::SRS_ENTRIES.

Referenced by GetTypeId().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbRrcMemberLteEnbCmacSapUser

friend

Definition at line 439 of file lte-enb-rrc.h.

Referenced by LteEnbRrc().

friend class EpcX2SpecificEpcX2SapUser< LteEnbRrc >

friend

Definition at line 445 of file lte-enb-rrc.h.

friend class MemberEpcEnbS1SapUser< LteEnbRrc >

friend

Definition at line 444 of file lte-enb-rrc.h.

friend class MemberLteAnrSapUser< LteEnbRrc >

friend

Definition at line 441 of file lte-enb-rrc.h.

friend class MemberLteEnbRrcSapProvider< LteEnbRrc >

friend

Definition at line 443 of file lte-enb-rrc.h.

friend class MemberLteFfrRrcSapUser< LteEnbRrc >

friend

Definition at line 442 of file lte-enb-rrc.h.

friend class MemberLteHandoverManagementSapUser< LteEnbRrc >

friend

Definition at line 440 of file lte-enb-rrc.h.

friend class UeManager

friend

Definition at line 446 of file lte-enb-rrc.h.

Member Data Documentation

bool ns3::LteEnbRrc::m_admitHandoverRequest

private

Definition at line 995 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), and GetTypeId().

bool ns3::LteEnbRrc::m_admitRrcConnectionRequest

private

Definition at line 996 of file lte-enb-rrc.h.

Referenced by GetTypeId().

std::set<uint8_t> ns3::LteEnbRrc::m_anrMeasIds

private

Definition at line 967 of file lte-enb-rrc.h.

Referenced by DoAddUeMeasReportConfigForAnr().

LteAnrSapProvider* ns3::LteEnbRrc::m_anrSapProvider

private

Definition at line 931 of file lte-enb-rrc.h.

Referenced by AddX2Neighbour(), DoTriggerHandover(), and SetLteAnrSapProvider().

LteAnrSapUser* ns3::LteEnbRrc::m_anrSapUser

private

Definition at line 930 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteAnrSapUser(), and LteEnbRrc().

uint16_t ns3::LteEnbRrc::m_cellId

private

Definition at line 948 of file lte-enb-rrc.h.

Referenced by AddUe(), ConfigureCell(), DoRecvHandoverRequest(), DoTriggerHandover(), GetUeManager(), and SetCellId().

LteEnbCmacSapProvider* ns3::LteEnbRrc::m_cmacSapProvider

private

Definition at line 925 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), RemoveUe(), SendSystemInformation(), and SetLteEnbCmacSapProvider().

LteEnbCmacSapUser* ns3::LteEnbRrc::m_cmacSapUser

private

Definition at line 924 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbCmacSapUser(), and LteEnbRrc().

bool ns3::LteEnbRrc::m_configured

private

Definition at line 947 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and SendHandoverRequest().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_connectionEstablishedTrace

private

Definition at line 1012 of file lte-enb-rrc.h.

Referenced by GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_connectionReconfigurationTrace

private

Definition at line 1014 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_connectionRejectedTimeoutDuration

private

Definition at line 1005 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_connectionRequestTimeoutDuration

private

Definition at line 1003 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_connectionSetupTimeoutDuration

private

Definition at line 1004 of file lte-enb-rrc.h.

Referenced by GetTypeId().

LteEnbCphySapProvider* ns3::LteEnbRrc::m_cphySapProvider

private

Definition at line 945 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), RemoveUe(), SendSystemInformation(), SetCellId(), SetCsgId(), and SetLteEnbCphySapProvider().

LteEnbCphySapUser* ns3::LteEnbRrc::m_cphySapUser

private

Definition at line 944 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbCphySapUser(), and LteEnbRrc().

uint8_t ns3::LteEnbRrc::m_defaultTransmissionMode

private

Definition at line 979 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint16_t ns3::LteEnbRrc::m_dlBandwidth

private

Definition at line 951 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and DoRecvHandoverRequest().

uint16_t ns3::LteEnbRrc::m_dlEarfcn

private

Definition at line 949 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and DoRecvHandoverRequest().

enum LteEpsBearerToRlcMapping_t ns3::LteEnbRrc::m_epsBearerToRlcMapping

private

Definition at line 981 of file lte-enb-rrc.h.

Referenced by GetRlcType(), and GetTypeId().

std::set<uint8_t> ns3::LteEnbRrc::m_ffrMeasIds

private

Definition at line 968 of file lte-enb-rrc.h.

Referenced by DoAddUeMeasReportConfigForFfr().

LteFfrRrcSapProvider* ns3::LteEnbRrc::m_ffrRrcSapProvider

private

Definition at line 934 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvLoadInformation(), and SetLteFfrRrcSapProvider().

LteFfrRrcSapUser* ns3::LteEnbRrc::m_ffrRrcSapUser

private

Definition at line 933 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteFfrRrcSapUser(), and LteEnbRrc().

Callback<void, Ptr<Packet> > ns3::LteEnbRrc::m_forwardUpCallback

private

Definition at line 919 of file lte-enb-rrc.h.

Referenced by SetForwardUpCallback().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_handoverEndOkTrace

private

Definition at line 1018 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_handoverJoiningTimeoutDuration

private

Definition at line 1006 of file lte-enb-rrc.h.

Referenced by GetTypeId().

Time ns3::LteEnbRrc::m_handoverLeavingTimeoutDuration

private

Definition at line 1007 of file lte-enb-rrc.h.

Referenced by GetTypeId().

LteHandoverManagementSapProvider* ns3::LteEnbRrc::m_handoverManagementSapProvider

private

Definition at line 928 of file lte-enb-rrc.h.

Referenced by SetLteHandoverManagementSapProvider().

LteHandoverManagementSapUser* ns3::LteEnbRrc::m_handoverManagementSapUser

private

Definition at line 927 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteHandoverManagementSapUser(), and LteEnbRrc().

std::set<uint8_t> ns3::LteEnbRrc::m_handoverMeasIds

private

Definition at line 966 of file lte-enb-rrc.h.

Referenced by DoAddUeMeasReportConfigForHandover().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteEnbRrc::m_handoverStartTrace

private

Definition at line 1016 of file lte-enb-rrc.h.

Referenced by GetTypeId().

uint16_t ns3::LteEnbRrc::m_lastAllocatedConfigurationIndex

private

Definition at line 988 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex().

uint16_t ns3::LteEnbRrc::m_lastAllocatedRnti

private

Definition at line 953 of file lte-enb-rrc.h.

Referenced by AddUe().

LteMacSapProvider* ns3::LteEnbRrc::m_macSapProvider

private

Definition at line 939 of file lte-enb-rrc.h.

Referenced by SetLteMacSapProvider().

TracedCallback<uint16_t, uint16_t> ns3::LteEnbRrc::m_newUeContextTrace

private

Definition at line 1010 of file lte-enb-rrc.h.

Referenced by AddUe(), and GetTypeId().

int8_t ns3::LteEnbRrc::m_qRxLevMin

private

Definition at line 992 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and GetTypeId().

bool ns3::LteEnbRrc::m_reconfigureUes

private

Definition at line 989 of file lte-enb-rrc.h.

TracedCallback<uint64_t, uint16_t, uint16_t, LteRrcSap::MeasurementReport> ns3::LteEnbRrc::m_recvMeasurementReportTrace

private

Definition at line 1021 of file lte-enb-rrc.h.

Referenced by GetTypeId().

LteEnbRrcSapProvider* ns3::LteEnbRrc::m_rrcSapProvider

private

Definition at line 937 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetLteEnbRrcSapProvider(), and LteEnbRrc().

LteEnbRrcSapUser* ns3::LteEnbRrc::m_rrcSapUser

private

Definition at line 936 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), SendSystemInformation(), and SetLteEnbRrcSapUser().

uint8_t ns3::LteEnbRrc::m_rsrpFilterCoefficient

private

Definition at line 999 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and GetTypeId().

uint8_t ns3::LteEnbRrc::m_rsrqFilterCoefficient

private

Definition at line 1000 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), and GetTypeId().

EpcEnbS1SapProvider* ns3::LteEnbRrc::m_s1SapProvider

private

Definition at line 941 of file lte-enb-rrc.h.

Referenced by RemoveUe(), and SetS1SapProvider().

EpcEnbS1SapUser* ns3::LteEnbRrc::m_s1SapUser

private

Definition at line 942 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetS1SapUser(), and LteEnbRrc().

LteRrcSap::SystemInformationBlockType1 ns3::LteEnbRrc::m_sib1

private

the System Information Block Type 1 that is currently broadcasted over BCH

Definition at line 956 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), SetCellId(), and SetCsgId().

uint16_t ns3::LteEnbRrc::m_srsCurrentPeriodicityId

private

Definition at line 986 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex(), GetSrsPeriodicity(), and SetSrsPeriodicity().

Time ns3::LteEnbRrc::m_systemInformationPeriodicity

private

Definition at line 983 of file lte-enb-rrc.h.

Referenced by GetTypeId(), and SendSystemInformation().

std::map<uint16_t, Ptr<UeManager> > ns3::LteEnbRrc::m_ueMap

private

Definition at line 958 of file lte-enb-rrc.h.

Referenced by AddUe(), DoDispose(), GetTypeId(), GetUeManager(), HasUeManager(), and RemoveUe().

LteRrcSap::MeasConfig ns3::LteEnbRrc::m_ueMeasConfig

private

List of measurement configuration which are active in every UE attached to this eNodeB instance.

Definition at line 964 of file lte-enb-rrc.h.

Referenced by AddUeMeasReportConfig(), and ConfigureCell().

std::set<uint16_t> ns3::LteEnbRrc::m_ueSrsConfigurationIndexSet

private

Definition at line 987 of file lte-enb-rrc.h.

Referenced by GetNewSrsConfigurationIndex(), and RemoveSrsConfigurationIndex().

uint16_t ns3::LteEnbRrc::m_ulBandwidth

private

Definition at line 952 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), and SendSystemInformation().

uint16_t ns3::LteEnbRrc::m_ulEarfcn

private

Definition at line 950 of file lte-enb-rrc.h.

Referenced by ConfigureCell(), DoRecvHandoverRequest(), and SendSystemInformation().

EpcX2SapProvider* ns3::LteEnbRrc::m_x2SapProvider

private

Definition at line 922 of file lte-enb-rrc.h.

Referenced by DoRecvHandoverRequest(), DoSendLoadInformation(), and SetEpcX2SapProvider().

EpcX2SapUser* ns3::LteEnbRrc::m_x2SapUser

private

Definition at line 921 of file lte-enb-rrc.h.

Referenced by DoDispose(), GetEpcX2SapUser(), and LteEnbRrc().

std::map<uint32_t, X2uTeidInfo> ns3::LteEnbRrc::m_x2uTeidInfoMap

private

Definition at line 977 of file lte-enb-rrc.h.

Referenced by DoRecvUeData().

The documentation for this class was generated from the following files:

src/lte/model/lte-enb-rrc.h
src/lte/model/lte-enb-rrc.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
