The LteSimpleSpectrumPhy models the physical layer of LTE This class is used to test Frequency Reuse Algorithms, it allow to get SpectrumValue from channel and pass it to test script by trace mechanism. More...

#include <lte-simple-spectrum-phy.h>

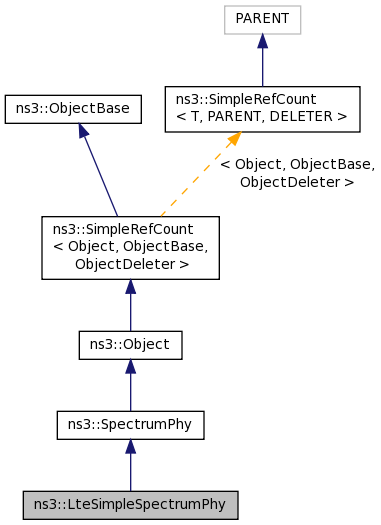

Inheritance diagram for ns3::LteSimpleSpectrumPhy:

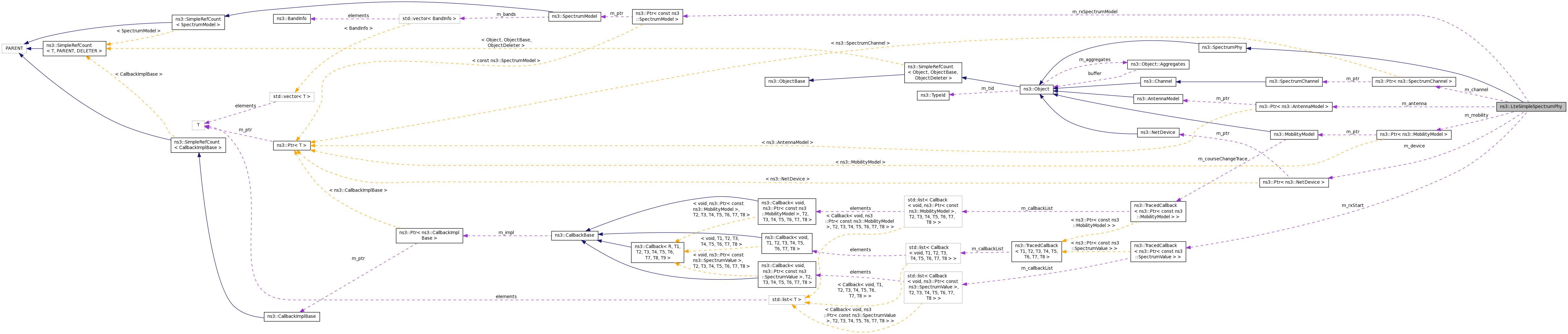

Collaboration diagram for ns3::LteSimpleSpectrumPhy:

Public Member Functions
	LteSimpleSpectrumPhy ()

virtual	~LteSimpleSpectrumPhy ()

virtual void	DoDispose ()
	This method is called by Object::Dispose or by the object's destructor, whichever comes first. More...

Ptr< NetDevice >	GetDevice ()
	get the associated NetDevice instance More...

Ptr< MobilityModel >	GetMobility ()
	get the associated MobilityModel instance More...

Ptr< AntennaModel >	GetRxAntenna ()
	get the AntennaModel used by the NetDevice for reception More...

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

void	SetCellId (uint16_t cellId)

void	SetChannel (Ptr< SpectrumChannel > c)
	Set the channel attached to this device. More...

void	SetDevice (Ptr< NetDevice > d)
	set the associated NetDevice instance More...

void	SetMobility (Ptr< MobilityModel > m)
	Set the mobility model associated with this device. More...

void	SetRxSpectrumModel (Ptr< const SpectrumModel > model)

void	StartRx (Ptr< SpectrumSignalParameters > params)
	Notify the SpectrumPhy instance of an incoming signal. More...

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)
	Run the DoDispose methods of this object and all the objects aggregated to it. More...

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)
	This method calls the virtual DoInitialize method on all the objects aggregated to this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< AntennaModel >	m_antenna

uint16_t	m_cellId

Ptr< SpectrumChannel >	m_channel

Ptr< NetDevice >	m_device

Ptr< MobilityModel >	m_mobility

Ptr< const SpectrumModel >	m_rxSpectrumModel

TracedCallback< Ptr< const SpectrumValue > >	m_rxStart

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)
	This method is called only once by Object::Initialize. More...

virtual void	NotifyNewAggregate (void)
	This method is invoked whenever two sets of objects are aggregated together. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

The LteSimpleSpectrumPhy models the physical layer of LTE This class is used to test Frequency Reuse Algorithms, it allow to get SpectrumValue from channel and pass it to test script by trace mechanism.

When m_cellId is 0, all received signals will be traced, if m_cellId > 0, only signals from specified Cell will be traced.

Definition at line 47 of file lte-simple-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::LteSimpleSpectrumPhy::LteSimpleSpectrumPhy ( )

Definition at line 39 of file lte-simple-spectrum-phy.cc.

ns3::LteSimpleSpectrumPhy::~LteSimpleSpectrumPhy ( )

virtual

Definition at line 45 of file lte-simple-spectrum-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSimpleSpectrumPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 50 of file lte-simple-spectrum-phy.cc.

References ns3::Object::DoDispose(), m_channel, m_device, m_mobility, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< NetDevice > ns3::LteSimpleSpectrumPhy::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 75 of file lte-simple-spectrum-phy.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< MobilityModel > ns3::LteSimpleSpectrumPhy::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 83 of file lte-simple-spectrum-phy.cc.

References m_mobility, and NS_LOG_FUNCTION.

Ptr< AntennaModel > ns3::LteSimpleSpectrumPhy::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 121 of file lte-simple-spectrum-phy.cc.

References m_antenna.

Ptr< const SpectrumModel > ns3::LteSimpleSpectrumPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 114 of file lte-simple-spectrum-phy.cc.

References m_rxSpectrumModel.

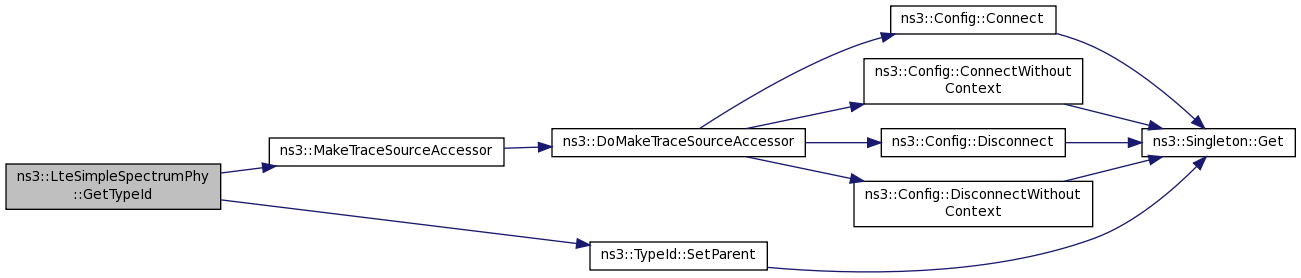

TypeId ns3::LteSimpleSpectrumPhy::GetTypeId ( void )

static

Definition at line 61 of file lte-simple-spectrum-phy.cc.

References m_rxStart, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:
