ns3::UeMemberLteUeCmacSapProvider Class Reference

Inheritance diagram for ns3::UeMemberLteUeCmacSapProvider:

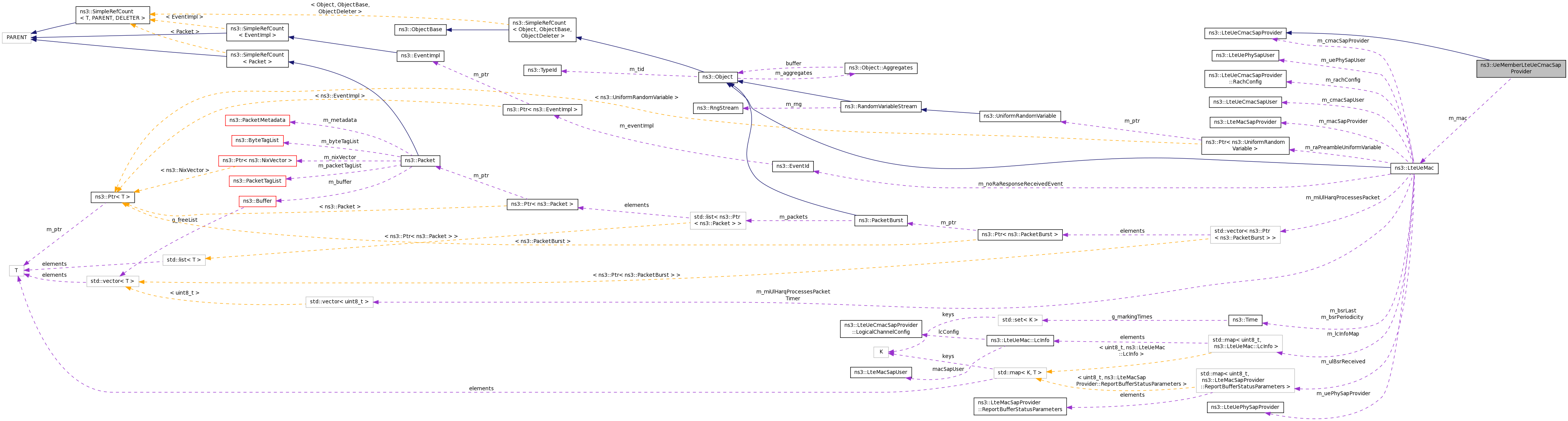

Collaboration diagram for ns3::UeMemberLteUeCmacSapProvider:

Public Member Functions
	UeMemberLteUeCmacSapProvider (LteUeMac *mac)
virtual void	AddLc (uint8_t lcId, LteUeCmacSapProvider::LogicalChannelConfig lcConfig, LteMacSapUser *msu)
	add a new Logical Channel (LC) More...
virtual void	ConfigureRach (RachConfig rc)
virtual void	RemoveLc (uint8_t lcId)
	remove an existing LC More...
virtual void	Reset ()
	reset the MAC More...
virtual void	StartContentionBasedRandomAccessProcedure ()
	tell the MAC to start a contention-based random access procedure, e.g., to perform RRC connection establishment More...
virtual void	StartNonContentionBasedRandomAccessProcedure (uint16_t rnti, uint8_t preambleId, uint8_t prachMask)
	tell the MAC to start a non-contention-based random access procedure, e.g., as a consequence of handover More...
Public Member Functions inherited from ns3::LteUeCmacSapProvider
virtual	~LteUeCmacSapProvider ()

Private Attributes
LteUeMac *	m_mac

Detailed Description

Definition at line 52 of file lte-ue-mac.cc.

Constructor & Destructor Documentation

ns3::UeMemberLteUeCmacSapProvider::UeMemberLteUeCmacSapProvider

(

LteUeMac *

mac

)

Definition at line 70 of file lte-ue-mac.cc.

Member Function Documentation

void ns3::UeMemberLteUeCmacSapProvider::AddLc ( uint8_t  lcId, LteUeCmacSapProvider::LogicalChannelConfig  lcConfig, LteMacSapUser *  msu  )

virtual

add a new Logical Channel (LC)

Parameters

lcId	the ID of the LC
lcConfig	the LC configuration provided by the RRC
msu	the corresponding LteMacSapUser

Implements ns3::LteUeCmacSapProvider.

Definition at line 95 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoAddLc(), and m_mac.

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapProvider::ConfigureRach ( RachConfig  rc )

virtual

Implements ns3::LteUeCmacSapProvider.

Definition at line 76 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoConfigureRach(), and m_mac.

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapProvider::RemoveLc ( uint8_t  lcId )

virtual

remove an existing LC

Parameters

lcId

Implements ns3::LteUeCmacSapProvider.

Definition at line 101 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoRemoveLc(), and m_mac.

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapProvider::Reset ( )

virtual

reset the MAC

Implements ns3::LteUeCmacSapProvider.

Definition at line 107 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoReset(), and m_mac.

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure ( )

virtual

tell the MAC to start a contention-based random access procedure, e.g., to perform RRC connection establishment

Implements ns3::LteUeCmacSapProvider.

Definition at line 82 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoStartContentionBasedRandomAccessProcedure(), and m_mac.

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapProvider::StartNonContentionBasedRandomAccessProcedure ( uint16_t  rnti, uint8_t  rapId, uint8_t  prachMask  )

virtual

tell the MAC to start a non-contention-based random access procedure, e.g., as a consequence of handover

Parameters

rnti
rapId	Random Access Preamble Identifier
prachMask

Implements ns3::LteUeCmacSapProvider.

Definition at line 88 of file lte-ue-mac.cc.

References ns3::LteUeMac::DoStartNonContentionBasedRandomAccessProcedure(), and m_mac.

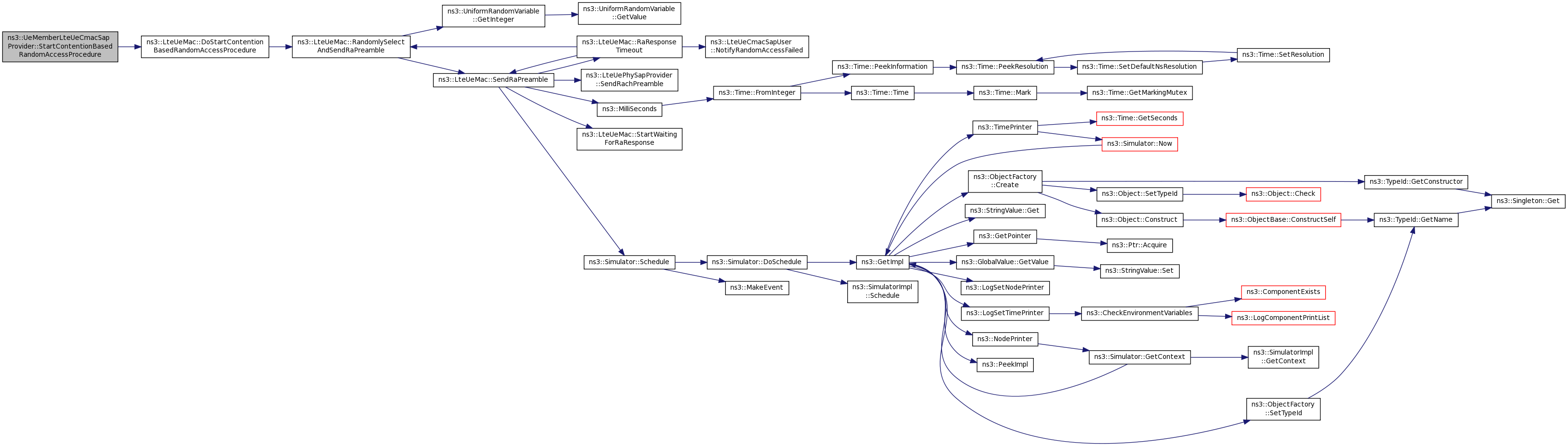

Here is the call graph for this function:

Member Data Documentation

LteUeMac* ns3::UeMemberLteUeCmacSapProvider::m_mac

private

Definition at line 66 of file lte-ue-mac.cc.

Referenced by AddLc(), ConfigureRach(), RemoveLc(), Reset(), StartContentionBasedRandomAccessProcedure(), and StartNonContentionBasedRandomAccessProcedure().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-mac.cc
