helps to create WaveNetDevice objects More...

#include <wave-helper.h>

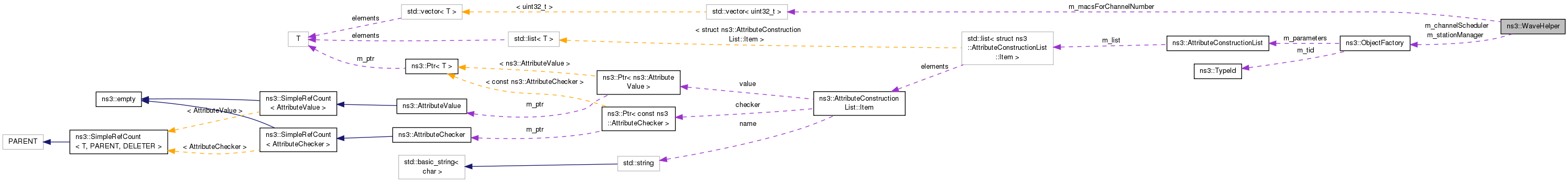

Collaboration diagram for ns3::WaveHelper:

Public Member Functions
	WaveHelper ()

virtual	~WaveHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the Phy and Mac aspects of the WAVE models. More...

void	CreateMacForChannel (std::vector< uint32_t > channelNumbers)

void	CreatePhys (uint32_t phys)

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer c) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, Ptr< Node > node) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, std::string nodeName) const

void	SetChannelScheduler (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetRemoteStationManager (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

Static Public Member Functions
static WaveHelper	Default (void)

static void	EnableLogComponents (void)
	Helper to enable all WaveNetDevice log components with one statement. More...

Protected Attributes
ObjectFactory	m_channelScheduler

std::vector< uint32_t >	m_macsForChannelNumber

uint32_t	m_physNumber

ObjectFactory	m_stationManager

Detailed Description

helps to create WaveNetDevice objects

This class can help to create a large set of similar WaveNetDevice objects and to configure a large set of their attributes during creation.

Generally WaveHelper with default configuration will create devices with 7 MAC entities,1 PHY entity and a multiple-channel scheduler for to deal with these entities.

If users can make sure on which channel this WAVE device will work, they can set specific channel numbers to save resources of unused channels as below: WaveHelper helper = WaveHelper::Default (); uint32_t channels[] = {CCH, SCH1}; std::vector<uint32_t> channelsVector (channels, channels + 2); helper.helper.CreateMacForChannel (channelsVector);

If users can create other channel scheduler such as "AnotherScheduler" which can assign channel access in the context of more PHY entities, they can use this helper to create WAVE devices as below: WaveHelper helper = WaveHelper::Default (); helper.helper.CreateMacForChannel (ChannelManager::GetWaveChannels ()); helper.CreatePhys (2); // or other number which should be less than 7 helper.SetChannelScheduler ("ns3::AnotherScheduler"); helper.SetRemoteStationManager ("ns3::ConstantRateWifiManager"); // or other rate control algorithms

Definition at line 110 of file wave-helper.h.

Constructor & Destructor Documentation

ns3::WaveHelper::WaveHelper ( )

Definition at line 381 of file wave-helper.cc.

ns3::WaveHelper::~WaveHelper ( )

virtual

Definition at line 385 of file wave-helper.cc.

Member Function Documentation

int64_t ns3::WaveHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by the Phy and Mac aspects of the WAVE models.

Each device in container c has fixed stream numbers assigned to its random variables. The Wifi channel (e.g. propagation loss model) is excluded. Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the WaveNetDevice should be modified to use fixed streams
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 569 of file wave-helper.cc.

References ns3::EdcaTxopN::AssignStreams(), ns3::NetDeviceContainer::Begin(), ns3::NetDeviceContainer::End(), ns3::PointerValue::Get(), ns3::WaveNetDevice::GetMacs(), and ns3::WaveNetDevice::GetPhys().

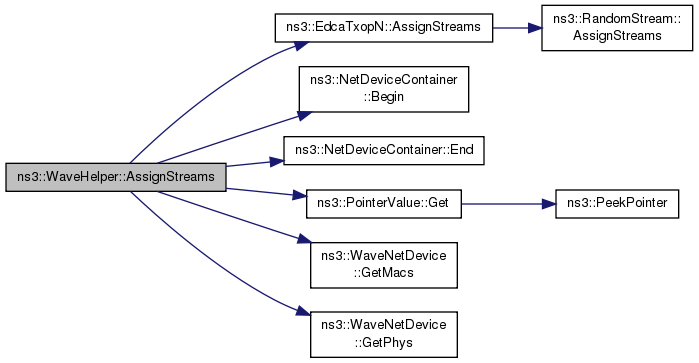

Here is the call graph for this function:

void ns3::WaveHelper::CreateMacForChannel ( std::vector< uint32_t > channelNumbers )

Parameters

channelNumbers the MAC entities will be created to support these channels for multiple channel operation.

Definition at line 405 of file wave-helper.cc.

References ns3::ChannelManager::IsWaveChannel(), m_macsForChannelNumber, and NS_FATAL_ERROR.

Referenced by Default().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveHelper::CreatePhys ( uint32_t phys )

Parameters

phys	the number of PHY entity which will be created for multiple channel operation.

Definition at line 422 of file wave-helper.cc.

References ns3::ChannelManager::GetNumberOfWaveChannels(), m_physNumber, and NS_FATAL_ERROR.

Referenced by Default().

Here is the call graph for this function:

Here is the caller graph for this function:

WaveHelper ns3::WaveHelper::Default ( void )

static

Returns: a new WaveHelper in a default state

The default state is defined as being seven OcbWifiMac MAC entities with an ConstantRate rate control algorithm, one WifiPhy entity and a default multiple-channel scheduler DefaultChannelScheduler for assigning channel access with these created entities.

Definition at line 390 of file wave-helper.cc.

References CreateMacForChannel(), CreatePhys(), ns3::ChannelManager::GetWaveChannels(), SetChannelScheduler(), and SetRemoteStationManager().

Referenced by WaveNetDeviceExample::CreateWaveNodes().

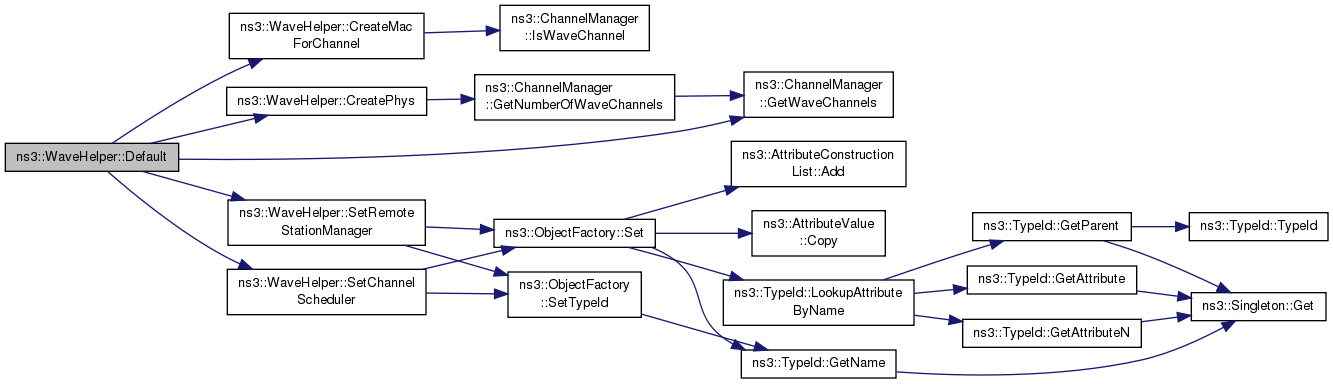

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveHelper::EnableLogComponents ( void )

static

Helper to enable all WaveNetDevice log components with one statement.

Definition at line 552 of file wave-helper.cc.

References ns3::WifiHelper::EnableLogComponents(), ns3::LOG_LEVEL_ALL, and ns3::LogComponentEnable().

Referenced by VanetRoutingExperiment::SetupAdhocDevices().

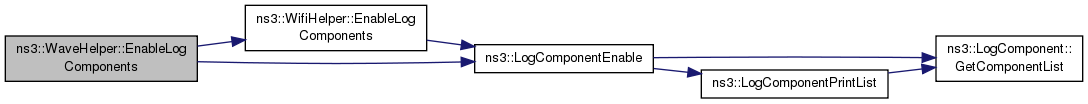

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::WaveHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		NodeContainer	c
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
c	the set of nodes on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 482 of file wave-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddDevice(), ns3::WaveNetDevice::AddMac(), ns3::WaveNetDevice::AddPhy(), ns3::Mac48Address::Allocate(), ns3::NodeContainer::Begin(), ns3::WifiMac::ConfigureStandard(), ns3::WifiPhy::ConfigureStandard(), ns3::WifiPhyHelper::Create(), ns3::WifiMacHelper::Create(), ns3::ObjectFactory::Create(), first::devices, ns3::OcbWifiMac::EnableForWave(), ns3::NodeContainer::End(), ns3::ChannelManager::GetCch(), m_channelScheduler, m_macsForChannelNumber, m_physNumber, m_stationManager, NS_FATAL_ERROR, ns3::WaveNetDevice::SetAddress(), ns3::WaveNetDevice::SetChannelCoordinator(), ns3::WaveNetDevice::SetChannelManager(), ns3::WifiPhy::SetChannelNumber(), ns3::WaveNetDevice::SetChannelScheduler(), ns3::WaveNetDevice::SetVsaManager(), ns3::RegularWifiMac::SetWifiRemoteStationManager(), and ns3::WIFI_PHY_STANDARD_80211_10MHZ.

Referenced by WaveNetDeviceExample::CreateWaveNodes(), TestCaseHelper::CreatWaveDevice(), Install(), and VanetRoutingExperiment::SetupAdhocDevices().

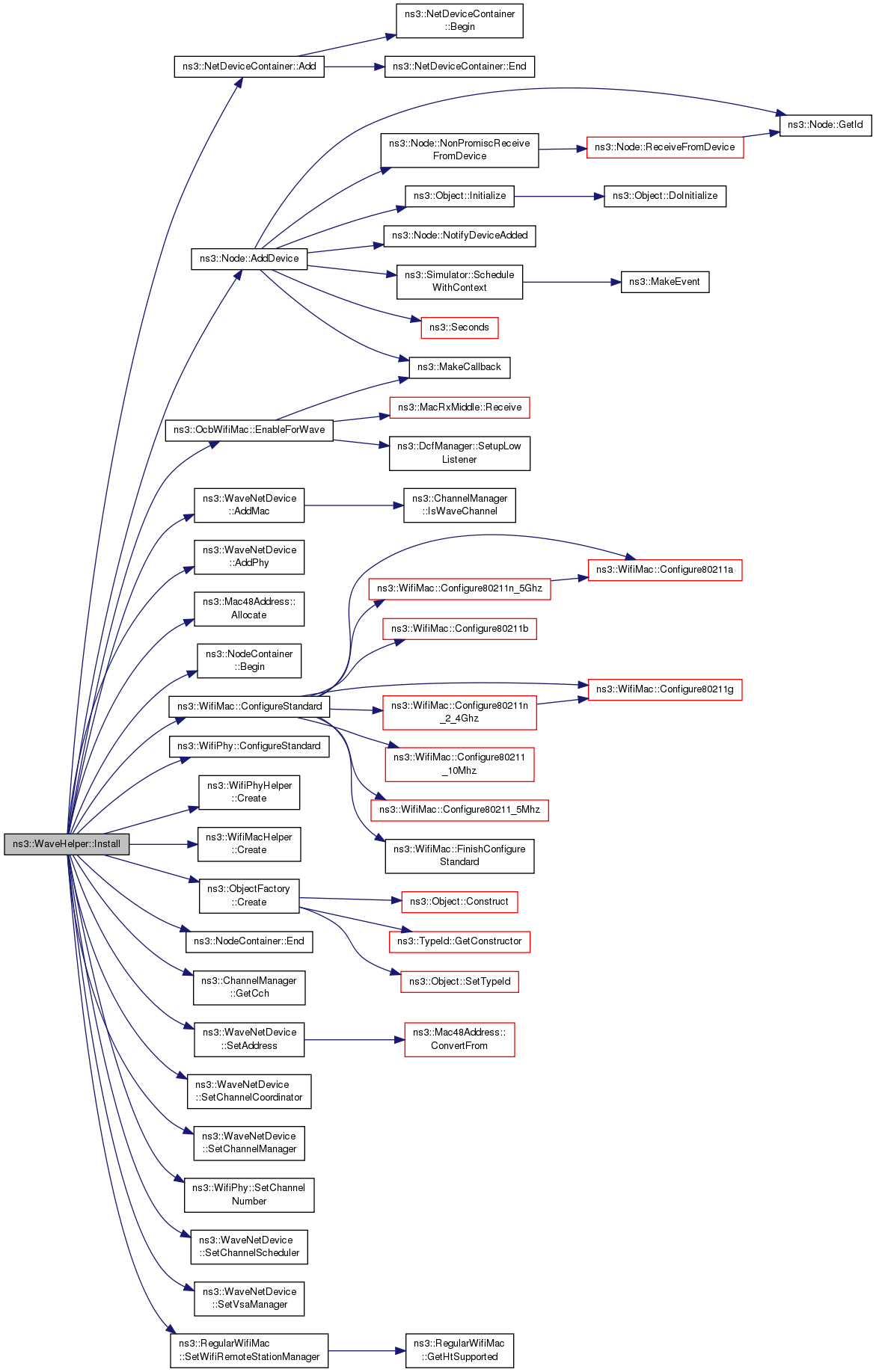

Here is the call graph for this function:

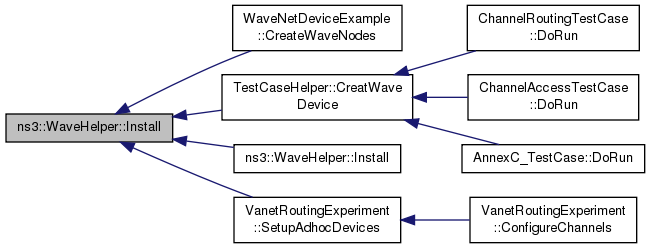

Here is the caller graph for this function:

NetDeviceContainer ns3::WaveHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		Ptr< Node >	node
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
node	the node on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 539 of file wave-helper.cc.

References Install().

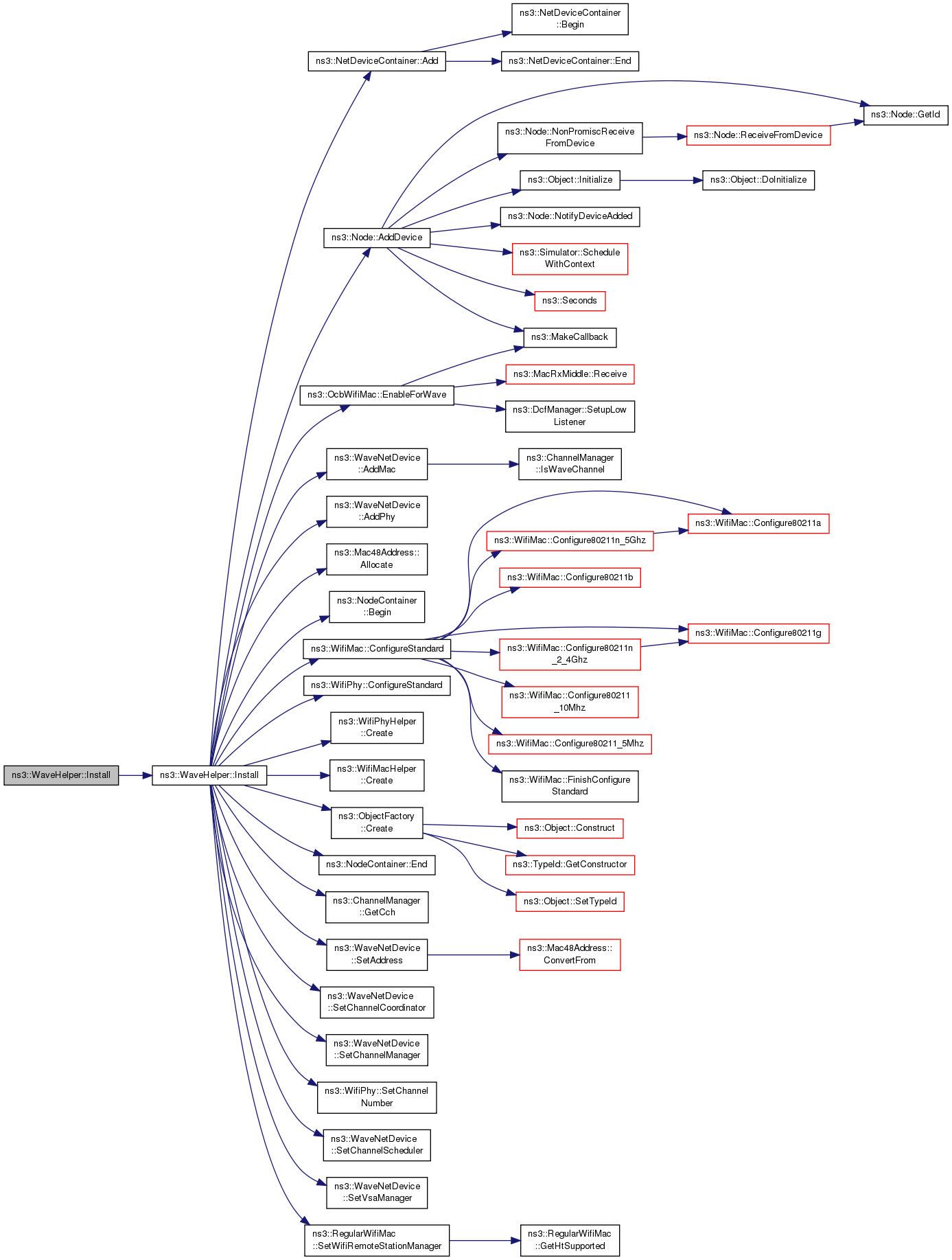

Here is the call graph for this function:

NetDeviceContainer ns3::WaveHelper::Install	(	const WifiPhyHelper &	phy,
		const WifiMacHelper &	mac,
		std::string	nodeName
	)		const

virtual

Parameters

phy	the PHY helper to create PHY objects
mac	the MAC helper to create MAC objects
nodeName	the name of node on which a wifi device must be created

Returns: a device container which contains all the devices created by this method.

Definition at line 545 of file wave-helper.cc.

References Install().

Here is the call graph for this function:

void ns3::WaveHelper::SetChannelScheduler	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of ns3::ChannelScheduler to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested channel scheduler.

Definition at line 459 of file wave-helper.cc.

References m_channelScheduler, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Default().

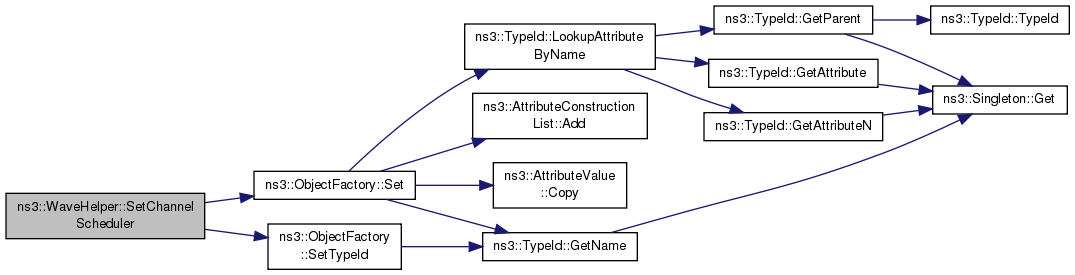

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveHelper::SetRemoteStationManager	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of ns3::WifiRemoteStationManager to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set
