This class holds together multiple, ns3::WifiPhy, and ns3::OcbWifiMac (including ns3::WifiRemoteStationManager). More...

#include <wave-net-device.h>

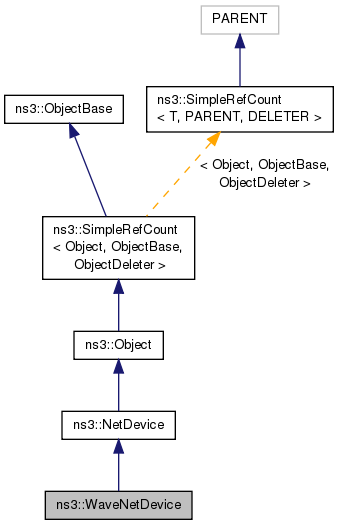

Inheritance diagram for ns3::WaveNetDevice:

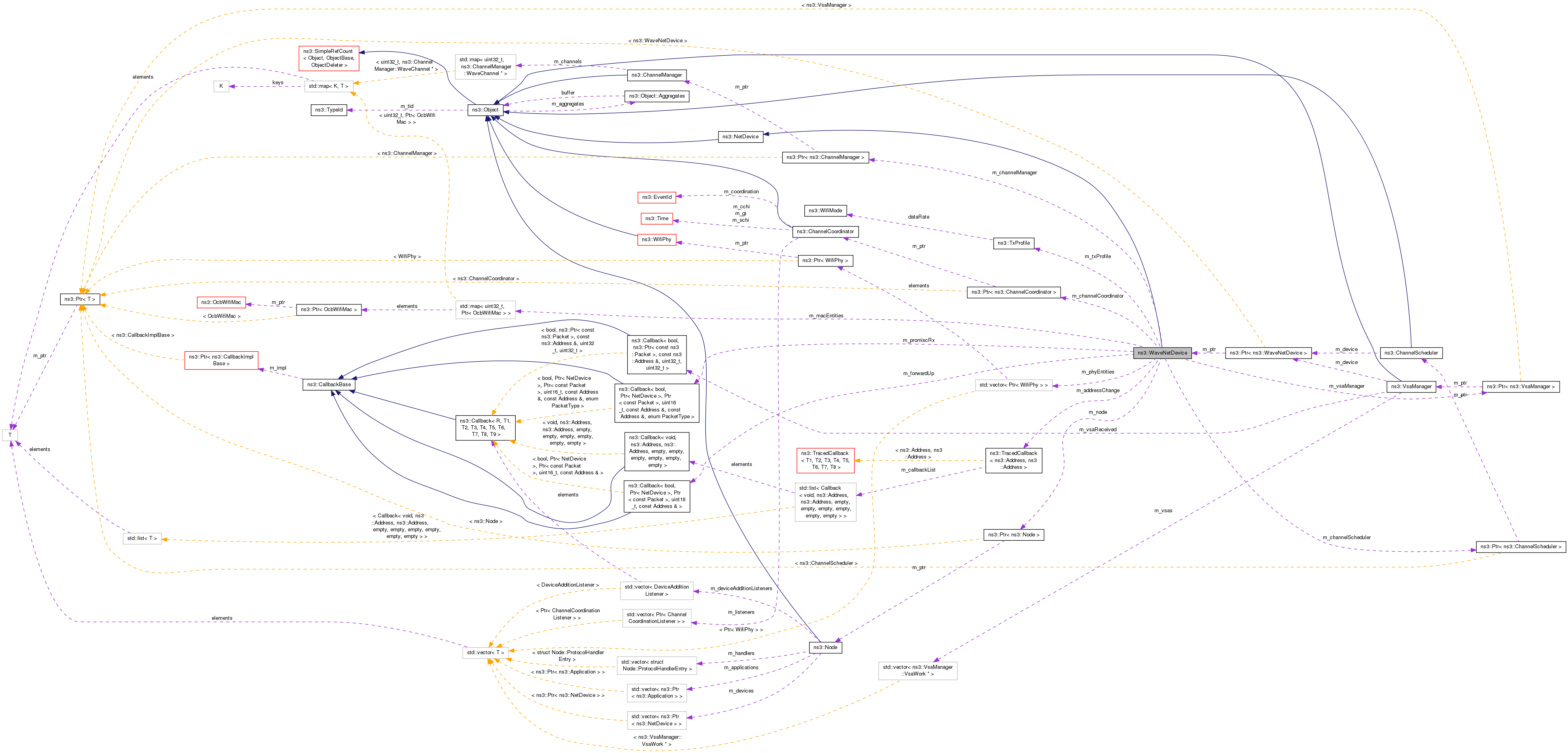

Collaboration diagram for ns3::WaveNetDevice:

Public Types
typedef Callback< bool, Ptr< const Packet >, const Address &, uint32_t, uint32_t >	WaveVsaCallback

Public Types inherited from ns3::NetDevice
enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions
	WaveNetDevice (void)

virtual	~WaveNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

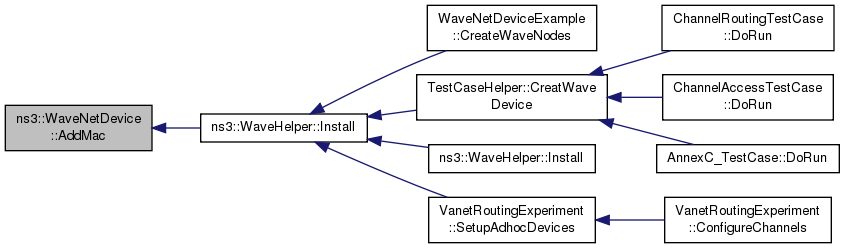

void	AddMac (uint32_t channelNumber, Ptr< OcbWifiMac > mac)

void	AddPhy (Ptr< WifiPhy > phy)

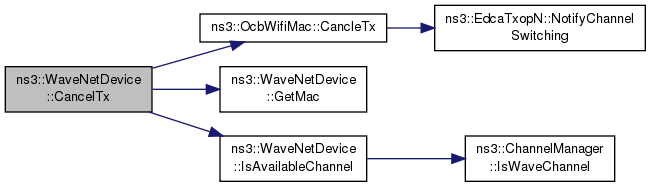

void	CancelTx (uint32_t channelNumber, enum AcIndex ac)

void	ChangeAddress (Address newAddress)

bool	DeleteTxProfile (uint32_t channelNumber)

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

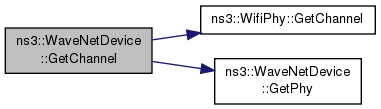

virtual Ptr< Channel >	GetChannel (void) const

Ptr< ChannelCoordinator >	GetChannelCoordinator (void) const

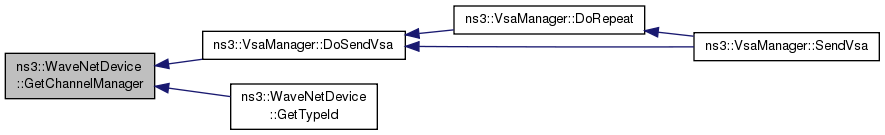

Ptr< ChannelManager >	GetChannelManager (void) const

Ptr< ChannelScheduler >	GetChannelScheduler (void) const

virtual uint32_t	GetIfIndex (void) const

Ptr< OcbWifiMac >	GetMac (uint32_t channelNumber) const

std::map< uint32_t, Ptr< OcbWifiMac > >	GetMacs (void) const

virtual uint16_t	GetMtu (void) const

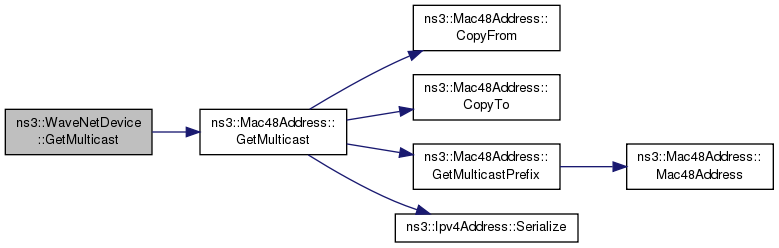

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

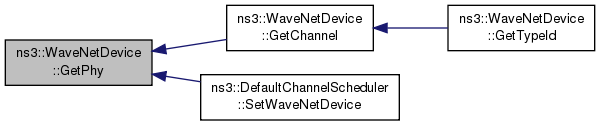

Ptr< WifiPhy >	GetPhy (uint32_t index) const

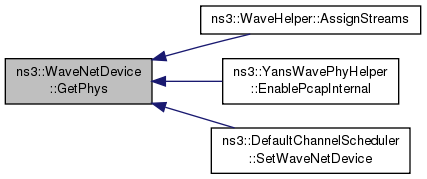

std::vector< Ptr< WifiPhy > >	GetPhys (void) const

Ptr< VsaManager >	GetVsaManager (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

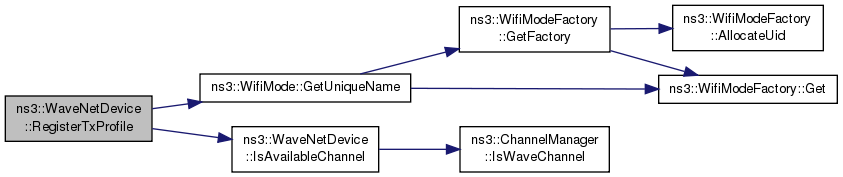

bool	RegisterTxProfile (const TxProfile &txprofile)

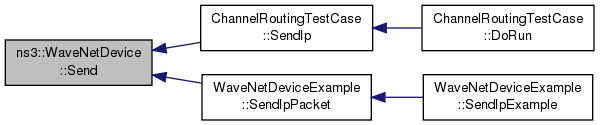

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

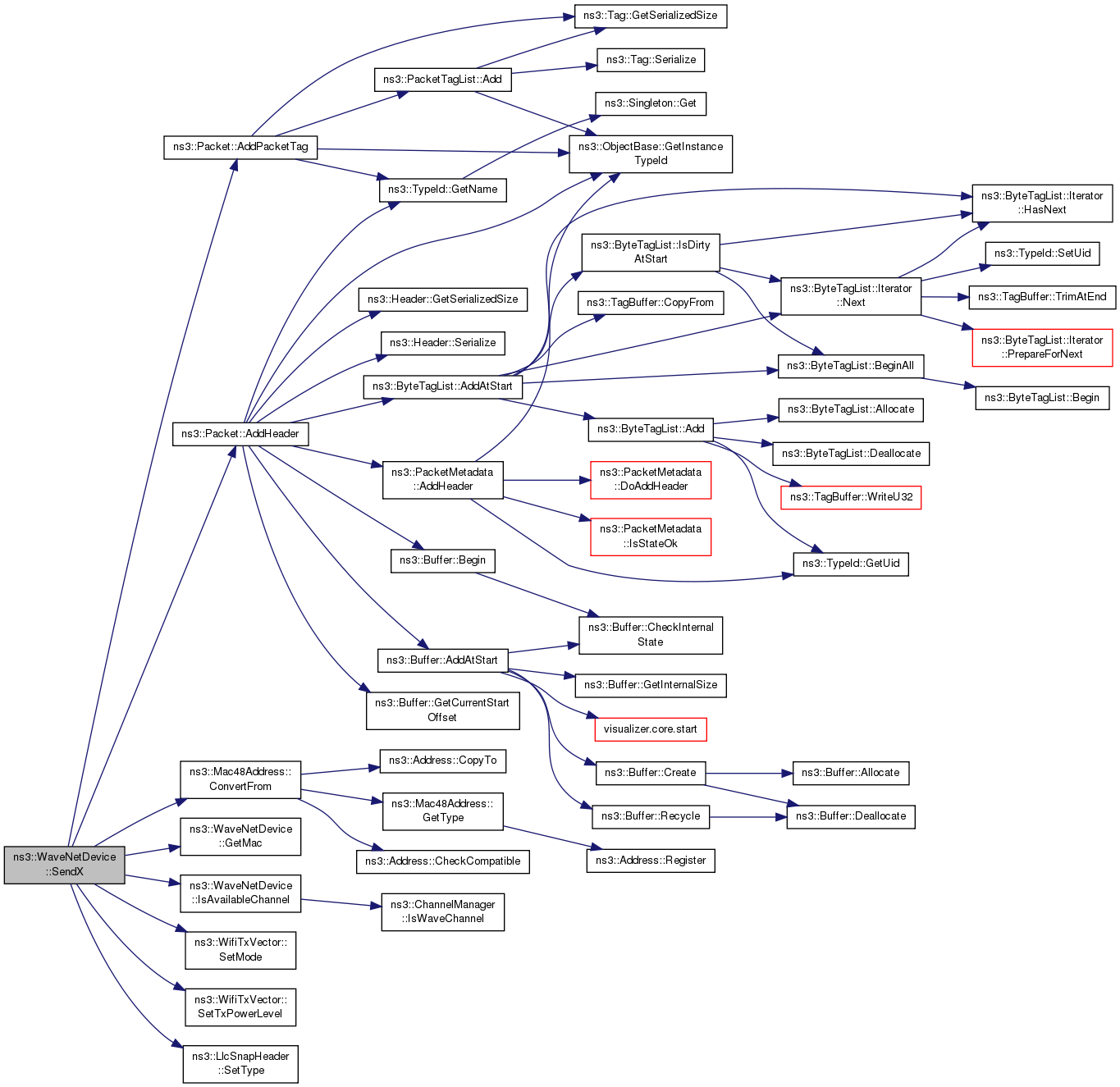

bool	SendX (Ptr< Packet > packet, const Address &dest, uint32_t protocol, const TxInfo &txInfo)

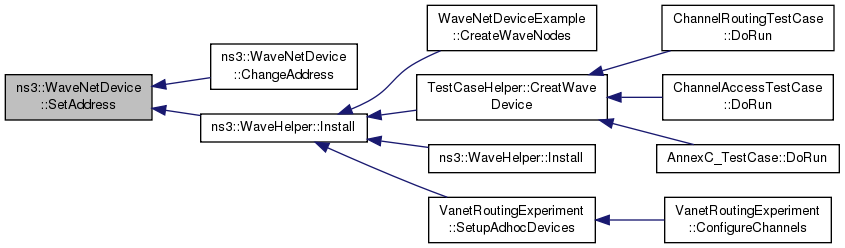

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

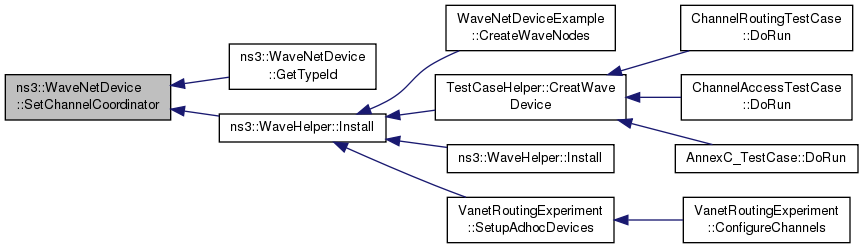

void	SetChannelCoordinator (Ptr< ChannelCoordinator > channelCoordinator)

void	SetChannelManager (Ptr< ChannelManager > channelManager)

void	SetChannelScheduler (Ptr< ChannelScheduler > channelScheduler)

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

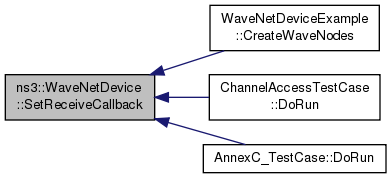

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

void	SetVsaManager (Ptr< VsaManager > vsaManager)

void	SetWaveVsaCallback (WaveVsaCallback vsaCallback)

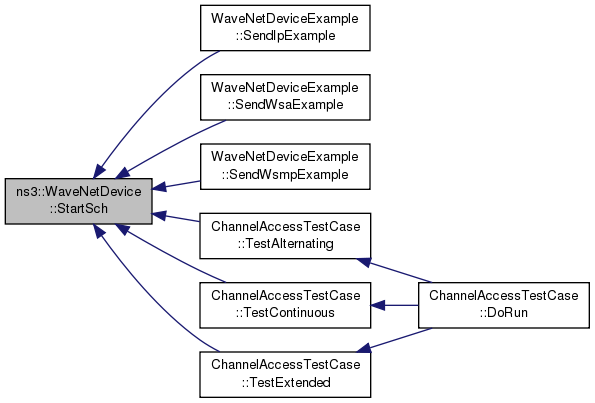

bool	StartSch (const SchInfo &schInfo)

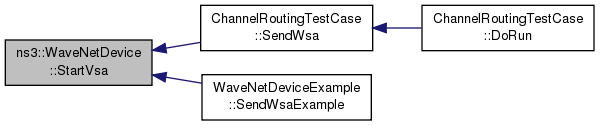

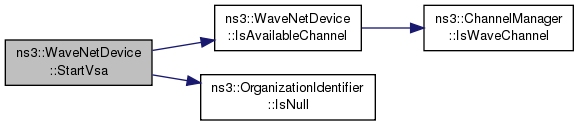

bool	StartVsa (const VsaInfo &vsaInfo)

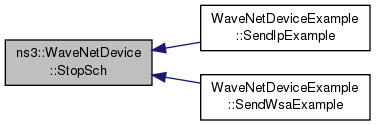

bool	StopSch (uint32_t channelNumber)

bool	StopVsa (uint32_t channelNumber)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

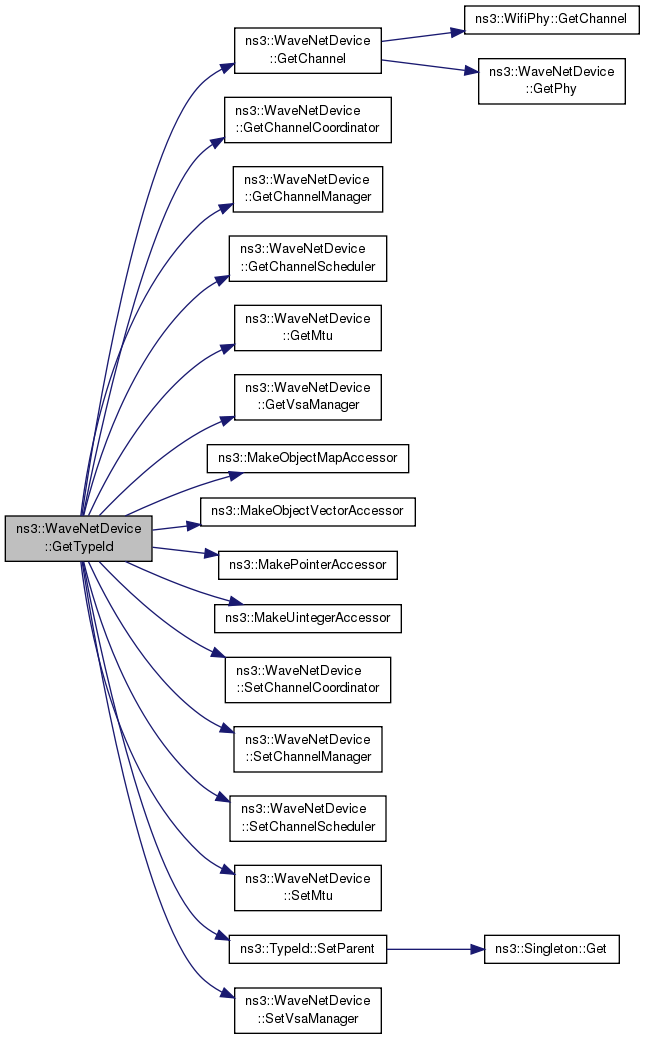

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::map< uint32_t, Ptr< OcbWifiMac > >	MacEntities

typedef std::map< uint32_t, Ptr< OcbWifiMac > >::const_iterator	MacEntitiesI

typedef std::vector< Ptr< WifiPhy > >	PhyEntities

typedef std::vector< Ptr< WifiPhy > >::const_iterator	PhyEntitiesI

Private Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

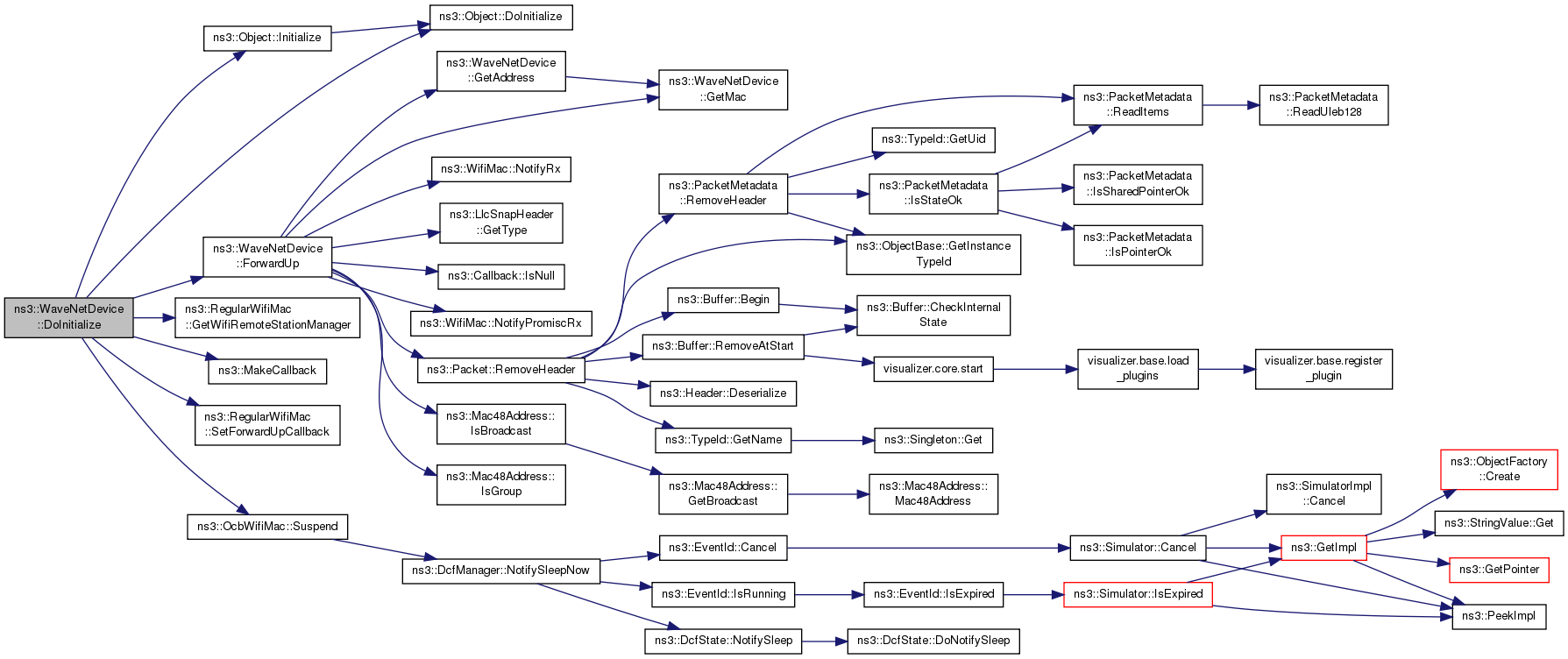

virtual void	DoInitialize (void)
	Initialize() implementation. More...

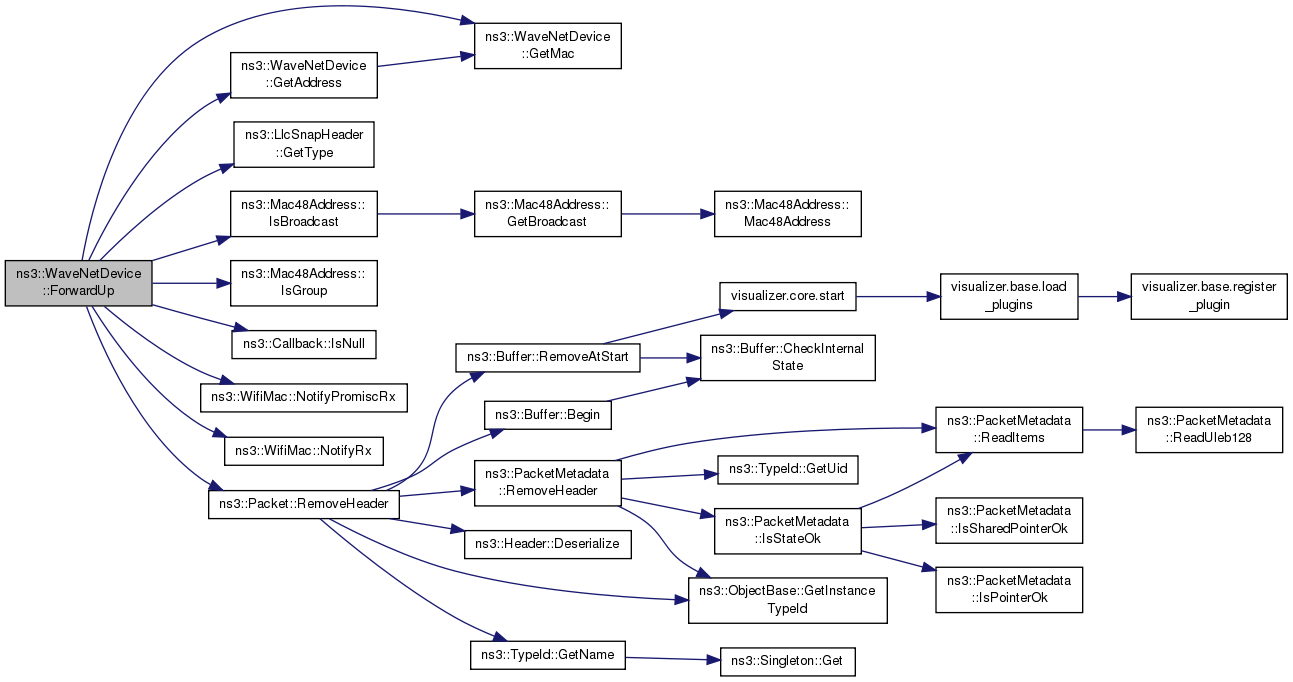

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Receive a packet from the lower layer and pass the packet up the stack. More...

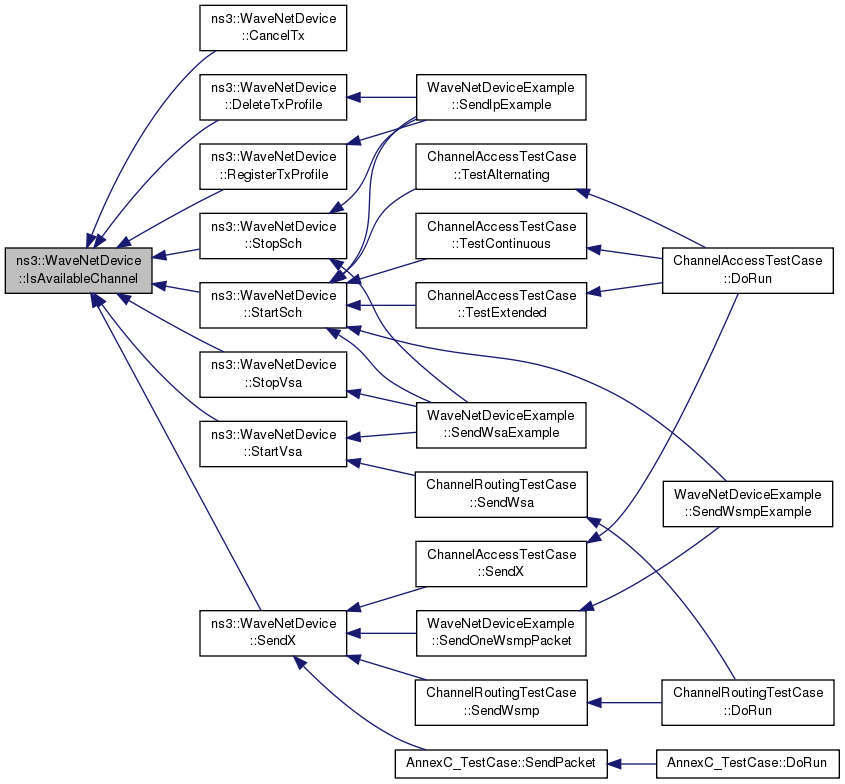

bool	IsAvailableChannel (uint32_t channelNumber) const

Private Attributes
TracedCallback< Address, Address >	m_addressChange

Ptr< ChannelCoordinator >	m_channelCoordinator

Ptr< ChannelManager >	m_channelManager

Ptr< ChannelScheduler >	m_channelScheduler

NetDevice::ReceiveCallback	m_forwardUp

uint32_t	m_ifIndex

MacEntities	m_macEntities

uint16_t	m_mtu

Ptr< Node >	m_node

PhyEntities	m_phyEntities

NetDevice::PromiscReceiveCallback	m_promiscRx

TxProfile *	m_txProfile

Ptr< VsaManager >	m_vsaManager

Static Private Attributes
static const uint16_t	IPv4_PROT_NUMBER = 0x0800

static const uint16_t	IPv6_PROT_NUMBER = 0x86DD

static const uint16_t	MAX_MSDU_SIZE = 2304

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class holds together multiple, ns3::WifiPhy, and ns3::OcbWifiMac (including ns3::WifiRemoteStationManager).

Besides that, to support multiple channel operation this class also holds ns3::ChannelScheduler, ns3::ChannelManager, ns3::ChannelCoordinator and ns3::VsaManager.

these primitives specified in the standard will not be implemented because of limited use in simulation: void StartTimingAdvertisement (); void StopTimingAdvertisement (); UtcTime GetUtcTime (); void SetUtcTime ();

Config Paths

ns3::WaveNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice"

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:2296
- Initial value: 2296
- Flags: construct write read
Channel: The channel attached to this device
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WifiChannel>
- Flags: read
PhyEntities: The PHY entities attached to this device.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::WifiPhy>
- Flags: read
MacEntities: The MAC layer attached to this device.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::OcbWifiMac>
- Flags: read
ChannelScheduler: The channel scheduler attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ChannelScheduler>
- Initial value: 0
- Flags: construct write read
ChannelManager: The channel manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ChannelManager>
- Initial value: 0
- Flags: construct write read
ChannelCoordinator: The channel coordinator attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ChannelCoordinator>
- Initial value: 0
- Flags: construct write read
VsaManager: The VSA manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::VsaManager>
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 192 bytes (on a 64-bit architecture).

Definition at line 128 of file wave-net-device.h.

Member Typedef Documentation

typedef std::map<uint32_t, Ptr<OcbWifiMac> > ns3::WaveNetDevice::MacEntities

private

Definition at line 343 of file wave-net-device.h.

typedef std::map<uint32_t, Ptr<OcbWifiMac> >::const_iterator ns3::WaveNetDevice::MacEntitiesI

private

Definition at line 344 of file wave-net-device.h.

typedef std::vector<Ptr<WifiPhy> > ns3::WaveNetDevice::PhyEntities

private

Definition at line 346 of file wave-net-device.h.

typedef std::vector<Ptr<WifiPhy> >::const_iterator ns3::WaveNetDevice::PhyEntitiesI

private

Definition at line 347 of file wave-net-device.h.

typedef Callback<bool, Ptr<const Packet>,const Address &, uint32_t, uint32_t> ns3::WaveNetDevice::WaveVsaCallback

Parameters

packet	the packet is Vendor Specific Action frame.
address	the address of the MAC from which the management frame was received.
managementID	identify the originator of the data. Values are specified in IEEE P1609.0 with range 0-15.
channelNumber	the channel on which the frame was received.

Returns: true if the callback could handle the packet successfully, false otherwise.

Definition at line 227 of file wave-net-device.h.

Constructor & Destructor Documentation

ns3::WaveNetDevice::WaveNetDevice ( void )

Definition at line 86 of file wave-net-device.cc.

References NS_LOG_FUNCTION.

ns3::WaveNetDevice::~WaveNetDevice ( void )

virtual

Definition at line 92 of file wave-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::WaveNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 555 of file wave-net-device.cc.

References NS_LOG_WARN.

void ns3::WaveNetDevice::AddMac	(	uint32_t	channelNumber,
		Ptr< OcbWifiMac >	mac
	)

Parameters

channelNumber	the specific channel
mac	add a new available MAC entity for specific channel

Definition at line 176 of file wave-net-device.cc.

References ns3::ChannelManager::IsWaveChannel(), m_macEntities, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::WaveHelper::Install().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveNetDevice::AddPhy ( Ptr< WifiPhy > phy )

Parameters

phy	add a new available PHY entity

Definition at line 209 of file wave-net-device.cc.

References m_phyEntities, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::WaveHelper::Install().

Here is the caller graph for this function:

void ns3::WaveNetDevice::CancelTx	(	uint32_t	channelNumber,
		enum AcIndex	ac
	)

Parameters

channelNumber	the specific channel number
ac	the specific access category

Cancel all transmissions with the particular category and channel number.

Definition at line 451 of file wave-net-device.cc.

References ns3::OcbWifiMac::CancleTx(), GetMac(), and IsAvailableChannel().

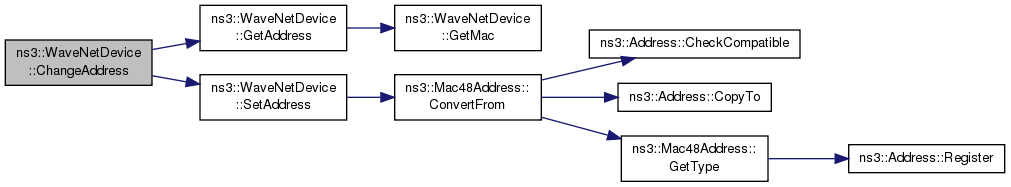

Here is the call graph for this function:

void ns3::WaveNetDevice::ChangeAddress ( Address newAddress )

Parameters

newAddress an immediate MAC-layer address change is required

This method is similar with SetAddress method, but SetAddress is suggested for initializing a device, while this method is preferred for changing address and a addressChange TracedCallback will be called.

Definition at line 432 of file wave-net-device.cc.

References GetAddress(), m_addressChange, m_macEntities, NS_LOG_FUNCTION, and SetAddress().

Here is the call graph for this function:

bool ns3::WaveNetDevice::DeleteTxProfile ( uint32_t channelNumber )

Parameters

channelNumber the specific channel number delete a registered transmitter profile in the MLME after the associated IP-based data transfer is complete

Returns: whether the tx profile is unregistered successfully

Definition at line 349 of file wave-net-device.cc.

References ns3::TxProfile::channelNumber, IsAvailableChannel(), m_txProfile, and NS_LOG_FUNCTION.

Referenced by WaveNetDeviceExample::SendIpExample().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveNetDevice::DoDispose ( void )

privatevirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 98 of file wave-net-device.cc.

References ns3::Object::Dispose(), ns3::Object::DoDispose(), ns3::RegularWifiMac::GetWifiRemoteStationManager(), m_channelCoordinator, m_channelManager, m_channelScheduler, m_macEntities, m_phyEntities, m_txProfile, m_vsaManager, and NS_LOG_FUNCTION.

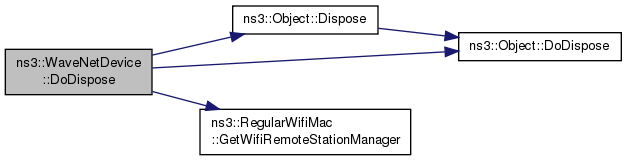

Here is the call graph for this function:

void ns3::WaveNetDevice::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 133 of file wave-net-device.cc.

References ns3::Object::DoInitialize(), ForwardUp(), ns3::RegularWifiMac::GetWifiRemoteStationManager(), ns3::Object::Initialize(), m_channelCoordinator, m_channelManager, m_channelScheduler, m_macEntities, m_phyEntities, m_vsaManager, ns3::MakeCallback(), NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::RegularWifiMac::SetForwardUpCallback(), and ns3::OcbWifiMac::Suspend().

Here is the call graph for this function:

void ns3::WaveNetDevice::ForwardUp	(	Ptr< Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

private

Receive a packet from the lower layer and pass the packet up the stack.

Parameters

packet
from
to

Definition at line 675 of file wave-net-device.cc.

References CCH, GetAddress(), GetMac(), ns3::LlcSnapHeader::GetType(), ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_forwardUp, m_promiscRx, ns3::WifiMac::NotifyPromiscRx(), ns3::WifiMac::NotifyRx(), NS_LOG_FUNCTION, ns3::NetDevice::PACKET_BROADCAST, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, ns3::NetDevice::PACKET_OTHERHOST, and ns3::Packet::RemoveHeader().

Referenced by DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::WaveNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 527 of file wave-net-device.cc.

References CCH, and GetMac().

Referenced by ChangeAddress(), ForwardUp(), and AnnexC_TestCase::SendPacket().

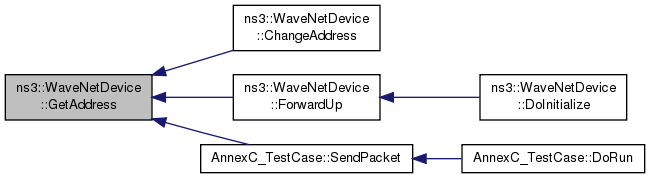

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::WaveNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 565 of file wave-net-device.cc.

References ns3::Mac48Address::GetBroadcast().

Here is the call graph for this function:

Ptr< Channel > ns3::WaveNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 513 of file wave-net-device.cc.

References ns3::WifiPhy::GetChannel(), GetPhy(), m_phyEntities, and NS_ASSERT.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< ChannelCoordinator > ns3::WaveNetDevice::GetChannelCoordinator ( void ) const

Returns: current channel coordinator for multiple channel operation

Definition at line 487 of file wave-net-device.cc.

References m_channelCoordinator.

Referenced by ns3::VsaManager::DoSendVsa(), GetTypeId(), ns3::DefaultChannelScheduler::SetWaveNetDevice(), and ns3::WaveMacLow::SetWaveNetDevice().

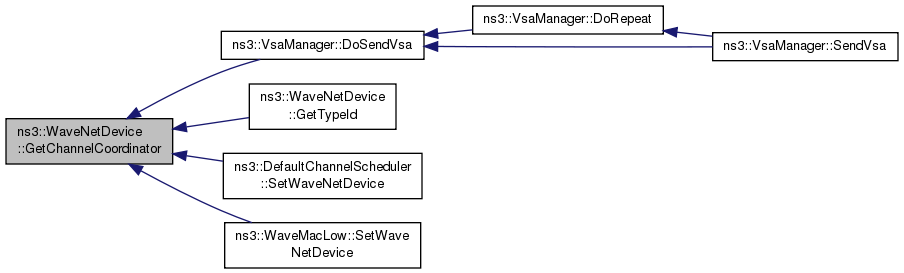

Here is the caller graph for this function:

Ptr< ChannelManager > ns3::WaveNetDevice::GetChannelManager ( void ) const

Returns: currentc channel manager for multiple channel operation

Definition at line 467 of file wave-net-device.cc.

References m_channelManager.

Referenced by ns3::VsaManager::DoSendVsa(), and GetTypeId().

Here is the caller graph for this function:

Ptr< ChannelScheduler > ns3::WaveNetDevice::GetChannelScheduler ( void ) const

Returns: current channel scheduler for multiple channel operation

Definition at line 477 of file wave-net-device.cc.

References m_channelScheduler.

Referenced by ns3::VsaManager::DoSendVsa(), GetTypeId(), ns3::WaveMacLow::SetWaveNetDevice(), ChannelAccessTestCase::TestAlternatingAfter(), ChannelAccessTestCase::TestContinuousAfter(), and ChannelAccessTestCase::TestExtendedAfter().

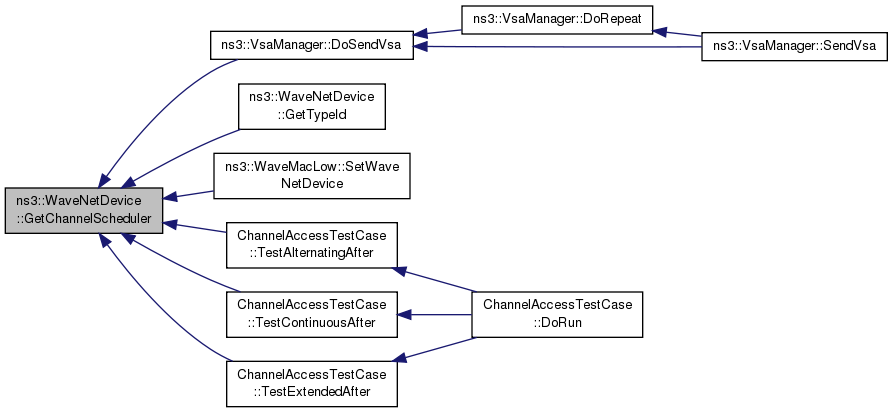

Here is the caller graph for this function:

uint32_t ns3::WaveNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 508 of file wave-net-device.cc.

References m_ifIndex.

Ptr< OcbWifiMac > ns3::WaveNetDevice::GetMac ( uint32_t channelNumber ) const

Parameters

channelNumber the specific channel number

Returns: corresponding MAC entity

Definition at line 190 of file wave-net-device.cc.

References m_macEntities, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), CancelTx(), ns3::VsaManager::DoSendVsa(), ForwardUp(), GetAddress(), ns3::DefaultChannelScheduler::NotifyGuardSlotStart(), Send(), SendX(), ns3::ChannelScheduler::StartSch(), SupportsSendFrom(), and ns3::DefaultChannelScheduler::SwitchToNextChannel().

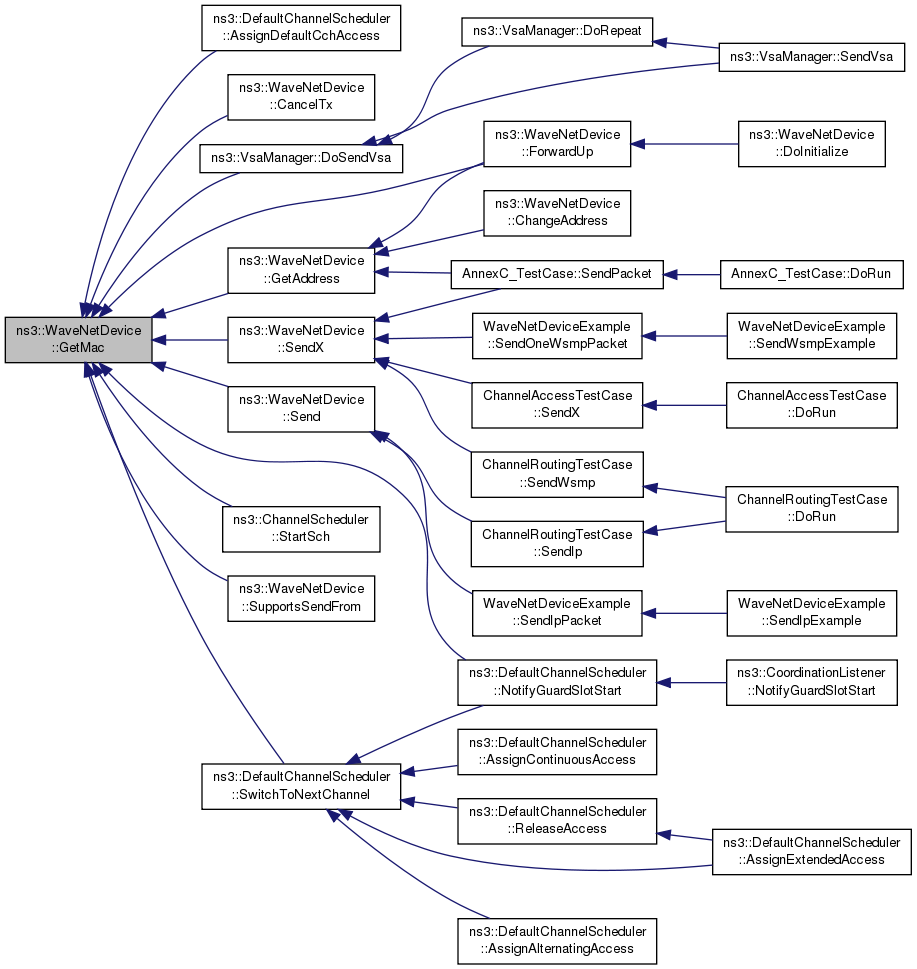

Here is the caller graph for this function:

std::map< uint32_t, Ptr< OcbWifiMac > > ns3::WaveNetDevice::GetMacs ( void ) const

Returns: all inserted MAC entities.

Definition at line 202 of file wave-net-device.cc.

References m_macEntities, and NS_LOG_FUNCTION.

Referenced by ns3::WaveHelper::AssignStreams(), and ns3::VsaManager::DoInitialize().

Here is the caller graph for this function:

uint16_t ns3::WaveNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 542 of file wave-net-device.cc.

References m_mtu.

Referenced by GetTypeId().

Here is the caller graph for this function:

Address ns3::WaveNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 575 of file wave-net-device.cc.

References ns3::Mac48Address::GetMulticast().

Here is the call graph for this function:

Address ns3::WaveNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 579 of file wave-net-device.cc.

References ns3::Mac48Address::GetMulticast().

Here is the call graph for this function:

Ptr< Node > ns3::WaveNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 635 of file wave-net-device.cc.

References m_node.

Ptr< WifiPhy > ns3::WaveNetDevice::GetPhy ( uint32_t index ) const

Parameters

index the index of PHY entity

Returns: corresponding PHY entity

Definition at line 219 of file wave-net-device.cc.

References m_phyEntities, and NS_LOG_FUNCTION.

Referenced by GetChannel(), and ns3::DefaultChannelScheduler::SetWaveNetDevice().

Here is the caller graph for this function:

std::vector< Ptr< WifiPhy > > ns3::WaveNetDevice::GetPhys ( void ) const

Returns: all inserted PHY entities.

Definition at line 226 of file wave-net-device.cc.

References m_phyEntities, and NS_LOG_FUNCTION.

Referenced by ns3::WaveHelper::AssignStreams(), ns3::YansWavePhyHelper::EnablePcapInternal(), and ns3::DefaultChannelScheduler::SetWaveNetDevice().

Here is the caller graph for this function:

TypeId ns3::WaveNetDevice::GetTypeId ( void )

static

Definition at line 40 of file wave-net-device.cc.

References GetChannel(), GetChannelCoordinator(), GetChannelManager(), GetChannelScheduler(), GetMtu(), GetVsaManager(), ns3::LLC_SNAP_HEADER_LENGTH, m_macEntities, m_phyEntities, ns3::MakeObjectMapAccessor(), ns3::MakeObjectVectorAccessor(), ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), MAX_MSDU_SIZE, SetChannelCoordinator(), SetChannelManager(), SetChannelScheduler(), SetMtu(), ns3::TypeId::SetParent(), and SetVsaManager().

Here is the call graph for this function:

Ptr< VsaManager > ns3::WaveNetDevice::GetVsaManager ( void ) const

Returns: current VSA manager for multiple channel operation

Definition at line 497 of file wave-net-device.cc.

References m_vsaManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::WaveNetDevice::IsAvailableChannel ( uint32_t channelNumber ) const

private

Parameters

channelNumber the specific channel

Returns: whether this channel is valid and available for use

Definition at line 659 of file wave-net-device.cc.

References ns3::ChannelManager::IsWaveChannel(), m_macEntities, and NS_LOG_DEBUG.

Referenced by CancelTx(), DeleteTxProfile(), RegisterTxProfile(), SendX(), StartSch(), StartVsa(), StopSch(), and StopVsa().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 589 of file wave-net-device.cc.

bool ns3::WaveNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 560 of file wave-net-device.cc.

bool ns3::WaveNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 547 of file wave-net-device.cc.

bool ns3::WaveNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 570 of file wave-net-device.cc.

bool ns3::WaveNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 584 of file wave-net-device.cc.

bool ns3::WaveNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 645 of file wave-net-device.cc.

bool ns3::WaveNetDevice::RegisterTxProfile ( const TxProfile & txprofile )

Parameters

txprofile transmit profile for IP-based data register a transmitter profile in the MLME before the associated IP-based data transfer starts.

Returns: whether the tx profile is registered successfully

note: This method should be called before WaveNetDevice::Send method

Definition at line 304 of file wave-net-device.cc.

References CCH, ns3::TxProfile::channelNumber, ns3::TxProfile::dataRate, ns3::WifiMode::GetUniqueName(), IsAvailableChannel(), m_phyEntities, m_txProfile, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::TxProfile::txPowerLevel.

Referenced by WaveNetDeviceExample::SendIpExample().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Returns: whether the Send operation succeeded

Normally this method is called by 1609.3 standard to send IP-based packets, however high layers can also send packets in other types except IP-based packets in CCH.

Implements ns3::NetDevice.

Definition at line 595 of file wave-net-device.cc.

References ns3::TxProfile::adaptable, ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::TxProfile::channelNumber, ns3::Mac48Address::ConvertFrom(), ns3::TxProfile::dataRate, GetMac(), m_channelScheduler, m_txProfile, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetTxPowerLevel(), ns3::LlcSnapHeader::SetType(), and ns3::TxProfile::txPowerLevel.

Referenced by ChannelRoutingTestCase::SendIp(), and WaveNetDeviceExample::SendIpPacket().

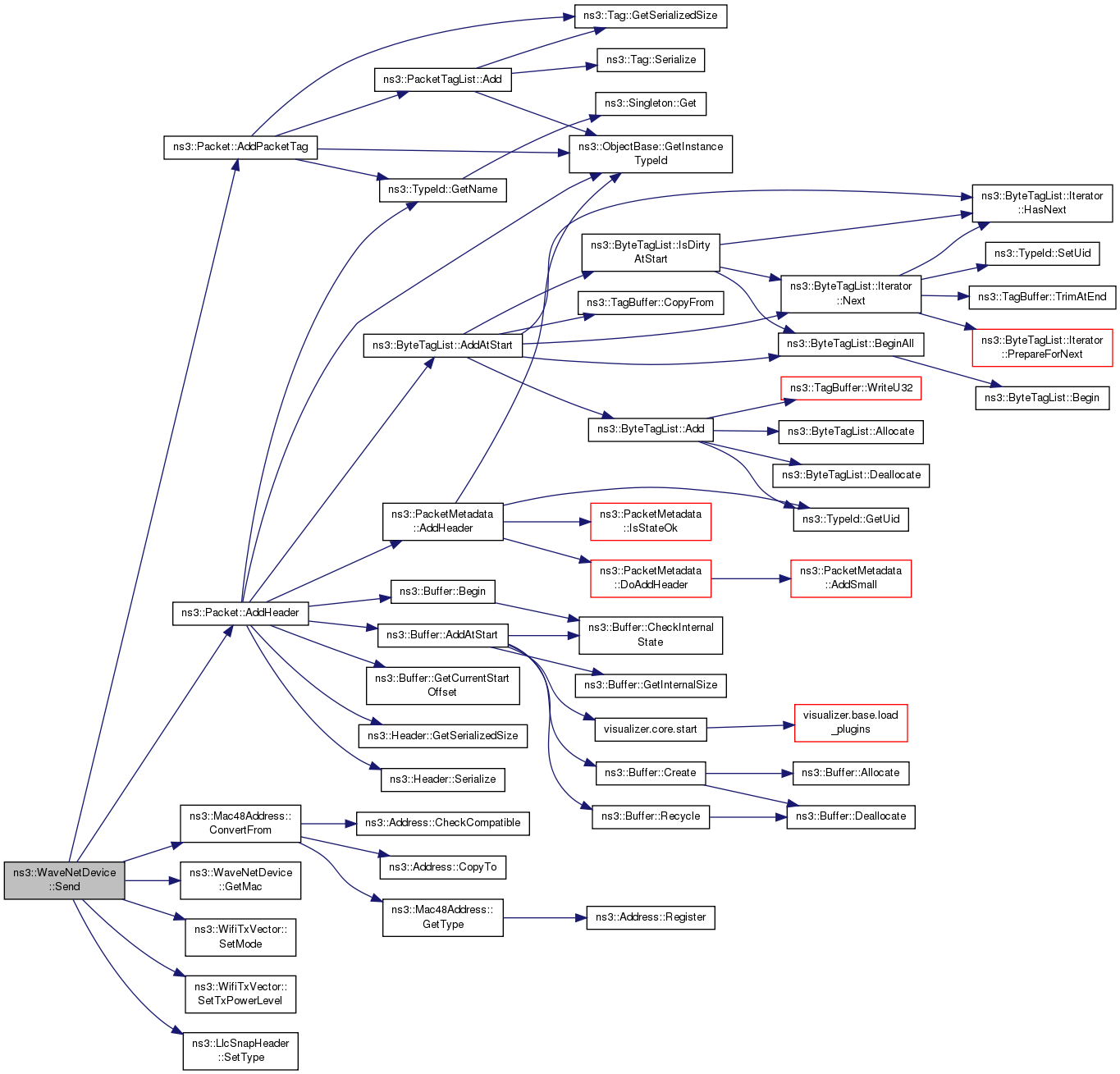

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 718 of file wave-net-device.cc.

References NS_LOG_FUNCTION.

bool ns3::WaveNetDevice::SendX	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint32_t	protocol,
		const TxInfo &	txInfo
	)

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocol	identifies the type of payload contained in the packet. Used to call the right L3Protocol when the packet is received.
txInfo	WSMP or other packets parameters for sending

Returns: whether the SendX operation succeeded

Normally this method is called by 1609.3 standard to send WSMP packets, however high layers can also send packets in other types except IP-based packets in CCH.

Definition at line 371 of file wave-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), CCH, ns3::TxInfo::channelNumber, ns3::Mac48Address::ConvertFrom(), ns3::TxInfo::dataRate, GetMac(), IPv4_PROT_NUMBER, IPv6_PROT_NUMBER, IsAvailableChannel(), m_channelScheduler, m_phyEntities, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::TxInfo::priority, ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetTxPowerLevel(), ns3::LlcSnapHeader::SetType(), and ns3::TxInfo::txPowerLevel.

Referenced by WaveNetDeviceExample::SendOneWsmpPacket(), AnnexC_TestCase::SendPacket(), ChannelRoutingTestCase::SendWsmp(), and ChannelAccessTestCase::SendX().

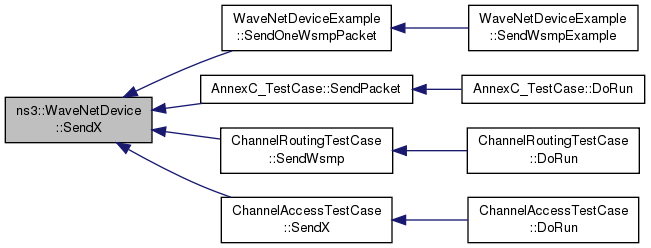

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 519 of file wave-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), and m_macEntities.

Referenced by ChangeAddress(), and ns3::WaveHelper::Install().

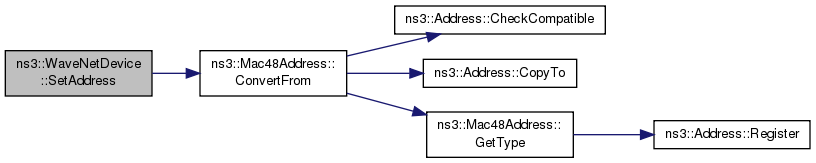

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetChannelCoordinator ( Ptr< ChannelCoordinator > channelCoordinator )

Parameters

channelCoordinator the channel coordinator for multiple channel operation

Definition at line 482 of file wave-net-device.cc.

References m_channelCoordinator.

Referenced by GetTypeId(), and ns3::WaveHelper::Install().

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetChannelManager ( Ptr< ChannelManager > channelManager )

Parameters

channelManager the channel manager for multiple channel operation

Definition at line 462 of file wave-net-device.cc.

References m_channelManager.

Referenced by GetTypeId(), and ns3::WaveHelper::Install().

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetChannelScheduler ( Ptr< ChannelScheduler > channelScheduler )

Parameters

channelScheduler the channel scheduler for multiple channel operation

Definition at line 472 of file wave-net-device.cc.

References m_channelScheduler.

Referenced by GetTypeId(), and ns3::WaveHelper::Install().

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 503 of file wave-net-device.cc.

References m_ifIndex.

bool ns3::WaveNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 532 of file wave-net-device.cc.

References ns3::LLC_SNAP_HEADER_LENGTH, m_mtu, and MAX_MSDU_SIZE.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 640 of file wave-net-device.cc.

References m_node.

void ns3::WaveNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 725 of file wave-net-device.cc.

References m_macEntities, and m_promiscRx.

void ns3::WaveNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 653 of file wave-net-device.cc.

References m_forwardUp.

Referenced by WaveNetDeviceExample::CreateWaveNodes(), ChannelAccessTestCase::DoRun(), and AnnexC_TestCase::DoRun().

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetVsaManager ( Ptr< VsaManager > vsaManager )

Parameters

vsaManager the VSA manager for multiple channel operation

Definition at line 492 of file wave-net-device.cc.

References m_vsaManager.

Referenced by GetTypeId(), and ns3::WaveHelper::Install().

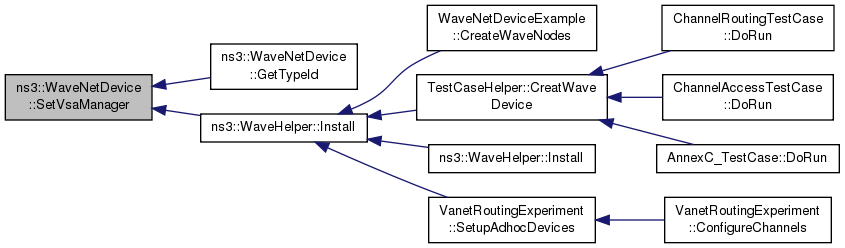

Here is the caller graph for this function:

void ns3::WaveNetDevice::SetWaveVsaCallback ( WaveVsaCallback vsaCallback )

Parameters

vsaCallback the VSA receive callback for 1609 management information

Definition at line 275 of file wave-net-device.cc.

References m_vsaManager, and NS_LOG_FUNCTION.

Referenced by WaveNetDeviceExample::CreateWaveNodes().

Here is the caller graph for this function:

bool ns3::WaveNetDevice::StartSch ( const SchInfo & schInfo )

Parameters

sch_info the parameters about how to start SCH service

Returns: whether channel access is assigned successfully

Definition at line 282 of file wave-net-device.cc.

References ns3::SchInfo::channelNumber, IsAvailableChannel(), m_channelScheduler, and NS_LOG_FUNCTION.

Referenced by WaveNetDeviceExample::SendIpExample(), WaveNetDeviceExample::SendWsaExample(), WaveNetDeviceExample::SendWsmpExample(), ChannelAccessTestCase::TestAlternating(), ChannelAccessTestCase::TestContinuous(), and ChannelAccessTestCase::TestExtended().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::StartVsa ( const VsaInfo & vsaInfo )

Parameters

vsa_info the parameters about how to send VSA frame

Returns: whether the request for VSA transmission is completed

Definition at line 233 of file wave-net-device.cc.

References ns3::VsaInfo::channelNumber, IsAvailableChannel(), ns3::OrganizationIdentifier::IsNull(), m_channelScheduler, m_vsaManager, ns3::VsaInfo::managementId, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::VsaInfo::oi, and ns3::VsaInfo::vsc.

Referenced by ChannelRoutingTestCase::SendWsa(), and WaveNetDeviceExample::SendWsaExample().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::StopSch ( uint32_t channelNumber )

Parameters

channelNumber the channel which access resource will be released.

Returns: whether channel access is released successfully

Definition at line 293 of file wave-net-device.cc.

References IsAvailableChannel(), m_channelScheduler, and NS_LOG_FUNCTION.

Referenced by WaveNetDeviceExample::SendIpExample(), and WaveNetDeviceExample::SendWsaExample().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::StopVsa ( uint32_t channelNumber )

Parameters

channelNumber the channel on which VSA transmit event will be canceled.

Returns: whether the request for stopping VSA transmission is completed

Definition at line 263 of file wave-net-device.cc.

References IsAvailableChannel(), m_vsaManager, and NS_LOG_FUNCTION.

Referenced by WaveNetDeviceExample::SendWsaExample().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WaveNetDevice::SupportsSendFrom ( void ) const

virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 735 of file wave-net-device.cc.

References CCH, and GetMac().

Here is the call graph for this function:

Member Data Documentation

const uint16_t ns3::WaveNetDevice::IPv4_PROT_NUMBER = 0x0800

staticprivate

Definition at line 323 of file wave-net-device.h.

Referenced by SendX().

const uint16_t ns3::WaveNetDevice::IPv6_PROT_NUMBER = 0x86DD

staticprivate

Definition at line 324 of file wave-net-device.h.

Referenced by SendX().

TracedCallback<Address, Address> ns3::WaveNetDevice::m_addressChange

private

Definition at line 355 of file wave-net-device.h.

Referenced by ChangeAddress().

Ptr<ChannelCoordinator> ns3::WaveNetDevice::m_channelCoordinator

private

Definition at line 352 of file wave-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetChannelCoordinator(), and SetChannelCoordinator().

Ptr<ChannelManager> ns3::WaveNetDevice::m_channelManager

private

Definition at line 350 of file wave-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetChannelManager(), and SetChannelManager().

Ptr<ChannelScheduler> ns3::WaveNetDevice::m_channelScheduler

private

Definition at line 351 of file wave-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetChannelScheduler(), Send(), SendX(), SetChannelScheduler(), StartSch(), StartVsa(), and StopSch().

NetDevice::ReceiveCallback ns3::WaveNetDevice::m_forwardUp

private

Definition at line 359 of file wave-net-device.h.

Referenced by ForwardUp(), and SetReceiveCallback().

uint32_t ns3::WaveNetDevice::m_ifIndex

private

Definition at line 361 of file wave-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

MacEntities ns3::WaveNetDevice::m_macEntities

private

Definition at line 345 of file wave-net-device.h.

Referenced by AddMac(), ChangeAddress(), DoDispose(), DoInitialize(), GetMac(), GetMacs(), GetTypeId(), IsAvailableChannel(), SetAddress(), and SetPromiscReceiveCallback().

uint16_t ns3::WaveNetDevice::m_mtu

mutableprivate

Definition at line 362 of file wave-net-device.h.

Referenced by GetMtu(), and SetMtu().

Ptr<Node> ns3::WaveNetDevice::m_node

private

Definition at line 358 of file wave-net-device.h.

Referenced by GetNode(), and SetNode().

PhyEntities ns3::WaveNetDevice::m_phyEntities

private

Definition at line 348 of file wave-net-device.h.

Referenced by AddPhy(), DoDispose(), DoInitialize(), GetChannel(), GetPhy(), GetPhys(), GetTypeId(), RegisterTxProfile(), and SendX().

NetDevice::PromiscReceiveCallback ns3::WaveNetDevice::m_promiscRx

private

Definition at line 360 of file wave-net-device.h.

Referenced by ForwardUp(), and SetPromiscReceiveCallback().

TxProfile* ns3::WaveNetDevice::m_txProfile

private

Definition at line 354 of file wave-net-device.h.

Referenced by DeleteTxProfile(), DoDispose(), RegisterTxProfile(), and Send().

Ptr<VsaManager> ns3::WaveNetDevice::m_vsaManager

private

Definition at line 353 of file wave-net-device.h.

Referenced by DoDispose(), DoInitialize(), GetVsaManager(), SetVsaManager(), SetWaveVsaCallback(), StartVsa(), and StopVsa().

const uint16_t ns3::WaveNetDevice::MAX_MSDU_SIZE = 2304

staticprivate

Definition at line 321 of file wave-net-device.h.

Referenced by GetTypeId(), and SetMtu().

The documentation for this class was generated from the following files:

src/wave/model/wave-net-device.h
src/wave/model/wave-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
