#include <map>
#include <vector>
#include "ns3/object.h"
#include "ns3/wifi-mode.h"

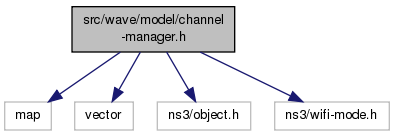

Include dependency graph for channel-manager.h:

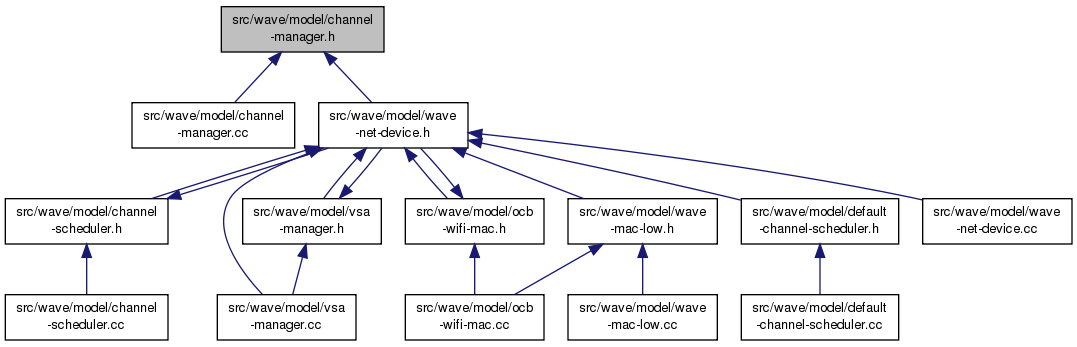

This graph shows which files directly or indirectly include this file:

Classes
class	ns3::ChannelManager
	manage 7 WaveChannels and the tx information such as data rate and txPowerLevel. More...

struct	ns3::ChannelManager::WaveChannel

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Macros
#define	CCH 178

#define	CH172 172
	WAVE channels channel number \| 172 \| 174 \| 176 \| 178 \| 180 \| 182 \| 184 \| channel bandwidth 10MHz 10MHz 10MHz 10MHz 10MHz 10MHz 10MHz channel name SCH1 SCH2 SCH3 CCH SCH4 SCH5 SCH6 another name CH172 CH174 CH176 CH178 CH180 CH182 CH184. More...

#define	CH174 174

#define	CH176 176

#define	CH178 178

#define	CH180 180

#define	CH182 182

#define	CH184 184

#define	SCH1 172

#define	SCH2 174

#define	SCH3 176

#define	SCH4 180

#define	SCH5 182

#define	SCH6 184

Macro Definition Documentation

#define CCH 178

Definition at line 49 of file channel-manager.h.

Referenced by ns3::DefaultChannelScheduler::AssignAlternatingAccess(), ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), ns3::ChannelManager::ChannelManager(), ChannelRoutingTestCase::DoRun(), ChannelAccessTestCase::DoRun(), AnnexC_TestCase::DoRun(), ns3::WaveNetDevice::ForwardUp(), ns3::WaveNetDevice::GetAddress(), ns3::DefaultChannelScheduler::GetAssignedAccessType(), ns3::ChannelManager::GetCch(), ns3::ChannelManager::GetWaveChannels(), ns3::ChannelManager::IsCch(), ns3::ChannelScheduler::IsCchAccessAssigned(), ns3::ChannelScheduler::IsDefaultCchAccessAssigned(), ns3::ChannelManager::IsSch(), ns3::DefaultChannelScheduler::NotifyGuardSlotStart(), ns3::WaveNetDevice::RegisterTxProfile(), ns3::DefaultChannelScheduler::ReleaseAccess(), WaveNetDeviceExample::SendWsmpExample(), ns3::WaveNetDevice::SendX(), and ns3::WaveNetDevice::SupportsSendFrom().

#define CH172 172

WAVE channels channel number | 172 | 174 | 176 | 178 | 180 | 182 | 184 | channel bandwidth 10MHz 10MHz 10MHz 10MHz 10MHz 10MHz 10MHz channel name SCH1 SCH2 SCH3 CCH SCH4 SCH5 SCH6 another name CH172 CH174 CH176 CH178 CH180 CH182 CH184.

not support channel 175 : combine channel 174 and 176 channel 181 : combine channel 180 and 182

Definition at line 38 of file channel-manager.h.

#define CH174 174

Definition at line 39 of file channel-manager.h.

#define CH176 176

Definition at line 40 of file channel-manager.h.

#define CH178 178

Definition at line 41 of file channel-manager.h.

#define CH180 180

Definition at line 42 of file channel-manager.h.

#define CH182 182

Definition at line 43 of file channel-manager.h.
