manage 7 WaveChannels and the tx information such as data rate and txPowerLevel. More...

#include <channel-manager.h>

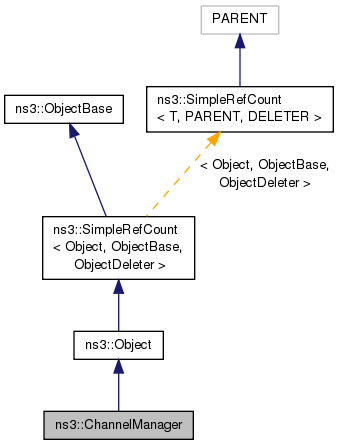

Inheritance diagram for ns3::ChannelManager:

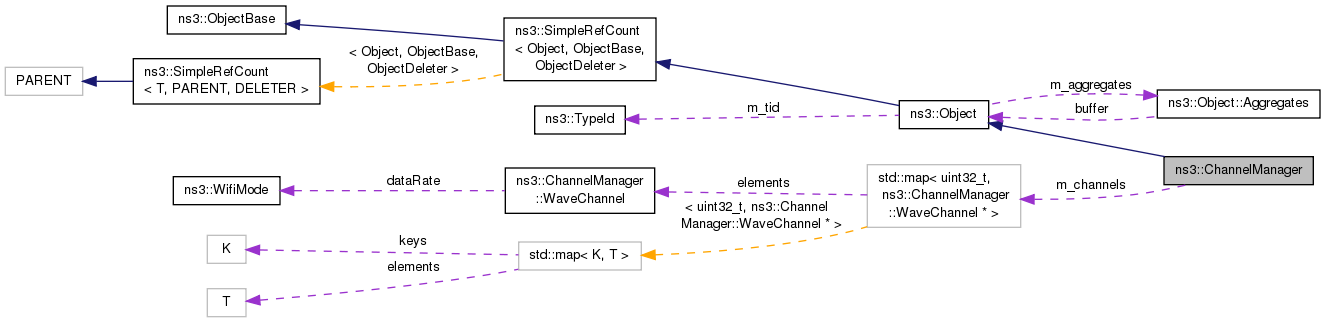

Collaboration diagram for ns3::ChannelManager:

Classes
struct	WaveChannel

Public Member Functions
	ChannelManager ()

virtual	~ChannelManager ()

bool	GetManagementAdaptable (uint32_t channelNumber)

WifiMode	GetManagementDataRate (uint32_t channelNumber)

uint32_t	GetManagementPowerLevel (uint32_t channelNumber)

uint32_t	GetOperatingClass (uint32_t channelNumber)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static uint32_t	GetCch (void)

static uint32_t	GetNumberOfWaveChannels (void)

static std::vector< uint32_t >	GetSchs (void)

static TypeId	GetTypeId (void)

static std::vector< uint32_t >	GetWaveChannels (void)

static bool	IsCch (uint32_t channelNumber)

static bool	IsSch (uint32_t channelNumber)

static bool	IsWaveChannel (uint32_t channelNumber)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::map< uint32_t, WaveChannel * >	m_channels

Static Private Attributes
static const uint32_t	DEFAULT_OPERATING_CLASS = 17

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

manage 7 WaveChannels and the tx information such as data rate and txPowerLevel.

for transmitting VSA management frames.

Config Paths

ns3::ChannelManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/ChannelManager"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 59 of file channel-manager.h.

Constructor & Destructor Documentation

ns3::ChannelManager::ChannelManager ( )

Definition at line 39 of file channel-manager.cc.

References CCH, m_channels, NS_LOG_FUNCTION, SCH1, SCH2, SCH3, SCH4, SCH5, and SCH6.

ns3::ChannelManager::~ChannelManager ( )

virtual

Definition at line 51 of file channel-manager.cc.

References m_channels, and NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::ChannelManager::GetCch ( void )

static

Returns: the channel number of WAVE CCH.

Definition at line 63 of file channel-manager.cc.

References CCH, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::WaveHelper::Install().

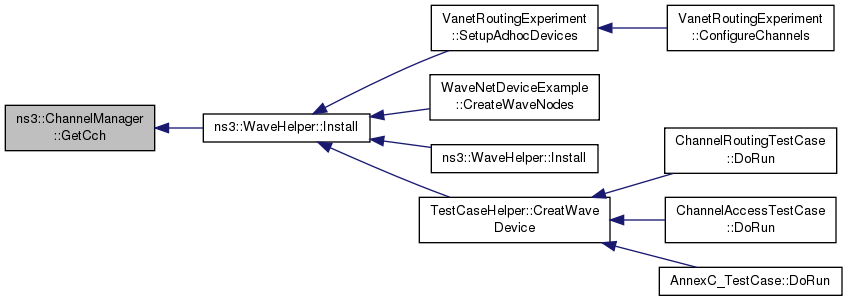

Here is the caller graph for this function:

bool ns3::ChannelManager::GetManagementAdaptable ( uint32_t channelNumber )

Parameters

channelNumber the specific channel

Returns: the adaptable mode for management frames

Definition at line 151 of file channel-manager.cc.

References m_channels, and NS_LOG_FUNCTION.

WifiMode ns3::ChannelManager::GetManagementDataRate ( uint32_t channelNumber )

Parameters

channelNumber the specific channel

Returns: the data rate for management frames

Definition at line 158 of file channel-manager.cc.

References m_channels, and NS_LOG_FUNCTION.

uint32_t ns3::ChannelManager::GetManagementPowerLevel ( uint32_t channelNumber )

Parameters

channelNumber the specific channel

Returns: the tx power level for management frames

Definition at line 165 of file channel-manager.cc.

References m_channels, and NS_LOG_FUNCTION.

uint32_t ns3::ChannelManager::GetNumberOfWaveChannels ( void )

static

Returns: the number of WAVE channels.

Definition at line 99 of file channel-manager.cc.

References GetWaveChannels(), and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::WaveHelper::CreatePhys().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::ChannelManager::GetOperatingClass ( uint32_t channelNumber )

Parameters

channelNumber the specific channel

Returns: the operating class on this channel

the operating class is unused in the simulation

Definition at line 144 of file channel-manager.cc.

References m_channels, and NS_LOG_FUNCTION.

std::vector< uint32_t > ns3::ChannelManager::GetSchs ( void )

static

Returns: the channel number set of WAVE SCHs.

Definition at line 70 of file channel-manager.cc.

References NS_LOG_FUNCTION_NOARGS, SCH1, SCH2, SCH3, SCH4, SCH5, and SCH6.

TypeId ns3::ChannelManager::GetTypeId ( void )

static

Definition at line 29 of file channel-manager.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

std::vector< uint32_t > ns3::ChannelManager::GetWaveChannels ( void )

static

Returns: the channel number set of WAVE channels.

The sequence is CCH, SCH1, SCH2, SCH3, SCH4, SCH5 and SCH6.

Definition at line 84 of file channel-manager.cc.

References CCH, NS_LOG_FUNCTION_NOARGS, SCH1, SCH2, SCH3, SCH4, SCH5, and SCH6.

Referenced by ns3::WaveHelper::Default(), and GetNumberOfWaveChannels().

Here is the caller graph for this function:

bool ns3::ChannelManager::IsCch ( uint32_t channelNumber )

static

Parameters

channelNumber the specific channel

Returns: whether channel is valid CCH channel

Definition at line 107 of file channel-manager.cc.

References CCH, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::ChannelScheduler::StartSch(), and ns3::ChannelScheduler::StopSch().

Here is the caller graph for this function:

bool ns3::ChannelManager::IsSch ( uint32_t channelNumber )

static

Parameters

channelNumber the specific channel

Returns: whether channel is valid SCH channel

Definition at line 114 of file channel-manager.cc.

References CCH, NS_LOG_FUNCTION_NOARGS, and SCH6.

bool ns3::ChannelManager::IsWaveChannel ( uint32_t channelNumber )

static

Parameters

channelNumber the specific channel

Returns: whether channel is valid WAVE channel

Definition at line 129 of file channel-manager.cc.

References NS_LOG_FUNCTION_NOARGS, and SCH6.

Referenced by ns3::WaveNetDevice::AddMac(), ns3::WaveHelper::CreateMacForChannel(), and ns3::WaveNetDevice::IsAvailableChannel().

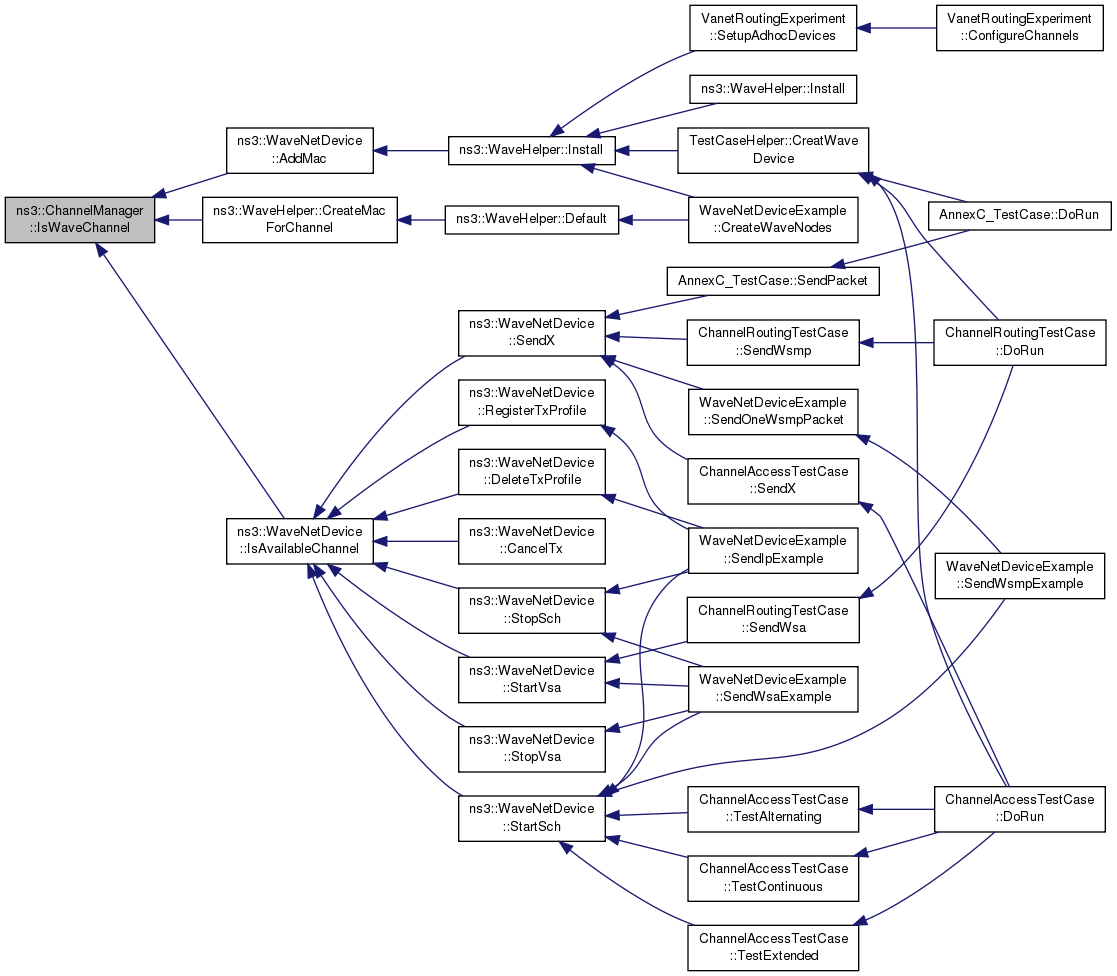

Here is the caller graph for this function:

Member Data Documentation

const uint32_t ns3::ChannelManager::DEFAULT_OPERATING_CLASS = 17

staticprivate

Definition at line 125 of file channel-manager.h.

std::map<uint32_t, WaveChannel *> ns3::ChannelManager::m_channels

private

Definition at line 144 of file channel-manager.h.

Referenced by ChannelManager(), GetManagementAdaptable(), GetManagementDataRate(), GetManagementPowerLevel(), GetOperatingClass(), and ~ChannelManager().

The documentation for this class was generated from the following files:

src/wave/model/channel-manager.h
src/wave/model/channel-manager.cc
