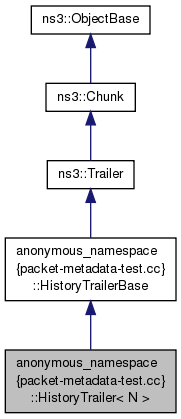

Inheritance diagram for anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >:

Collaboration diagram for anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >:

Public Member Functions
	HistoryTrailer ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

Public Member Functions inherited from anonymous_namespace{packet-metadata-test.cc}::HistoryTrailerBase
	HistoryTrailerBase ()

bool	IsOk (void) const

Public Member Functions inherited from ns3::Trailer
virtual	~Trailer ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from anonymous_namespace{packet-metadata-test.cc}::HistoryTrailerBase
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Trailer
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	m_ok

Additional Inherited Members
Protected Member Functions inherited from anonymous_namespace{packet-metadata-test.cc}::HistoryTrailerBase
void	ReportError (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

template<int N>
class anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >

Definition at line 178 of file packet-metadata-test.cc.

Constructor & Destructor Documentation

template<int N>

anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::HistoryTrailer ( )

Definition at line 194 of file packet-metadata-test.cc.

Member Function Documentation

template<int N>

uint32_t anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::Deserialize ( Buffer::Iterator end )

virtual

Parameters

end	an iterator which points to the end of the buffer where the trailer should be read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveTrailer to re-create a trailer from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this trailer in real networks. The input iterator points to the end of the area where the data shall be written. This method is thus expected to call Buffer::Iterator::Prev prio to actually reading any data.

Implements ns3::Trailer.

Definition at line 238 of file packet-metadata-test.cc.

References ns3::Buffer::Iterator::Prev(), and ns3::Buffer::Iterator::ReadU8().

Here is the call graph for this function:

template<int N>

TypeId anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 213 of file packet-metadata-test.cc.

template<int N>

uint32_t anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the trailer.

This method is used by Packet::AddTrailer to store a trailer into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full trailer data by Serialize.

Implements ns3::Trailer.

Definition at line 225 of file packet-metadata-test.cc.

template<int N>

TypeId anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::GetTypeId ( void )

static

Definition at line 200 of file packet-metadata-test.cc.

References ns3::TypeId::AddConstructor().

Here is the call graph for this function:

template<int N>

void anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Trailer.

Definition at line 219 of file packet-metadata-test.cc.

References NS_ASSERT.

template<int N>

void anonymous_namespace{packet-metadata-test.cc}::HistoryTrailer< N >::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the trailer should be written.

This method is used by Packet::AddTrailer to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this trailer in real networks. The input iterator points to the end of the area where the data shall be written. This method is thus expected to call Buffer::Iterator::Prev prior to actually writing any data.

Implements ns3::Trailer.

Definition at line 231 of file packet-metadata-test.cc.

References ns3::Buffer::Iterator::Prev(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:
