A helper to make it easier to instantiate an ns3::BulkSendApplication on a set of nodes. More...

#include <bulk-send-helper.h>

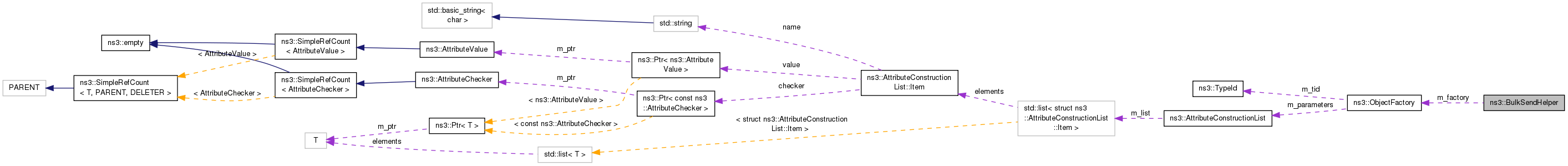

Collaboration diagram for ns3::BulkSendHelper:

Public Member Functions
	BulkSendHelper (std::string protocol, Address address)
	Create an BulkSendHelper to make it easier to work with BulkSendApplications. More...

ApplicationContainer	Install (NodeContainer c) const
	Install an ns3::BulkSendApplication on each node of the input container configured with all the attributes set with SetAttribute. More...

ApplicationContainer	Install (Ptr< Node > node) const
	Install an ns3::BulkSendApplication on the node configured with all the attributes set with SetAttribute. More...

ApplicationContainer	Install (std::string nodeName) const
	Install an ns3::BulkSendApplication on the node configured with all the attributes set with SetAttribute. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Helper function used to set the underlying application attributes, not the socket attributes. More...

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const
	Install an ns3::BulkSendApplication on the node configured with all the attributes set with SetAttribute. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...

Detailed Description

A helper to make it easier to instantiate an ns3::BulkSendApplication on a set of nodes.

Definition at line 42 of file bulk-send-helper.h.

Constructor & Destructor Documentation

ns3::BulkSendHelper::BulkSendHelper	(	std::string	protocol,
		Address	address
	)

Create an BulkSendHelper to make it easier to work with BulkSendApplications.

Parameters

protocol	the name of the protocol to use to send traffic by the applications. This string identifies the socket factory type used to create sockets for the applications. A typical value would be ns3::UdpSocketFactory.
address	the address of the remote node to send traffic to.

Definition at line 31 of file bulk-send-helper.cc.

References m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

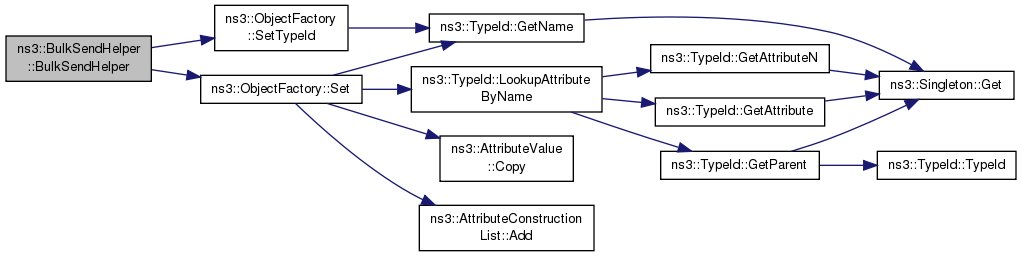

Here is the call graph for this function:

Member Function Documentation

ApplicationContainer ns3::BulkSendHelper::Install ( NodeContainer c ) const

Install an ns3::BulkSendApplication on each node of the input container configured with all the attributes set with SetAttribute.

Parameters

c	NodeContainer of the set of nodes on which an BulkSendApplication will be installed.

Returns: Container of Ptr to the applications installed.

Definition at line 58 of file bulk-send-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by CreateBulkFlow(), LteX2HandoverTestCase::DoRun(), and LteX2HandoverMeasuresTestCase::DoRun().

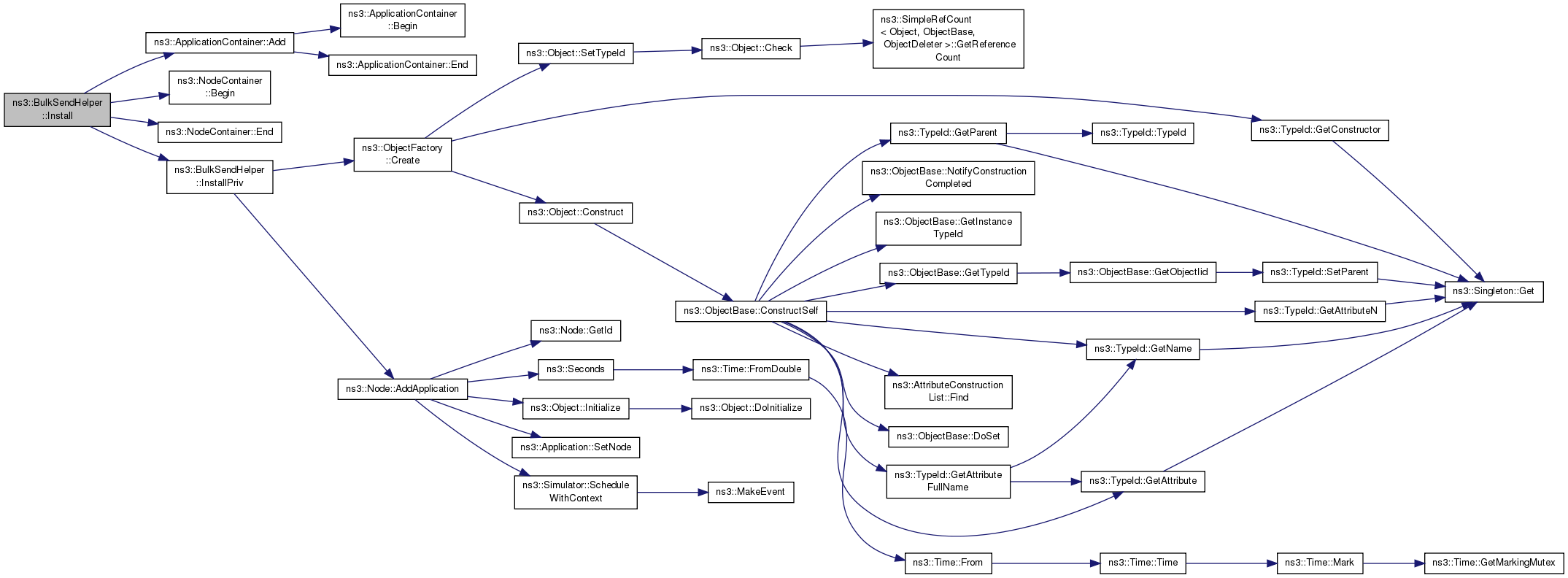

Here is the call graph for this function:

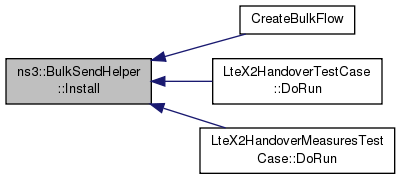

Here is the caller graph for this function:

ApplicationContainer ns3::BulkSendHelper::Install ( Ptr< Node > node ) const

Install an ns3::BulkSendApplication on the node configured with all the attributes set with SetAttribute.

Parameters

node	The node on which an BulkSendApplication will be installed.

Returns: Container of Ptr to the applications installed.

Definition at line 45 of file bulk-send-helper.cc.

References InstallPriv().

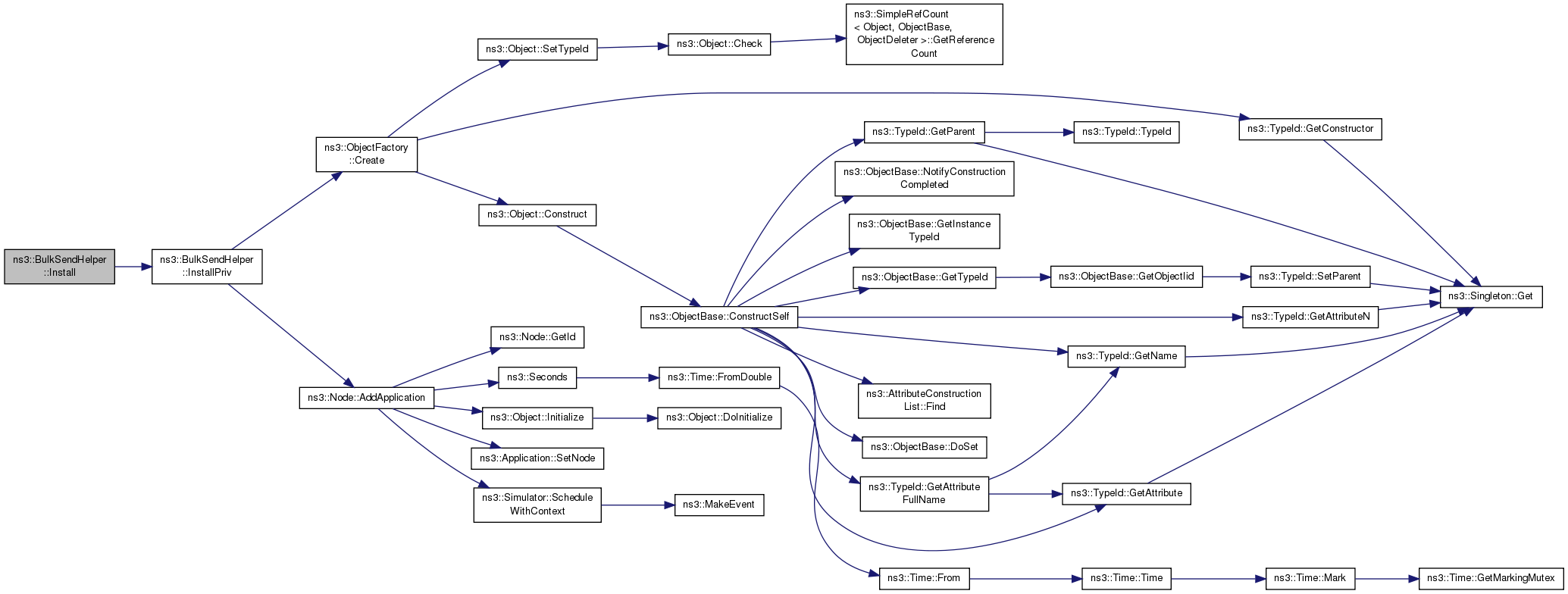

Here is the call graph for this function:

ApplicationContainer ns3::BulkSendHelper::Install ( std::string nodeName ) const

Install an ns3::BulkSendApplication on the node configured with all the attributes set with SetAttribute.

Parameters

nodeName The node on which an BulkSendApplication will be installed.

Returns: Container of Ptr to the applications installed.

Definition at line 51 of file bulk-send-helper.cc.

References InstallPriv().

Here is the call graph for this function:

Ptr< Application > ns3::BulkSendHelper::InstallPriv ( Ptr< Node > node ) const

private

Install an ns3::BulkSendApplication on the node configured with all the attributes set with SetAttribute.

Parameters

node	The node on which an BulkSendApplication will be installed.

Returns: Ptr to the application installed.

Definition at line 70 of file bulk-send-helper.cc.

References ns3::Node::AddApplication(), ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

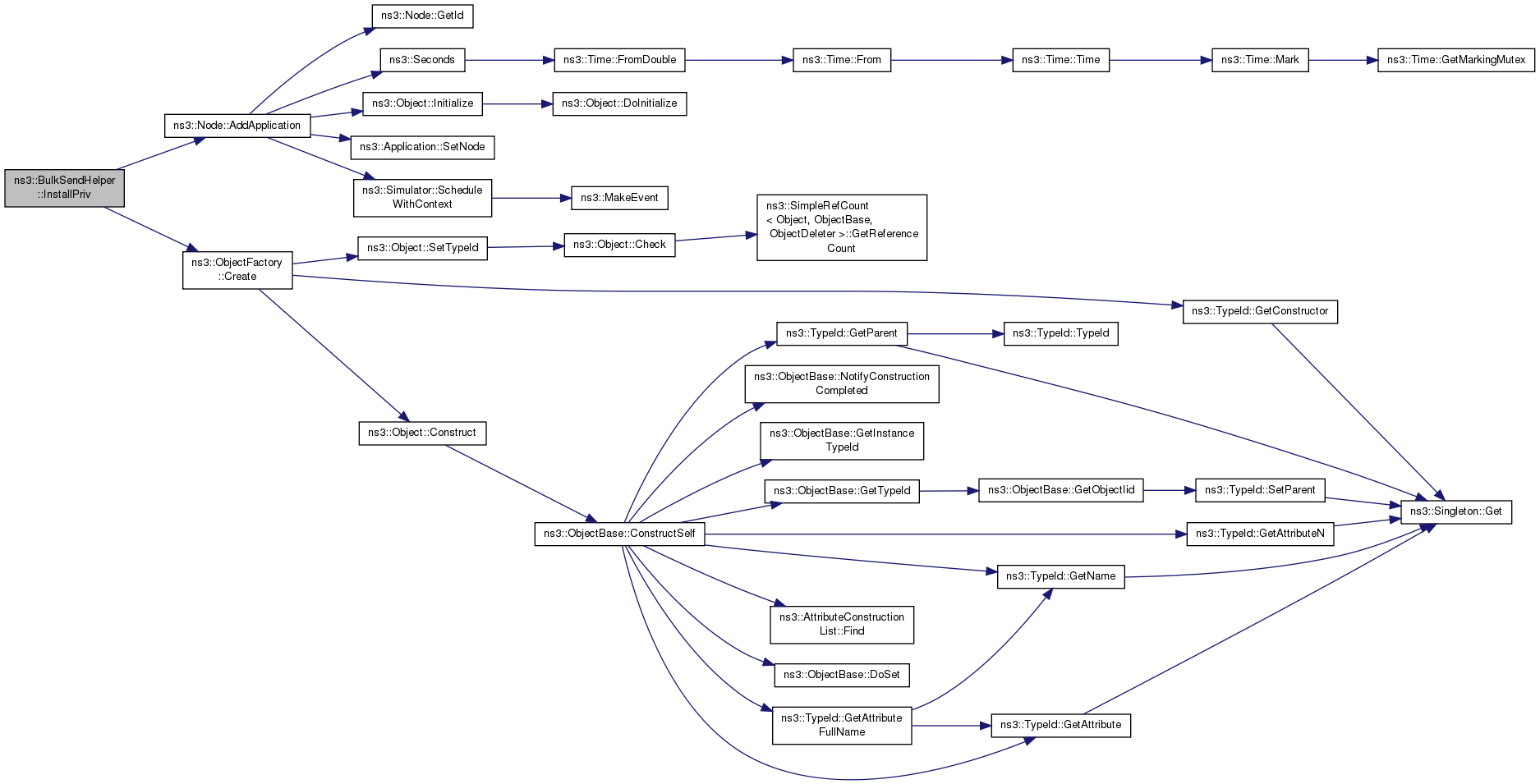

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BulkSendHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Helper function used to set the underlying application attributes, not the socket attributes.

Parameters

name	the name of the application attribute to set
value	the value of the application attribute to set

Definition at line 39 of file bulk-send-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by CreateBulkFlow(), LteX2HandoverTestCase::DoRun(), and LteX2HandoverMeasuresTestCase::DoRun().

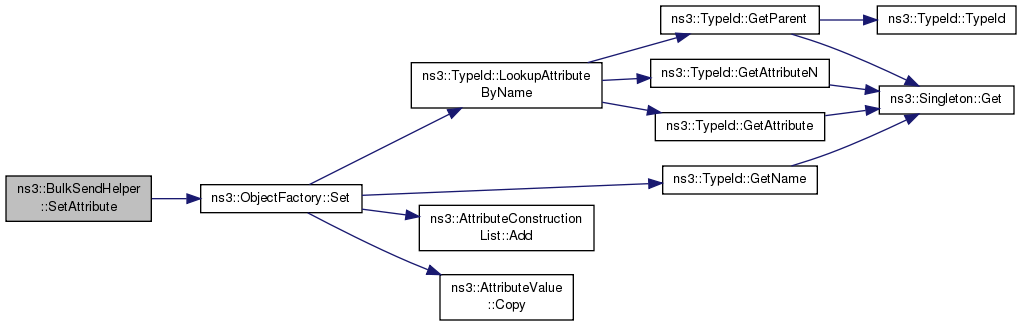

Here is the call graph for this function:

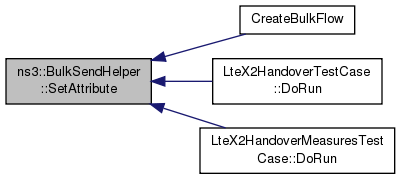

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::BulkSendHelper::m_factory

private

Object factory.

Definition at line 104 of file bulk-send-helper.h.

Referenced by BulkSendHelper(), InstallPriv(), and SetAttribute().

The documentation for this class was generated from the following files:

src/applications/helper/bulk-send-helper.h
src/applications/helper/bulk-send-helper.cc
