Generate a random position uniformly distributed in the volume of a chosen room inside a chosen building. More...
#include <building-position-allocator.h>

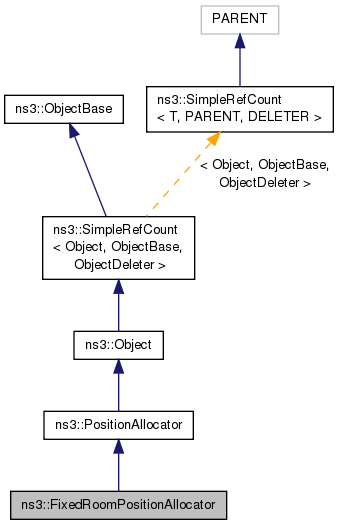

Inheritance diagram for ns3::FixedRoomPositionAllocator: Collaboration diagram for ns3::FixedRoomPositionAllocator:Public Member Functions | |
| FixedRoomPositionAllocator (uint32_t x, uint32_t y, uint32_t z, Ptr< Building > b) | |
| int64_t | AssignStreams (int64_t) |
| Assign a fixed random variable stream number to the random variables used by this model. More... | |
| virtual Vector | GetNext (void) const |
| Public Member Functions inherited from ns3::PositionAllocator | |
| PositionAllocator () | |
| virtual | ~PositionAllocator () |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Implement the GetInstanceTypeId method defined in ObjectBase. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::PositionAllocator | |
| static TypeId | GetTypeId (void) |
| Register this type with the TypeId system. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| Ptr< Building > | bptr |
| uint32_t | floor |
| Ptr< UniformRandomVariable > | m_rand |
| Provides uniform random variables. More... | |
| uint32_t | roomx |
| uint32_t | roomy |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Generate a random position uniformly distributed in the volume of a chosen room inside a chosen building.
ns3::FixedRoomPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).
Definition at line 154 of file building-position-allocator.h.
| ns3::FixedRoomPositionAllocator::FixedRoomPositionAllocator | ( | uint32_t | x, |
| uint32_t | y, | ||
| uint32_t | z, | ||
| Ptr< Building > | b | ||
| ) |
| x | index of the room on the x-axis |
| y | index of the room on the y-axis |
| z | index of the room on the z-axis (i.e., floor number) |
| b | pointer to the chosen building |
Definition at line 288 of file building-position-allocator.cc.
References bptr, floor, m_rand, roomx, roomy, and sample-rng-plot::x.
|
virtual |
Assign a fixed random variable stream number to the random variables used by this model.
Return the number of streams (possibly zero) that have been assigned.
| stream | first stream index to use |
Implements ns3::PositionAllocator.
Definition at line 342 of file building-position-allocator.cc.
References m_rand, and ns3::RandomVariableStream::SetStream().

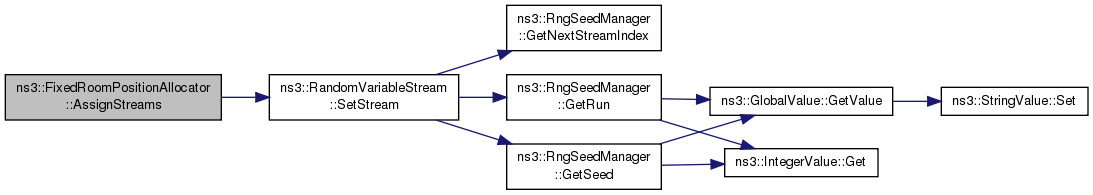

Here is the call graph for this function:
|
virtual |
This method must be implement in subclasses.
Implements ns3::PositionAllocator.
Definition at line 312 of file building-position-allocator.cc.
References bptr, floor, ns3::UniformRandomVariable::GetValue(), m_rand, NS_LOG_LOGIC, roomx, roomy, and sample-rng-plot::x.

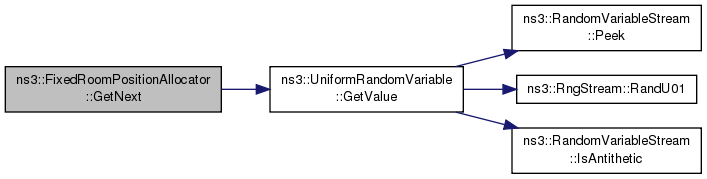

Here is the call graph for this function:
|
static |
Definition at line 302 of file building-position-allocator.cc.
References ns3::TypeId::SetParent().
Here is the call graph for this function:Definition at line 192 of file building-position-allocator.h.
Referenced by FixedRoomPositionAllocator(), and GetNext().
|
private |
Definition at line 190 of file building-position-allocator.h.
Referenced by FixedRoomPositionAllocator(), and GetNext().
|
private |
Provides uniform random variables.
Definition at line 195 of file building-position-allocator.h.
Referenced by AssignStreams(), FixedRoomPositionAllocator(), and GetNext().
|
private |
Definition at line 188 of file building-position-allocator.h.
Referenced by FixedRoomPositionAllocator(), and GetNext().
|
private |
Definition at line 189 of file building-position-allocator.h.
Referenced by FixedRoomPositionAllocator(), and GetNext().
