Introspection did not find any typical Config paths. More...

#include <ipv6-extension.h>

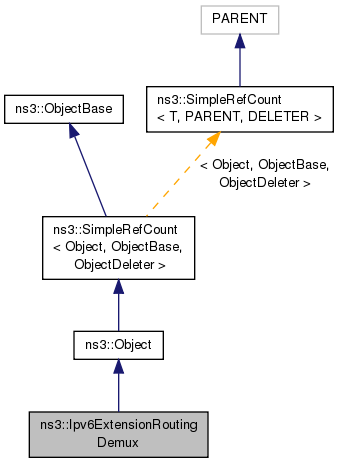

Inheritance diagram for ns3::Ipv6ExtensionRoutingDemux:

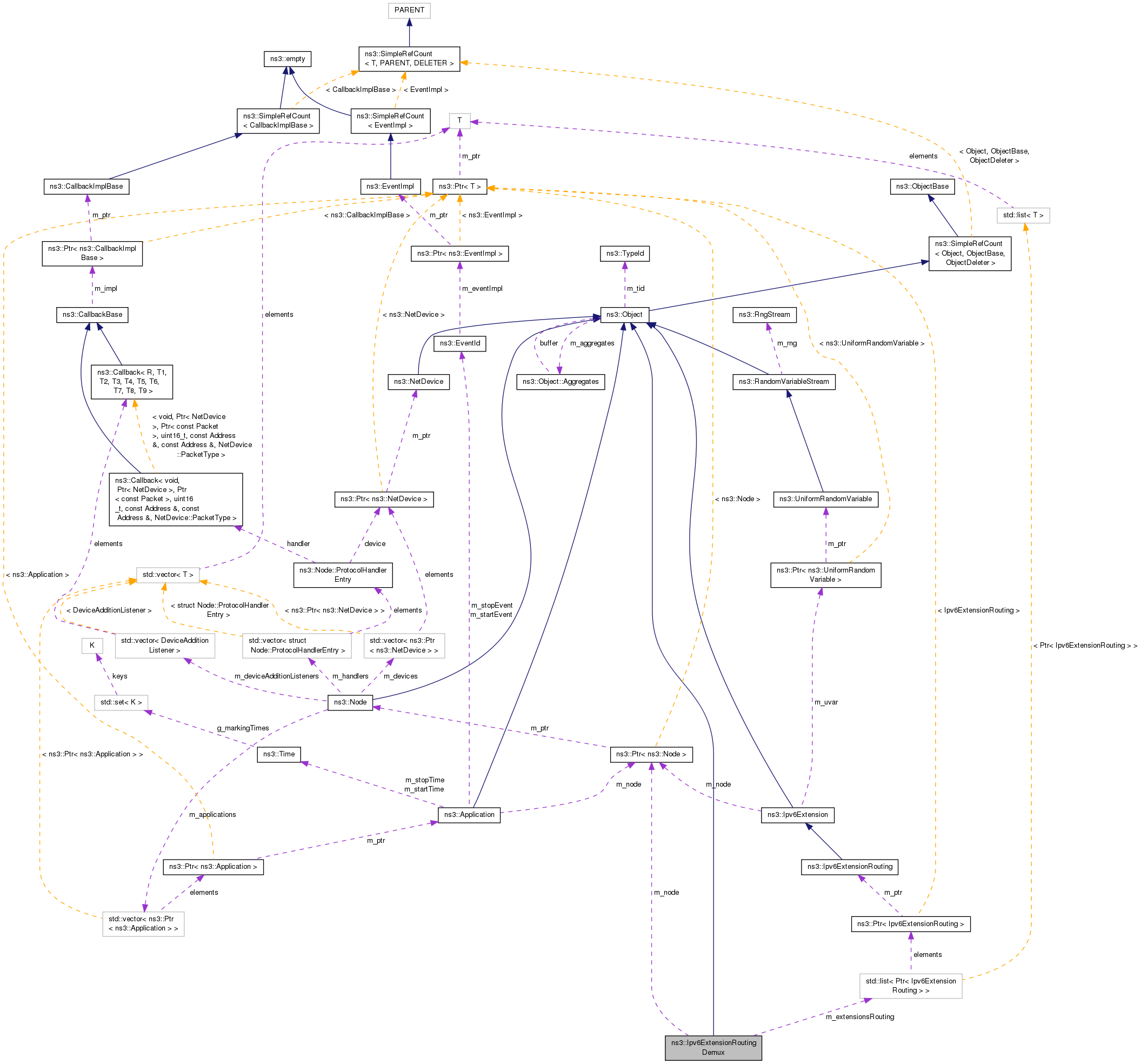

Collaboration diagram for ns3::Ipv6ExtensionRoutingDemux:

Public Member Functions
	Ipv6ExtensionRoutingDemux ()
	Constructor. More...

virtual	~Ipv6ExtensionRoutingDemux ()
	Destructor. More...

Ptr< Ipv6ExtensionRouting >	GetExtensionRouting (uint8_t typeRouting)
	Get the routing extension corresponding to typeRouting. More...

void	Insert (Ptr< Ipv6ExtensionRouting > extensionRouting)
	Insert a new IPv6 Routing Extension. More...

void	Remove (Ptr< Ipv6ExtensionRouting > extensionRouting)
	Remove a routing extension from this demux. More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	The interface ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< Ptr< Ipv6ExtensionRouting > >	Ipv6ExtensionRoutingList_t
	Container for the extension routing. More...

Private Attributes
Ipv6ExtensionRoutingList_t	m_extensionsRouting
	List of IPv6 Routing Extensions supported. More...

Ptr< Node >	m_node
	The node. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Introspection did not find any typical Config paths.

IPv6 Extension Routing Demux.

Attributes

Routing Extensions: The set of IPv6 Routing extensions registered with this demux.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Ipv6ExtensionRouting>
- Flags: read

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 474 of file ipv6-extension.h.

Member Typedef Documentation

typedef std::list<Ptr<Ipv6ExtensionRouting> > ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingList_t

private

Container for the extension routing.

Definition at line 528 of file ipv6-extension.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingDemux::Ipv6ExtensionRoutingDemux ( )

Constructor.

Definition at line 845 of file ipv6-extension.cc.

ns3::Ipv6ExtensionRoutingDemux::~Ipv6ExtensionRoutingDemux ( )

virtual

Destructor.

Definition at line 849 of file ipv6-extension.cc.

Member Function Documentation

void ns3::Ipv6ExtensionRoutingDemux::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 853 of file ipv6-extension.cc.

References ns3::Object::DoDispose(), and ns3::Ipv6Extension::m_node.

Here is the call graph for this function:

Ptr< Ipv6ExtensionRouting > ns3::Ipv6ExtensionRoutingDemux::GetExtensionRouting ( uint8_t typeRouting )

Get the routing extension corresponding to typeRouting.

Parameters

typeRouting the number of the routing extension to retrieve

Returns: a matching IPv6 routing extension

Definition at line 875 of file ipv6-extension.cc.

TypeId ns3::Ipv6ExtensionRoutingDemux::GetTypeId ( void )

static

The interface ID.

Returns: type ID

Definition at line 832 of file ipv6-extension.cc.

References m_extensionsRouting, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingDemux::Insert ( Ptr< Ipv6ExtensionRouting > extensionRouting )

Insert a new IPv6 Routing Extension.

Parameters

extensionRouting the routing extension to insert

Definition at line 870 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionRoutingDemux::Remove ( Ptr< Ipv6ExtensionRouting > extensionRouting )

Remove a routing extension from this demux.

Parameters

extensionRouting pointer on the extension to remove

Definition at line 887 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionRoutingDemux::SetNode ( Ptr< Node > node )

Set the node.

Parameters

node	the node to set

Definition at line 865 of file ipv6-extension.cc.

References ns3::Ipv6Extension::m_node.

Member Data Documentation

Ipv6ExtensionRoutingList_t ns3::Ipv6ExtensionRoutingDemux::m_extensionsRouting

private

List of IPv6 Routing Extensions supported.

Definition at line 533 of file ipv6-extension.h.

Referenced by GetTypeId().

Ptr<Node> ns3::Ipv6ExtensionRoutingDemux::m_node

private

The node.

Definition at line 538 of file ipv6-extension.h.

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension.h
src/internet/model/ipv6-extension.cc
