The IPv6 representation of a network interface. More...

#include <ipv6-interface.h>

Inheritance diagram for ns3::Ipv6Interface:

Collaboration diagram for ns3::Ipv6Interface:

Public Member Functions
	Ipv6Interface ()
	Constructs an Ipv6Interface. More...

virtual	~Ipv6Interface ()
	Destructor. More...

bool	AddAddress (Ipv6InterfaceAddress iface)
	Add an IPv6 address. More...

Ipv6InterfaceAddress	GetAddress (uint32_t index) const
	Get an address from IPv6 interface. More...

Ipv6InterfaceAddress	GetAddressMatchingDestination (Ipv6Address dst)
	Get an address which is in the same network prefix as destination. More...

uint16_t	GetBaseReachableTime () const
	Get the base reachable time. More...

uint8_t	GetCurHopLimit () const
	Get the current hop limit value. More...

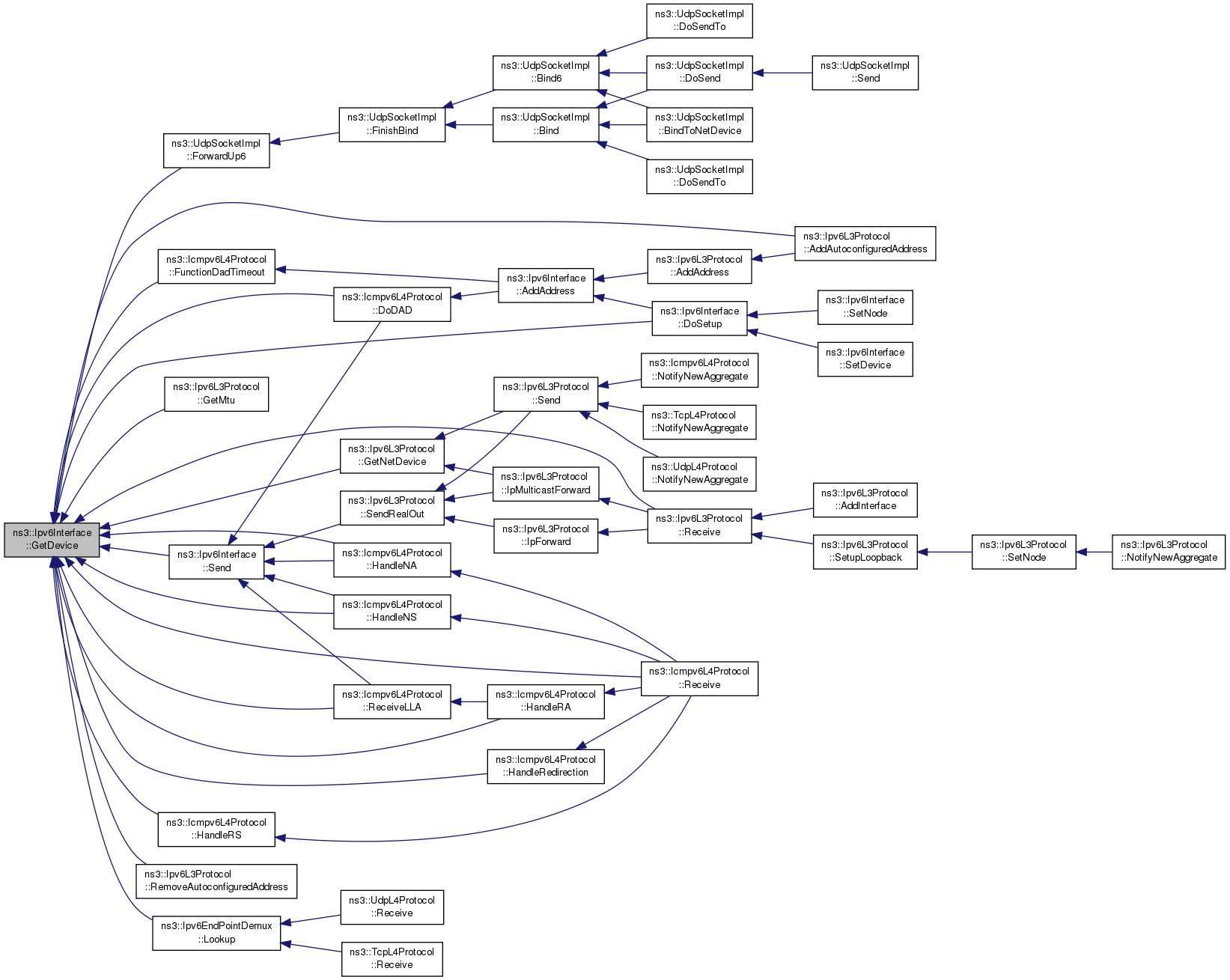

virtual Ptr< NetDevice >	GetDevice () const
	Get the NetDevice. More...

Ipv6InterfaceAddress	GetLinkLocalAddress () const
	Get link-local address from IPv6 interface. More...

uint16_t	GetMetric () const
	Get the metric. More...

uint32_t	GetNAddresses (void) const
	Get number of addresses on this IPv6 interface. More...

Ptr< NdiscCache >	GetNdiscCache () const

uint16_t	GetReachableTime () const
	Get the reachable time. More...

uint16_t	GetRetransTimer () const
	Get the retransmission timer. More...

bool	IsDown () const
	Is the interface DOWN ? More...

bool	IsForwarding () const
	If the interface allows forwarding packets. More...

bool	IsUp () const
	Is the interface UP ? More...

Ipv6InterfaceAddress	RemoveAddress (uint32_t index)
	Remove an address from interface. More...

Ipv6InterfaceAddress	RemoveAddress (Ipv6Address address)
	Remove the given Ipv6 address from the interface. More...

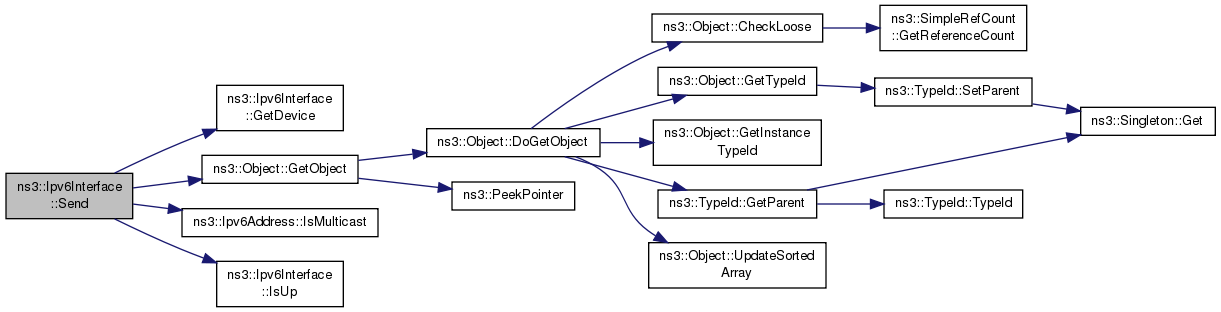

void	Send (Ptr< Packet > p, Ipv6Address dest)
	Send a packet through this interface. More...

void	SetBaseReachableTime (uint16_t baseReachableTime)
	Set the base reachable time. More...

void	SetCurHopLimit (uint8_t curHopLimit)
	Set the current hop limit. More...

void	SetDevice (Ptr< NetDevice > device)
	Set the NetDevice. More...

void	SetDown ()
	Disable this interface. More...

void	SetForwarding (bool forward)
	Set forwarding enabled or not. More...

void	SetMetric (uint16_t metric)
	Set the metric. More...

void	SetNode (Ptr< Node > node)
	Set node associated with interface. More...

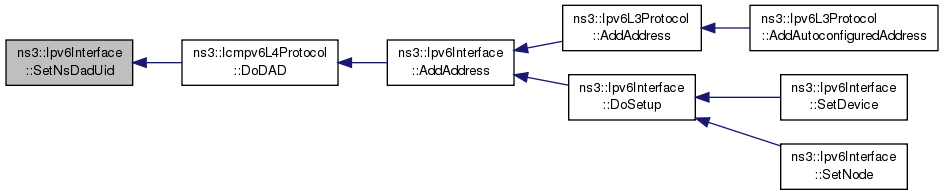

void	SetNsDadUid (Ipv6Address address, uint32_t uid)
	Update NS DAD packet UID of an interface address. More...

void	SetReachableTime (uint16_t reachableTime)
	Set the reachable time. More...

void	SetRetransTimer (uint16_t retransTimer)
	Set the retransmission timer. More...

void	SetState (Ipv6Address address, Ipv6InterfaceAddress::State_e state)
	Update state of an interface address. More...

void	SetUp ()
	Enable this interface. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Dispose this object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::list< Ipv6InterfaceAddress >	Ipv6InterfaceAddressList
	Container for the Ipv6InterfaceAddresses. More...

typedef std::list< Ipv6InterfaceAddress >::const_iterator	Ipv6InterfaceAddressListCI
	Const Container Iterator for the Ipv6InterfaceAddresses. More...

typedef std::list< Ipv6InterfaceAddress >::iterator	Ipv6InterfaceAddressListI
	Container Iterator for the Ipv6InterfaceAddresses. More...

Private Member Functions
void	DoSetup ()
	Initialize interface. More...

Private Attributes
Ipv6InterfaceAddressList	m_addresses
	The addresses assigned to this interface. More...

uint16_t	m_baseReachableTime
	Base value used for computing the random reachable time value (in millisecond). More...

uint8_t	m_curHopLimit
	Current hop limit. More...

Ptr< NetDevice >	m_device
	NetDevice associated with this interface. More...

bool	m_forwarding
	Forwarding state. More...

bool	m_ifup
	The state of this interface. More...

uint16_t	m_metric
	The metric. More...

Ptr< NdiscCache >	m_ndCache
	Neighbor cache. More...

Ptr< Node >	m_node
	Node associated with this interface. More...

uint16_t	m_reachableTime
	Reachable time (in millisecond). More...

uint16_t	m_retransTimer
	Retransmission timer (in millisecond). More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The IPv6 representation of a network interface.

Config Paths

ns3::Ipv6Interface is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::Ipv6L3Protocol/InterfaceList/[i]"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).

By default IPv6 interfaces are created in the "down" state with IP "fe80::1" and a /64 prefix. Before becoming usable, the user must invoke SetUp on them once the final IPv6 address and mask has been set.

Definition at line 49 of file ipv6-interface.h.

Member Typedef Documentation

typedef std::list<Ipv6InterfaceAddress> ns3::Ipv6Interface::Ipv6InterfaceAddressList

private

Container for the Ipv6InterfaceAddresses.

Definition at line 269 of file ipv6-interface.h.

typedef std::list<Ipv6InterfaceAddress>::const_iterator ns3::Ipv6Interface::Ipv6InterfaceAddressListCI

private

Const Container Iterator for the Ipv6InterfaceAddresses.

Definition at line 279 of file ipv6-interface.h.

typedef std::list<Ipv6InterfaceAddress>::iterator ns3::Ipv6Interface::Ipv6InterfaceAddressListI

private

Container Iterator for the Ipv6InterfaceAddresses.

Definition at line 274 of file ipv6-interface.h.

Constructor & Destructor Documentation

ns3::Ipv6Interface::Ipv6Interface ( )

Constructs an Ipv6Interface.

Definition at line 50 of file ipv6-interface.cc.

References NS_LOG_FUNCTION.

ns3::Ipv6Interface::~Ipv6Interface ( )

virtual

Destructor.

Definition at line 65 of file ipv6-interface.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

bool ns3::Ipv6Interface::AddAddress ( Ipv6InterfaceAddress iface )

Add an IPv6 address.

Parameters

iface address to add

Returns: true if address was added, false otherwise

Definition at line 205 of file ipv6-interface.cc.

References ns3::Icmpv6L4Protocol::DoDAD(), ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Object::GetObject(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Ipv6Address::IsAny(), ns3::Ipv6Address::IsLocalhost(), m_addresses, m_node, NS_LOG_FUNCTION_NOARGS, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by ns3::Ipv6L3Protocol::AddAddress(), and DoSetup().

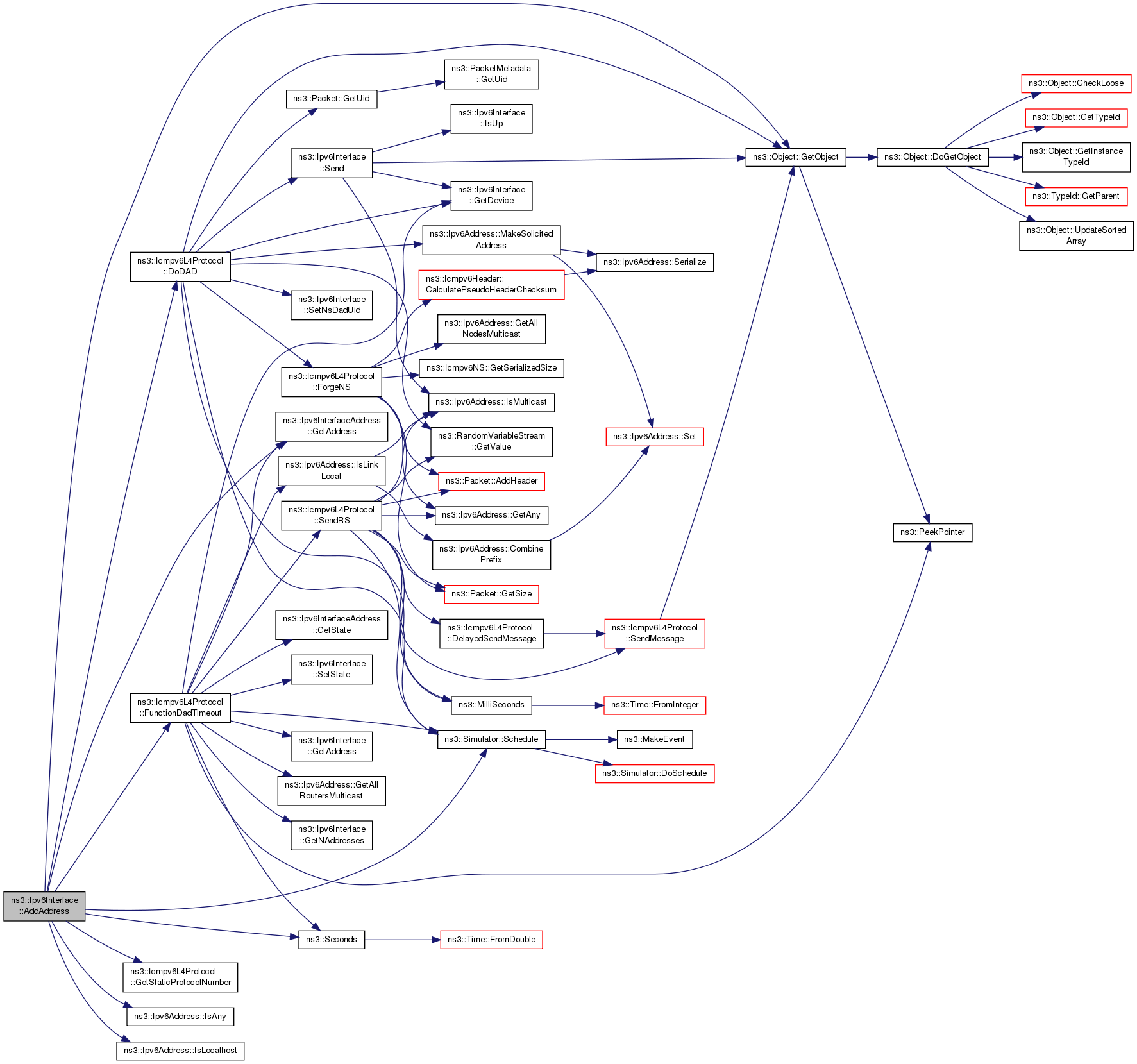

Here is the call graph for this function:

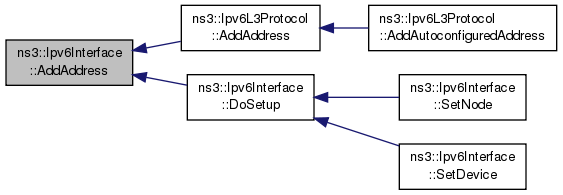

Here is the caller graph for this function:

void ns3::Ipv6Interface::DoDispose ( void )

protectedvirtual

Dispose this object.

Reimplemented from ns3::Object.

Definition at line 70 of file ipv6-interface.cc.

References ns3::Object::DoDispose(), m_device, m_ndCache, m_node, and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

void ns3::Ipv6Interface::DoSetup ( void )

private

Initialize interface.

Definition at line 79 of file ipv6-interface.cc.

References AddAddress(), ns3::Mac16Address::ConvertFrom(), ns3::Mac64Address::ConvertFrom(), ns3::Mac48Address::ConvertFrom(), GetDevice(), ns3::Object::GetObject(), ns3::Icmpv6L4Protocol::GetStaticProtocolNumber(), ns3::Mac16Address::IsMatchingType(), ns3::Mac64Address::IsMatchingType(), ns3::Mac48Address::IsMatchingType(), m_device, m_ndCache, m_node, ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by SetDevice(), and SetNode().

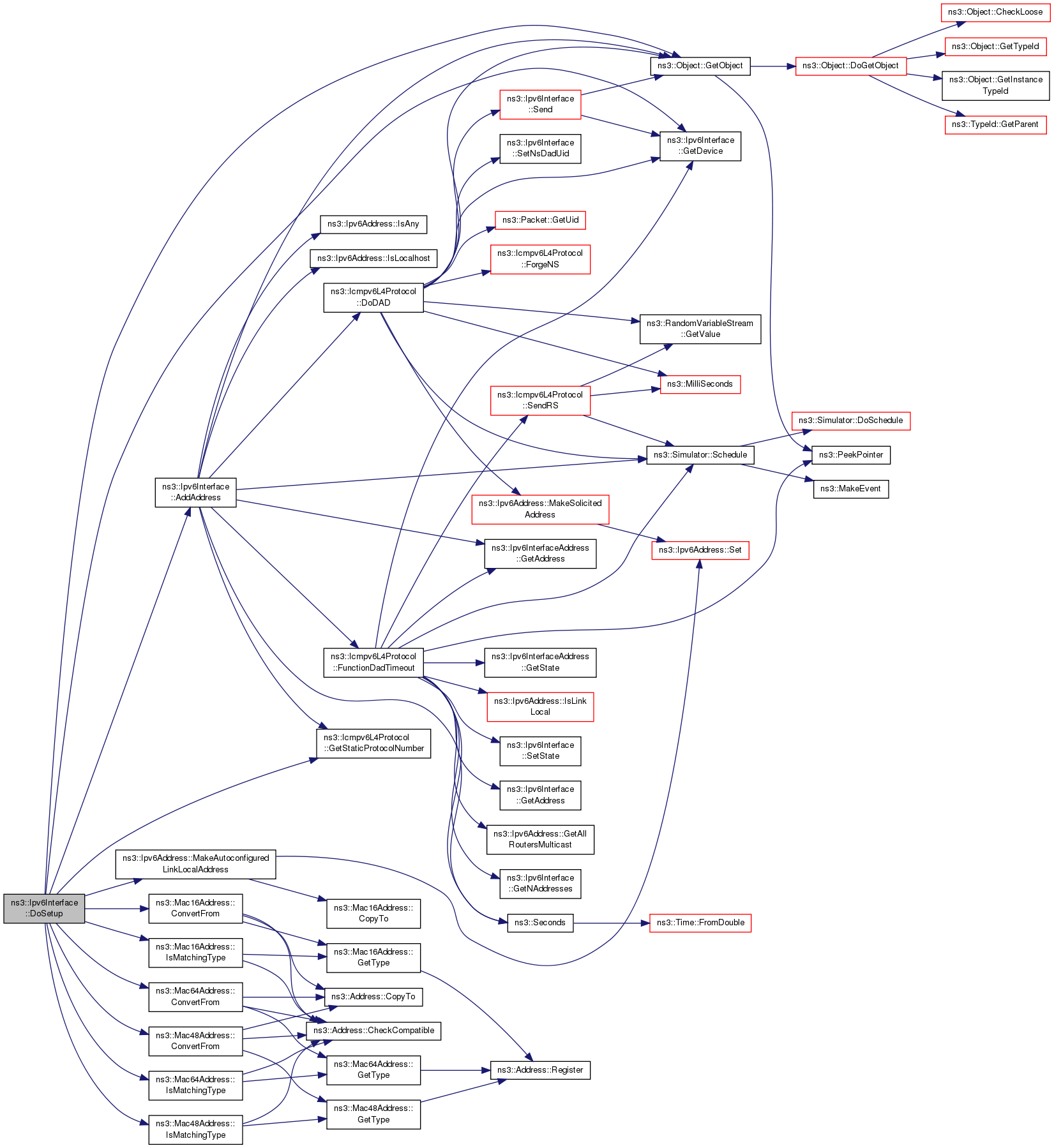

Here is the call graph for this function:

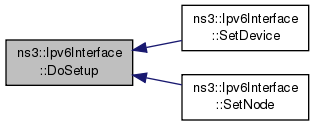

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddress ( uint32_t index ) const

Get an address from IPv6 interface.

Parameters

index index

Returns: Ipv6InterfaceAddress address whose index is i

Definition at line 263 of file ipv6-interface.cc.

References m_addresses, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6L3Protocol::GetAddress(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

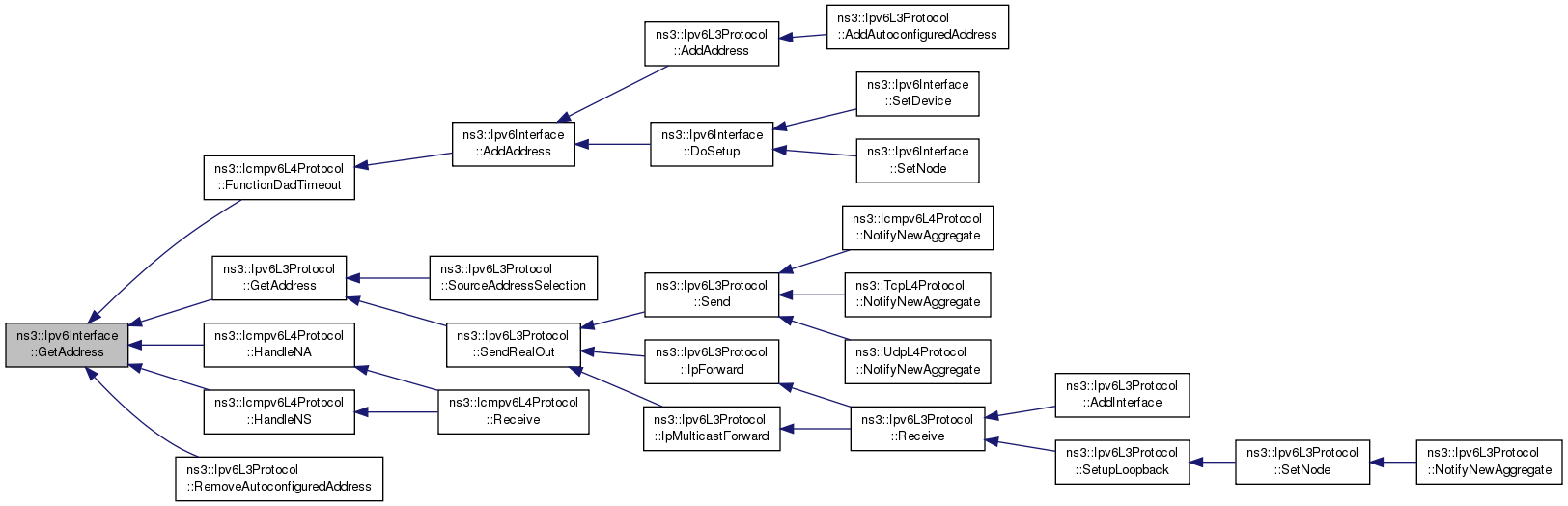

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::GetAddressMatchingDestination ( Ipv6Address dst )

Get an address which is in the same network prefix as destination.

Parameters

dst	destination address

Returns: Corresponding Ipv6InterfaceAddress or assert if not found

Definition at line 341 of file ipv6-interface.cc.

References ns3::Ipv6InterfaceAddress::GetAddress(), ns3::Ipv6InterfaceAddress::GetPrefix(), ns3::Ipv6Prefix::IsMatch(), m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Lookup().

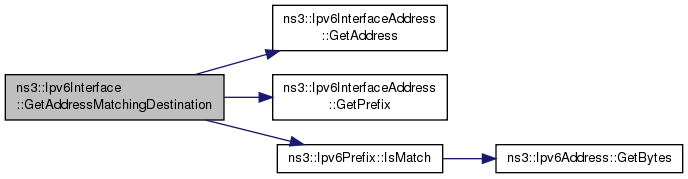

Here is the call graph for this function:

Here is the caller graph for this function:

uint16_t ns3::Ipv6Interface::GetBaseReachableTime ( ) const

Get the base reachable time.

Returns: base reachable time

Definition at line 449 of file ipv6-interface.cc.

References m_baseReachableTime, and NS_LOG_FUNCTION_NOARGS.

uint8_t ns3::Ipv6Interface::GetCurHopLimit ( ) const

Get the current hop limit value.

Returns: current hop limit

Definition at line 437 of file ipv6-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION_NOARGS.

Ptr< NetDevice > ns3::Ipv6Interface::GetDevice ( void ) const

virtual

Get the NetDevice.

Returns: the NetDevice associated with this interface

Definition at line 144 of file ipv6-interface.cc.

References m_device, and NS_LOG_FUNCTION_NOARGS.

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::GetLinkLocalAddress ( ) const

Get link-local address from IPv6 interface.

Returns: link-local Ipv6InterfaceAddress, assert if not found

Definition at line 246 of file ipv6-interface.cc.

References m_addresses, NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Ipv6L3Protocol::IpForward(), and ns3::Icmpv6L4Protocol::Lookup().

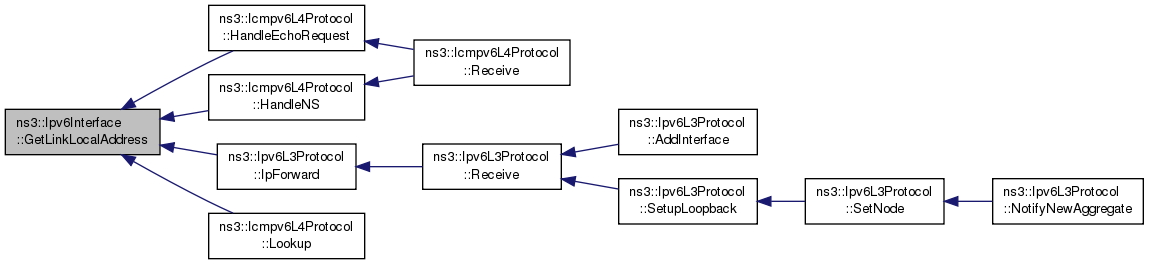

Here is the caller graph for this function:

uint16_t ns3::Ipv6Interface::GetMetric ( void ) const

Get the metric.

Returns: the metric

Definition at line 156 of file ipv6-interface.cc.

References m_metric, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::GetMetric().

Here is the caller graph for this function:

uint32_t ns3::Ipv6Interface::GetNAddresses ( void ) const

Get number of addresses on this IPv6 interface.

Returns: number of address

Definition at line 285 of file ipv6-interface.cc.

References m_addresses, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), ns3::Ipv6L3Protocol::GetNAddresses(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::Lookup(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

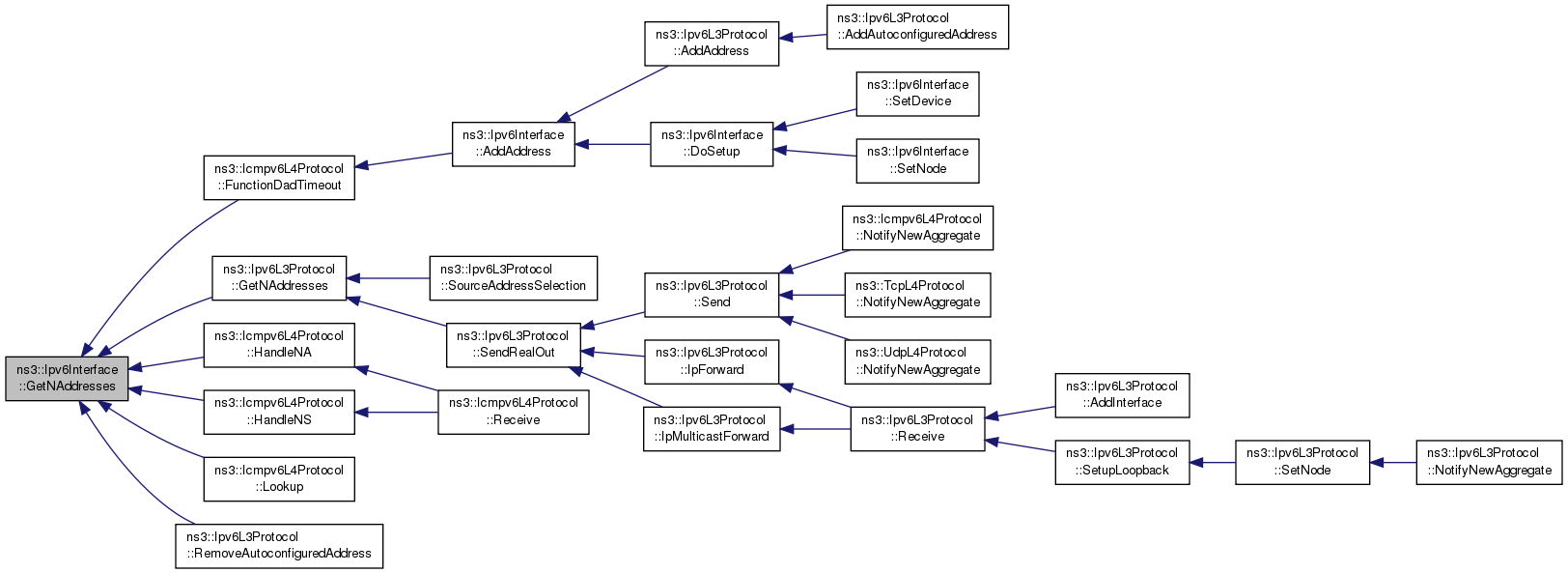

Here is the caller graph for this function:

Ptr< NdiscCache > ns3::Ipv6Interface::GetNdiscCache ( ) const

Returns: NDISC cache used by this interface

Definition at line 509 of file ipv6-interface.cc.

References m_ndCache, and NS_LOG_FUNCTION.

uint16_t ns3::Ipv6Interface::GetReachableTime ( ) const

Get the reachable time.

Returns: reachable time

Definition at line 461 of file ipv6-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION_NOARGS.

uint16_t ns3::Ipv6Interface::GetRetransTimer ( ) const

Get the retransmission timer.

Returns: retransmission timer

Definition at line 473 of file ipv6-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION_NOARGS.

TypeId ns3::Ipv6Interface::GetTypeId ( void )

static

Get the type ID.

Returns: type ID

Definition at line 41 of file ipv6-interface.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::Ipv6Interface::IsDown ( void ) const

Is the interface DOWN ?

Returns: true if interface is disabled, false otherwise.

Definition at line 168 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv6Interface::IsForwarding ( void ) const

If the interface allows forwarding packets.

Returns: true if forwarding is enabled, false otherwise

Definition at line 193 of file ipv6-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION_NOARGS.

bool ns3::Ipv6Interface::IsUp ( void ) const

Is the interface UP ?

Returns: true if interface is enabled, false otherwise.

Definition at line 162 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::IsUp(), ns3::Ipv6L3Protocol::Receive(), Send(), and ns3::Ipv6L3Protocol::SendRealOut().

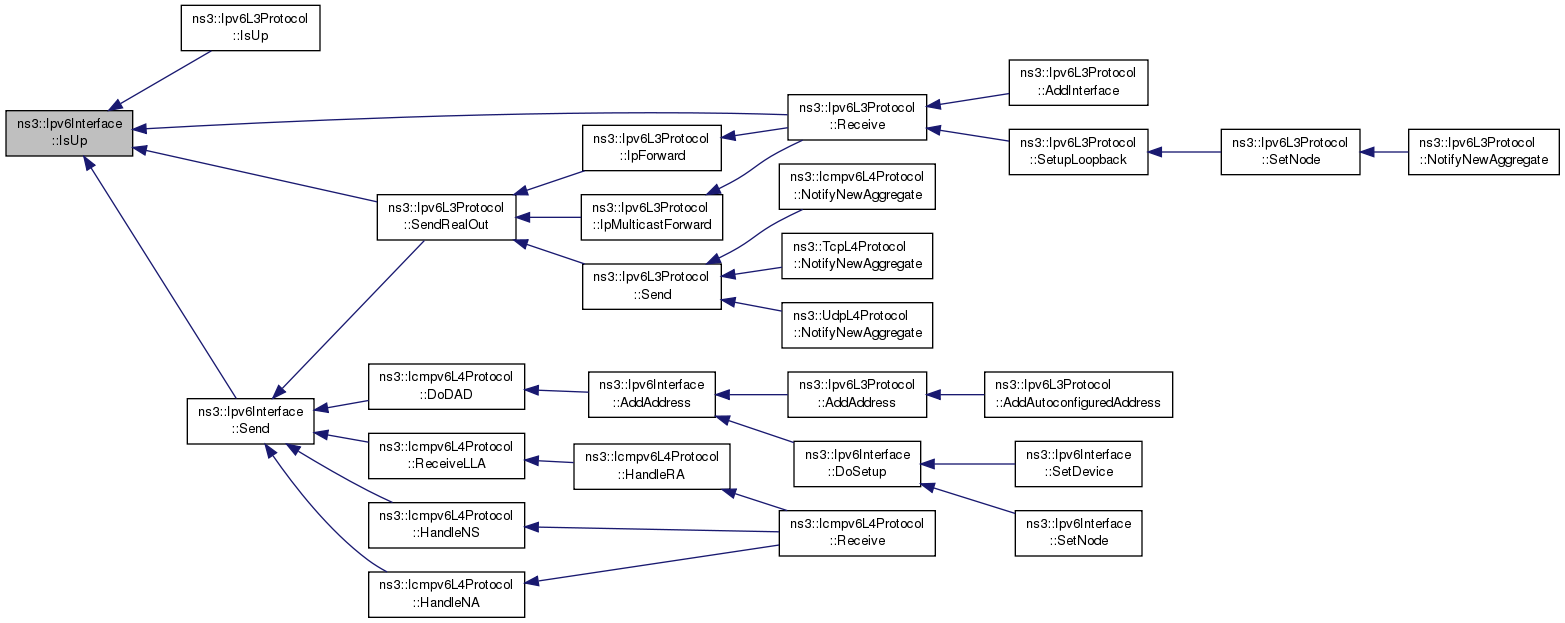

Here is the caller graph for this function:

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress ( uint32_t index )

Remove an address from interface.

Parameters

index index to remove

Returns: Ipv6InterfaceAddress address whose index is index

Definition at line 291 of file ipv6-interface.cc.

References m_addresses, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Ipv6InterfaceAddress ns3::Ipv6Interface::RemoveAddress ( Ipv6Address address )

Remove the given Ipv6 address from the interface.

Parameters

address The Ipv6 address to remove

Returns: The removed Ipv6 interface address; The null interface address if the interface did not contain the address or if loopback address was passed as argument

Definition at line 319 of file ipv6-interface.cc.

References first::address, ns3::Ipv6Address::GetLoopback(), m_addresses, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

void ns3::Ipv6Interface::Send	(	Ptr< Packet >	p,
		Ipv6Address	dest
	)

Send a packet through this interface.

Parameters

p	packet to send
dest	next hop address of packet.

Note: This method will eventually call the private SendTo method which must be implemented by subclasses.

Todo:: additional checks needed here (such as whether multicast goes to loopback)?

Definition at line 360 of file ipv6-interface.cc.

References GetDevice(), ns3::Object::GetObject(), ns3::Ipv6Address::IsMulticast(), IsUp(), m_addresses, m_device, m_ndCache, m_node, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::NetDevice::PACKET_HOST, and ns3::Ipv6L3Protocol::PROT_NUMBER.

Referenced by ns3::Icmpv6L4Protocol::DoDAD(), ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::ReceiveLLA(), and ns3::Ipv6L3Protocol::SendRealOut().

Here is the call graph for this function:

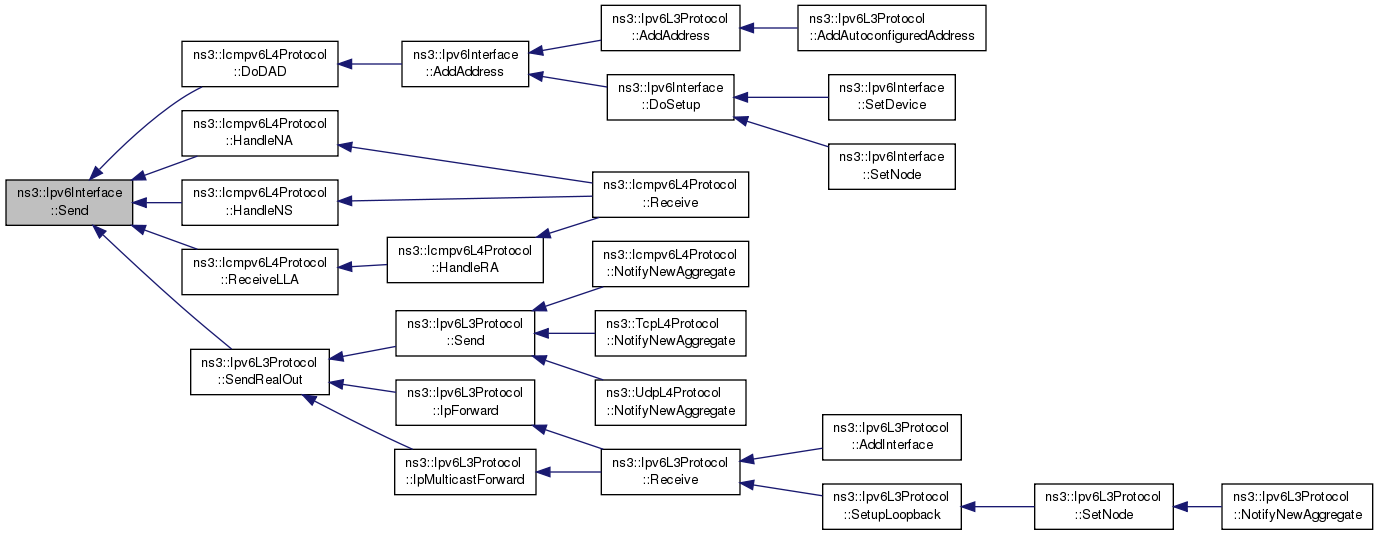

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetBaseReachableTime ( uint16_t baseReachableTime )

Set the base reachable time.

Parameters

baseReachableTime the value to set

Definition at line 443 of file ipv6-interface.cc.

References m_baseReachableTime, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetCurHopLimit ( uint8_t curHopLimit )

Set the current hop limit.

Parameters

curHopLimit the value to set

Definition at line 431 of file ipv6-interface.cc.

References m_curHopLimit, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetDevice ( Ptr< NetDevice > device )

Set the NetDevice.

Parameters

device NetDevice

Definition at line 137 of file ipv6-interface.cc.

References DoSetup(), m_device, and NS_LOG_FUNCTION.

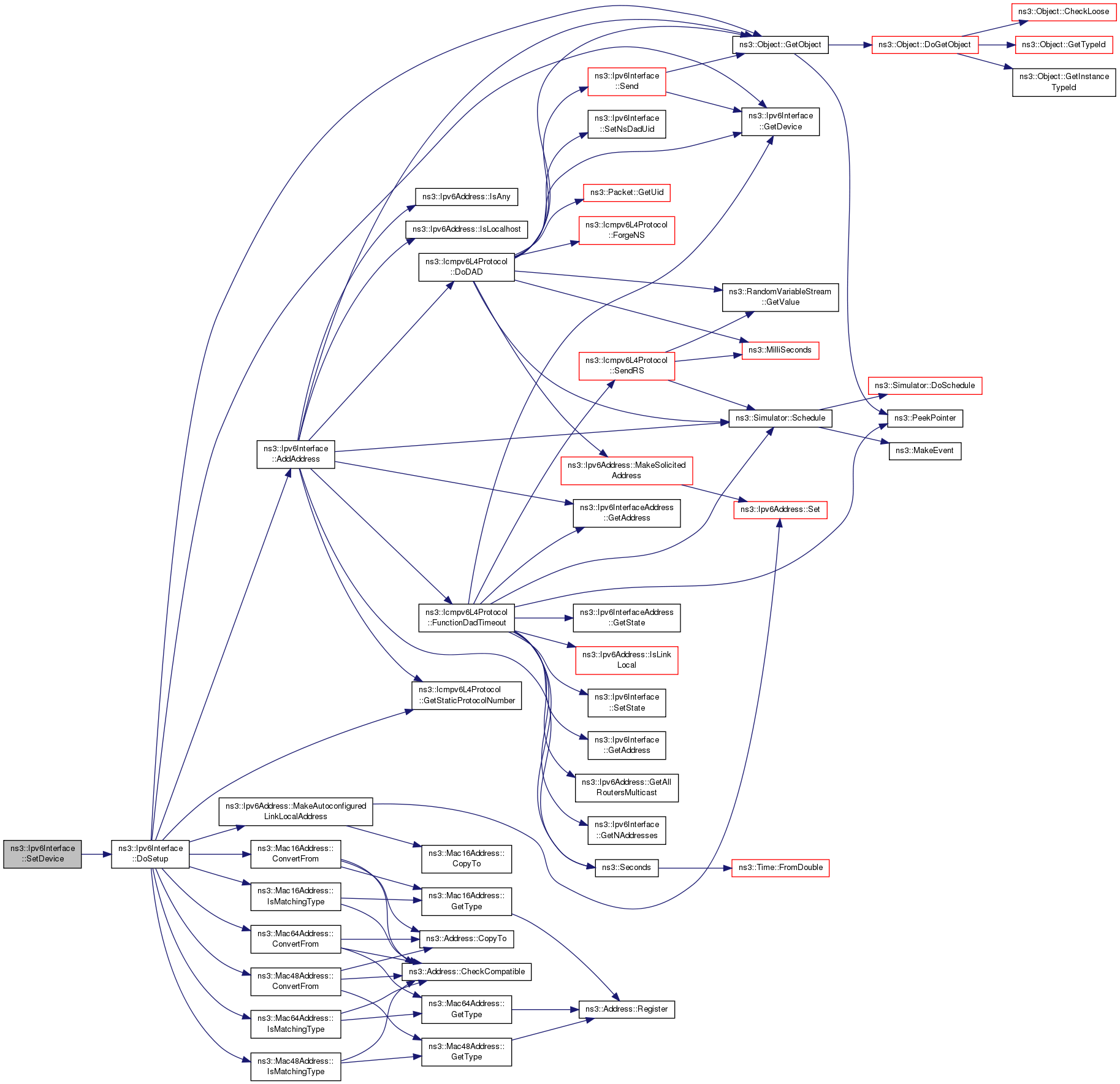

Here is the call graph for this function:

void ns3::Ipv6Interface::SetDown ( void )

Disable this interface.

Definition at line 185 of file ipv6-interface.cc.

References ns3::NdiscCache::Flush(), m_addresses, m_ifup, m_ndCache, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::SetDown().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetForwarding ( bool forward )

Set forwarding enabled or not.

Parameters

forward forwarding state

Definition at line 199 of file ipv6-interface.cc.

References m_forwarding, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetForwarding().

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetMetric ( uint16_t metric )

Set the metric.

Parameters

metric configured routing metric (cost) of this interface

Definition at line 150 of file ipv6-interface.cc.

References m_metric, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::SetMetric().

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetNode ( Ptr< Node > node )

Set node associated with interface.

Parameters

node node

Definition at line 130 of file ipv6-interface.cc.

References DoSetup(), m_node, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Ipv6Interface::SetNsDadUid	(	Ipv6Address	address,
		uint32_t	uid
	)

Update NS DAD packet UID of an interface address.

Parameters

address	IPv6 address
uid	packet UID

Definition at line 494 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::DoDAD().

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetReachableTime ( uint16_t reachableTime )

Set the reachable time.

Parameters

reachableTime value to set

Definition at line 455 of file ipv6-interface.cc.

References m_reachableTime, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetRetransTimer ( uint16_t retransTimer )

Set the retransmission timer.

Parameters

retransTimer value to set

Definition at line 467 of file ipv6-interface.cc.

References m_retransTimer, and NS_LOG_FUNCTION.

void ns3::Ipv6Interface::SetState	(	Ipv6Address	address,
		Ipv6InterfaceAddress::State_e	state
	)

Update state of an interface address.

Parameters

address	IPv6 address
state	new state

Definition at line 479 of file ipv6-interface.cc.

References first::address, m_addresses, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::FunctionDadTimeout(), and ns3::Icmpv6L4Protocol::HandleNA().

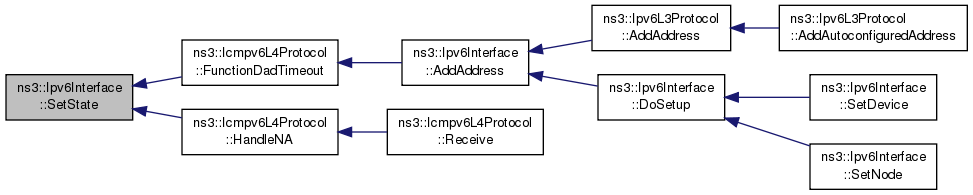

Here is the caller graph for this function:

void ns3::Ipv6Interface::SetUp ( void )

Enable this interface.

Definition at line 174 of file ipv6-interface.cc.

References m_ifup, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv6L3Protocol::SetUp().

Here is the caller graph for this function:

Member Data Documentation

Ipv6InterfaceAddressList ns3::Ipv6Interface::m_addresses

private

The addresses assigned to this interface.

Definition at line 289 of file ipv6-interface.h.

Referenced by AddAddress(), GetAddress(), GetAddressMatchingDestination(), GetLinkLocalAddress(), GetNAddresses(), RemoveAddress(), Send(), SetDown(), SetNsDadUid(), and SetState().

uint16_t ns3::Ipv6Interface::m_baseReachableTime

private

Base value used for computing the random reachable time value (in millisecond).

Definition at line 329 of file ipv6-interface.h.

Referenced by GetBaseReachableTime(), and SetBaseReachableTime().

uint8_t ns3::Ipv6Interface::m_curHopLimit

private

Current hop limit.

Definition at line 324 of file ipv6-interface.h.

Referenced by GetCurHopLimit(), and SetCurHopLimit().

Ptr<NetDevice> ns3::Ipv6Interface::m_device

private

NetDevice associated with this interface.

Definition at line 314 of file ipv6-interface.h.

Referenced by DoDispose(), DoSetup(), GetDevice(), Send(), and SetDevice().

bool ns3::Ipv6Interface::m_forwarding

private

Forwarding state.

Definition at line 299 of file ipv6-interface.h.

Referenced by IsForwarding(), and SetForwarding().

bool ns3::Ipv6Interface::m_ifup

private

The state of this interface.

Definition at line 294 of file ipv6-interface.h.

Referenced by IsDown(), IsUp(), SetDown(), and SetUp().

uint16_t ns3::Ipv6Interface::m_metric

private

The metric.

Definition at line 304 of file ipv6-interface.h.

Referenced by GetMetric(), and SetMetric().

Ptr<NdiscCache> ns3::Ipv6Interface::m_ndCache

private

Neighbor cache.

Definition at line 319 of file ipv6-interface.h.

Referenced by DoDispose(), DoSetup(), GetNdiscCache(), Send(), and SetDown().

Ptr<Node> ns3::Ipv6Interface::m_node

private

Node associated with this interface.

Definition at line 309 of file ipv6-interface.h.

Referenced by AddAddress(), DoDispose(), DoSetup(), Send(), and SetNode().

uint16_t ns3::Ipv6Interface::m_reachableTime

private

Reachable time (in millisecond).

The time a neighbor is considered reachable after receiving a reachability confirmation.

Definition at line 335 of file ipv6-interface.h.

Referenced by GetReachableTime(), and SetReachableTime().

uint16_t ns3::Ipv6Interface::m_retransTimer

private

Retransmission timer (in millisecond).

Time between retransmission of NS.

Definition at line 341 of file ipv6-interface.h.

Referenced by GetRetransTimer(), and SetRetransTimer().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-interface.h
src/internet/model/ipv6-interface.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
