Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler. More...

#include <lte-rrc-protocol-real.h>

Inheritance diagram for ns3::LteEnbRrcProtocolReal:

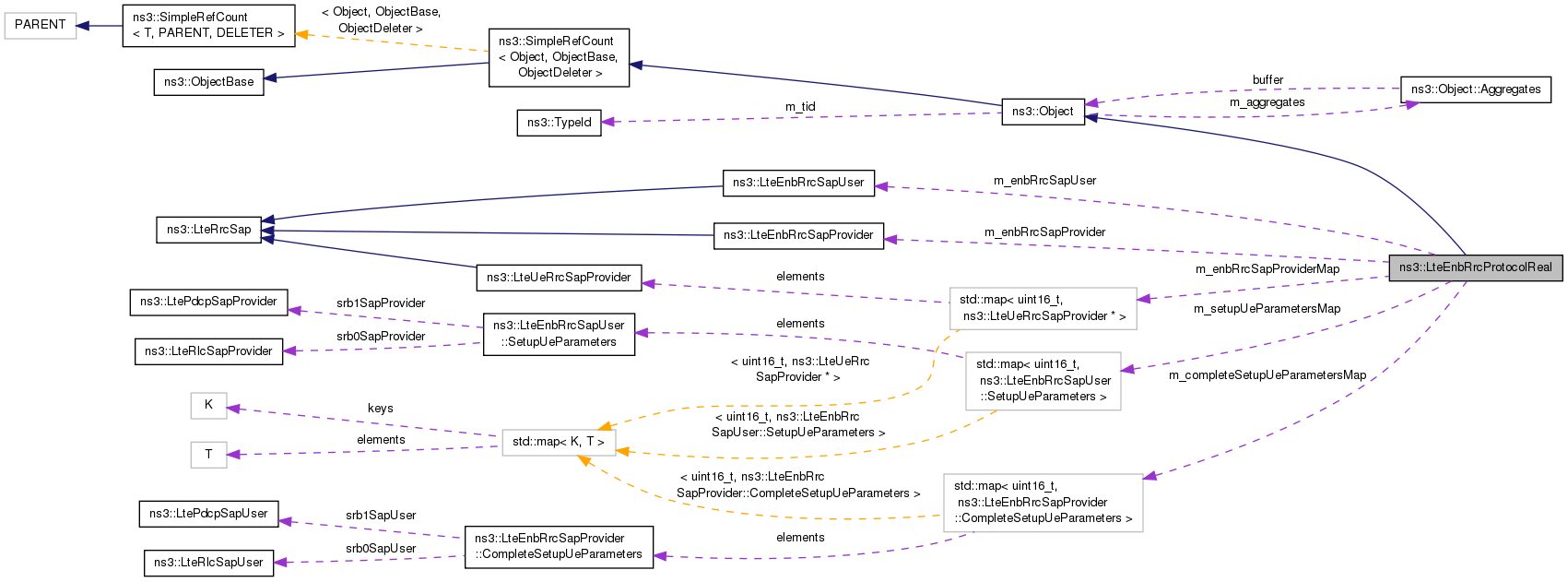

Collaboration diagram for ns3::LteEnbRrcProtocolReal:

Public Member Functions
	LteEnbRrcProtocolReal ()

virtual	~LteEnbRrcProtocolReal ()

virtual void	DoDispose (void)
	Destructor implementation. More...

LteEnbRrcSapUser *	GetLteEnbRrcSapUser ()

LteUeRrcSapProvider *	GetUeRrcSapProvider (uint16_t rnti)

void	SetCellId (uint16_t cellId)

void	SetLteEnbRrcSapProvider (LteEnbRrcSapProvider *p)

void	SetUeRrcSapProvider (uint16_t rnti, LteUeRrcSapProvider *p)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
LteRrcSap::RrcConnectionReconfiguration	DoDecodeHandoverCommand (Ptr< Packet > p)

LteRrcSap::HandoverPreparationInfo	DoDecodeHandoverPreparationInformation (Ptr< Packet > p)

Ptr< Packet >	DoEncodeHandoverCommand (LteRrcSap::RrcConnectionReconfiguration msg)

Ptr< Packet >	DoEncodeHandoverPreparationInformation (LteRrcSap::HandoverPreparationInfo msg)

void	DoReceivePdcpPdu (uint16_t rnti, Ptr< Packet > p)

void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void	DoRemoveUe (uint16_t rnti)

void	DoSendRrcConnectionReconfiguration (uint16_t rnti, LteRrcSap::RrcConnectionReconfiguration msg)

void	DoSendRrcConnectionReestablishment (uint16_t rnti, LteRrcSap::RrcConnectionReestablishment msg)

void	DoSendRrcConnectionReestablishmentReject (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentReject msg)

void	DoSendRrcConnectionReject (uint16_t rnti, LteRrcSap::RrcConnectionReject msg)

void	DoSendRrcConnectionRelease (uint16_t rnti, LteRrcSap::RrcConnectionRelease msg)

void	DoSendRrcConnectionSetup (uint16_t rnti, LteRrcSap::RrcConnectionSetup msg)

void	DoSendSystemInformation (LteRrcSap::SystemInformation msg)

void	DoSetupUe (uint16_t rnti, LteEnbRrcSapUser::SetupUeParameters params)

void	SendSystemInformation (LteRrcSap::SystemInformation msg)

Private Attributes
uint16_t	m_cellId

std::map< uint16_t, LteEnbRrcSapProvider::CompleteSetupUeParameters >	m_completeSetupUeParametersMap

LteEnbRrcSapProvider *	m_enbRrcSapProvider

std::map< uint16_t, LteUeRrcSapProvider * >	m_enbRrcSapProviderMap

LteEnbRrcSapUser *	m_enbRrcSapUser

uint16_t	m_rnti

std::map< uint16_t, LteEnbRrcSapUser::SetupUeParameters >	m_setupUeParametersMap

Friends
class	LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >

class	LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >

class	MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >

class	RealProtocolRlcSapUser

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 192 bytes (on a 64-bit architecture).

Definition at line 104 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

ns3::LteEnbRrcProtocolReal::LteEnbRrcProtocolReal ( )

Definition at line 354 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrcProtocolReal::~LteEnbRrcProtocolReal ( )

virtual

Definition at line 361 of file lte-rrc-protocol-real.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

LteRrcSap::RrcConnectionReconfiguration ns3::LteEnbRrcProtocolReal::DoDecodeHandoverCommand ( Ptr< Packet > p )

private

Definition at line 756 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionReconfigurationHeader::GetMessage(), and ns3::Packet::RemoveHeader().

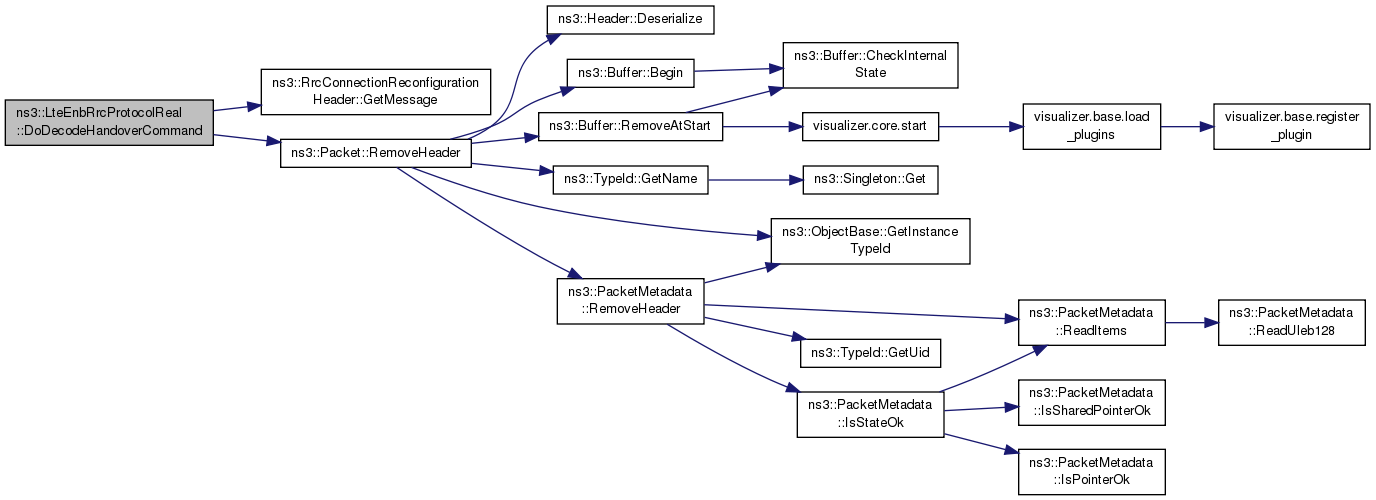

Here is the call graph for this function:

LteRrcSap::HandoverPreparationInfo ns3::LteEnbRrcProtocolReal::DoDecodeHandoverPreparationInformation ( Ptr< Packet > p )

private

Definition at line 737 of file lte-rrc-protocol-real.cc.

References ns3::HandoverPreparationInfoHeader::GetMessage(), and ns3::Packet::RemoveHeader().

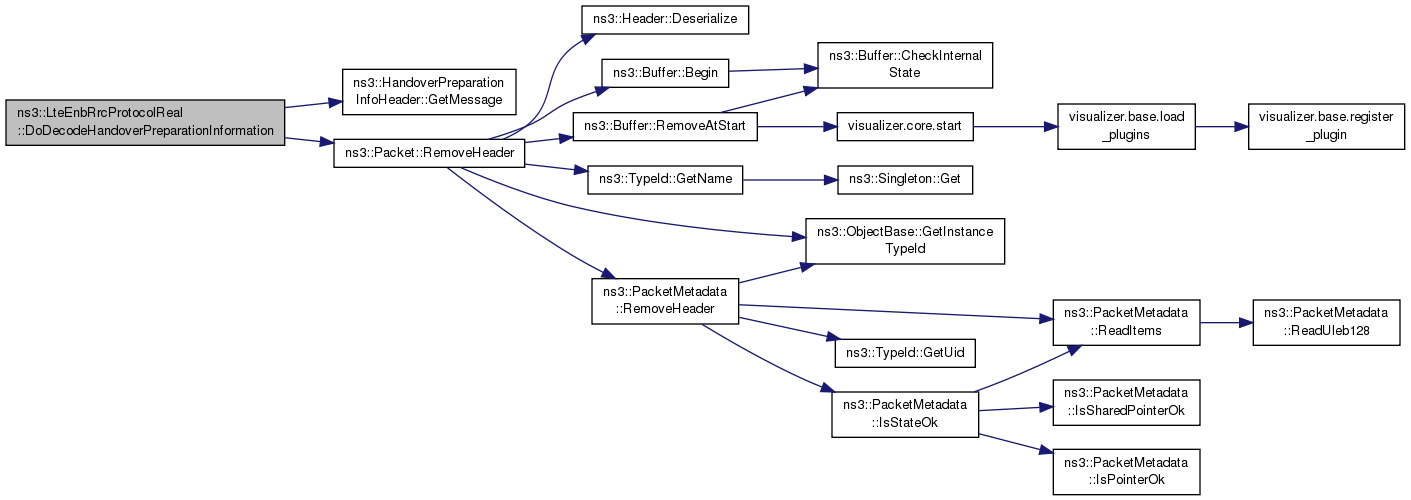

Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 367 of file lte-rrc-protocol-real.cc.

References m_completeSetupUeParametersMap, m_enbRrcSapUser, and NS_LOG_FUNCTION.

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverCommand ( LteRrcSap::RrcConnectionReconfiguration msg )

private

Definition at line 746 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), and ns3::RrcConnectionReconfigurationHeader::SetMessage().

Here is the call graph for this function:
