Implement the header for management frames of type association response. More...

#include <mgt-headers.h>

Inheritance diagram for ns3::MgtAssocResponseHeader:

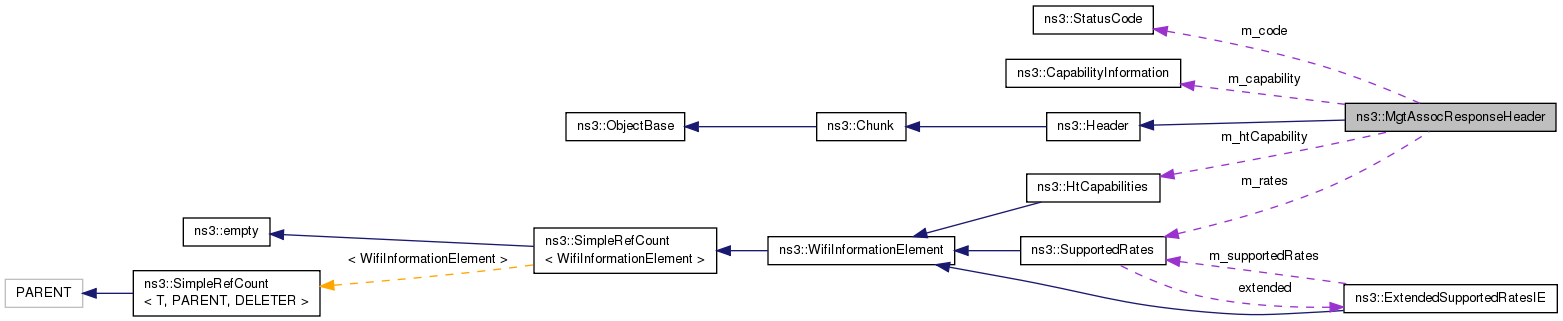

Collaboration diagram for ns3::MgtAssocResponseHeader:

Public Member Functions
	MgtAssocResponseHeader ()

	~MgtAssocResponseHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize (void) const

StatusCode	GetStatusCode (void)
	Return the status code. More...

SupportedRates	GetSupportedRates (void)
	Return the supported rates. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetHtCapabilities (HtCapabilities htcapabilities)
	Set the HT capabilities. More...

void	SetStatusCode (StatusCode code)
	Set the status code. More...

void	SetSupportedRates (SupportedRates rates)
	Set the supported rates. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_aid

CapabilityInformation	m_capability
	Capability information. More...

StatusCode	m_code
	Status code. More...

HtCapabilities	m_htCapability
	HT capabilities. More...

SupportedRates	m_rates
	List of supported rates. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implement the header for management frames of type association response.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 224 bytes (on a 64-bit architecture).

Definition at line 116 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtAssocResponseHeader::MgtAssocResponseHeader ( )

Definition at line 375 of file mgt-headers.cc.

ns3::MgtAssocResponseHeader::~MgtAssocResponseHeader ( )

Definition at line 379 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtAssocResponseHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 461 of file mgt-headers.cc.

References ns3::StatusCode::Deserialize(), ns3::CapabilityInformation::Deserialize(), ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_aid, m_capability, m_code, m_htCapability, m_rates, ns3::Buffer::Iterator::ReadLsbtohU16(), and visualizer.core::start().

Here is the call graph for this function:

HtCapabilities ns3::MgtAssocResponseHeader::GetHtCapabilities ( void ) const

Return the HT capabilities.

Returns: HT capabilities

Definition at line 410 of file mgt-headers.cc.

References m_htCapability.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::MgtAssocResponseHeader::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 425 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::MgtAssocResponseHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 430 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::StatusCode::GetSerializedSize(), ns3::CapabilityInformation::GetSerializedSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::HtCapabilities::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_capability, m_code, m_htCapability, and m_rates.

Here is the call graph for this function:

StatusCode ns3::MgtAssocResponseHeader::GetStatusCode ( void )

Return the status code.

Returns: the status code

Definition at line 384 of file mgt-headers.cc.

References m_code.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

SupportedRates ns3::MgtAssocResponseHeader::GetSupportedRates ( void )

Return the supported rates.

Returns: the supported rates

Definition at line 389 of file mgt-headers.cc.

References m_rates.

Referenced by ns3::StaWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::MgtAssocResponseHeader::GetTypeId ( void )

static

Definition at line 415 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MgtAssocResponseHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 443 of file mgt-headers.cc.

References m_code, m_htCapability, and m_rates.

void ns3::MgtAssocResponseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 450 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_aid, m_capability, m_code, m_htCapability, m_rates, ns3::StatusCode::Serialize(), ns3::ExtendedSupportedRatesIE::Serialize(), ns3::CapabilityInformation::Serialize(), ns3::HtCapabilities::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

Here is the call graph for this function:

void ns3::MgtAssocResponseHeader::SetHtCapabilities ( HtCapabilities htcapabilities )

Set the HT capabilities.

Parameters

htcapabilities HT capabilities

Definition at line 404 of file mgt-headers.cc.

References m_htCapability.

void ns3::MgtAssocResponseHeader::SetStatusCode ( StatusCode code )

Set the status code.

Parameters

code	the status code

Definition at line 394 of file mgt-headers.cc.

References m_code.

void ns3::MgtAssocResponseHeader::SetSupportedRates ( SupportedRates rates )

Set the supported rates.

Parameters

rates the supported rates

Definition at line 399 of file mgt-headers.cc.

References m_rates.

Member Data Documentation

uint16_t ns3::MgtAssocResponseHeader::m_aid

private

Definition at line 171 of file mgt-headers.h.

Referenced by Deserialize(), and Serialize().

CapabilityInformation ns3::MgtAssocResponseHeader::m_capability

private

Capability information.

Definition at line 169 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

StatusCode ns3::MgtAssocResponseHeader::m_code

private

Status code.

Definition at line 170 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetStatusCode(), Print(), Serialize(), and SetStatusCode().

HtCapabilities ns3::MgtAssocResponseHeader::m_htCapability

private

HT capabilities.

Definition at line 172 of file mgt-headers.h.

Referenced by Deserialize(), GetHtCapabilities(), GetSerializedSize(), Print(), Serialize(), and SetHtCapabilities().

SupportedRates ns3::MgtAssocResponseHeader::m_rates

private

List of supported rates.

Definition at line 168 of file mgt-headers.h.

Referenced by Deserialize(), GetSerializedSize(), GetSupportedRates(), Print(), Serialize(), and SetSupportedRates().

The documentation for this class was generated from the following files:

src/wifi/model/mgt-headers.h
src/wifi/model/mgt-headers.cc
