ns3::RandomVariableStream Class Referenceabstract
Core » Random Variables

The Random Number Generator (RNG) that allows stream numbers to be set deterministically. More...

#include <random-variable-stream.h>

+ Inheritance diagram for ns3::RandomVariableStream:
+ Collaboration diagram for ns3::RandomVariableStream:

Public Member Functions

 RandomVariableStream ()

virtual ~RandomVariableStream ()

virtual uint32_t GetInteger (void)=0
 Returns a random integer integer from the underlying distribution. More...

int64_t GetStream (void) const
 Returns the stream number for this RNG stream. More...

virtual double GetValue (void)=0
 Returns a random double from the underlying distribution. More...

bool IsAntithetic (void) const
 Returns true if antithetic values should be generated. More...

void SetAntithetic (bool isAntithetic)
 Specifies whether antithetic values should be generated. More...

void SetStream (int64_t stream)
 Specifies the stream number for this RNG stream. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

RngStream * Peek (void) const
 Returns a pointer to the underlying RNG stream. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

 RandomVariableStream (const RandomVariableStream &o)

RandomVariableStream & operator= (const RandomVariableStream &o)


Private Attributes

bool m_isAntithetic
 Indicates if antithetic values should be generated by this RNG stream. More...

RngStream * m_rng
 Pointer to the underlying RNG stream. More...

int64_t m_stream
 The stream number for this RNG stream. More...


Additional Inherited Members

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

The Random Number Generator (RNG) that allows stream numbers to be set deterministically.

Note: The underlying random number generation method used by NS-3 is the RngStream code by Pierre L'Ecuyer at the University of Montreal.

NS-3 has a rich set of random number generators that allow stream numbers to be set deterministically if desired. Class RandomVariableStream defines the base class functionalty required for all such random number generators.

By default, the underlying generator is seeded all the time with the same seed value and run number coming from the ns3::GlobalValue RngSeed and RngRun. Also by default, the stream number value for this RNG stream is automatically allocated.

Config Paths

ns3::RandomVariableStream is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime"
  • "/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection"
  • "/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch"
  • "/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter"
  • "/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"
  • "/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable"
  • "/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable"

Attributes

  • Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
    • Set with class: ns3::IntegerValue
    • Underlying type: int64_t -9223372036854775808:9223372036854775807
    • Initial value: -1
    • Flags: construct write read
  • Antithetic: Set this RNG stream to generate antithetic values
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: false
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 87 of file random-variable-stream.h.

Constructor & Destructor Documentation

ns3::RandomVariableStream::RandomVariableStream ( )

Definition at line 74 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

ns3::RandomVariableStream::~RandomVariableStream ( )
virtual

Definition at line 79 of file random-variable-stream.cc.

References m_rng, and NS_LOG_FUNCTION.

ns3::RandomVariableStream::RandomVariableStream ( const RandomVariableStream &  o)
private

Member Function Documentation

virtual uint32_t ns3::RandomVariableStream::GetInteger ( void  )
pure virtual

Returns a random integer integer from the underlying distribution.

Returns
Integer cast of RandomVariableStream::GetValue

Implemented in ns3::EmpiricalRandomVariable, ns3::DeterministicRandomVariable, ns3::ZetaRandomVariable, ns3::ZipfRandomVariable, ns3::TriangularRandomVariable, ns3::ErlangRandomVariable, ns3::GammaRandomVariable, ns3::LogNormalRandomVariable, ns3::NormalRandomVariable, ns3::WeibullRandomVariable, ns3::ParetoRandomVariable, ns3::ExponentialRandomVariable, ns3::SequentialRandomVariable, ns3::ConstantRandomVariable, and ns3::UniformRandomVariable.

Referenced by ns3::BurstErrorModel::DoCorrupt().

+ Here is the caller graph for this function:

int64_t ns3::RandomVariableStream::GetStream ( void  ) const

Returns the stream number for this RNG stream.

Returns
The stream number for this RNG stream. -1 means "allocate a stream number automatically".

Definition at line 127 of file random-variable-stream.cc.

References m_stream, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

TypeId ns3::RandomVariableStream::GetTypeId ( void  )
static

Register this type.

Returns
The object TypeId.

Definition at line 52 of file random-variable-stream.cc.

References GetStream(), IsAntithetic(), ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeIntegerAccessor(), SetAntithetic(), ns3::TypeId::SetParent(), and SetStream().

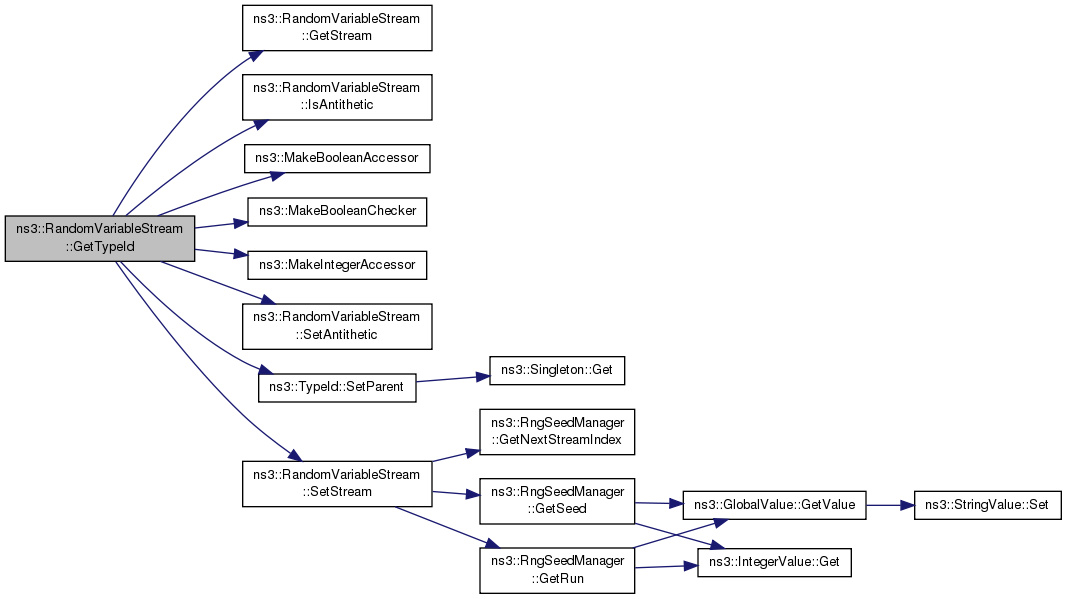

+ Here is the call graph for this function:

virtual double ns3::RandomVariableStream::GetValue ( void  )
pure virtual

Returns a random double from the underlying distribution.

Returns
A floating point random value.

Implemented in ns3::EmpiricalRandomVariable, ns3::DeterministicRandomVariable, ns3::ZetaRandomVariable, ns3::ZipfRandomVariable, ns3::TriangularRandomVariable, ns3::ErlangRandomVariable, ns3::GammaRandomVariable, ns3::LogNormalRandomVariable, ns3::NormalRandomVariable, ns3::WeibullRandomVariable, ns3::ParetoRandomVariable, ns3::ExponentialRandomVariable, ns3::SequentialRandomVariable, ns3::ConstantRandomVariable, and ns3::UniformRandomVariable.

Referenced by ns3::RandomDirection2dMobilityModel::BeginPause(), ns3::RandomWaypointMobilityModel::BeginWalk(), ns3::BasicEnergyHarvester::CalculateHarvestedPower(), ns3::RandomPropagationLossModel::DoCalcRxPower(), ns3::BurstErrorModel::DoCorrupt(), ns3::RateErrorModel::DoCorruptBit(), ns3::RateErrorModel::DoCorruptByte(), ns3::RateErrorModel::DoCorruptPkt(), ns3::Icmpv6L4Protocol::DoDAD(), ns3::RandomWaypointMobilityModel::DoInitializePrivate(), ns3::RandomWalk2dMobilityModel::DoInitializePrivate(), ns3::RandomPropagationDelayModel::GetDelay(), ns3::RandomRectanglePositionAllocator::GetNext(), ns3::RandomBoxPositionAllocator::GetNext(), ns3::RandomDiscPositionAllocator::GetNext(), ns3::SequentialRandomVariable::GetValue(), Histogramm(), ns3::ArpL3Protocol::Lookup(), ns3::OnOffApplication::ScheduleStartEvent(), ns3::OnOffApplication::ScheduleStopEvent(), ns3::Icmpv6L4Protocol::SendNS(), ns3::Icmpv6L4Protocol::SendRS(), ns3::RandomDirection2dMobilityModel::SetDirectionAndSpeed(), and ns3::GaussMarkovMobilityModel::Start().

+ Here is the caller graph for this function:

bool ns3::RandomVariableStream::IsAntithetic ( void  ) const

Returns true if antithetic values should be generated.

Returns
A bool value that indicates if antithetic values should be generated by this RNG stream.

Definition at line 92 of file random-variable-stream.cc.

References m_isAntithetic, and NS_LOG_FUNCTION.

Referenced by ns3::ErlangRandomVariable::GetExponentialValue(), ns3::GammaRandomVariable::GetNormalValue(), GetTypeId(), ns3::UniformRandomVariable::GetValue(), ns3::ExponentialRandomVariable::GetValue(), ns3::ParetoRandomVariable::GetValue(), ns3::WeibullRandomVariable::GetValue(), ns3::NormalRandomVariable::GetValue(), ns3::LogNormalRandomVariable::GetValue(), ns3::GammaRandomVariable::GetValue(), ns3::TriangularRandomVariable::GetValue(), ns3::ZipfRandomVariable::GetValue(), ns3::ZetaRandomVariable::GetValue(), and ns3::EmpiricalRandomVariable::GetValue().

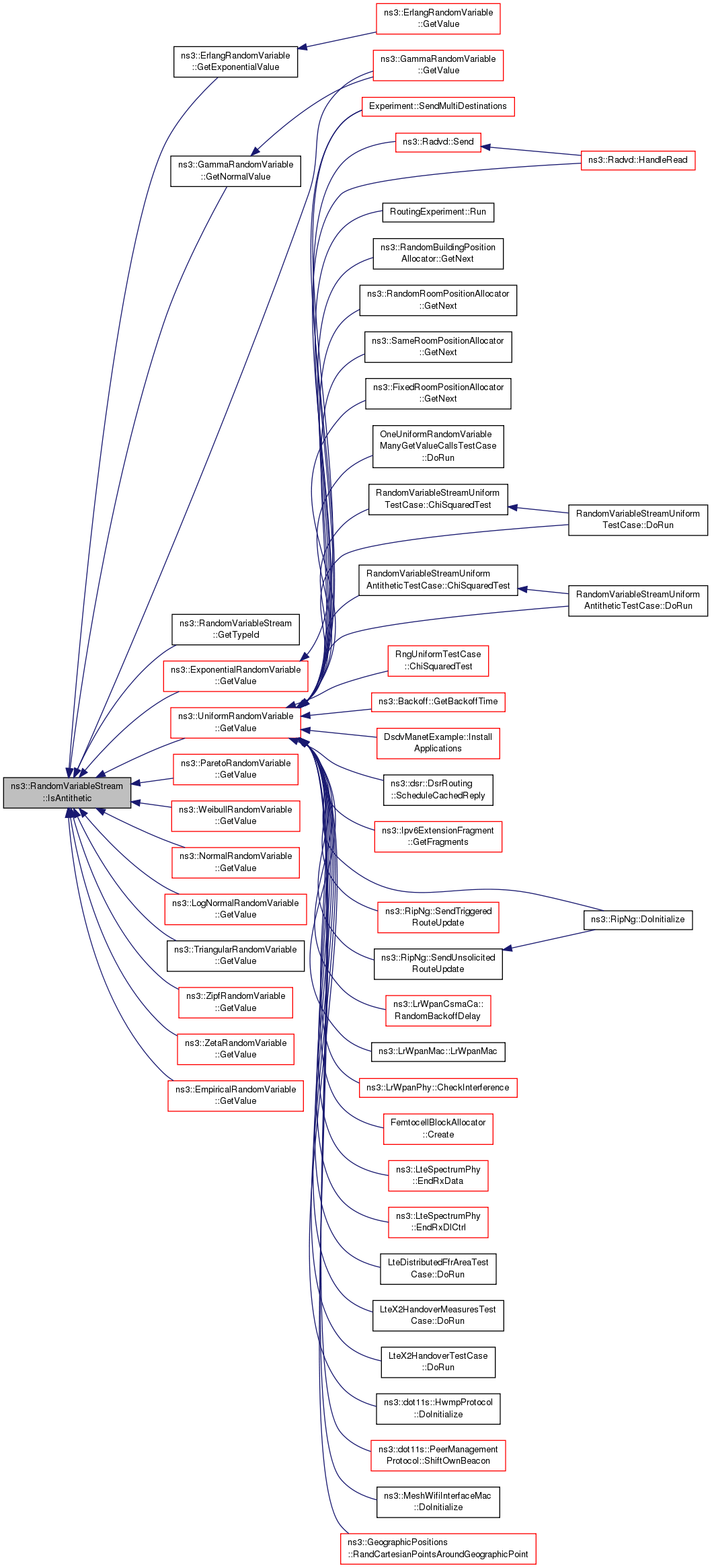

+ Here is the caller graph for this function:

RandomVariableStream& ns3::RandomVariableStream::operator= ( const RandomVariableStream &  o)
private
RngStream * ns3::RandomVariableStream::Peek ( void  ) const
protected

Returns a pointer to the underlying RNG stream.

Definition at line 134 of file random-variable-stream.cc.

References m_rng, and NS_LOG_FUNCTION.

Referenced by ns3::ErlangRandomVariable::GetExponentialValue(), ns3::GammaRandomVariable::GetNormalValue(), ns3::UniformRandomVariable::GetValue(), ns3::ExponentialRandomVariable::GetValue(), ns3::ParetoRandomVariable::GetValue(), ns3::WeibullRandomVariable::GetValue(), ns3::NormalRandomVariable::GetValue(), ns3::LogNormalRandomVariable::GetValue(), ns3::GammaRandomVariable::GetValue(), ns3::TriangularRandomVariable::GetValue(), ns3::ZipfRandomVariable::GetValue(), ns3::ZetaRandomVariable::GetValue(), and ns3::EmpiricalRandomVariable::GetValue().

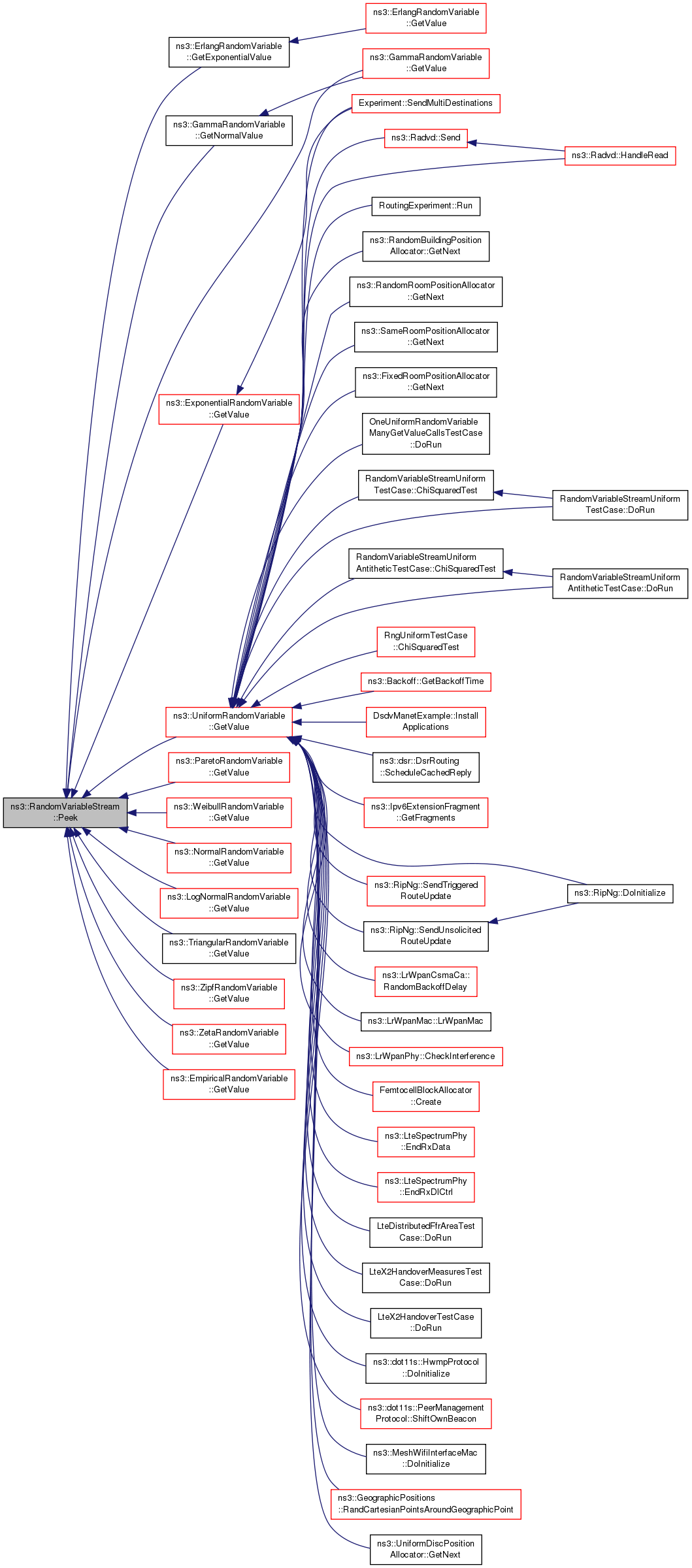

+ Here is the caller graph for this function:

void ns3::RandomVariableStream::SetAntithetic ( bool  isAntithetic)

Specifies whether antithetic values should be generated.

Parameters
isAntitheticSet equal to true if antithetic values should be generated by this RNG stream.

Definition at line 86 of file random-variable-stream.cc.

References m_isAntithetic, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::RandomVariableStream::SetStream ( int64_t  stream)

Specifies the stream number for this RNG stream.

Parameters
streamThe stream number for this RNG stream. -1 means "allocate a stream number automatically".

Definition at line 98 of file random-variable-stream.cc.

References ns3::RngSeedManager::GetNextStreamIndex(), ns3::RngSeedManager::GetRun(), ns3::RngSeedManager::GetSeed(), m_rng, m_stream, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::RandomBuildingPositionAllocator::AssignStreams(), ns3::RandomVariableStreamHelper::AssignStreams(), ns3::RealRandomStream::AssignStreams(), ns3::LteUeMac::AssignStreams(), ns3::BriteTopologyHelper::AssignStreams(), ns3::BasicEnergyHarvester::AssignStreams(), ns3::BsmApplication::AssignStreams(), ns3::UanMacCw::AssignStreams(), ns3::dsdv::RoutingProtocol::AssignStreams(), ns3::RandomRoomPositionAllocator::AssignStreams(), ns3::Radvd::AssignStreams(), ns3::dot11s::HwmpProtocol::AssignStreams(), ns3::aodv::RoutingProtocol::AssignStreams(), ns3::Backoff::AssignStreams(), ns3::MinstrelWifiManager::AssignStreams(), ns3::ApWifiMac::AssignStreams(), ns3::ArpL3Protocol::AssignStreams(), ns3::olsr::RoutingProtocol::AssignStreams(), ns3::OnOffApplication::AssignStreams(), ns3::SameRoomPositionAllocator::AssignStreams(), ns3::Ipv6Extension::AssignStreams(), ns3::MeshWifiInterfaceMac::AssignStreams(), ns3::SixLowPanNetDevice::AssignStreams(), ns3::dot11s::PeerManagementProtocol::AssignStreams(), ns3::RedQueue::AssignStreams(), ns3::FixedRoomPositionAllocator::AssignStreams(), ns3::SimpleOfdmWimaxPhy::AssignStreams(), ns3::UanMacRc::AssignStreams(), ns3::TvSpectrumTransmitterHelper::AssignStreams(), ns3::RandomRectanglePositionAllocator::AssignStreams(), ns3::RipNg::AssignStreams(), ns3::Ipv4GlobalRouting::AssignStreams(), ns3::LrWpanCsmaCa::AssignStreams(), ns3::RateErrorModel::AssignStreams(), ns3::RandomBoxPositionAllocator::AssignStreams(), ns3::UanPhyGen::AssignStreams(), ns3::RandomDiscPositionAllocator::AssignStreams(), ns3::YansWifiPhy::AssignStreams(), ns3::BurstErrorModel::AssignStreams(), ns3::UniformDiscPositionAllocator::AssignStreams(), ns3::LteSpectrumPhy::AssignStreams(), ns3::Icmpv6L4Protocol::AssignStreams(), ns3::LrWpanPhy::AssignStreams(), ns3::dsr::DsrRouting::AssignStreams(), ns3::JakesPropagationLossModel::DoAssignStreams(), ns3::RandomWaypointMobilityModel::DoAssignStreams(), ns3::RandomDirection2dMobilityModel::DoAssignStreams(), ns3::RandomWalk2dMobilityModel::DoAssignStreams(), ns3::SteadyStateRandomWaypointMobilityModel::DoAssignStreams(), ns3::RandomPropagationDelayModel::DoAssignStreams(), ns3::GaussMarkovMobilityModel::DoAssignStreams(), ns3::RandomPropagationLossModel::DoAssignStreams(), LteX2HandoverTestCase::DoRun(), ErrorModelSimple::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), BurstErrorModelSimple::DoRun(), GetTypeId(), RandCartAroundGeoTestSuite::RandCartAroundGeoTestSuite(), and RoutingHelper::SetupRoutingMessages().

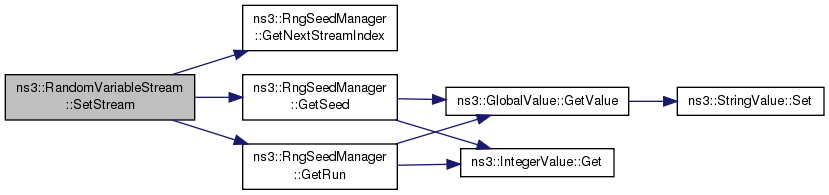

+ Here is the call graph for this function:

Member Data Documentation

bool ns3::RandomVariableStream::m_isAntithetic
private

Indicates if antithetic values should be generated by this RNG stream.

Definition at line 153 of file random-variable-stream.h.

Referenced by IsAntithetic(), and SetAntithetic().

RngStream* ns3::RandomVariableStream::m_rng
private

Pointer to the underlying RNG stream.

Definition at line 150 of file random-variable-stream.h.

Referenced by Peek(), SetStream(), and ~RandomVariableStream().

int64_t ns3::RandomVariableStream::m_stream
private

The stream number for this RNG stream.

Definition at line 156 of file random-variable-stream.h.

Referenced by GetStream(), and SetStream().

The documentation for this class was generated from the following files:
