LOWPAN_IPHC base Encoding - see RFC 6282. More...

#include <sixlowpan-header.h>

Inheritance diagram for ns3::SixLowPanIphc:

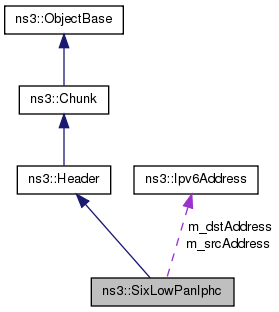

Collaboration diagram for ns3::SixLowPanIphc:

Public Types
enum	HeaderCompression_e { HC_INLINE = 0, HC_COMPR_64, HC_COMPR_16, HC_COMPR_0 }
	Source or Destination Address Mode. More...

enum	Hlim_e { HLIM_INLINE = 0, HLIM_COMPR_1, HLIM_COMPR_64, HLIM_COMPR_255 }
	HLIM: Hop Limit. More...

enum	TrafficClassFlowLabel_e { TF_FULL = 0, TF_DSCP_ELIDED, TF_FL_ELIDED, TF_ELIDED }
	TF: Traffic Class, Flow Label. More...

Public Member Functions
	SixLowPanIphc (void)

	SixLowPanIphc (uint8_t dispatch)
	Constructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

bool	GetCid (void) const
	Get the CID (Context Identifier Extension) compression. More...

bool	GetDac (void) const
	Get the DAC (Destination Address Compression) compression. More...

HeaderCompression_e	GetDam (void) const
	Get the DAM (Destination Address Mode) compression. More...

uint8_t	GetDscp (void) const
	Get the DSCP. More...

Ipv6Address	GetDstAddress () const
	Get the Destination Address. More...

uint8_t	GetDstContextId (void) const
	Get the DstContextId. More...

uint8_t	GetEcn (void) const
	Get the ECN. More...

uint32_t	GetFlowLabel (void) const
	Get the Flow Label. More...

Hlim_e	GetHlim (void) const
	Get the HLIM (Hop Limit) compression. More...

uint8_t	GetHopLimit (void) const
	Get the Hop Limit field. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

bool	GetM (void) const
	Get the M (Multicast) compression. More...

uint8_t	GetNextHeader (void) const
	Get the Next Header field. More...

bool	GetNh (void) const
	Get the NH (Next Header) compression. More...

bool	GetSac (void) const
	Get the SAC (Source Address Compression) compression. More...

HeaderCompression_e	GetSam (void) const
	Get the SAM (Source Address Mode) compression. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

Ipv6Address	GetSrcAddress () const
	Get the Source Address. More...

uint8_t	GetSrcContextId (void) const
	Get the SrcContextId. More...

TrafficClassFlowLabel_e	GetTf (void) const
	Get the TF (Traffic Class, Flow Label) compression. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetCid (bool cidField)
	Set the CID (Context Identifier Extension) compression. More...

void	SetDac (bool dacField)
	Set the DAC (Destination Address Compression) compression. More...

void	SetDam (HeaderCompression_e damField)
	Set the DAM (Destination Address Mode) compression. More...

void	SetDscp (uint8_t dscp)
	Set the DSCP (6bits). More...

void	SetDstAddress (Ipv6Address dstAddress)
	Set the Destination Address. More...

void	SetDstContextId (uint8_t dstContextId)
	Set the DstContextId. More...

void	SetEcn (uint8_t ecn)
	Set the ECN (2bits). More...

void	SetFlowLabel (uint32_t flowLabel)
	Set the Flow Label (20bits). More...

void	SetHlim (Hlim_e hlimField)
	Set the HLIM (Hop Limit) compression. More...

void	SetHopLimit (uint8_t hopLimit)
	Set the Hop Limit field. More...

void	SetM (bool mField)
	Set the M (Multicast) compression. More...

void	SetNextHeader (uint8_t nextHeader)
	Set the Next Header field. More...

void	SetNh (bool nhField)
	Set the NH (Next Header) compression. More...

void	SetSac (bool sacField)
	Set the SAC (Source Address Compression) compression. More...

void	SetSam (HeaderCompression_e samField)
	Set the SAM (Source Address Mode) compression. More...

void	SetSrcAddress (Ipv6Address srcAddress)
	Set the Source Address. More...

void	SetSrcContextId (uint8_t srcContextId)
	Set the SrcContextId. More...

void	SetTf (TrafficClassFlowLabel_e tfField)
	Set the TF (Traffic Class, Flow Label) compression. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	PostProcessDac ()
	Post-process the Destination address stateful compression. More...

void	PostProcessSac ()
	Post-process the Source address stateful compression. More...

Private Attributes
uint16_t	m_baseFormat
	Dispatch + encoding fields. More...

uint8_t	m_dscp: 6
	DSCP bits. More...

Ipv6Address	m_dstAddress
	Dst address. More...

uint8_t	m_ecn: 2
	ECN bits. More...

uint32_t	m_flowLabel: 20
	Flow Label bits. More...

uint8_t	m_hopLimit
	Hop Limit. More...

uint8_t	m_nextHeader
	Next header. More...

Ipv6Address	m_srcAddress
	Src address. More...

uint8_t	m_srcdstContextId
	Src and Dst Context ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

LOWPAN_IPHC base Encoding - see RFC 6282.

Introspection did not find any typical Config paths.

     0                                       1
     0   1   2   3   4   5   6   7   8   9   0   1   2   3   4   5
   +---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+
   | 0 | 1 | 1 |  TF   |NH | HLIM  |CID|SAC|  SAM  | M |DAC|  DAM  |
   +---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 609 of file sixlowpan-header.h.

Constructor & Destructor Documentation

ns3::SixLowPanIphc::SixLowPanIphc ( void )

Definition at line 789 of file sixlowpan-header.cc.

References m_baseFormat.

ns3::SixLowPanIphc::SixLowPanIphc ( uint8_t dispatch )

Constructor.

Parameters

dispatch dispatch value

Definition at line 795 of file sixlowpan-header.cc.

References m_baseFormat.

Member Function Documentation

uint32_t ns3::SixLowPanIphc::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Implements ns3::Header.

Definition at line 1076 of file sixlowpan-header.cc.

References ns3::Ipv6Address::Deserialize(), GetCid(), GetDac(), GetDam(), GetHlim(), GetM(), GetNh(), GetSac(), GetSam(), GetSerializedSize(), GetTf(), HC_COMPR_0, HC_COMPR_16, HC_COMPR_64, HC_INLINE, HLIM_COMPR_1, HLIM_COMPR_255, HLIM_COMPR_64, HLIM_INLINE, m_baseFormat, m_dscp, m_dstAddress, m_ecn, m_flowLabel, m_hopLimit, m_nextHeader, m_srcAddress, m_srcdstContextId, PostProcessDac(), PostProcessSac(), ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), TF_DSCP_ELIDED, TF_FL_ELIDED, and TF_FULL.

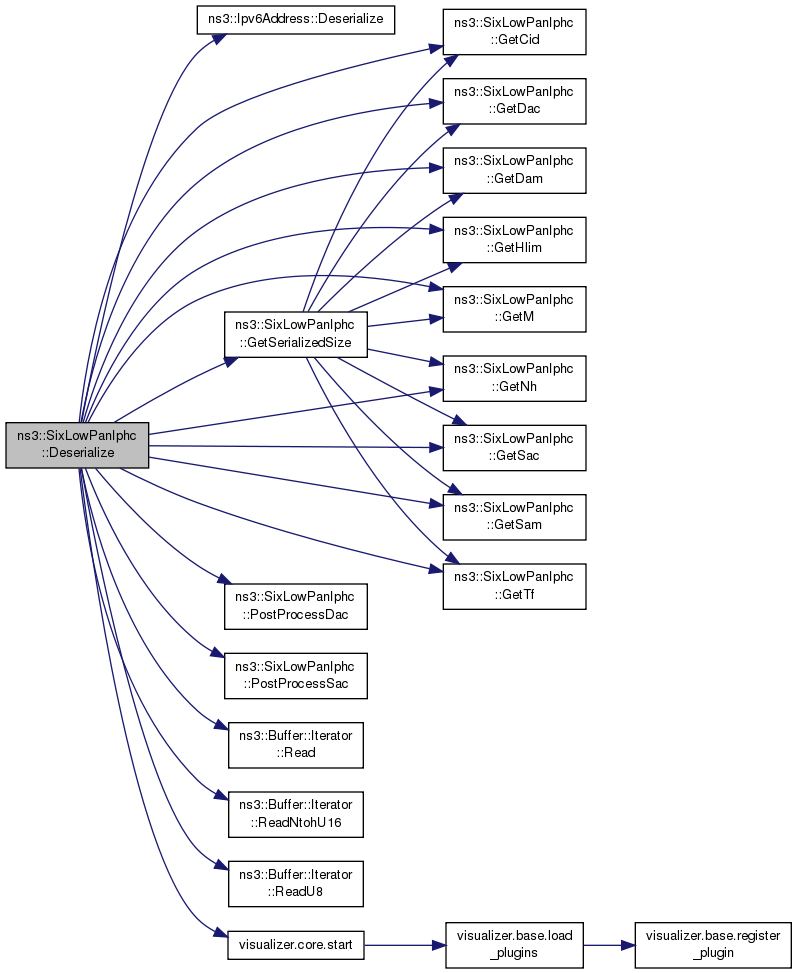

Here is the call graph for this function:

bool ns3::SixLowPanIphc::GetCid ( void ) const

Get the CID (Context Identifier Extension) compression.

Returns: false (no CID present), true (CID follows)

Definition at line 1309 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

bool ns3::SixLowPanIphc::GetDac ( void ) const

Get the DAC (Destination Address Compression) compression.

Returns: false (stateless), true (stateful)

Definition at line 1353 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

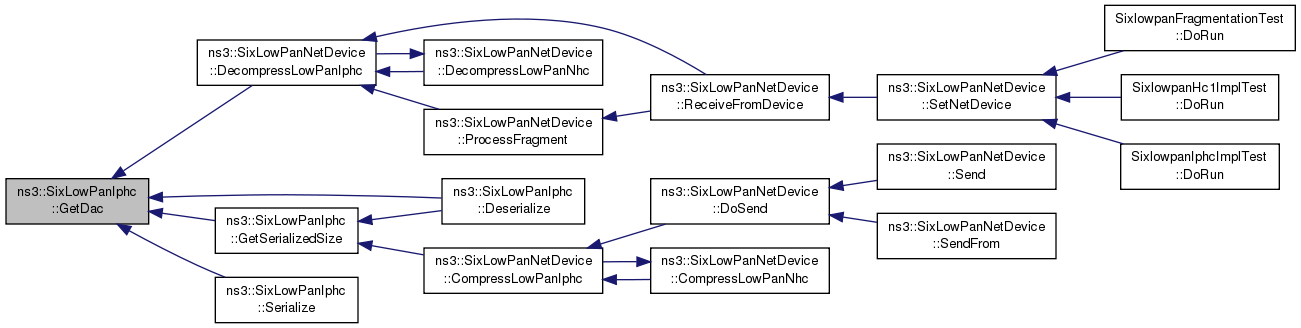

Here is the caller graph for this function:

SixLowPanIphc::HeaderCompression_e ns3::SixLowPanIphc::GetDam ( void ) const

Get the DAM (Destination Address Mode) compression.

Returns: depends on the DAC and M fields

Definition at line 1364 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

uint8_t ns3::SixLowPanIphc::GetDscp ( void ) const

Get the DSCP.

Returns: the DSCP

Definition at line 1408 of file sixlowpan-header.cc.

References m_dscp.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

Here is the caller graph for this function:

Ipv6Address ns3::SixLowPanIphc::GetDstAddress ( ) const

Get the Destination Address.

Returns: the Destination Address.

Definition at line 1459 of file sixlowpan-header.cc.

References m_dstAddress.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

Here is the caller graph for this function:

uint8_t ns3::SixLowPanIphc::GetDstContextId ( void ) const

Get the DstContextId.

Returns: the DstContextId

Definition at line 1386 of file sixlowpan-header.cc.

References m_srcdstContextId.

uint8_t ns3::SixLowPanIphc::GetEcn ( void ) const

Get the ECN.

Returns: the ECN

Definition at line 1397 of file sixlowpan-header.cc.

References m_ecn.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

Here is the caller graph for this function:

uint32_t ns3::SixLowPanIphc::GetFlowLabel ( void ) const

Get the Flow Label.

Returns: the Flow Label

Definition at line 1419 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

Here is the caller graph for this function:

SixLowPanIphc::Hlim_e ns3::SixLowPanIphc::GetHlim ( void ) const

Get the HLIM (Hop Limit) compression.

Returns: Hop Limit compression type

Definition at line 1298 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

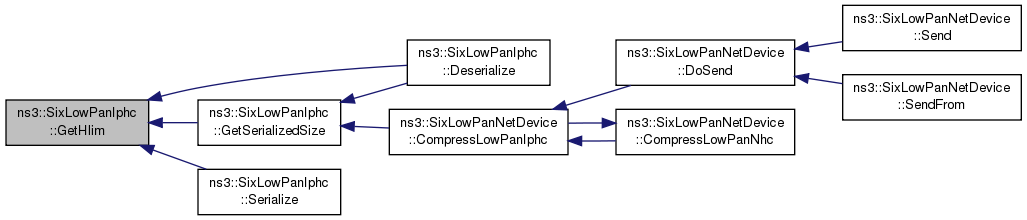

Here is the caller graph for this function:

uint8_t ns3::SixLowPanIphc::GetHopLimit ( void ) const

Get the Hop Limit field.

Returns: the Hop Limit field.

Definition at line 1439 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

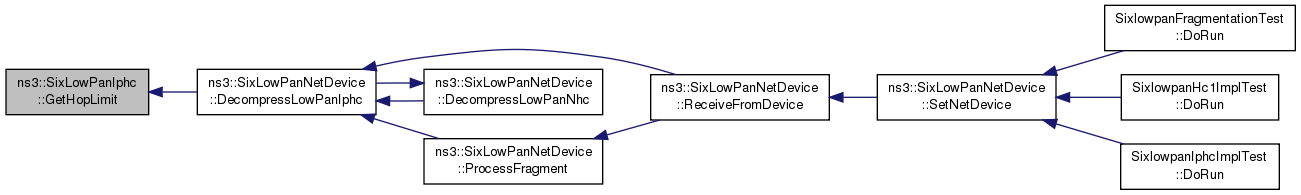

Here is the caller graph for this function:

TypeId ns3::SixLowPanIphc::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: instance type ID

Implements ns3::ObjectBase.

Definition at line 811 of file sixlowpan-header.cc.

References GetTypeId().

Here is the call graph for this function:

bool ns3::SixLowPanIphc::GetM ( void ) const

Get the M (Multicast) compression.

Returns: true if destination is multicast

Definition at line 1342 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc(), ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

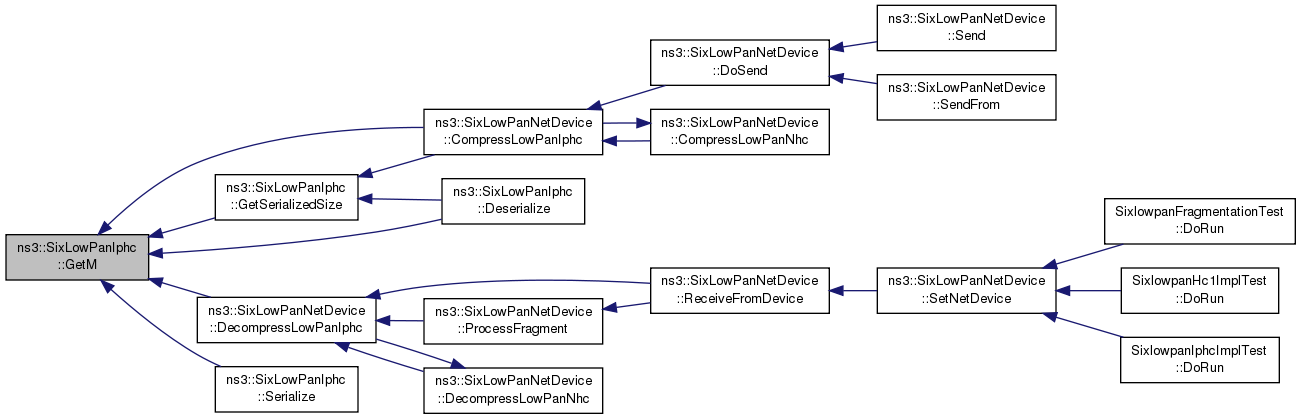

Here is the caller graph for this function:

uint8_t ns3::SixLowPanIphc::GetNextHeader ( void ) const

Get the Next Header field.

Returns: the Next Header field.

Definition at line 1429 of file sixlowpan-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

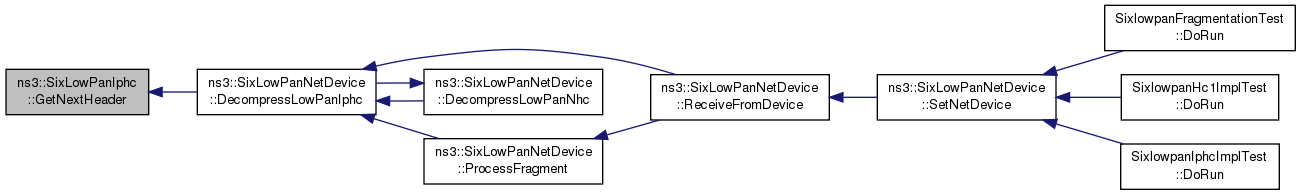

Here is the caller graph for this function:

bool ns3::SixLowPanIphc::GetNh ( void ) const

Get the NH (Next Header) compression.

Returns: false (Next Header carried in-line), true (compressed NH)

Definition at line 1287 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

bool ns3::SixLowPanIphc::GetSac ( void ) const

Get the SAC (Source Address Compression) compression.

Returns: false (stateless), true (stateful)

Definition at line 1320 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

SixLowPanIphc::HeaderCompression_e ns3::SixLowPanIphc::GetSam ( void ) const

Get the SAM (Source Address Mode) compression.

Returns: depends on the SAC field

Definition at line 1331 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

uint32_t ns3::SixLowPanIphc::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Implements ns3::Header.

Definition at line 821 of file sixlowpan-header.cc.

References GetCid(), GetDac(), GetDam(), GetHlim(), GetM(), GetNh(), GetSac(), GetSam(), GetTf(), HC_COMPR_0, HC_COMPR_16, HC_COMPR_64, HC_INLINE, HLIM_INLINE, TF_DSCP_ELIDED, TF_FL_ELIDED, and TF_FULL.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc(), and Deserialize().

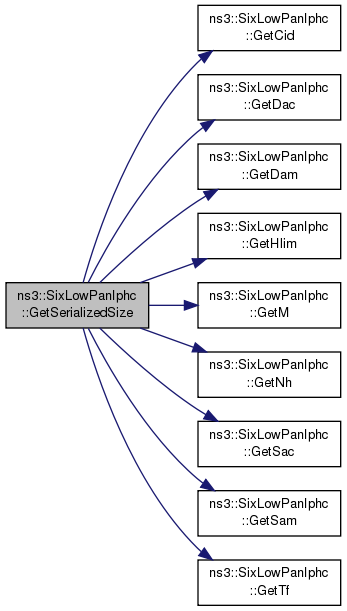

Here is the call graph for this function:

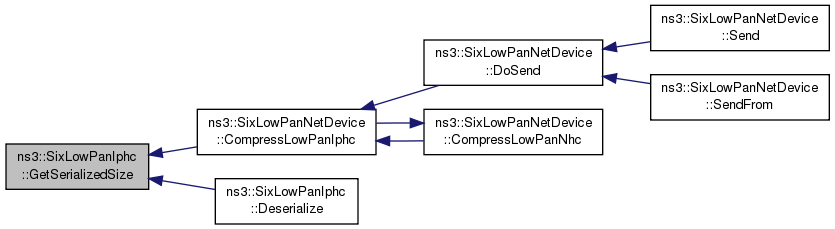

Here is the caller graph for this function:

Ipv6Address ns3::SixLowPanIphc::GetSrcAddress ( ) const

Get the Source Address.

Returns: the Source Address.

Definition at line 1449 of file sixlowpan-header.cc.

References m_srcAddress.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc().

Here is the caller graph for this function:

uint8_t ns3::SixLowPanIphc::GetSrcContextId ( void ) const

Get the SrcContextId.

Returns: the SrcContextId

Definition at line 1375 of file sixlowpan-header.cc.

References m_srcdstContextId.

SixLowPanIphc::TrafficClassFlowLabel_e ns3::SixLowPanIphc::GetTf ( void ) const

Get the TF (Traffic Class, Flow Label) compression.

Returns: the ECN, DSCP, Flow Label compression type

Definition at line 1276 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanIphc(), Deserialize(), GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

TypeId ns3::SixLowPanIphc::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 802 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SixLowPanIphc::PostProcessDac ( )

private

Post-process the Destination address stateful compression.

Note: currently unsupported

Definition at line 1470 of file sixlowpan-header.cc.

References NS_ABORT_MSG.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::PostProcessSac ( )

private

Post-process the Source address stateful compression.

Note: currently unsupported

Definition at line 1464 of file sixlowpan-header.cc.

References NS_ABORT_MSG.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 816 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Implements ns3::Header.

Definition at line 931 of file sixlowpan-header.cc.

References GetCid(), GetDac(), GetDam(), GetHlim(), GetM(), GetNh(), GetSac(), GetSam(), GetTf(), HC_COMPR_0, HC_COMPR_16, HC_COMPR_64, HC_INLINE, HLIM_INLINE, m_baseFormat, m_dscp, m_dstAddress, m_ecn, m_flowLabel, m_hopLimit, m_nextHeader, m_srcAddress, m_srcdstContextId, ns3::Ipv6Address::Serialize(), visualizer.core::start(), TF_DSCP_ELIDED, TF_FL_ELIDED, TF_FULL, ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

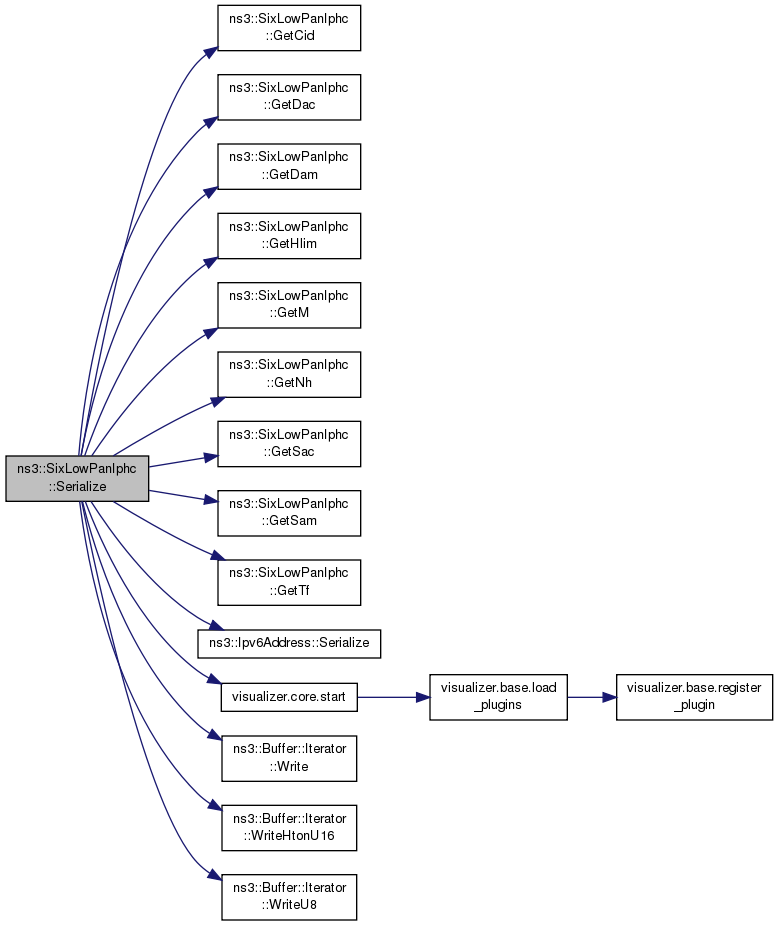

Here is the call graph for this function:

void ns3::SixLowPanIphc::SetCid ( bool cidField )

Set the CID (Context Identifier Extension) compression.

Parameters

cidField false (no CID present), true (CID follows)

Definition at line 1303 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetDac ( bool dacField )

Set the DAC (Destination Address Compression) compression.

Parameters

dacField false (stateless), true (stateful)

Definition at line 1347 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetDam ( HeaderCompression_e damField )

Set the DAM (Destination Address Mode) compression.

Parameters

damField - depends on the DAC and M fields

Definition at line 1358 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetDscp ( uint8_t dscp )

Set the DSCP (6bits).

Parameters

dscp	- valid values are [0:63]

Definition at line 1402 of file sixlowpan-header.cc.

References m_dscp, and NS_ASSERT_MSG.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetDstAddress ( Ipv6Address dstAddress )

Set the Destination Address.

Parameters

dstAddress the Destination Address.

Definition at line 1454 of file sixlowpan-header.cc.

References m_dstAddress.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetDstContextId ( uint8_t dstContextId )

Set the DstContextId.

Parameters

dstContextId - valid values are [0:15]

Definition at line 1380 of file sixlowpan-header.cc.

References m_srcdstContextId, and NS_ASSERT_MSG.

void ns3::SixLowPanIphc::SetEcn ( uint8_t ecn )

Set the ECN (2bits).

Parameters

ecn	- valid values are [0:3]

Definition at line 1391 of file sixlowpan-header.cc.

References m_ecn, and NS_ASSERT_MSG.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetFlowLabel ( uint32_t flowLabel )

Set the Flow Label (20bits).

Parameters

flowLabel - valid values are 20 bits long.

Definition at line 1413 of file sixlowpan-header.cc.

References m_flowLabel, and NS_ASSERT_MSG.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

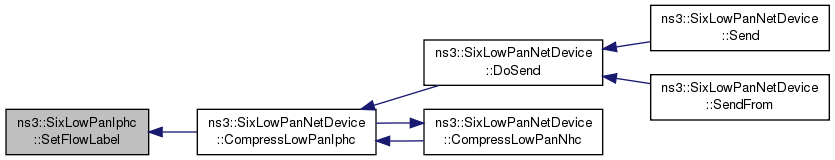

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetHlim ( Hlim_e hlimField )

Set the HLIM (Hop Limit) compression.

Parameters

hlimField Hop Limit compression type

Definition at line 1292 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetHopLimit ( uint8_t hopLimit )

Set the Hop Limit field.

Parameters

hopLimit Hop Limit field.

Definition at line 1434 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetM ( bool mField )

Set the M (Multicast) compression.

Parameters

mField true if destination is multicast

Definition at line 1336 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetNextHeader ( uint8_t nextHeader )

Set the Next Header field.

Parameters

nextHeader Next Header field.

Definition at line 1424 of file sixlowpan-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetNh ( bool nhField )

Set the NH (Next Header) compression.

Parameters

nhField false (Next Header carried in-line), true (compressed NH)

Definition at line 1281 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

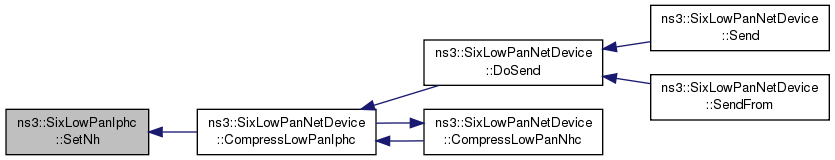

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetSac ( bool sacField )

Set the SAC (Source Address Compression) compression.

Parameters

sacField false (stateless), true (stateful)

Definition at line 1314 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetSam ( HeaderCompression_e samField )

Set the SAM (Source Address Mode) compression.

Parameters

samField - depends on the SAC

Definition at line 1325 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetSrcAddress ( Ipv6Address srcAddress )

Set the Source Address.

Parameters

srcAddress the Source Address.

Definition at line 1444 of file sixlowpan-header.cc.

References m_srcAddress.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

void ns3::SixLowPanIphc::SetSrcContextId ( uint8_t srcContextId )

Set the SrcContextId.

Parameters

srcContextId - valid values are [0:15]

Definition at line 1369 of file sixlowpan-header.cc.

References m_srcdstContextId, and NS_ASSERT_MSG.

void ns3::SixLowPanIphc::SetTf ( TrafficClassFlowLabel_e tfField )

Set the TF (Traffic Class, Flow Label) compression.

Parameters

tfField ECN, DSCP, Flow Label compression type

Definition at line 1270 of file sixlowpan-header.cc.

References m_baseFormat.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanIphc().

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::SixLowPanIphc::m_baseFormat

private

Dispatch + encoding fields.

Definition at line 918 of file sixlowpan-header.h.

Referenced by Deserialize(), GetCid(), GetDac(), GetDam(), GetHlim(), GetM(), GetNh(), GetSac(), GetSam(), GetTf(), Print(), Serialize(), SetCid(), SetDac(), SetDam(), SetHlim(), SetM(), SetNh(), SetSac(), SetSam(), SetTf(), and SixLowPanIphc().

uint8_t ns3::SixLowPanIphc::m_dscp

private

DSCP bits.

Definition at line 921 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDscp(), Serialize(), and SetDscp().

Ipv6Address ns3::SixLowPanIphc::m_dstAddress

private

Dst address.

Definition at line 926 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstAddress(), Serialize(), and SetDstAddress().

uint8_t ns3::SixLowPanIphc::m_ecn

private

ECN bits.

Definition at line 920 of file sixlowpan-header.h.

Referenced by Deserialize(), GetEcn(), Serialize(), and SetEcn().

uint32_t ns3::SixLowPanIphc::m_flowLabel

private

Flow Label bits.

Definition at line 922 of file sixlowpan-header.h.

Referenced by Deserialize(), GetFlowLabel(), Serialize(), and SetFlowLabel().

uint8_t ns3::SixLowPanIphc::m_hopLimit

private

Hop Limit.

Definition at line 924 of file sixlowpan-header.h.

Referenced by Deserialize(), GetHopLimit(), Serialize(), and SetHopLimit().

uint8_t ns3::SixLowPanIphc::m_nextHeader

private

Next header.

Definition at line 923 of file sixlowpan-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

Ipv6Address ns3::SixLowPanIphc::m_srcAddress

private

Src address.

Definition at line 925 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcAddress(), Serialize(), and SetSrcAddress().

uint8_t ns3::SixLowPanIphc::m_srcdstContextId

private

Src and Dst Context ID.

Definition at line 919 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstContextId(), GetSrcContextId(), Serialize(), SetDstContextId(), and SetSrcContextId().

The documentation for this class was generated from the following files:

src/sixlowpan/model/sixlowpan-header.h
src/sixlowpan/model/sixlowpan-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
