Acknowledgement (ACK) Message Format. More...

#include <dsr-option-header.h>

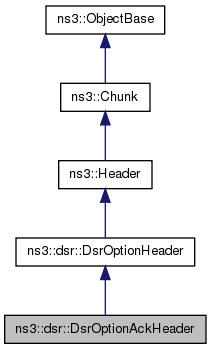

Inheritance diagram for ns3::dsr::DsrOptionAckHeader:

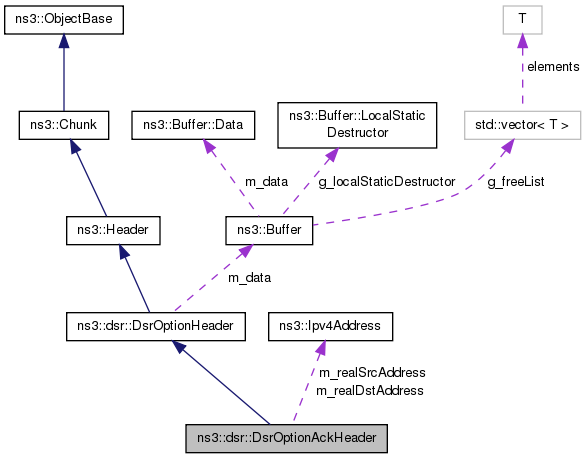

Collaboration diagram for ns3::dsr::DsrOptionAckHeader:

Public Member Functions
	DsrOptionAckHeader ()
	Constructor. More...

virtual	~DsrOptionAckHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

uint16_t	GetAckId () const
	Set the Ack id number. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv4Address	GetRealDst () const
	Get Error source ip address. More...

Ipv4Address	GetRealSrc () const
	Get Error source ip address. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetAckId (uint16_t identification)
	Set the Ack id number. More...

void	SetRealDst (Ipv4Address realDstAddress)
	Set Error source ip address. More...

void	SetRealSrc (Ipv4Address realSrcAddress)
	Set Error source ip address. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_identification
	identification field More...

Ipv4Address	m_realDstAddress
	ack destination address More...

Ipv4Address	m_realSrcAddress
	ack source address More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Acknowledgement (ACK) Message Format.

Header of Dsr Option ack.

Introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |         Identification         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                        ACK Source Address                     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                     ACK Destination Address                   |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 1250 of file dsr-option-header.h.

Constructor & Destructor Documentation

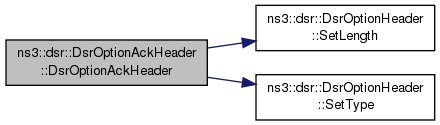

ns3::dsr::DsrOptionAckHeader::DsrOptionAckHeader ( )

Constructor.

Definition at line 1126 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

Here is the call graph for this function:

ns3::dsr::DsrOptionAckHeader::~DsrOptionAckHeader ( )

virtual

Destructor.

Definition at line 1133 of file dsr-option-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrOptionAckHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1191 of file dsr-option-header.cc.

References GetSerializedSize(), m_identification, m_realDstAddress, m_realSrcAddress, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

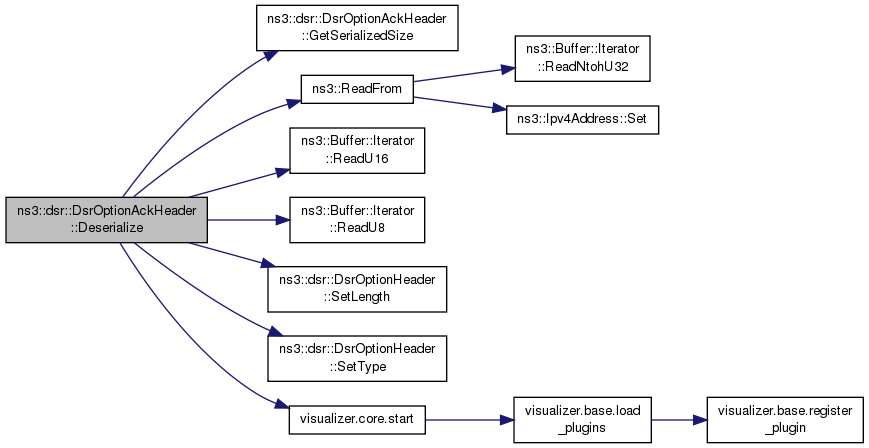

Here is the call graph for this function:

uint16_t ns3::dsr::DsrOptionAckHeader::GetAckId ( ) const

Set the Ack id number.

Returns: request id number

Definition at line 1142 of file dsr-option-header.cc.

References m_identification.

Referenced by DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrOptionAck::Process().

Here is the caller graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionAckHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1204 of file dsr-option-header.cc.

TypeId ns3::dsr::DsrOptionAckHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1121 of file dsr-option-header.cc.

References GetTypeId().

Here is the call graph for this function:

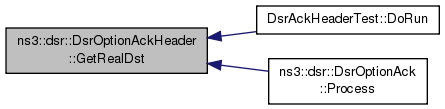

Ipv4Address ns3::dsr::DsrOptionAckHeader::GetRealDst ( ) const

Get Error source ip address.

Returns: The real dst address

Definition at line 1162 of file dsr-option-header.cc.

References m_realDstAddress.

Referenced by DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrOptionAck::Process().

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrOptionAckHeader::GetRealSrc ( ) const

Get Error source ip address.

Returns: The real source address

Definition at line 1152 of file dsr-option-header.cc.

References m_realSrcAddress.

Referenced by DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrOptionAck::Process().

Here is the caller graph for this function:

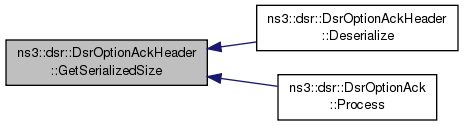

uint32_t ns3::dsr::DsrOptionAckHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1175 of file dsr-option-header.cc.

Referenced by Deserialize(), and ns3::dsr::DsrOptionAck::Process().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionAckHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 1111 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

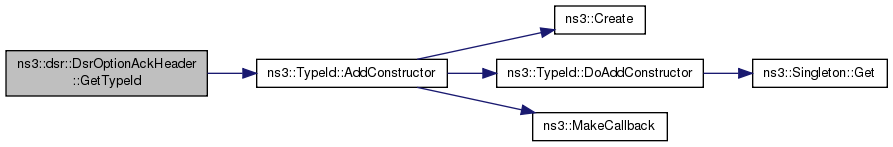

Here is the call graph for this function:

Here is the caller graph for this function:

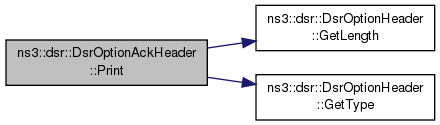

void ns3::dsr::DsrOptionAckHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1167 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_identification, m_realDstAddress, and m_realSrcAddress.

Here is the call graph for this function:

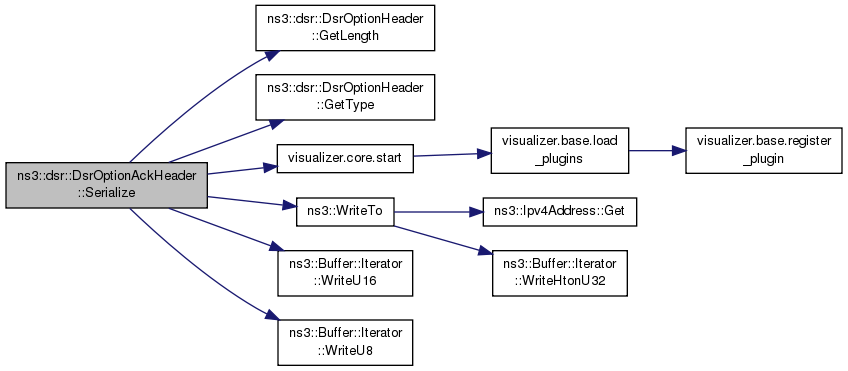

void ns3::dsr::DsrOptionAckHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1180 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_identification, m_realDstAddress, m_realSrcAddress, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

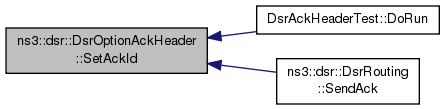

void ns3::dsr::DsrOptionAckHeader::SetAckId ( uint16_t identification )

Set the Ack id number.

Parameters

identification the identification number

Definition at line 1137 of file dsr-option-header.cc.

References m_identification.

Referenced by DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendAck().

Here is the caller graph for this function:

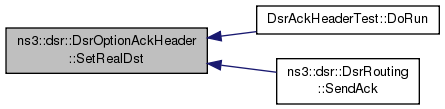

void ns3::dsr::DsrOptionAckHeader::SetRealDst ( Ipv4Address realDstAddress )

Set Error source ip address.

Parameters

realDstAddress The real dst address

Definition at line 1157 of file dsr-option-header.cc.

References m_realDstAddress.

Referenced by DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendAck().

Here is the caller graph for this function:

void ns3::dsr::DsrOptionAckHeader::SetRealSrc ( Ipv4Address realSrcAddress )

Set Error source ip address.

Parameters

realSrcAddress The real source address

Definition at line 1147 of file dsr-option-header.cc.

References m_realSrcAddress.

Referenced by DsrAckHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendAck().

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::dsr::DsrOptionAckHeader::m_identification

private

identification field

Definition at line 1333 of file dsr-option-header.h.

Referenced by Deserialize(), GetAckId(), Print(), Serialize(), and SetAckId().

Ipv4Address ns3::dsr::DsrOptionAckHeader::m_realDstAddress

private

ack destination address

Definition at line 1341 of file dsr-option-header.h.

Referenced by Deserialize(), GetRealDst(), Print(), Serialize(), and SetRealDst().

Ipv4Address ns3::dsr::DsrOptionAckHeader::m_realSrcAddress

private

ack source address

Definition at line 1337 of file dsr-option-header.h.

Referenced by Deserialize(), GetRealSrc(), Print(), Serialize(), and SetRealSrc().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc
