Route Request (RREQ) Message Format. More...

#include <dsr-option-header.h>

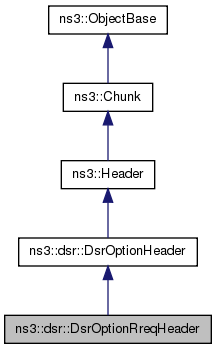

Inheritance diagram for ns3::dsr::DsrOptionRreqHeader:

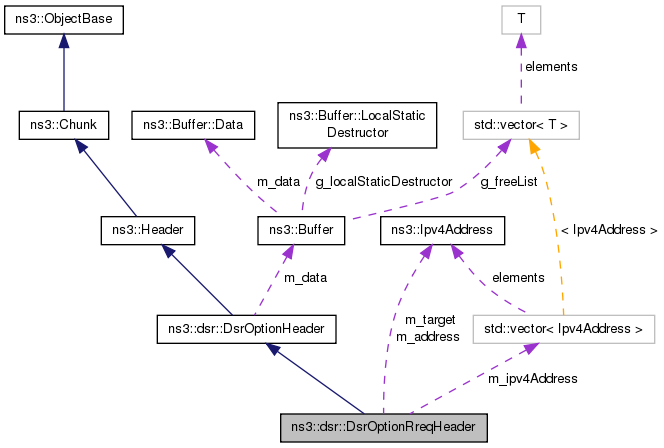

Collaboration diagram for ns3::dsr::DsrOptionRreqHeader:

Public Member Functions
	DsrOptionRreqHeader ()
	Constructor. More...

virtual	~DsrOptionRreqHeader ()
	Destructor. More...

void	AddNodeAddress (Ipv4Address ipv4)
	Add one node address. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

uint16_t	GetId () const
	Set the request id number. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv4Address	GetNodeAddress (uint8_t index) const
	Get a Node IPv4 Address. More...

std::vector< Ipv4Address >	GetNodesAddresses () const
	Get the vector of ipv4 address. More...

uint32_t	GetNodesNumber () const
	Get the number of nodes. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

Ipv4Address	GetTarget ()
	Get the target ipv4 address. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetId (uint16_t identification)
	Set the request id number. More...

void	SetNodeAddress (uint8_t index, Ipv4Address addr)
	Set a Node IPv4 Address. More...

void	SetNodesAddress (std::vector< Ipv4Address > ipv4Address)
	Set the vector of ipv4 address. More...

void	SetNumberAddress (uint8_t n)
	Set the number of ipv4 address. More...

void	SetTarget (Ipv4Address target)
	Set the target ipv4 address. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ipv4Address >	VectorIpv4Address_t
	A vector of IPv4 Address. More...

Private Attributes
Ipv4Address	m_address

uint16_t	m_identification
	Identifier of the packet. More...

VectorIpv4Address_t	m_ipv4Address
	The vector of Nodes' IPv4 Address. More...

Ipv4Address	m_target

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Route Request (RREQ) Message Format.

Introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |         Identification         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                         Target Address                        |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 88 bytes (on a 64-bit architecture).

Definition at line 272 of file dsr-option-header.h.

Member Typedef Documentation

typedef std::vector<Ipv4Address> ns3::dsr::DsrOptionRreqHeader::VectorIpv4Address_t

private

A vector of IPv4 Address.

Definition at line 394 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionRreqHeader::DsrOptionRreqHeader ( )

Constructor.

Definition at line 266 of file dsr-option-header.cc.

References m_ipv4Address, ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

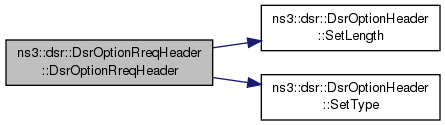

Here is the call graph for this function:

ns3::dsr::DsrOptionRreqHeader::~DsrOptionRreqHeader ( )

virtual

Destructor.

Definition at line 273 of file dsr-option-header.cc.

Member Function Documentation

void ns3::dsr::DsrOptionRreqHeader::AddNodeAddress ( Ipv4Address ipv4 )

Add one node address.

Parameters

ipv4	The ip address to add

Definition at line 293 of file dsr-option-header.cc.

References m_ipv4Address, and ns3::dsr::DsrOptionHeader::SetLength().

Referenced by ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendInitialRequest().

Here is the call graph for this function:

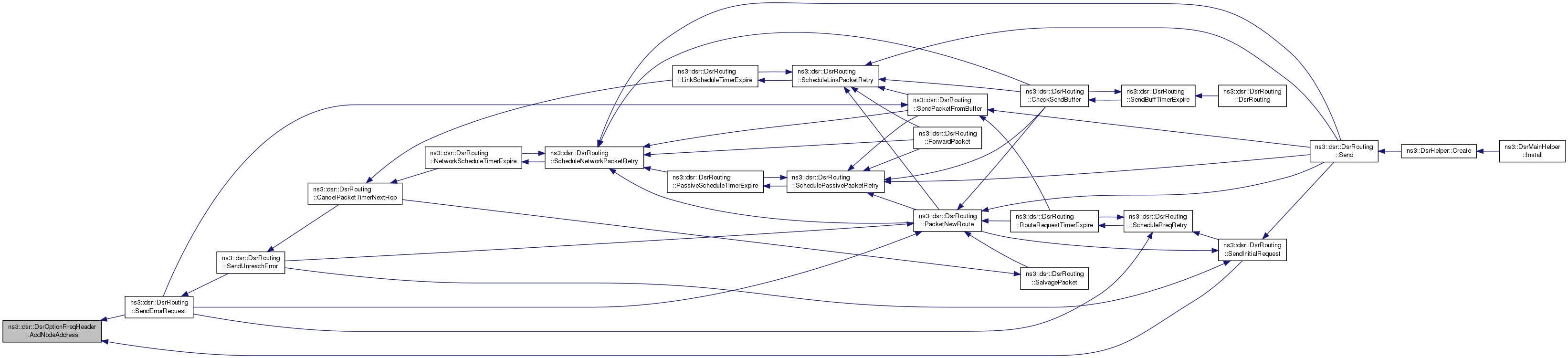

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptionRreqHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 369 of file dsr-option-header.cc.

References ns3::Ipv4Address::Deserialize(), GetSerializedSize(), m_address, m_identification, m_ipv4Address, m_target, ns3::Buffer::Iterator::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), SetNodeAddress(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

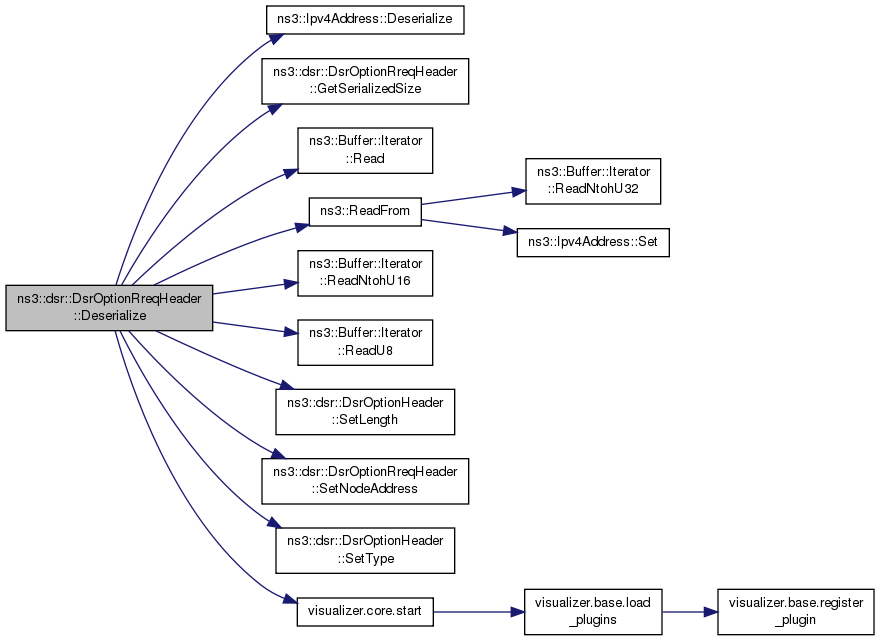

Here is the call graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionRreqHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 391 of file dsr-option-header.cc.

uint16_t ns3::dsr::DsrOptionRreqHeader::GetId ( void ) const

Set the request id number.

Returns: request id number

Definition at line 330 of file dsr-option-header.cc.

References m_identification.

Referenced by DsrRreqHeaderTest::DoRun(), and ns3::dsr::DsrOptionRreq::Process().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionRreqHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 261 of file dsr-option-header.cc.

References GetTypeId().

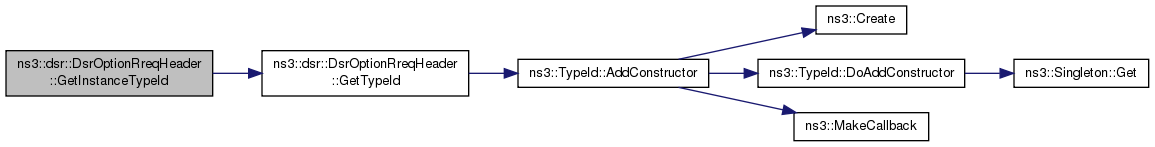

Here is the call graph for this function:

Ipv4Address ns3::dsr::DsrOptionRreqHeader::GetNodeAddress ( uint8_t index ) const

Get a Node IPv4 Address.

Parameters

index the index of the IPv4 Address

Returns: the router IPv4 Address

Definition at line 320 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by DsrRreqHeaderTest::DoRun().

Here is the caller graph for this function:

std::vector< Ipv4Address > ns3::dsr::DsrOptionRreqHeader::GetNodesAddresses ( ) const

Get the vector of ipv4 address.

Returns: the vector of ipv4 address

Definition at line 305 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrOptionRreq::Process().

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptionRreqHeader::GetNodesNumber ( ) const

Get the number of nodes.

Returns: the number of nodes

Definition at line 310 of file dsr-option-header.cc.

References m_ipv4Address.

uint32_t ns3::dsr::DsrOptionRreqHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 347 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize(), and ns3::dsr::DsrOptionRreq::Process().

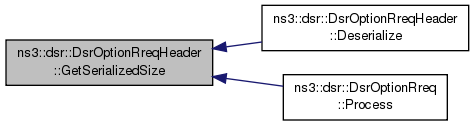

Here is the caller graph for this function:

Ipv4Address ns3::dsr::DsrOptionRreqHeader::GetTarget ( )

Get the target ipv4 address.

Returns: target the target packet

Definition at line 283 of file dsr-option-header.cc.

References m_target.

Referenced by DsrRreqHeaderTest::DoRun(), and ns3::dsr::DsrOptionRreq::Process().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionRreqHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 251 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

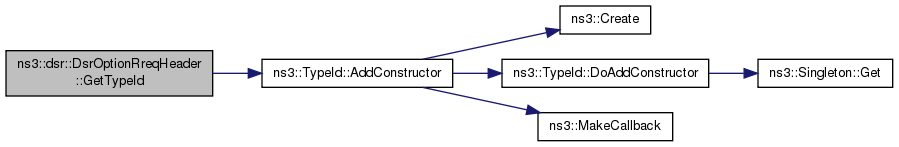

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRreqHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 335 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), and m_ipv4Address.

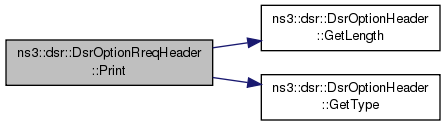

Here is the call graph for this function:

void ns3::dsr::DsrOptionRreqHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 352 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_identification, m_ipv4Address, m_target, visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

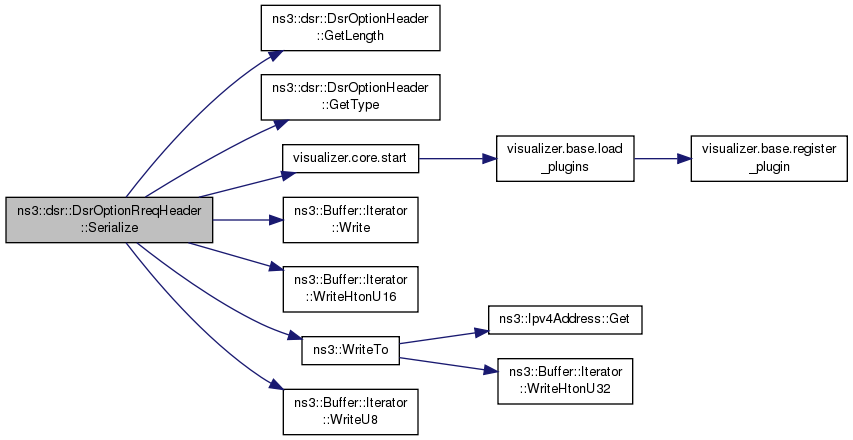

Here is the call graph for this function:

void ns3::dsr::DsrOptionRreqHeader::SetId ( uint16_t identification )

Set the request id number.

Parameters

identification the identification number

Definition at line 325 of file dsr-option-header.cc.

References m_identification.

Referenced by DsrRreqHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendInitialRequest().

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRreqHeader::SetNodeAddress	(	uint8_t	index,
		Ipv4Address	addr
	)

Set a Node IPv4 Address.

Parameters

index	the index of the IPv4 Address
addr	the new IPv4 Address

Definition at line 315 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize().

Here is the caller graph for this function:

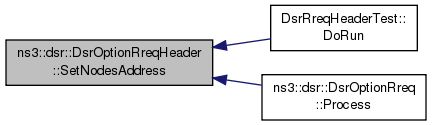

void ns3::dsr::DsrOptionRreqHeader::SetNodesAddress ( std::vector< Ipv4Address > ipv4Address )

Set the vector of ipv4 address.

Parameters

ipv4Address the vector of ipv4 address

Definition at line 299 of file dsr-option-header.cc.

References m_ipv4Address, and ns3::dsr::DsrOptionHeader::SetLength().

Referenced by DsrRreqHeaderTest::DoRun(), and ns3::dsr::DsrOptionRreq::Process().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRreqHeader::SetNumberAddress ( uint8_t n )

Set the number of ipv4 address.

Parameters

n	the number of ipv4 address

Definition at line 277 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by DsrRreqHeaderTest::DoRun(), and ns3::dsr::DsrOptionRreq::Process().

Here is the caller graph for this function:

void ns3::dsr::DsrOptionRreqHeader::SetTarget ( Ipv4Address target )

Set the target ipv4 address.

Parameters

target the target packet

Definition at line 288 of file dsr-option-header.cc.

References m_target.

Referenced by DsrRreqHeaderTest::DoRun(), and ns3::dsr::DsrRouting::SendInitialRequest().

Here is the caller graph for this function:

Member Data Documentation

Ipv4Address ns3::dsr::DsrOptionRreqHeader::m_address

private

Definition at line 390 of file dsr-option-header.h.

Referenced by Deserialize().

uint16_t ns3::dsr::DsrOptionRreqHeader::m_identification

private

Identifier of the packet.

Definition at line 382 of file dsr-option-header.h.

Referenced by Deserialize(), GetId(), Serialize(), and SetId().

VectorIpv4Address_t ns3::dsr::DsrOptionRreqHeader::m_ipv4Address

private

The vector of Nodes' IPv4 Address.

Definition at line 398 of file dsr-option-header.h.

Referenced by AddNodeAddress(), Deserialize(), DsrOptionRreqHeader(), GetNodeAddress(), GetNodesAddresses(), GetNodesNumber(), GetSerializedSize(), Print(), Serialize(), SetNodeAddress(), SetNodesAddress(), and SetNumberAddress().

Ipv4Address ns3::dsr::DsrOptionRreqHeader::m_target

private

Definition at line 386 of file dsr-option-header.h.

Referenced by Deserialize(), GetTarget(), Serialize(), and SetTarget().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
