#include <ns3/ptr.h>
#include <ns3/simple-ref-count.h>
#include <ns3/ff-mac-common.h>
#include <ns3/lte-rrc-sap.h>
#include <list>

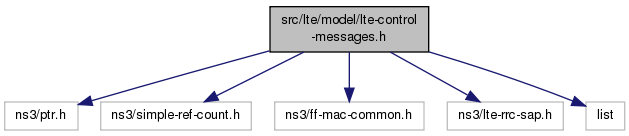

Include dependency graph for lte-control-messages.h:

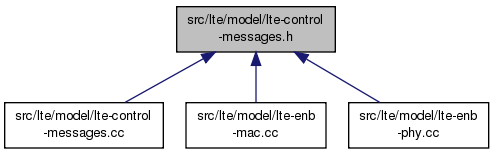

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ns3::BsrLteControlMessage
	The uplink BsrLteControlMessage defines the specific extension of the CE element for reporting the buffer status report. More...

class	ns3::DlCqiLteControlMessage
	The downlink CqiLteControlMessage defines an ideal list of feedback about the channel quality sent by the UE to the eNodeB. More...

class	ns3::DlDciLteControlMessage
	The Downlink Data Control Indicator messages defines the RB allocation for the users in the downlink. More...

class	ns3::DlHarqFeedbackLteControlMessage
	The downlink DlHarqFeedbackLteControlMessage defines the specific messages for transmitting the DL HARQ feedback through PUCCH. More...

class	ns3::LteControlMessage
	The LteControlMessage provides a basic implementations for control messages (such as PDCCH allocation map, CQI feedbacks) that are exchanged among eNodeB and UEs. More...

class	ns3::MibLteControlMessage
	Abstract model for broadcasting the Master Information Block (MIB) within the control channel (BCCH). More...

class	ns3::RachPreambleLteControlMessage
	abstract model for the Random Access Preamble More...

struct	ns3::RarLteControlMessage::Rar
	a MAC RAR and the corresponding RAPID subheader More...

class	ns3::RarLteControlMessage
	abstract model for the MAC Random Access Response message More...

class	ns3::Sib1LteControlMessage
	Abstract model for broadcasting the System Information Block Type 1 (SIB1) within the control channel (BCCH). More...

class	ns3::UlDciLteControlMessage
	The Uplink Data Control Indicator messages defines the RB allocation for the users in the uplink. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.
