ns3::olsr::MessageHeader::Mid Struct Reference

#include <olsr-header.h>

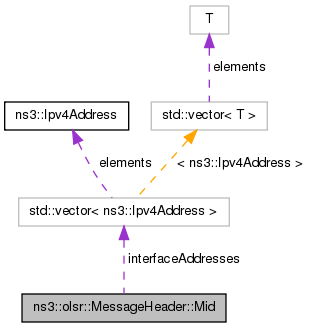

Collaboration diagram for ns3::olsr::MessageHeader::Mid:

Public Member Functions
uint32_t	Deserialize (Buffer::Iterator start, uint32_t messageSize)
uint32_t	GetSerializedSize (void) const
void	Print (std::ostream &os) const
void	Serialize (Buffer::Iterator start) const

Public Attributes
std::vector< Ipv4Address >	interfaceAddresses

Detailed Description

Definition at line 223 of file olsr-header.h.

Member Function Documentation

uint32_t ns3::olsr::MessageHeader::Mid::Deserialize	(	Buffer::Iterator	start,
		uint32_t	messageSize
	)

Definition at line 310 of file olsr-header.cc.

References ns3::olsr::MessageHeader::GetSerializedSize(), IPV4_ADDRESS_SIZE, NS_ASSERT, ns3::Buffer::Iterator::ReadNtohU32(), and visualizer.core::start().

Here is the call graph for this function:

uint32_t ns3::olsr::MessageHeader::Mid::GetSerializedSize

(

void

)

const

Definition at line 286 of file olsr-header.cc.

References interfaceAddresses, and IPV4_ADDRESS_SIZE.

void ns3::olsr::MessageHeader::Mid::Print

(

std::ostream &

os

)

const

Todo:

Definition at line 292 of file olsr-header.cc.

void ns3::olsr::MessageHeader::Mid::Serialize

(

Buffer::Iterator

start

)

const

Definition at line 298 of file olsr-header.cc.

References visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtonU32().

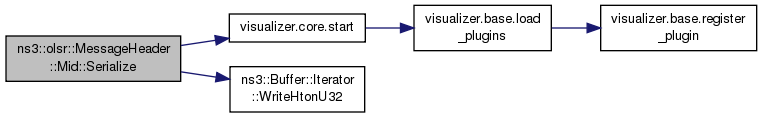

Here is the call graph for this function:

Member Data Documentation

std::vector<Ipv4Address> ns3::olsr::MessageHeader::Mid::interfaceAddresses

Definition at line 225 of file olsr-header.h.

Referenced by OlsrMidTestCase::DoRun(), GetSerializedSize(), ns3::olsr::RoutingProtocol::ProcessMid(), and ns3::olsr::RoutingProtocol::SendMid().

---

The documentation for this struct was generated from the following files:

• src/olsr/model/olsr-header.h
• src/olsr/model/olsr-header.cc
