LteRlcAmE2eTestCase Class Reference

Test cases used for the test suite lte-rlc-am-e2e. More...

#include <lte-test-rlc-am-e2e.h>

Inheritance diagram for LteRlcAmE2eTestCase:

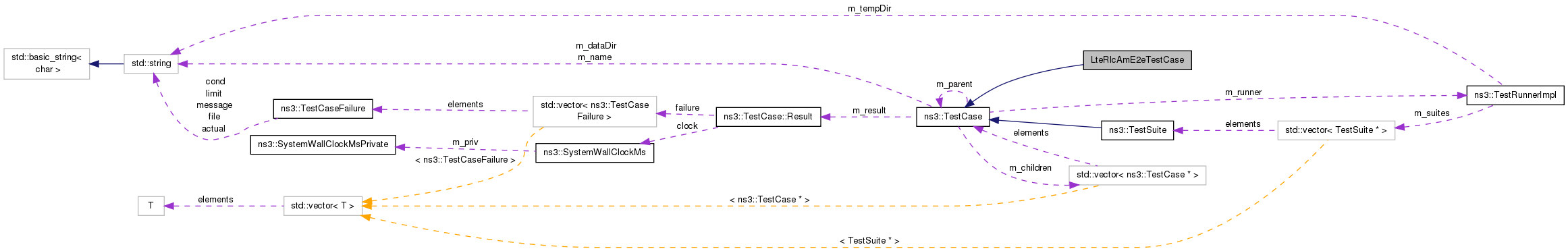

Collaboration diagram for LteRlcAmE2eTestCase:

Public Member Functions
	LteRlcAmE2eTestCase (std::string name, uint32_t seed, double losses, bool bulkSduArrival)
	LteRlcAmE2eTestCase ()
virtual	~LteRlcAmE2eTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DlDropEvent (Ptr< const Packet > p)
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	UlDropEvent (Ptr< const Packet > p)

Private Attributes
bool	m_bulkSduArrival
uint32_t	m_dlDrops
double	m_losses
uint32_t	m_run
uint32_t	m_ulDrops

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
void	SetDataDir (std::string directory)
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)

Detailed Description

Test cases used for the test suite lte-rlc-am-e2e.

See the testing section of the LTE module documentation for details.

Definition at line 46 of file lte-test-rlc-am-e2e.h.

Constructor & Destructor Documentation

LteRlcAmE2eTestCase::LteRlcAmE2eTestCase	(	std::string	name,
		uint32_t	seed,
		double	losses,
		bool	bulkSduArrival
	)

Definition at line 101 of file lte-test-rlc-am-e2e.cc.

References NS_LOG_INFO.

LteRlcAmE2eTestCase::LteRlcAmE2eTestCase

(

)

LteRlcAmE2eTestCase::~LteRlcAmE2eTestCase ( )

virtual

Definition at line 112 of file lte-test-rlc-am-e2e.cc.

Member Function Documentation

void LteRlcAmE2eTestCase::DlDropEvent ( Ptr< const Packet >  p )

private

Definition at line 118 of file lte-test-rlc-am-e2e.cc.

References m_dlDrops.

Referenced by DoRun().

Here is the caller graph for this function:

void LteRlcAmE2eTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 132 of file lte-test-rlc-am-e2e.cc.

References ns3::RateErrorModel::AssignStreams(), ns3::NodeContainer::Create(), DlDropEvent(), ns3::NetDeviceContainer::Get(), ns3::LteTestMac::GetRxPdus(), ns3::Time::GetSeconds(), ns3::LteTestMac::GetTxPdus(), ns3::LteSimpleHelper::InstallEnbDevice(), ns3::LteSimpleHelper::InstallUeDevice(), m_bulkSduArrival, m_dlDrops, ns3::LteSimpleHelper::m_enbMac, ns3::LteSimpleHelper::m_enbRrc, m_losses, m_run, ns3::LteSimpleHelper::m_ueMac, ns3::LteSimpleHelper::m_ueRrc, ns3::MakeCallback(), ns3::MilliSeconds(), NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::Config::SetGlobal(), ns3::LteTestMac::SetTxOpportunityMode(), ns3::LteTestMac::SetTxOppSize(), ns3::LteTestMac::SetTxOppTime(), and stopTime.

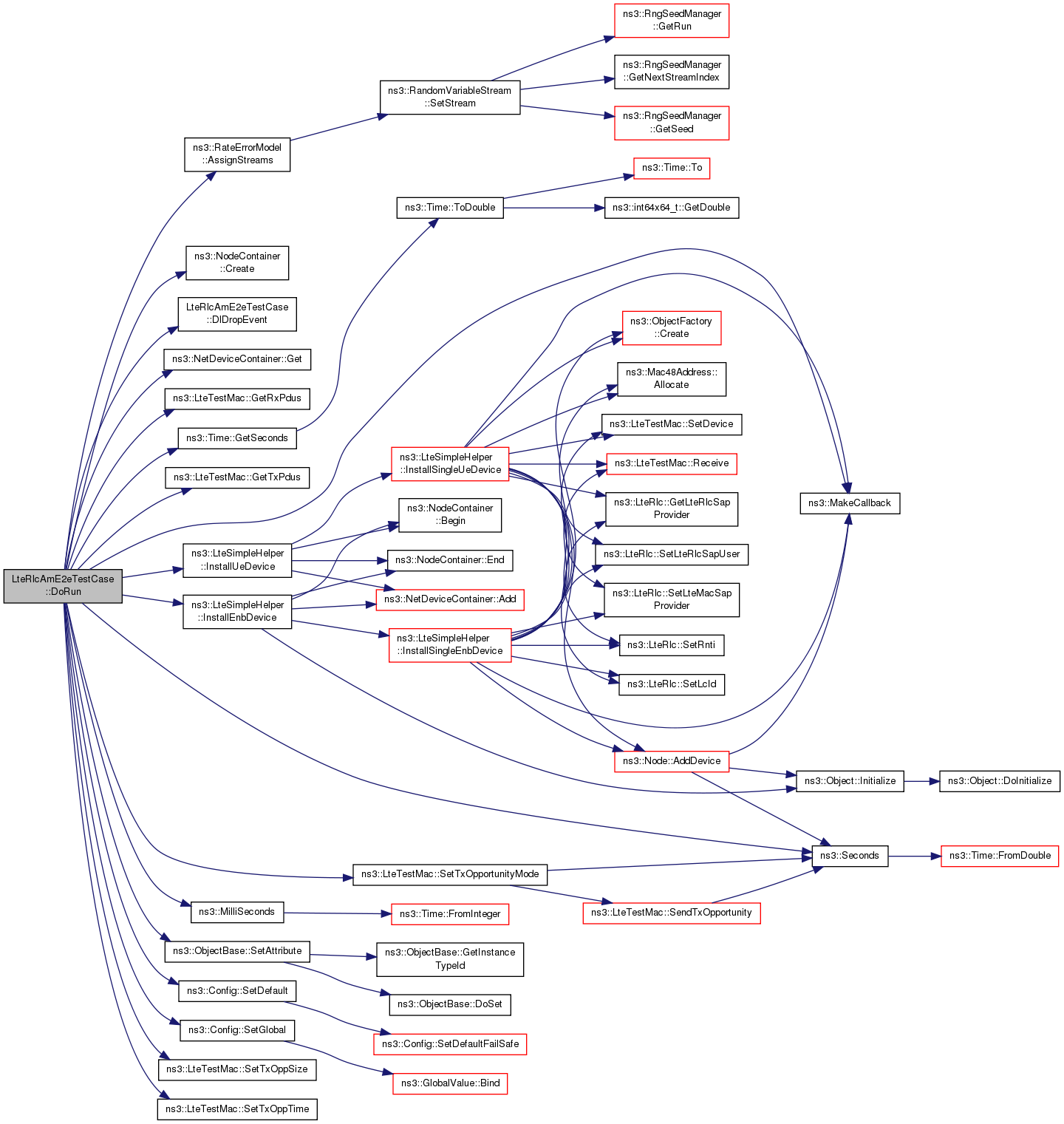

Here is the call graph for this function:

void LteRlcAmE2eTestCase::UlDropEvent ( Ptr< const Packet >  p )

private

Definition at line 125 of file lte-test-rlc-am-e2e.cc.

References m_ulDrops.

Member Data Documentation

bool LteRlcAmE2eTestCase::m_bulkSduArrival

private

Definition at line 61 of file lte-test-rlc-am-e2e.h.

Referenced by DoRun().

uint32_t LteRlcAmE2eTestCase::m_dlDrops

private

Definition at line 63 of file lte-test-rlc-am-e2e.h.

Referenced by DlDropEvent(), and DoRun().

double LteRlcAmE2eTestCase::m_losses

private

Definition at line 60 of file lte-test-rlc-am-e2e.h.

Referenced by DoRun().

uint32_t LteRlcAmE2eTestCase::m_run

private

Definition at line 59 of file lte-test-rlc-am-e2e.h.

Referenced by DoRun().

uint32_t LteRlcAmE2eTestCase::m_ulDrops

private

Definition at line 64 of file lte-test-rlc-am-e2e.h.

Referenced by UlDropEvent().

---

The documentation for this class was generated from the following files:

• src/lte/test/lte-test-rlc-am-e2e.h
• src/lte/test/lte-test-rlc-am-e2e.cc
