The RoutingHelper class generates routing data between nodes (vehicles) and uses the RoutingStats class to collect statistics on routing data (application-data packet and byte counts). More...

Inheritance diagram for RoutingHelper:

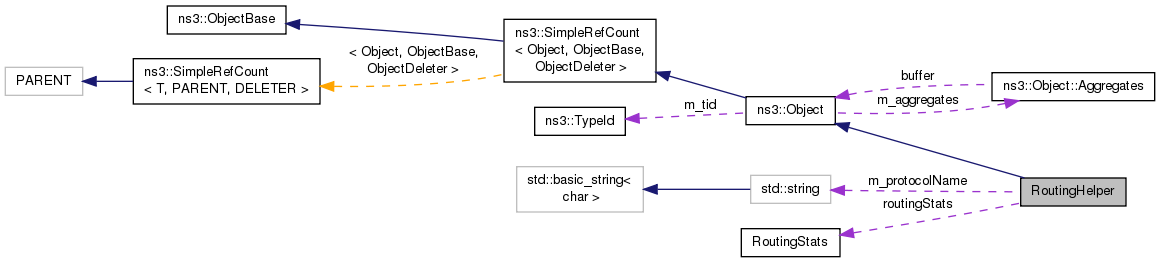

Collaboration diagram for RoutingHelper:

Public Member Functions
	RoutingHelper ()
	Constructor. More...

virtual	~RoutingHelper ()
	Destructor. More...

RoutingStats &	GetRoutingStats ()
	Returns the RoutingStats instance. More...

void	Install (NodeContainer &c, NetDeviceContainer &d, Ipv4InterfaceContainer &i, double totalTime, int protocol, uint32_t nSinks, int routingTables)
	Installs routing funcationality on nodes and their devices and interfaces. More...

void	OnOffTrace (std::string context, Ptr< const Packet > packet)
	Trace the receipt of an on-off-application generated packet. More...

void	SetLogging (int log)
	Enable/disable logging. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get class TypeId. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	AssignIpAddresses (NetDeviceContainer &d, Ipv4InterfaceContainer &adhocTxInterfaces)
	Assigns IPv4 addresses to net devices and their interfaces. More...

void	ReceiveRoutingPacket (Ptr< Socket > socket)
	Process a received routing packet. More...

void	SetupRoutingMessages (NodeContainer &c, Ipv4InterfaceContainer &adhocTxInterfaces)
	Sets up routing messages on the nodes and their interfaces. More...

Ptr< Socket >	SetupRoutingPacketReceive (Ipv4Address addr, Ptr< Node > node)
	Sets up a routing packet for tranmission. More...

void	SetupRoutingProtocol (NodeContainer &c)
	Sets up the protocol protocol on the nodes. More...

Private Attributes
int	m_log

uint32_t	m_nSinks

uint32_t	m_port

uint32_t	m_protocol

std::string	m_protocolName

int	m_routingTables

double	m_TotalSimTime

RoutingStats	routingStats

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The RoutingHelper class generates routing data between nodes (vehicles) and uses the RoutingStats class to collect statistics on routing data (application-data packet and byte counts).

A routing protocol is configured, and all nodes attempt to send (i.e. route) small packets to another node, which acts as data sinks. Not all nodes act as data sinks. for the vehicular network

Definition at line 382 of file vanet-routing-compare.cc.

Constructor & Destructor Documentation

RoutingHelper::RoutingHelper ( )

Constructor.

Returns: none

Definition at line 507 of file vanet-routing-compare.cc.

RoutingHelper::~RoutingHelper ( )

virtual

Destructor.

Returns: none

Definition at line 517 of file vanet-routing-compare.cc.

Member Function Documentation

void RoutingHelper::AssignIpAddresses	(	NetDeviceContainer &	d,
		Ipv4InterfaceContainer &	adhocTxInterfaces
	)

private

Assigns IPv4 addresses to net devices and their interfaces.

Parameters

d	net device container
adhocTxInterfaces	IPv4 interface container

Returns: none

Definition at line 623 of file vanet-routing-compare.cc.

References ns3::Ipv4AddressHelper::Assign(), NS_LOG_INFO, and ns3::Ipv4AddressHelper::SetBase().

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

RoutingStats & RoutingHelper::GetRoutingStats ( )

Returns the RoutingStats instance.

Returns: the RoutingStats instance

Definition at line 711 of file vanet-routing-compare.cc.

References routingStats.

Referenced by VanetRoutingExperiment::CheckThroughput(), VanetRoutingExperiment::ProcessOutputs(), and ReceiveRoutingPacket().

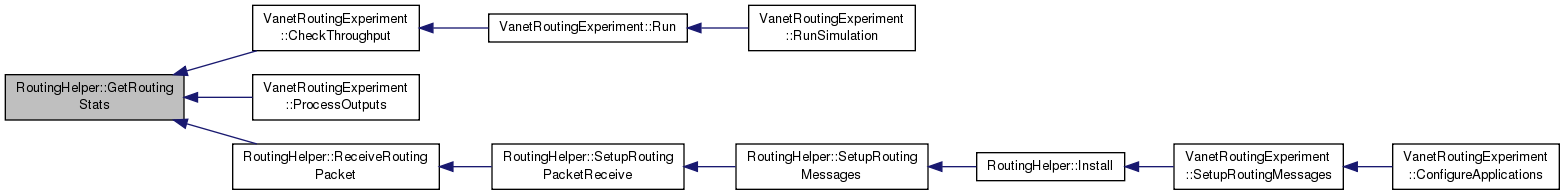

Here is the caller graph for this function:

TypeId RoutingHelper::GetTypeId ( void )

static

Get class TypeId.

Returns: the TypeId for the class

Definition at line 499 of file vanet-routing-compare.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void RoutingHelper::Install	(	NodeContainer &	c,
		NetDeviceContainer &	d,
		Ipv4InterfaceContainer &	i,
		double	totalTime,
		int	protocol,
		uint32_t	nSinks,
		int	routingTables
	)

Installs routing funcationality on nodes and their devices and interfaces.

Parameters

c	node container
d	net device container
i	IPv4 interface container
totalTime	the total time that nodes should attempt to route data
protocol	the routing protocol (1=OLSR;2=AODV;3=DSDV;4=DSR)
nSinks	the number of nodes which will act as data sinks
routingTables	dump routing tables at t=5 seconds (0=no;1=yes)
