ns3::SimpleRefCount< T, PARENT, DELETER > Class Template Reference

A template-based reference counting class. More...

#include <simple-ref-count.h>

Inherits PARENT.

Collaboration diagram for ns3::SimpleRefCount< T, PARENT, DELETER >:

Public Member Functions
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Static Public Member Functions
static void	Cleanup (void)
	Noop. More...

Private Attributes
uint32_t	m_count
	The reference count. More...

Detailed Description

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>
class ns3::SimpleRefCount< T, PARENT, DELETER >

A template-based reference counting class.

This template can be used to give reference-counting powers to a class. This template does not require this class to have a virtual destructor or a specific (or any) parent class.

Note: if you are moving to this template from the RefCountBase class, you need to be careful to mark appropriately your destructor virtual if needed. i.e., if your class has subclasses, do mark your destructor virtual.

This template takes 3 arguments but only the first argument is mandatory:

Template Parameters

T	The typename of the subclass which derives from this template class. Yes, this is weird but it's a common C++ template pattern whose name is CRTP (Curiously Recursive Template Pattern)
PARENT	the typename of the parent of this template. By default, this typename is "'ns3::empty'" which is an empty class: compilers which implement the RBCO optimization (empty base class optimization) will make this a no-op
DELETER	the typename of a class which implements a public static method named 'Delete'. This method will be called whenever the SimpleRefCount template detects that no references to the object it manages exist anymore.

Interesting users of this class include ns3::Object as well as ns3::Packet.

Definition at line 71 of file simple-ref-count.h.

Constructor & Destructor Documentation

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

ns3::SimpleRefCount< T, PARENT, DELETER >::SimpleRefCount ( )

inline

Constructor.

Definition at line 77 of file simple-ref-count.h.

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

ns3::SimpleRefCount< T, PARENT, DELETER >::SimpleRefCount ( const SimpleRefCount< T, PARENT, DELETER > &  o )

inline

Copy constructor.

Definition at line 83 of file simple-ref-count.h.

Member Function Documentation

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

static void ns3::SimpleRefCount< T, PARENT, DELETER >::Cleanup ( void  )

inlinestatic

Noop.

Definition at line 133 of file simple-ref-count.h.

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

uint32_t ns3::SimpleRefCount< T, PARENT, DELETER >::GetReferenceCount ( void  ) const

inline

Get the reference count of the object.

Normally not needed; for language bindings.

Returns

The reference count.

Definition at line 125 of file simple-ref-count.h.

Referenced by ns3::Object::CheckLoose(), and ns3::Object::DoDelete().

Here is the caller graph for this function:

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

SimpleRefCount& ns3::SimpleRefCount< T, PARENT, DELETER >::operator= ( const SimpleRefCount< T, PARENT, DELETER > &  o )

inline

Assignment.

Definition at line 89 of file simple-ref-count.h.

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

void ns3::SimpleRefCount< T, PARENT, DELETER >::Ref ( void  ) const

inline

Increment the reference count.

This method should not be called by user code. SimpleRefCount instances are expected to be used in conjunction with the Ptr template which would make calling Ref unnecessary and dangerous.

Definition at line 99 of file simple-ref-count.h.

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

void ns3::SimpleRefCount< T, PARENT, DELETER >::Unref ( void  ) const

inline

Decrement the reference count.

This method should not be called by user code. SimpleRefCount instances are expected to be used in conjunction with the Ptr template which would make calling Ref unnecessary and dangerous.

Definition at line 110 of file simple-ref-count.h.

Referenced by ns3::DefaultSimulatorImpl::DoDispose(), ns3::NullMessageSimulatorImpl::DoDispose(), ns3::DistributedSimulatorImpl::DoDispose(), ns3::RealtimeSimulatorImpl::DoDispose(), ns3::DefaultSimulatorImpl::ProcessOneEvent(), ns3::NullMessageSimulatorImpl::ProcessOneEvent(), and ns3::DistributedSimulatorImpl::ProcessOneEvent().

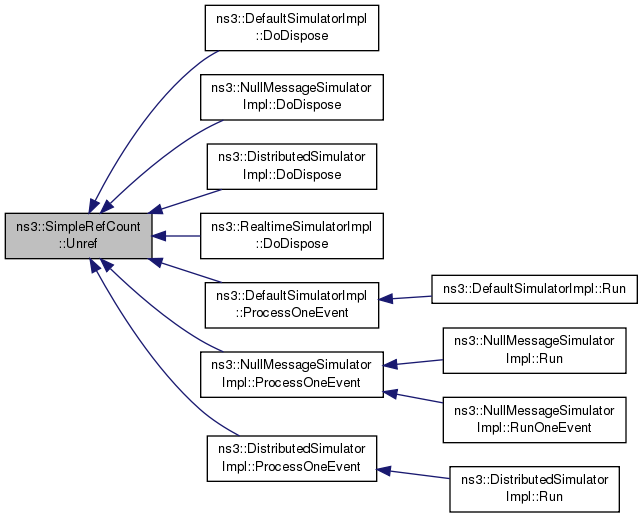

Here is the caller graph for this function:

Member Data Documentation

template<typename T, typename PARENT = empty, typename DELETER = DefaultDeleter<T>>

uint32_t ns3::SimpleRefCount< T, PARENT, DELETER >::m_count

mutableprivate

The reference count.

Internal:

Note we make this mutable so that the const methods can still change it.

Definition at line 142 of file simple-ref-count.h.

Referenced by ns3::SimpleRefCount< LteChunkProcessor >::GetReferenceCount(), ns3::SimpleRefCount< LteChunkProcessor >::Ref(), and ns3::SimpleRefCount< LteChunkProcessor >::Unref().

---

The documentation for this class was generated from the following file:

• src/core/model/simple-ref-count.h
