This class realizes Uplink Power Control functionality. More...

#include <lte-ue-power-control.h>

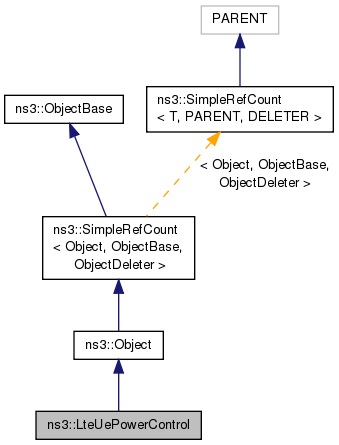

Inheritance diagram for ns3::LteUePowerControl:

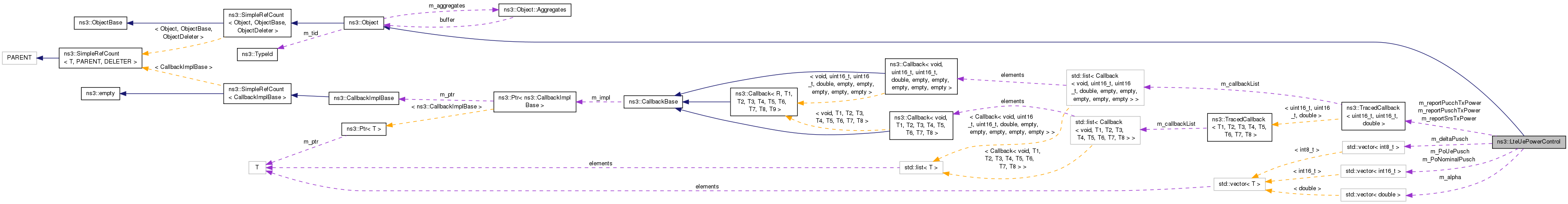

Collaboration diagram for ns3::LteUePowerControl:

Public Types
typedef void(*	TxPowerTracedCallback) (const uint16_t cellId, const uint16_t rnti, const double power)
	TracedCallback signature for uplink transmit power. More...

Public Member Functions
	LteUePowerControl ()

virtual	~LteUePowerControl ()

void	CalculatePucchTxPower ()

void	CalculatePuschTxPower ()

void	CalculateSrsTxPower ()

void	ConfigureReferenceSignalPower (int8_t referenceSignalPower)

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

double	GetPcmax ()

double	GetPucchTxPower (std::vector< int > rb)

double	GetPuschTxPower (std::vector< int > rb)

double	GetSrsTxPower (std::vector< int > rb)

void	ReportTpc (uint8_t tpc)

void	SetAlpha (double value)

void	SetCellId (uint16_t cellId)

void	SetPcmax (double value)

void	SetPoNominalPusch (int16_t value)

void	SetPoUePusch (int16_t value)

void	SetRnti (uint16_t rnti)

void	SetRsrp (double value)

void	SetTxPower (double value)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	SetSubChannelMask (std::vector< int > mask)

Private Attributes
bool	m_accumulationEnabled

std::vector< double >	m_alpha

uint16_t	m_cellId

bool	m_closedLoop

double	m_curPucchTxPower

double	m_curPuschTxPower

double	m_curSrsTxPower

std::vector< int8_t >	m_deltaPusch

double	m_deltaTF

double	m_fc

uint16_t	m_M_Pusch

double	m_pathLoss

double	m_Pcmax

double	m_Pcmin

std::vector< int16_t >	m_PoNominalPusch

std::vector< int16_t >	m_PoUePusch

int16_t	m_PsrsOffset

double	m_referenceSignalPower

TracedCallback< uint16_t, uint16_t, double >	m_reportPucchTxPower

TracedCallback< uint16_t, uint16_t, double >	m_reportPuschTxPower
	Trace information regarding Uplink TxPower uint16_t cellId, uint16_t rnti, double txPower. More...

TracedCallback< uint16_t, uint16_t, double >	m_reportSrsTxPower

uint16_t	m_rnti

double	m_rsrp

bool	m_rsrpSet

uint16_t	m_srsBandwidth

double	m_txPower

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

This class realizes Uplink Power Control functionality.

Introspection did not find any typical Config paths.

When LteUePhy is about sending PUSCH/PUCCH/SRS it should ask LteUePowerControl for current channel TX power level and then use it while creating SpectrumValue for Uplink Transmission

LteUePowerControl computes TX power level for PUSCH and SRS. PUCCH is realized in ideal way and PUSCH do not use any resources, so there is no need to compute power for that channel

LteUePowerControlcomputes TX power based on some preconfigured parameters and current Path-loss. Path-loss is computed as difference between current RSRP and referenceSignalPower level. Current RSRP is passed to LteUePowerControl by LteUePhy. referenceSignalPower is configurable by attribute system

Moreover, LteUePhy pass all received TPC values to LteUePowerControl, what is a part of Closed Loop Power Control functionality

Attributes

ClosedLoop: If true Closed Loop mode will be active, otherwise Open Loop
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
AccumulationEnabled: If true TCP accumulation mode will be active, otherwise absolute mode will be active
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Alpha: Value of Alpha paramter
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write
Pcmax: Max Transmission power in dBm, Default value 23 dBmTS36.101 section 6.2.3
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 23
- Flags: construct write read
Pcmin: Min Transmission power in dBm, Default value -40 dBmTS36.101 section 6.2.3
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -40
- Flags: construct write read
PoNominalPusch: P_O_NOMINAL_PUSCH INT (-126 ... 24), Default value -80
- Set with class: ns3::IntegerValue
- Underlying type: int16_t -32768:32767
- Initial value: -80
- Flags: construct write
PoUePusch: P_O_UE_PUSCH INT(-8...7), Default value 0
- Set with class: ns3::IntegerValue
- Underlying type: int16_t -32768:32767
- Initial value: 0
- Flags: construct write
PsrsOffset: P_SRS_OFFSET INT(0...15), Default value 7
- Set with class: ns3::IntegerValue
- Underlying type: int16_t -32768:32767
- Initial value: 7
- Flags: construct write read

TraceSources

ReportPuschTxPower: Report PUSCH TxPower in dBm
Callback signature: ns3::LteUePowerControl::TxPowerTracedCallback
ReportPucchTxPower: Report PUCCH TxPower in dBm
Callback signature: ns3::LteUePowerControl::TxPowerTracedCallback
ReportSrsTxPower: Report SRS TxPower in dBm
Callback signature: ns3::LteUePowerControl::TxPowerTracedCallback

Size of this type is 288 bytes (on a 64-bit architecture).

Definition at line 54 of file lte-ue-power-control.h.

Member Typedef Documentation

typedef void(* ns3::LteUePowerControl::TxPowerTracedCallback) (const uint16_t cellId, const uint16_t rnti, const double power)

TracedCallback signature for uplink transmit power.

Parameters

[in]	cellId	Cell identifier.
[in]	rnti	The C-RNTI identifying the UE.
[in]	power	The current TX power.

Definition at line 98 of file lte-ue-power-control.h.

Constructor & Destructor Documentation

ns3::LteUePowerControl::LteUePowerControl ( )

Definition at line 35 of file lte-ue-power-control.cc.

References m_cellId, m_curPucchTxPower, m_curPuschTxPower, m_curSrsTxPower, m_deltaTF, m_fc, m_M_Pusch, m_pathLoss, m_rnti, m_rsrpSet, m_txPower, and NS_LOG_FUNCTION.

ns3::LteUePowerControl::~LteUePowerControl ( )

virtual

Definition at line 53 of file lte-ue-power-control.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUePowerControl::CalculatePucchTxPower ( )

Definition at line 390 of file lte-ue-power-control.cc.

References m_curPucchTxPower, m_curPuschTxPower, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetPucchTxPower().

Here is the caller graph for this function:

void ns3::LteUePowerControl::CalculatePuschTxPower ( )

Definition at line 362 of file lte-ue-power-control.cc.

References m_alpha, m_curPuschTxPower, m_deltaTF, m_fc, m_M_Pusch, m_pathLoss, m_Pcmax, m_Pcmin, m_PoNominalPusch, m_PoUePusch, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetPuschTxPower().

Here is the caller graph for this function:

void ns3::LteUePowerControl::CalculateSrsTxPower ( )

Definition at line 398 of file lte-ue-power-control.cc.

References m_alpha, m_curSrsTxPower, m_deltaTF, m_fc, m_M_Pusch, m_pathLoss, m_Pcmax, m_Pcmin, m_PoNominalPusch, m_PoUePusch, m_PsrsOffset, m_srsBandwidth, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by GetSrsTxPower().

Here is the caller graph for this function:

void ns3::LteUePowerControl::ConfigureReferenceSignalPower ( int8_t referenceSignalPower )

Definition at line 160 of file lte-ue-power-control.cc.

References m_referenceSignalPower, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoConfigureReferenceSignalPower().

Here is the caller graph for this function:

void ns3::LteUePowerControl::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 65 of file lte-ue-power-control.cc.

References NS_LOG_FUNCTION.

void ns3::LteUePowerControl::DoInitialize ( void )

virtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 59 of file lte-ue-power-control.cc.

References NS_LOG_FUNCTION.

double ns3::LteUePowerControl::GetPcmax ( )

Definition at line 143 of file lte-ue-power-control.cc.

References m_Pcmax, and NS_LOG_FUNCTION.

double ns3::LteUePowerControl::GetPucchTxPower ( std::vector< int > rb )

Definition at line 435 of file lte-ue-power-control.cc.

References CalculatePucchTxPower(), m_cellId, m_curPucchTxPower, m_reportPucchTxPower, m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::LteUePowerControl::GetPuschTxPower ( std::vector< int > rb )

Definition at line 422 of file lte-ue-power-control.cc.

References CalculatePuschTxPower(), m_cellId, m_curPuschTxPower, m_M_Pusch, m_reportPuschTxPower, m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SubframeIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::LteUePowerControl::GetSrsTxPower ( std::vector< int > rb )

Definition at line 447 of file lte-ue-power-control.cc.

References CalculateSrsTxPower(), m_cellId, m_curSrsTxPower, m_reportSrsTxPower, m_rnti, m_srsBandwidth, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SendSrs().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::LteUePowerControl::GetTypeId ( void )

static

Definition at line 71 of file lte-ue-power-control.cc.

References m_accumulationEnabled, m_closedLoop, m_Pcmax, m_Pcmin, m_PsrsOffset, m_reportPucchTxPower, m_reportPuschTxPower, m_reportSrsTxPower, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakeIntegerAccessor(), ns3::MakeTraceSourceAccessor(), SetAlpha(), ns3::TypeId::SetParent(), SetPoNominalPusch(), and SetPoUePusch().

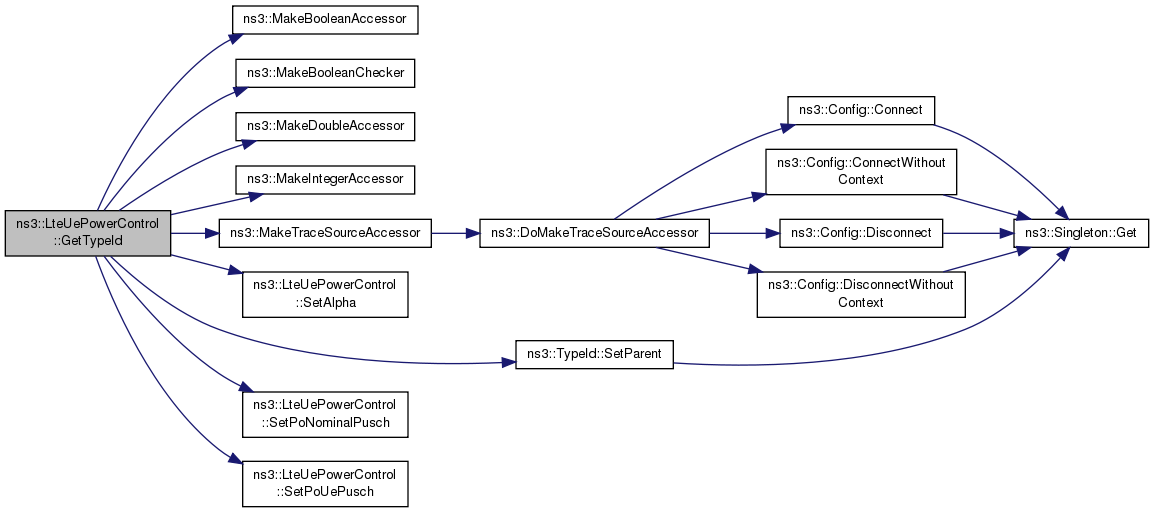

Here is the call graph for this function:

void ns3::LteUePowerControl::ReportTpc ( uint8_t tpc )

Definition at line 269 of file lte-ue-power-control.cc.

References m_accumulationEnabled, m_closedLoop, m_curPuschTxPower, m_deltaPusch, m_fc, m_Pcmax, m_Pcmin, NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::LteUePhy::ReceiveLteControlMessageList().

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetAlpha ( double value )

Definition at line 216 of file lte-ue-power-control.cc.

References m_alpha, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

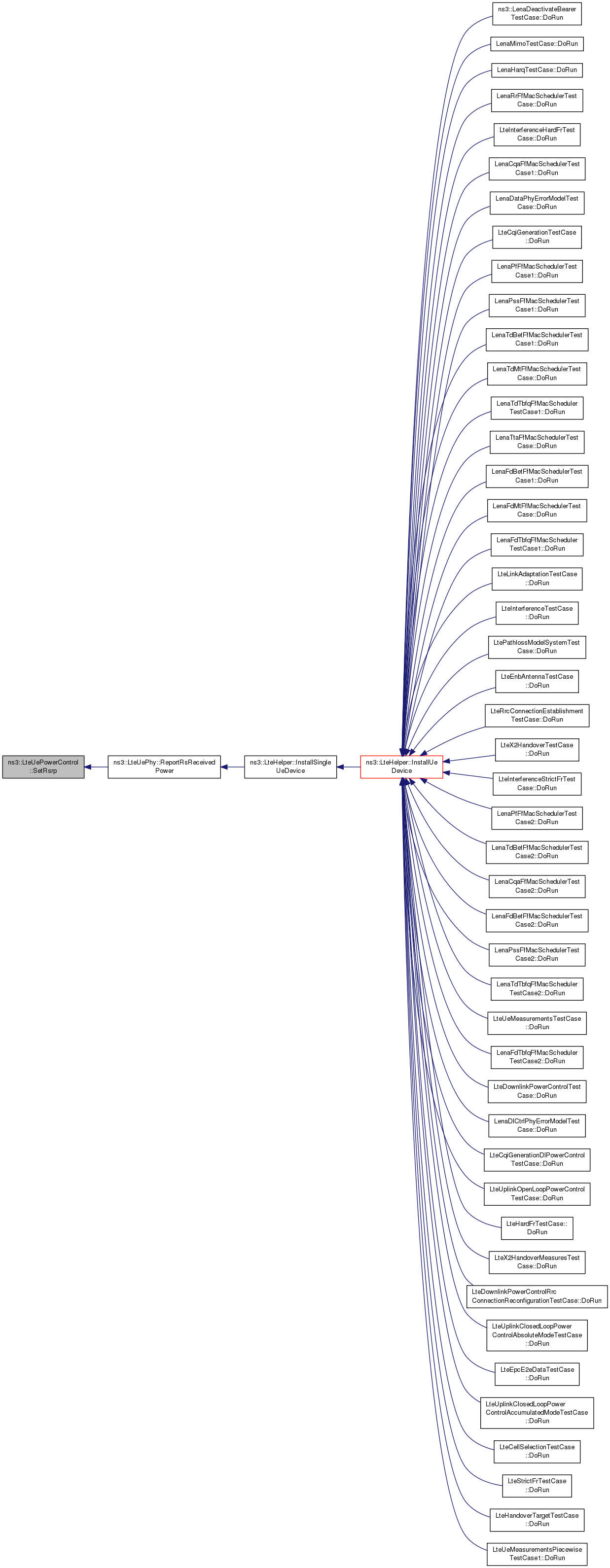

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetCellId ( uint16_t cellId )

Definition at line 167 of file lte-ue-power-control.cc.

References m_cellId, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoSetRnti().

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetPcmax ( double value )

Definition at line 136 of file lte-ue-power-control.cc.

References m_Pcmax, and NS_LOG_FUNCTION.

void ns3::LteUePowerControl::SetPoNominalPusch ( int16_t value )

Definition at line 180 of file lte-ue-power-control.cc.

References m_PoNominalPusch, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetPoUePusch ( int16_t value )

Definition at line 199 of file lte-ue-power-control.cc.

References m_PoUePusch, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetRnti ( uint16_t rnti )

Definition at line 173 of file lte-ue-power-control.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::DoSetRnti().

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetRsrp ( double value )

Definition at line 252 of file lte-ue-power-control.cc.

References m_pathLoss, m_referenceSignalPower, m_rsrp, m_rsrpSet, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::ReportRsReceivedPower().

Here is the caller graph for this function:

void ns3::LteUePowerControl::SetSubChannelMask ( std::vector< int > mask )

private

Definition at line 355 of file lte-ue-power-control.cc.

References m_M_Pusch, and NS_LOG_FUNCTION.

void ns3::LteUePowerControl::SetTxPower ( double value )

Definition at line 150 of file lte-ue-power-control.cc.

References m_curPucchTxPower, m_curPuschTxPower, m_curSrsTxPower, m_txPower, and NS_LOG_FUNCTION.

Referenced by ns3::LteUePhy::SetTxPower().

Here is the caller graph for this function:

Member Data Documentation

bool ns3::LteUePowerControl::m_accumulationEnabled

private

Definition at line 131 of file lte-ue-power-control.h.

Referenced by GetTypeId(), and ReportTpc().

std::vector<double> ns3::LteUePowerControl::m_alpha

private

Definition at line 121 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and SetAlpha().

uint16_t ns3::LteUePowerControl::m_cellId

private

Definition at line 133 of file lte-ue-power-control.h.

Referenced by GetPucchTxPower(), GetPuschTxPower(), GetSrsTxPower(), LteUePowerControl(), and SetCellId().

bool ns3::LteUePowerControl::m_closedLoop

private

Definition at line 130 of file lte-ue-power-control.h.

Referenced by GetTypeId(), and ReportTpc().

double ns3::LteUePowerControl::m_curPucchTxPower

private

Definition at line 108 of file lte-ue-power-control.h.

Referenced by CalculatePucchTxPower(), GetPucchTxPower(), LteUePowerControl(), and SetTxPower().

double ns3::LteUePowerControl::m_curPuschTxPower

private

Definition at line 107 of file lte-ue-power-control.h.

Referenced by CalculatePucchTxPower(), CalculatePuschTxPower(), GetPuschTxPower(), LteUePowerControl(), ReportTpc(), and SetTxPower().

double ns3::LteUePowerControl::m_curSrsTxPower

private

Definition at line 109 of file lte-ue-power-control.h.

Referenced by CalculateSrsTxPower(), GetSrsTxPower(), LteUePowerControl(), and SetTxPower().

std::vector<int8_t> ns3::LteUePowerControl::m_deltaPusch

private

Definition at line 125 of file lte-ue-power-control.h.

Referenced by ReportTpc().

double ns3::LteUePowerControl::m_deltaTF

private

Definition at line 123 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and LteUePowerControl().

double ns3::LteUePowerControl::m_fc

private

Definition at line 126 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), LteUePowerControl(), and ReportTpc().

uint16_t ns3::LteUePowerControl::m_M_Pusch

private

Definition at line 120 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), GetPuschTxPower(), LteUePowerControl(), and SetSubChannelMask().

double ns3::LteUePowerControl::m_pathLoss

private

Definition at line 122 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), LteUePowerControl(), and SetRsrp().

double ns3::LteUePowerControl::m_Pcmax

private

Definition at line 104 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), GetPcmax(), GetTypeId(), ReportTpc(), and SetPcmax().

double ns3::LteUePowerControl::m_Pcmin

private

Definition at line 105 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), GetTypeId(), and ReportTpc().

std::vector<int16_t> ns3::LteUePowerControl::m_PoNominalPusch

private

Definition at line 115 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and SetPoNominalPusch().

std::vector<int16_t> ns3::LteUePowerControl::m_PoUePusch

private

Definition at line 116 of file lte-ue-power-control.h.

Referenced by CalculatePuschTxPower(), CalculateSrsTxPower(), and SetPoUePusch().

int16_t ns3::LteUePowerControl::m_PsrsOffset

private

Definition at line 118 of file lte-ue-power-control.h.

Referenced by CalculateSrsTxPower(), and GetTypeId().

double ns3::LteUePowerControl::m_referenceSignalPower

private

Definition at line 111 of file lte-ue-power-control.h.

Referenced by ConfigureReferenceSignalPower(), and SetRsrp().

TracedCallback<uint16_t, uint16_t, double> ns3::LteUePowerControl::m_reportPucchTxPower

private

Definition at line 140 of file lte-ue-power-control.h.

Referenced by GetPucchTxPower(), and GetTypeId().

TracedCallback<uint16_t, uint16_t, double> ns3::LteUePowerControl::m_reportPuschTxPower

private

Trace information regarding Uplink TxPower uint16_t cellId, uint16_t rnti, double txPower.

Definition at line 139 of file lte-ue-power-control.h.

Referenced by GetPuschTxPower(), and GetTypeId().

TracedCallback<uint16_t, uint16_t, double> ns3::LteUePowerControl::m_reportSrsTxPower

private

Definition at line 141 of file lte-ue-power-control.h.

Referenced by GetSrsTxPower(), and GetTypeId().

uint16_t ns3::LteUePowerControl::m_rnti

private

Definition at line 134 of file lte-ue-power-control.h.

Referenced by GetPucchTxPower(), GetPuschTxPower(), GetSrsTxPower(), LteUePowerControl(), and SetRnti().

double ns3::LteUePowerControl::m_rsrp

private

Definition at line 113 of file lte-ue-power-control.h.

Referenced by SetRsrp().

bool ns3::LteUePowerControl::m_rsrpSet

private

Definition at line 112 of file lte-ue-power-control.h.

Referenced by LteUePowerControl(), and SetRsrp().

uint16_t ns3::LteUePowerControl::m_srsBandwidth

private

Definition at line 128 of file lte-ue-power-control.h.

Referenced by CalculateSrsTxPower(), and GetSrsTxPower().

double ns3::LteUePowerControl::m_txPower

private

Definition at line 103 of file lte-ue-power-control.h.

Referenced by LteUePowerControl(), and SetTxPower().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-power-control.h
src/lte/model/lte-ue-power-control.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
