Configuration

Configuration of simulation parameters and tracing. More...

Collaboration diagram for Configuration:

Files
file	config.cc
	Imlementation of the various ns3::Config functions and classes.
file	config.h
	Declaration of the various ns3::Config functions and classes.
file	names.cc
	Implementation of class ns3::Names, and declaration of classes ns3::NamesNode and ns3::NamePriv.
file	names.h
	Declaration of class ns3::Names.

Namespaces
	ns3::Config
	Namespace for the various functions implementing the Config system.

Classes
class	ns3::Config::MatchContainer
	hold a set of objects which match a specific search string. More...

Functions
void	ns3::Config::Connect (std::string path, const CallbackBase &cb)
void	ns3::Config::ConnectWithoutContext (std::string path, const CallbackBase &cb)
void	ns3::Config::Disconnect (std::string path, const CallbackBase &cb)
void	ns3::Config::DisconnectWithoutContext (std::string path, const CallbackBase &cb)
Ptr< Object >	ns3::Config::GetRootNamespaceObject (uint32_t i)
uint32_t	ns3::Config::GetRootNamespaceObjectN (void)
Config::MatchContainer	ns3::Config::LookupMatches (std::string path)
void	ns3::Config::RegisterRootNamespaceObject (Ptr< Object > obj)
void	ns3::Config::Reset (void)
	Reset the initial value of every attribute as well as the value of every global to what they were before any call to SetDefault and SetGlobal. More...
void	ns3::Config::Set (std::string path, const AttributeValue &value)
void	ns3::Config::SetDefault (std::string name, const AttributeValue &value)
bool	ns3::Config::SetDefaultFailSafe (std::string name, const AttributeValue &value)
void	ns3::Config::SetGlobal (std::string name, const AttributeValue &value)
bool	ns3::Config::SetGlobalFailSafe (std::string name, const AttributeValue &value)
void	ns3::Config::UnregisterRootNamespaceObject (Ptr< Object > obj)

Detailed Description

Configuration of simulation parameters and tracing.

Function Documentation

void ns3::Config::Connect	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

path	a path to match trace sources.
cb	the callback to connect to the matching trace sources.

This function will attempt to find all trace sources which match the input path and will then connect the input callback to them in such a way that the callback will receive an extra context string upon trace event notification.

Definition at line 744 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::ActivateDataRadioBearer(), VanetRoutingExperiment::ConfigureApplications(), VanetRoutingExperiment::ConfigureDevices(), ns3::dsr::DsrRouting::ConnectCallbacks(), ns3::AnimationInterface::ConnectCallbacks(), ns3::RadioBearerStatsConnector::ConnectSrb0Traces(), ns3::RadioBearerStatsConnector::ConnectSrb1TracesUe(), ns3::RadioBearerStatsConnector::ConnectTracesEnb(), ns3::RadioBearerStatsConnector::ConnectTracesUe(), ns3::DoMakeTraceSourceAccessor(), ns3::aodv::LoopbackTestCase::DoRun(), WaypointMobilityModelNotifyTest::DoRun(), LteCqiGenerationTestCase::DoRun(), LteLinkAdaptationTestCase::DoRun(), Ns3TcpNoDelayTestCase::DoRun(), LteInterferenceTestCase::DoRun(), Ns3TcpSocketTestCase1::DoRun(), LteEnbAntennaTestCase::DoRun(), NscTcpLossTestCase1::DoRun(), LteRrcConnectionEstablishmentTestCase::DoRun(), Ns3TcpLossTestCase::DoRun(), Ns3TcpStateTestCase::DoRun(), LteUeMeasurementsTestCase::DoRun(), LteHandoverDelayTestCase::DoRun(), LteCqiGenerationDlPowerControlTestCase::DoRun(), SpectrumIdealPhyTestCase::DoRun(), Ns3TcpInteroperabilityTestCase::DoRun(), LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun(), LteCellSelectionTestCase::DoRun(), LteHandoverTargetTestCase::DoRun(), LteUeMeasurementsPiecewiseTestCase1::DoRun(), Ns3TcpSocketTestCase2::DoRun(), NscTcpLossTestCase2::DoRun(), LteUeMeasurementsPiecewiseTestCase2::DoRun(), Ns2MobilityHelperTest::DoRun(), LteUeMeasurementsHandoverTestCase::DoRun(), LteRrcConnectionEstablishmentErrorTestCase::DoRun(), ObjectVectorTraceConfigTestCase::DoRun(), CsmaPacketSocketTestCase::DoRun(), CsmaPingTestCase::DoRun(), ns3::UanHelper::EnableAscii(), ns3::WimaxHelper::EnableAsciiForConnection(), ns3::YansWavePhyHelper::EnableAsciiInternal(), ns3::FdNetDeviceHelper::EnableAsciiInternal(), ns3::PointToPointHelper::EnableAsciiInternal(), ns3::CsmaHelper::EnableAsciiInternal(), ns3::YansWifiPhyHelper::EnableAsciiInternal(), ns3::WimaxHelper::EnableAsciiInternal(), ns3::InternetStackHelper::EnableAsciiIpv4Internal(), ns3::InternetStackHelper::EnableAsciiIpv6Internal(), ns3::AthstatsHelper::EnableAthstats(), ns3::LteHelper::EnableDlMacTraces(), ns3::LteHelper::EnableDlPhyTraces(), ns3::LteHelper::EnableDlRxPhyTraces(), ns3::LteHelper::EnableDlTxPhyTraces(), ns3::LteHelper::EnableUlMacTraces(), ns3::LteHelper::EnableUlPhyTraces(), ns3::LteHelper::EnableUlRxPhyTraces(), ns3::LteHelper::EnableUlTxPhyTraces(), ns3::RadioBearerStatsConnector::EnsureConnected(), OcbWifiMacTestCase::PostDeviceConfiguration(), ns3::PyViz::PyViz(), ns3::PyViz::RegisterCsmaLikeDevice(), ns3::PyViz::RegisterDropTracePath(), ns3::PyViz::RegisterPointToPointLikeDevice(), ns3::PyViz::RegisterWifiLikeDevice(), VanetRoutingExperiment::SetupAdhocMobilityNodes(), and WifiInterferenceTestCase::WifiSimpleInterference().

Here is the call graph for this function:

void ns3::Config::ConnectWithoutContext	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

path	a path to match trace sources.
cb	the callback to connect to the matching trace sources.

This function will attempt to find all trace sources which match the input path and will then connect the input callback to them.

Definition at line 733 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::Uinteger16Probe::ConnectByPath(), ns3::Uinteger32Probe::ConnectByPath(), ns3::Uinteger8Probe::ConnectByPath(), ns3::PacketProbe::ConnectByPath(), ns3::BooleanProbe::ConnectByPath(), ns3::DoubleProbe::ConnectByPath(), ns3::Ipv4PacketProbe::ConnectByPath(), ns3::TimeProbe::ConnectByPath(), ns3::ApplicationPacketProbe::ConnectByPath(), ns3::Ipv6PacketProbe::ConnectByPath(), ns3::AnimationInterface::ConnectCallbacks(), ns3::DoMakeTraceSourceAccessor(), CsmaBridgeTestCase::DoRun(), Ns3TcpLossTestCase::DoRun(), CsmaBroadcastTestCase::DoRun(), CsmaMulticastTestCase::DoRun(), CsmaOneSubnetTestCase::DoRun(), ObjectVectorTraceConfigTestCase::DoRun(), CsmaPingTestCase::DoRun(), CsmaRawIpSocketTestCase::DoRun(), CsmaStarTestCase::DoRun(), ns3::MobilityHelper::EnableAscii(), ns3::YansWavePhyHelper::EnableAsciiInternal(), ns3::YansWifiPhyHelper::EnableAsciiInternal(), ns3::SpectrumAnalyzerHelper::Install(), ns3::Ipv4FlowProbe::Ipv4FlowProbe(), ns3::Ipv6FlowProbe::Ipv6FlowProbe(), TraceCwnd(), TraceDroppingState(), TraceEveryDrop(), TraceQueueLength(), TraceRto(), TraceRtt(), TraceSojourn(), and TraceSsThresh().

Here is the call graph for this function:

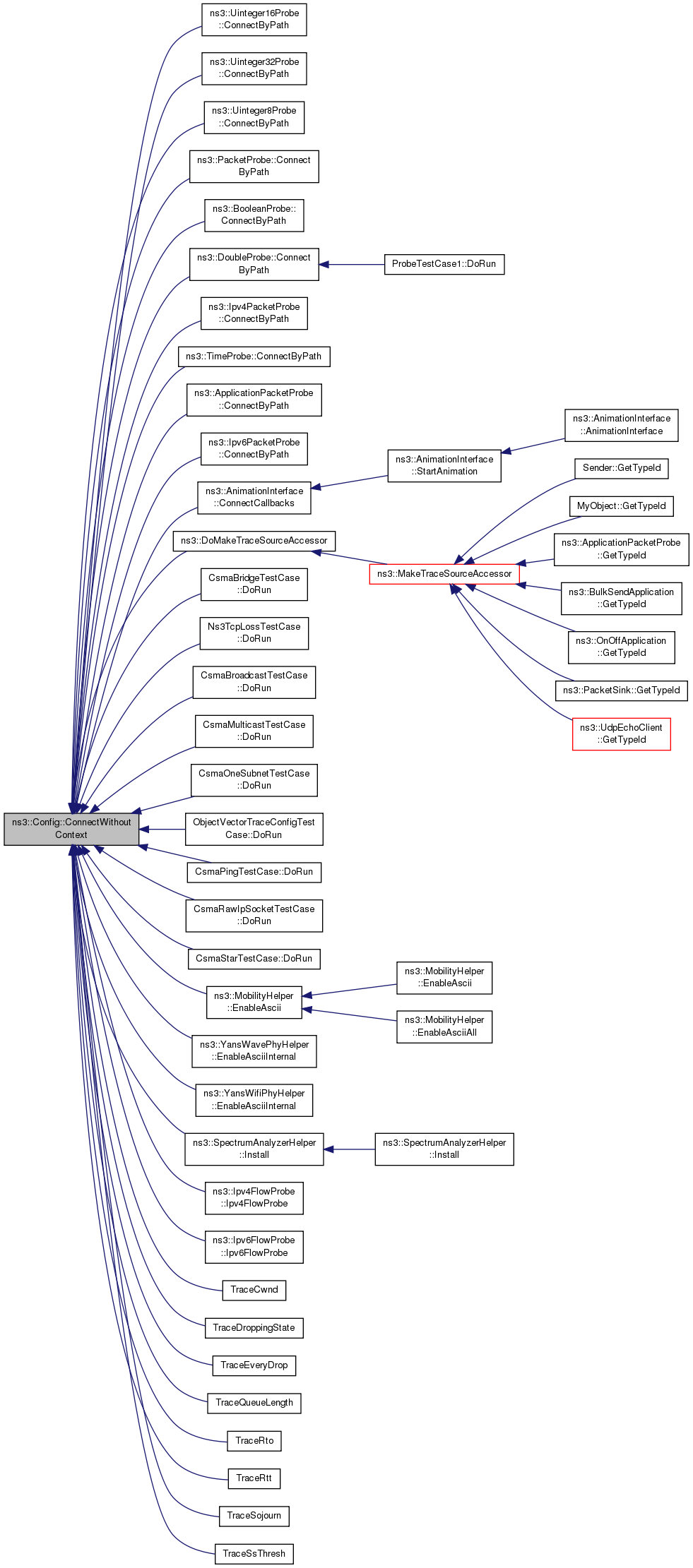

Here is the caller graph for this function:

void ns3::Config::Disconnect	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

path	a path to match trace sources.
cb	the callback to connect to the matching trace sources.

This function undoes the work of Config::ConnectWithContext.

Definition at line 750 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::RadioBearerStatsConnector::ConnectSrb0Traces(), and ns3::DoMakeTraceSourceAccessor().

Here is the call graph for this function:

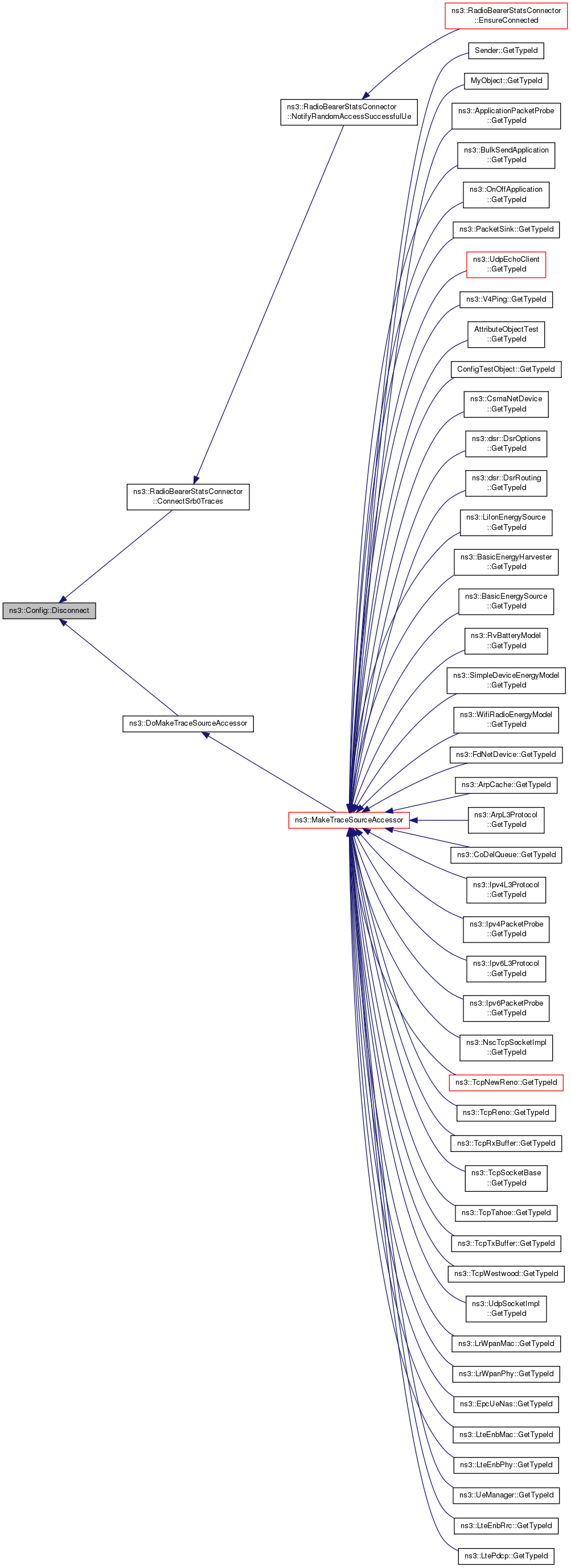

Here is the caller graph for this function:

void ns3::Config::DisconnectWithoutContext	(	std::string	path,
		const CallbackBase &	cb
	)

Parameters

path	a path to match trace sources.
cb	the callback to disconnect to the matching trace sources.

This function undoes the work of Config::Connect.

Definition at line 738 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::TracedCallback< T1, T2, T3, T4, T5, T6, T7, T8 >::Disconnect(), and ns3::DoMakeTraceSourceAccessor().

Here is the call graph for this function:

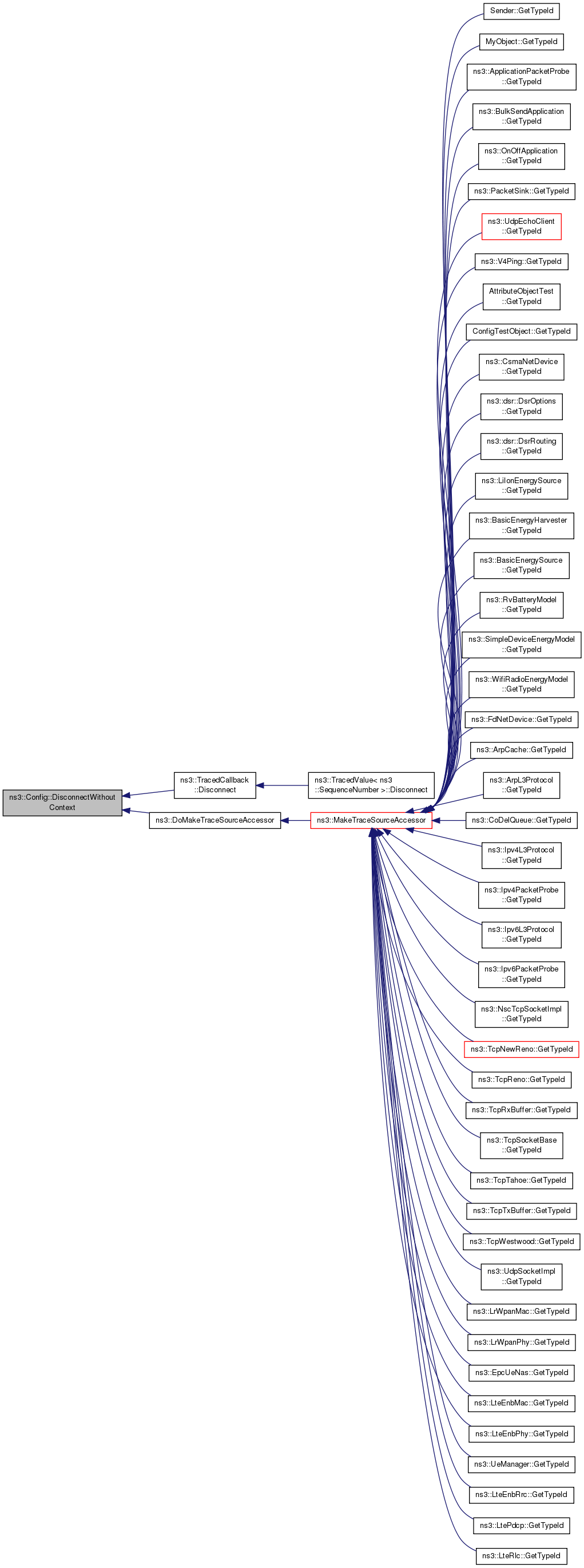

Here is the caller graph for this function:

Ptr< Object > ns3::Config::GetRootNamespaceObject

(

uint32_t

i

)

Parameters

i	the index of the requested object.

Returns

the requested root namespace object

Definition at line 779 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by GetTypicalAggregations(), and ns3::AttributeIterator::Iterate().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::Config::GetRootNamespaceObjectN

(

void

)

Returns

the number of registered root namespace objects.

Definition at line 773 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION_NOARGS.

Referenced by GetTypicalAggregations(), and ns3::AttributeIterator::Iterate().

Here is the call graph for this function:

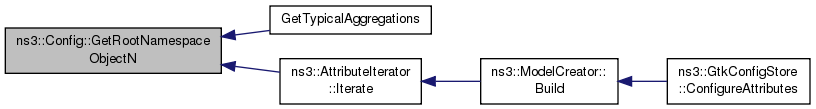

Here is the caller graph for this function:

MatchContainer ns3::Config::LookupMatches

(

std::string

path

)

Parameters

path	the path to perform a match against

Returns

a container which contains all the objects which match the input path.

Definition at line 755 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::RandomVariableStreamHelper::AssignStreams(), ns3::LteStatsCalculator::FindCellIdFromEnbRlcPath(), ns3::LteStatsCalculator::FindImsiFromEnbRlcPath(), ns3::LteStatsCalculator::FindImsiFromLteNetDevice(), ns3::LteStatsCalculator::FindImsiFromUePhy(), ns3::RadioEnvironmentMapHelper::Install(), ns3::GnuplotHelper::PlotProbe(), and ns3::FileHelper::WriteProbe().

Here is the call graph for this function:

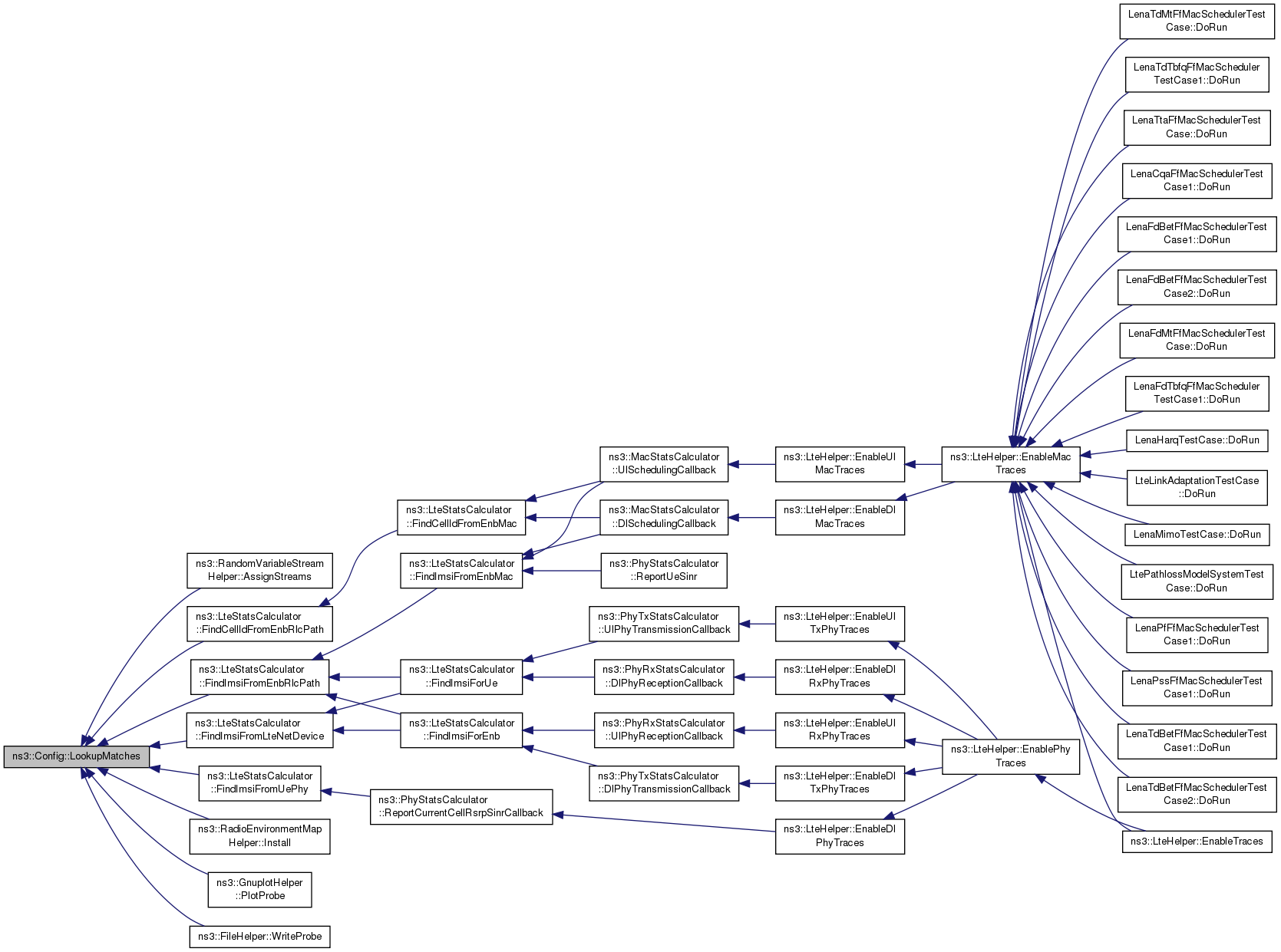

Here is the caller graph for this function:

void ns3::Config::RegisterRootNamespaceObject

(

Ptr< Object >

obj

)

Parameters

obj	a new root object

Each root object is used during path matching as the root of the path by Config::Connect, and Config::Set.

Definition at line 761 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::BuildingListPriv::DoGet(), ns3::ChannelListPriv::DoGet(), ns3::NodeListPriv::DoGet(), RootNamespaceConfigTestCase::DoRun(), UnderRootNamespaceConfigTestCase::DoRun(), ObjectVectorConfigTestCase::DoRun(), ObjectVectorTraceConfigTestCase::DoRun(), and SearchAttributesOfParentObjectsTestCase::DoRun().

Here is the call graph for this function:

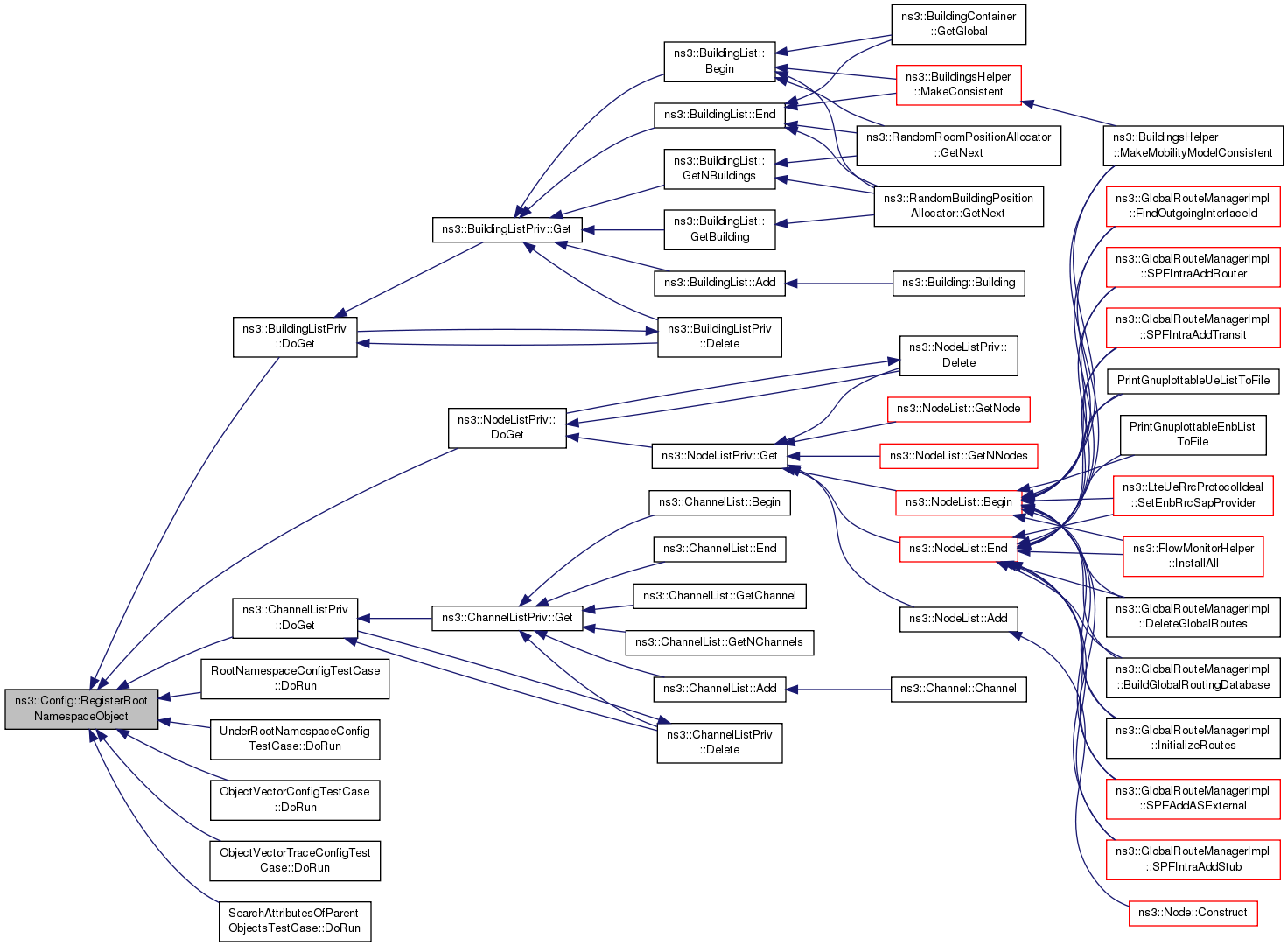

Here is the caller graph for this function:

void ns3::Config::Reset

(

void

)

Reset the initial value of every attribute as well as the value of every global to what they were before any call to SetDefault and SetGlobal.

Definition at line 658 of file config.cc.

References ns3::GlobalValue::Begin(), ns3::GlobalValue::End(), ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::TypeId::GetRegistered(), ns3::TypeId::GetRegisteredN(), NS_LOG_FUNCTION_NOARGS, ns3::TypeId::AttributeInformation::originalInitialValue, and ns3::TypeId::SetAttributeInitialValue().

Referenced by LteInterferenceHardFrTestCase::DoRun(), LteCqiGenerationTestCase::DoRun(), LteLinkAdaptationTestCase::DoRun(), LteEnbAntennaTestCase::DoRun(), LteRrcConnectionEstablishmentTestCase::DoRun(), LteX2HandoverTestCase::DoRun(), LteInterferenceStrictFrTestCase::DoRun(), LteDownlinkPowerControlTestCase::DoRun(), LteCqiGenerationDlPowerControlTestCase::DoRun(), LteUplinkOpenLoopPowerControlTestCase::DoRun(), LteHardFrTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun(), LteUplinkClosedLoopPowerControlAbsoluteModeTestCase::DoRun(), LteEpcE2eDataTestCase::DoRun(), LteUplinkClosedLoopPowerControlAccumulatedModeTestCase::DoRun(), LteStrictFrTestCase::DoRun(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), LteRrcConnectionEstablishmentErrorTestCase::DoRun(), NetworkNumberAllocatorTestCase::DoTeardown(), NetworkNumber6AllocatorTestCase::DoTeardown(), NetworkAllocatorHelperTestCase::DoTeardown(), IpAddressHelperTestCasev6::DoTeardown(), AddressAllocator6TestCase::DoTeardown(), AddressAllocatorHelperTestCase::DoTeardown(), AddressAllocatorTestCase::DoTeardown(), ResetAllocatorHelperTestCase::DoTeardown(), NetworkAndAddress6TestCase::DoTeardown(), NetworkAndAddressTestCase::DoTeardown(), ExampleAddress6GeneratorTestCase::DoTeardown(), IpAddressHelperTestCasev4::DoTeardown(), ExampleAddressGeneratorTestCase::DoTeardown(), AddressCollision6TestCase::DoTeardown(), and AddressCollisionTestCase::DoTeardown().

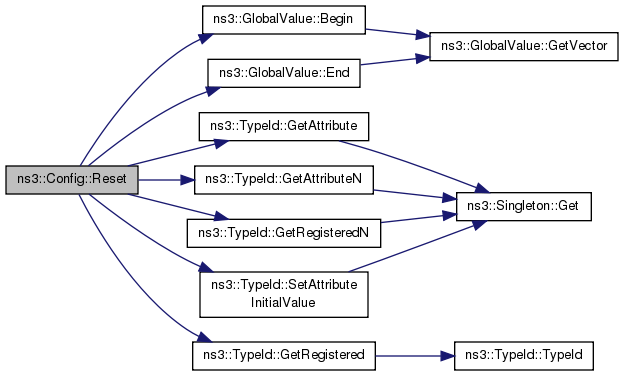

Here is the call graph for this function:

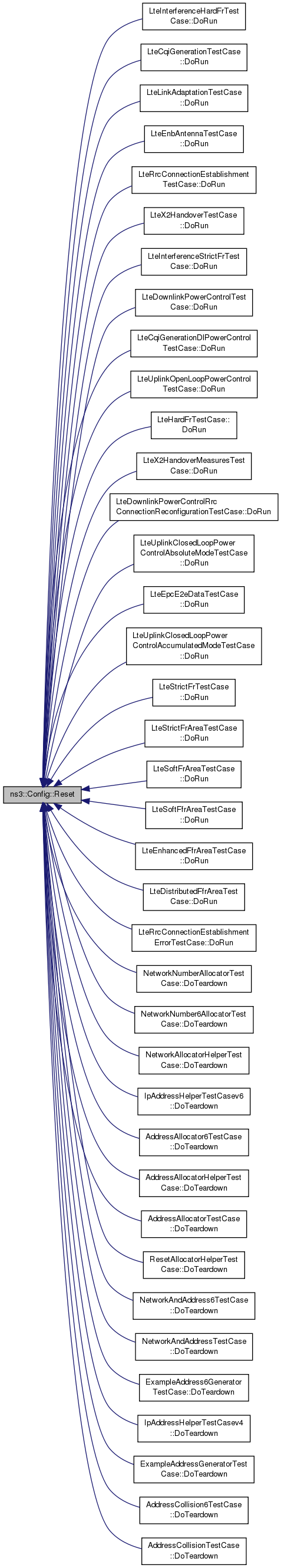

Here is the caller graph for this function:

void ns3::Config::Set	(	std::string	path,
		const AttributeValue &	value
	)

Parameters

path	a path to match attributes.
value	the value to set in all matching attributes.

This function will attempt to find attributes which match the input path and will then set their value to the input value.

Definition at line 678 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::RawTextConfigLoad::Attributes(), ns3::XmlConfigLoad::Attributes(), LteEpcE2eDataTestCase::DoRun(), RootNamespaceConfigTestCase::DoRun(), UnderRootNamespaceConfigTestCase::DoRun(), ObjectVectorConfigTestCase::DoRun(), SearchAttributesOfParentObjectsTestCase::DoRun(), NetAnimExperiment::IncrementCw(), and Experiment::IncrementCw().

Here is the call graph for this function:

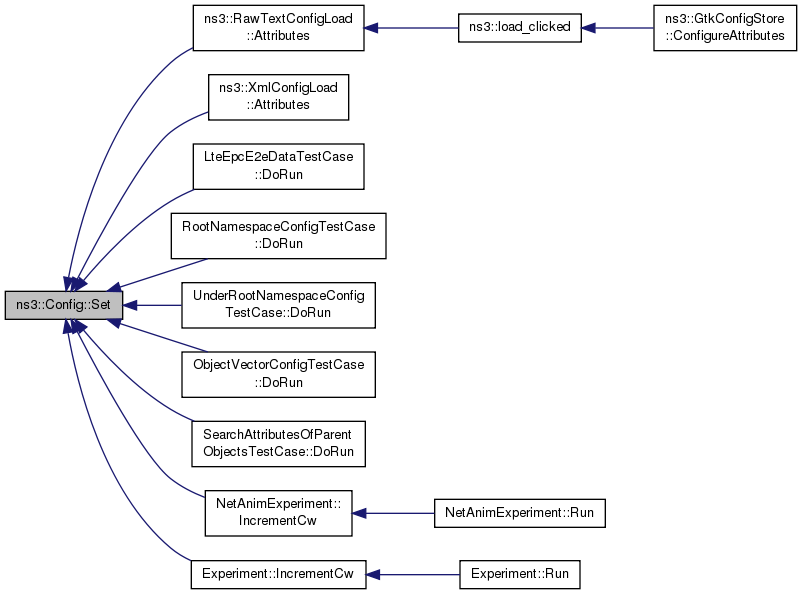

Here is the caller graph for this function:

void ns3::Config::SetDefault	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the full name of the attribute
value	the value to set.

This method overrides the initial value of the matching attribute. This method cannot fail: it will crash if the input attribute name or value is invalid.

Definition at line 683 of file config.cc.

References NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::Config::SetDefaultFailSafe().

Referenced by VanetRoutingExperiment::ConfigureDefaults(), BatteryLifetimeTest::ConstantLoadTest(), ns3::olsr::Bug780Test::CreateNodes(), ns3::RawTextConfigLoad::Default(), ns3::XmlConfigLoad::Default(), BasicEnergyDepletionTest::DepletionTestCase(), ns3::LenaDeactivateBearerTestCase::DoRun(), RttEstimatorTestCase::DoRun(), OneUniformRandomVariableManyGetValueCallsTestCase::DoRun(), LenaMimoTestCase::DoRun(), ManyUniformRandomVariablesOneGetValueCallTestCase::DoRun(), FriisPropagationLossModelTestCase::DoRun(), LenaHarqTestCase::DoRun(), LenaRrFfMacSchedulerTestCase::DoRun(), LenaCqaFfMacSchedulerTestCase1::DoRun(), LteInterferenceHardFrTestCase::DoRun(), LenaDataPhyErrorModelTestCase::DoRun(), LteCqiGenerationTestCase::DoRun(), LenaPfFfMacSchedulerTestCase1::DoRun(), LteDownlinkDataSinrTestCase::DoRun(), LenaPssFfMacSchedulerTestCase1::DoRun(), LenaFdBetFfMacSchedulerTestCase1::DoRun(), LenaTdBetFfMacSchedulerTestCase1::DoRun(), LenaTdMtFfMacSchedulerTestCase::DoRun(), LenaFdMtFfMacSchedulerTestCase::DoRun(), LenaTdTbfqFfMacSchedulerTestCase1::DoRun(), LenaFdTbfqFfMacSchedulerTestCase1::DoRun(), LenaTtaFfMacSchedulerTestCase::DoRun(), LteLinkAdaptationTestCase::DoRun(), Ipv4DynamicGlobalRoutingTestCase::DoRun(), LteInterferenceTestCase::DoRun(), Ns3TcpNoDelayTestCase::DoRun(), LteRlcAmE2eTestCase::DoRun(), LtePathlossModelSystemTestCase::DoRun(), LteEnbAntennaTestCase::DoRun(), LteRrcConnectionEstablishmentTestCase::DoRun(), LteX2HandoverTestCase::DoRun(), LteDownlinkCtrlSinrTestCase::DoRun(), LteInterferenceStrictFrTestCase::DoRun(), Ns3TcpLossTestCase::DoRun(), LenaPfFfMacSchedulerTestCase2::DoRun(), LenaCqaFfMacSchedulerTestCase2::DoRun(), LenaTdBetFfMacSchedulerTestCase2::DoRun(), LenaFdBetFfMacSchedulerTestCase2::DoRun(), Ns3TcpStateTestCase::DoRun(), LteDownlinkPowerControlTestCase::DoRun(), LenaPssFfMacSchedulerTestCase2::DoRun(), LenaTdTbfqFfMacSchedulerTestCase2::DoRun(), LteUeMeasurementsTestCase::DoRun(), LenaFdTbfqFfMacSchedulerTestCase2::DoRun(), LenaDlCtrlPhyErrorModelTestCase::DoRun(), LteCqiGenerationDlPowerControlTestCase::DoRun(), LteUplinkOpenLoopPowerControlTestCase::DoRun(), EpcS1uDlTestCase::DoRun(), LteHardFrTestCase::DoRun(), LteX2HandoverMeasuresTestCase::DoRun(), LteUplinkClosedLoopPowerControlAbsoluteModeTestCase::DoRun(), LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::DoRun(), LteEpcE2eDataTestCase::DoRun(), Ipv4FragmentationTest::DoRun(), LteUplinkClosedLoopPowerControlAccumulatedModeTestCase::DoRun(), LteStrictFrTestCase::DoRun(), LteHandoverTargetTestCase::DoRun(), LteUeMeasurementsPiecewiseTestCase1::DoRun(), TwoRayGroundPropagationLossModelTestCase::DoRun(), Ns3TcpSocketTestCase2::DoRun(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), ChainRegressionTest::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), LteUeMeasurementsPiecewiseTestCase2::DoRun(), LogDistancePropagationLossModelTestCase::DoRun(), EpcS1uUlTestCase::DoRun(), CsmaMulticastTestCase::DoRun(), LteUeMeasurementsHandoverTestCase::DoRun(), AttributeTestCase< T >::DoRun(), Bug555TestCase::DoRun(), Ns3TcpCwndTestCase2::DoRun(), RangePropagationLossModelTestCase::DoRun(), LteRrcConnectionEstablishmentErrorTestCase::DoRun(), CsmaPingTestCase::DoRun(), CsmaRawIpSocketTestCase::DoRun(), experiment(), ConfigStoreHelper::LoadConfig(), RoutingExperiment::Run(), ConfigStoreHelper::SaveConfig(), BatteryLifetimeTest::VariableLoadTest(), and WifiInterferenceTestCase::WifiSimpleInterference().

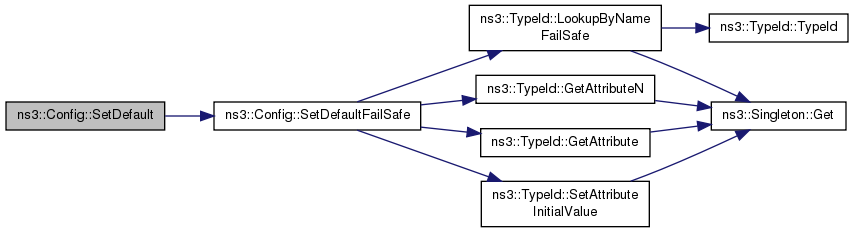

Here is the call graph for this function:

bool ns3::Config::SetDefaultFailSafe	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the full name of the attribute
value	the value to set.

Returns

true if the value was set successfully, false otherwise.

This method overrides the initial value of the matching attribute.

Definition at line 691 of file config.cc.

References ns3::TypeId::AttributeInformation::checker, ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::TypeId::LookupByNameFailSafe(), ns3::TypeId::AttributeInformation::name, NS_LOG_FUNCTION, and ns3::TypeId::SetAttributeInitialValue().

Referenced by ns3::cell_edited_callback_config_default(), AttributeTestCase< T >::DoRun(), ns3::CommandLine::HandleArgument(), ns3::CommandLine::HandleAttribute(), and ns3::Config::SetDefault().

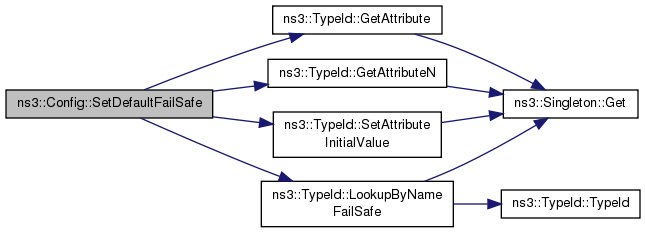

Here is the call graph for this function:

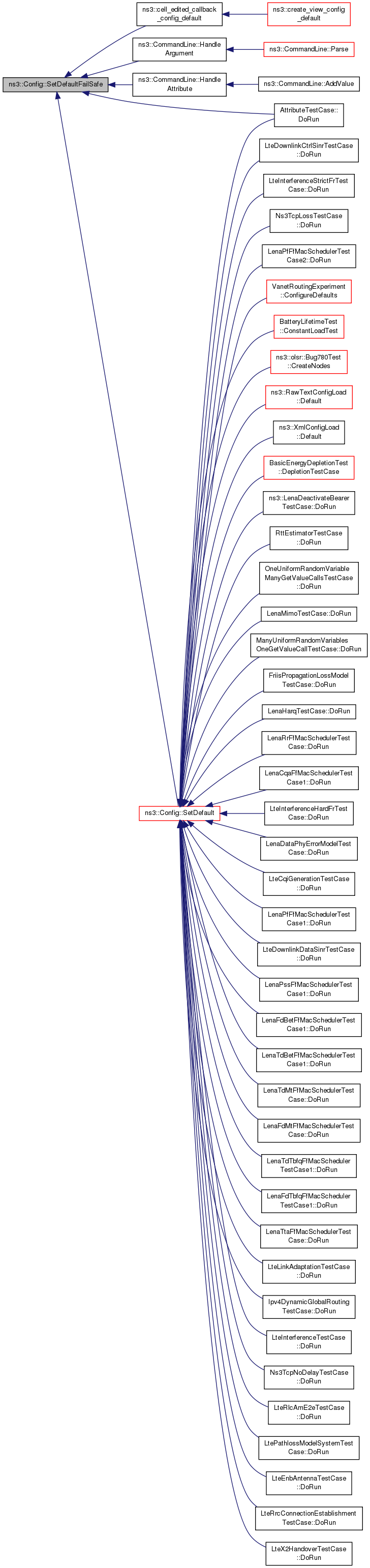

Here is the caller graph for this function:

void ns3::Config::SetGlobal	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the name of the requested GlobalValue.
value	the value to set

This method is equivalent to GlobalValue::Bind

Definition at line 723 of file config.cc.

References ns3::GlobalValue::Bind(), and NS_LOG_FUNCTION.

Referenced by LenaDataPhyErrorModelTestCase::DoRun(), LteRlcAmE2eTestCase::DoRun(), LenaDlCtrlPhyErrorModelTestCase::DoRun(), LteCellSelectionTestCase::DoRun(), ThreadedSimulatorEventsTestCase::DoSetup(), ThreadedSimulatorEventsTestCase::DoTeardown(), ns3::RawTextConfigLoad::Global(), ns3::XmlConfigLoad::Global(), ns3::RngSeedManager::SetRun(), and ns3::RngSeedManager::SetSeed().

Here is the call graph for this function:

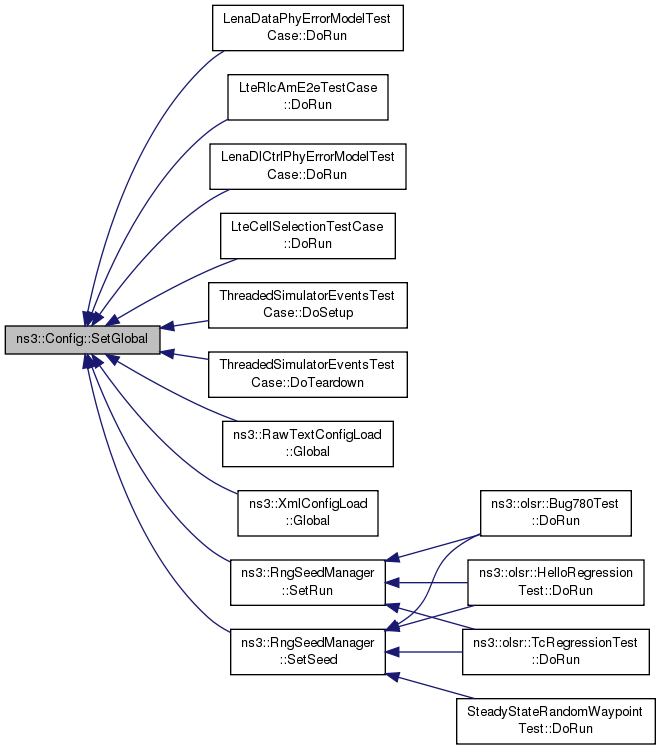

Here is the caller graph for this function:

bool ns3::Config::SetGlobalFailSafe	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the name of the requested GlobalValue.
value	the value to set

This method is equivalent to GlobalValue::BindFailSafe

Definition at line 728 of file config.cc.

References ns3::GlobalValue::BindFailSafe(), and NS_LOG_FUNCTION.

Referenced by ns3::CommandLine::HandleArgument(), and ns3::CommandLine::HandleAttribute().

Here is the call graph for this function:

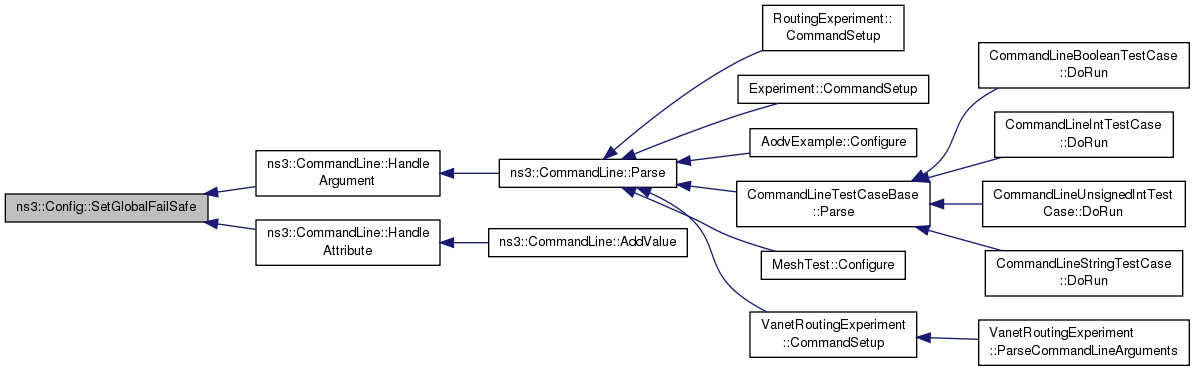

Here is the caller graph for this function:

void ns3::Config::UnregisterRootNamespaceObject

(

Ptr< Object >

obj

)

Parameters

obj	a new root object

This function undoes the work of Config::RegisterRootNamespaceObject.

Definition at line 767 of file config.cc.

References ns3::Singleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::BuildingListPriv::Delete(), ns3::ChannelListPriv::Delete(), and ns3::NodeListPriv::Delete().

Here is the call graph for this function:

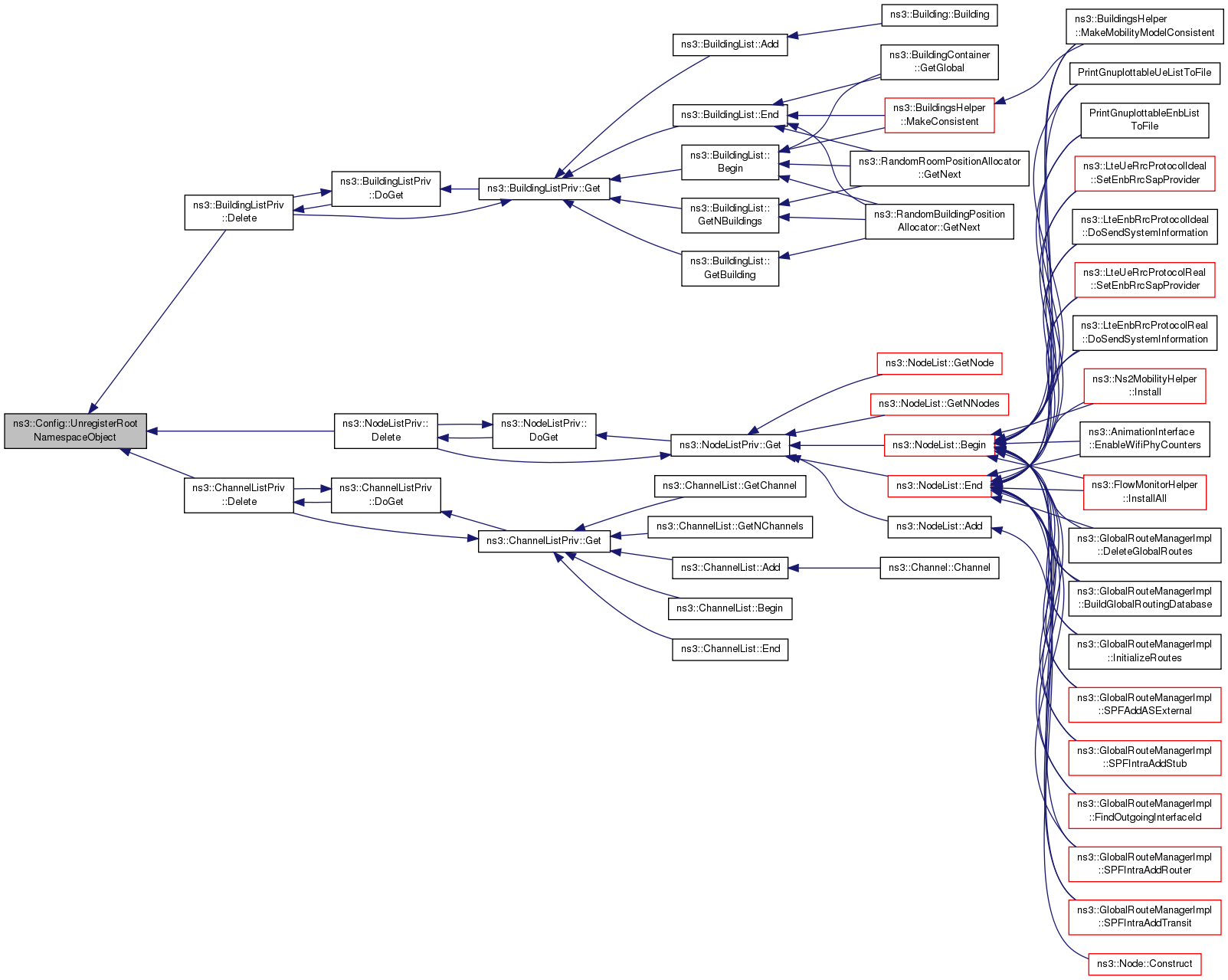

Here is the caller graph for this function:
