hold per-remote-station state for Minstrel Wifi manager. More...

Inheritance diagram for ns3::MinstrelWifiRemoteStation:

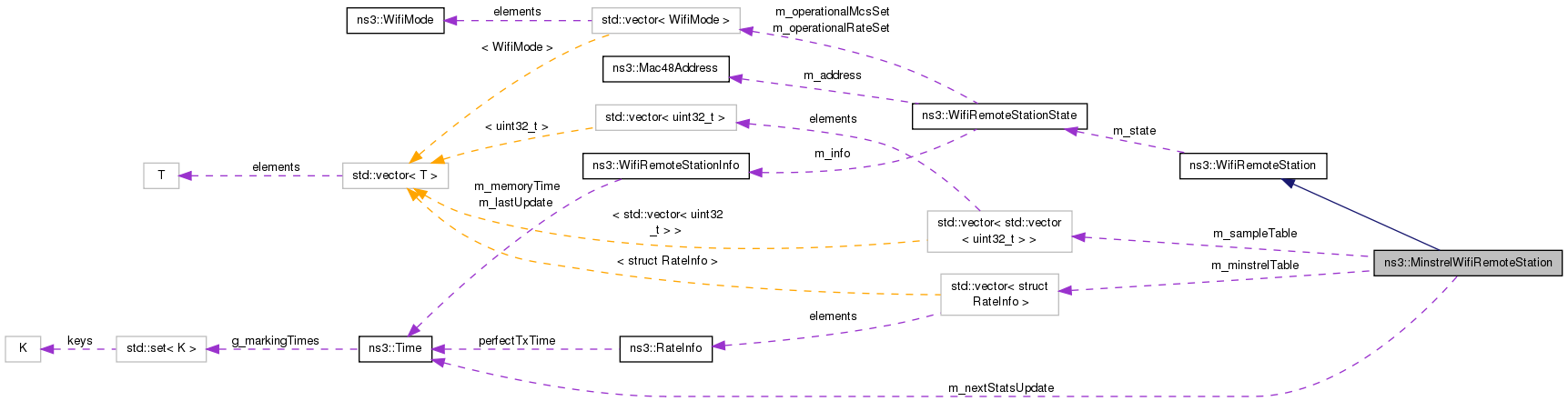

Collaboration diagram for ns3::MinstrelWifiRemoteStation:

Public Attributes
uint32_t	m_col
	To keep track of the current position in the our random sample table going row by row from 1st column until the 10th column(Minstrel defines 10) then we wrap back to the row 1 col 1. More...

uint32_t	m_err
	retry errors More...

uint32_t	m_index

bool	m_initialized
	for initializing tables More...

bool	m_isSampling
	a flag to indicate we are currently sampling More...

uint32_t	m_longRetry
	long retries such as data packets More...

uint32_t	m_maxProbRate
	rate with highest prob of success More...

uint32_t	m_maxTpRate
	the current throughput rate More...

uint32_t	m_maxTpRate2
	second highest throughput rate More...

MinstrelRate	m_minstrelTable
	minstrel table More...

Time	m_nextStatsUpdate
	10 times every second More...

int	m_packetCount
	total number of packets as of now More...

uint32_t	m_retry
	total retries short + long More...

int	m_sampleCount
	how many packets we have sample so far More...

uint32_t	m_sampleRate
	current sample rate More...

bool	m_sampleRateSlower
	a flag to indicate sample rate is slower More...

SampleRate	m_sampleTable
	sample table More...

uint32_t	m_shortRetry
	short retries such as control packts More...

uint32_t	m_txrate
	current transmit rate More...

Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
	STA long retry count. More...

uint32_t	m_ssrc
	STA short retry count. More...

WifiRemoteStationState *	m_state
	Remote station state. More...

uint8_t	m_tid
	traffic ID More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

hold per-remote-station state for Minstrel Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the Minstrel Wifi manager

Definition at line 53 of file minstrel-wifi-manager.cc.

Member Data Documentation

uint32_t ns3::MinstrelWifiRemoteStation::m_col

To keep track of the current position in the our random sample table going row by row from 1st column until the 10th column(Minstrel defines 10) then we wrap back to the row 1 col 1.

note: there are many other ways to do this.

Definition at line 63 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().

uint32_t ns3::MinstrelWifiRemoteStation::m_err

retry errors

Definition at line 75 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::DoReportFinalDataFailed(), and ns3::MinstrelWifiManager::DoReportFinalRtsFailed().

uint32_t ns3::MinstrelWifiRemoteStation::m_index

Definition at line 63 of file minstrel-wifi-manager.cc.

Referenced by ns3::MinstrelWifiManager::DoCreateStation(), ns3::MinstrelWifiManager::GetNextSample(), and ns3::MinstrelWifiManager::InitSampleTable().

bool ns3::MinstrelWifiRemoteStation::m_initialized

for initializing tables
