ns3::WifiRemoteStationState Struct Reference

A struct that holds information about each remote station. More...

#include "wifi-remote-station-manager.h"

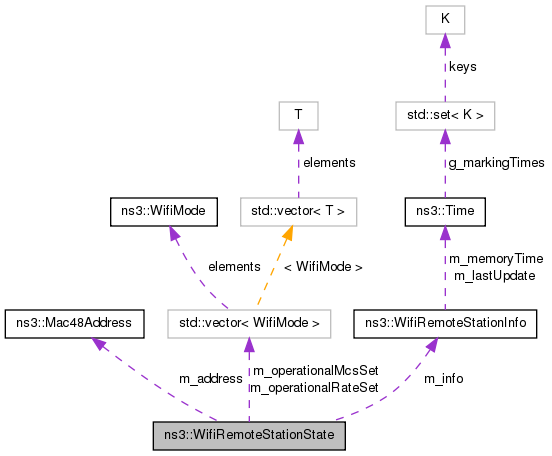

Collaboration diagram for ns3::WifiRemoteStationState:

Public Types
enum	{ BRAND_NEW, DISASSOC, WAIT_ASSOC_TX_OK, GOT_ASSOC_TX_OK }
	State of the station. More...

Public Attributes
Mac48Address	m_address
	Mac48Address of the remote station. More...
bool	m_aggregation
	Flag if MPDU aggregation is used by the remote station. More...
uint32_t	m_channelWidth
	Channel width (in MHz) supported by the remote station. More...
bool	m_greenfield
	Flag if green field is used by the remote station. More...
WifiRemoteStationInfo	m_info
uint32_t	m_ness
	Number of streams in beamforming of the remote station. More...
WifiModeList	m_operationalMcsSet
WifiModeList	m_operationalRateSet
	This member is the list of WifiMode objects that comprise the OperationalRateSet parameter for this remote station. More...
uint32_t	m_rx
	Number of RX antennas of the remote station. More...
bool	m_shortGuardInterval
	Flag if short guard interval is supported by the remote station. More...
enum ns3::WifiRemoteStationState:: { ... }	m_state
	State of the station. More...
bool	m_stbc
	Flag if STBC is used by the remote station. More...
uint32_t	m_tx
	Number of TX antennas of the remote station. More...

Detailed Description

A struct that holds information about each remote station.

Definition at line 1083 of file wifi-remote-station-manager.h.

Member Enumeration Documentation

anonymous enum

State of the station.

Enumerator
BRAND_NEW
DISASSOC
WAIT_ASSOC_TX_OK
GOT_ASSOC_TX_OK

Definition at line 1088 of file wifi-remote-station-manager.h.

Member Data Documentation

Mac48Address ns3::WifiRemoteStationState::m_address

Mac48Address of the remote station.

Definition at line 1107 of file wifi-remote-station-manager.h.

Referenced by ns3::ParfWifiManager::CheckInit(), ns3::AparfWifiManager::CheckInit(), ns3::ParfWifiManager::DoReportDataFailed(), ns3::AparfWifiManager::DoReportDataFailed(), ns3::ParfWifiManager::DoReportDataOk(), ns3::AparfWifiManager::DoReportDataOk(), and ns3::WifiRemoteStationManager::LookupState().

bool ns3::WifiRemoteStationState::m_aggregation

Flag if MPDU aggregation is used by the remote station.

Definition at line 1116 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetAggregation(), and ns3::WifiRemoteStationManager::LookupState().

uint32_t ns3::WifiRemoteStationState::m_channelWidth

Channel width (in MHz) supported by the remote station.

Definition at line 1110 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::AddStationVhtCapabilities(), ns3::WifiRemoteStationManager::GetChannelWidth(), and ns3::WifiRemoteStationManager::LookupState().

bool ns3::WifiRemoteStationState::m_greenfield

Flag if green field is used by the remote station.

Definition at line 1117 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::GetGreenfield(), ns3::WifiRemoteStationManager::GetGreenfieldSupported(), and ns3::WifiRemoteStationManager::LookupState().

WifiRemoteStationInfo ns3::WifiRemoteStationState::m_info

Definition at line 1108 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetInfo().

uint32_t ns3::WifiRemoteStationState::m_ness

Number of streams in beamforming of the remote station.

Definition at line 1114 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetNess(), and ns3::WifiRemoteStationManager::LookupState().

WifiModeList ns3::WifiRemoteStationState::m_operationalMcsSet

Definition at line 1106 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetMcsSupported(), ns3::WifiRemoteStationManager::GetNMcsSupported(), and ns3::WifiRemoteStationManager::LookupState().

WifiModeList ns3::WifiRemoteStationState::m_operationalRateSet

This member is the list of WifiMode objects that comprise the OperationalRateSet parameter for this remote station.

This list is constructed through calls to WifiRemoteStationManager::AddSupportedMode(), and an API that allows external access to it is available through WifiRemoteStationManager::GetNSupported() and WifiRemoteStationManager::GetSupported().

Definition at line 1105 of file wifi-remote-station-manager.h.

Referenced by ns3::ArfWifiManager::DoReportDataOk(), ns3::ParfWifiManager::DoReportDataOk(), ns3::AparfWifiManager::DoReportDataOk(), ns3::WifiRemoteStationManager::GetNSupported(), ns3::WifiRemoteStationManager::GetSupported(), and ns3::WifiRemoteStationManager::LookupState().

uint32_t ns3::WifiRemoteStationState::m_rx

Number of RX antennas of the remote station.

Definition at line 1112 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), and ns3::WifiRemoteStationManager::LookupState().

bool ns3::WifiRemoteStationState::m_shortGuardInterval

Flag if short guard interval is supported by the remote station.

Definition at line 1111 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), and ns3::WifiRemoteStationManager::LookupState().

enum { ... } ns3::WifiRemoteStationState::m_state

State of the station.

Referenced by ns3::WifiRemoteStationManager::IsAssociated(), ns3::WifiRemoteStationManager::IsBrandNew(), ns3::WifiRemoteStationManager::IsWaitAssocTxOk(), ns3::WifiRemoteStationManager::LookupState(), ns3::WifiRemoteStationManager::RecordDisassociated(), ns3::WifiRemoteStationManager::RecordGotAssocTxFailed(), ns3::WifiRemoteStationManager::RecordGotAssocTxOk(), and ns3::WifiRemoteStationManager::RecordWaitAssocTxOk().

bool ns3::WifiRemoteStationState::m_stbc

Flag if STBC is used by the remote station.

Definition at line 1115 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetStbc(), and ns3::WifiRemoteStationManager::LookupState().

uint32_t ns3::WifiRemoteStationState::m_tx

Number of TX antennas of the remote station.

Definition at line 1113 of file wifi-remote-station-manager.h.

Referenced by ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), and ns3::WifiRemoteStationManager::LookupState().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/wifi-remote-station-manager.h
