ns3::ParfWifiRemoteStation Struct Reference

Hold per-remote-station state for PARF Wifi manager. More...

Inheritance diagram for ns3::ParfWifiRemoteStation:

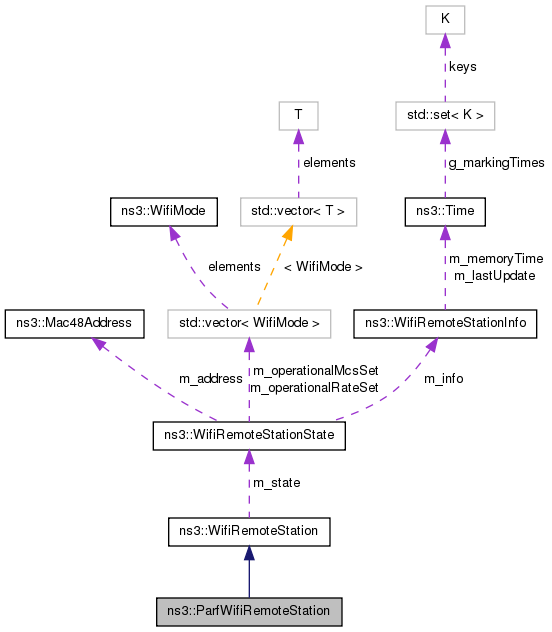

Collaboration diagram for ns3::ParfWifiRemoteStation:

Public Attributes
uint8_t	m_currentPower
	Current power used by the remote station. More...
uint32_t	m_currentRate
	Current rate used by the remote station. More...
bool	m_initialized
	For initializing variables. More...
uint32_t	m_nAttempt
	Number of transmission attempts. More...
uint32_t	m_nFail
	Number of failed transmission attempts. More...
uint32_t	m_nRetry
	Number of transmission retries. More...
uint32_t	m_nSuccess
	Number of successful transmission attempts. More...
uint32_t	m_nSupported
	Number of supported rates by the remote station. More...
bool	m_usingRecoveryPower
	If using recovery power. More...
bool	m_usingRecoveryRate
	If using recovery rate. More...
Public Attributes inherited from ns3::WifiRemoteStation
uint32_t	m_slrc
	STA long retry count. More...
uint32_t	m_ssrc
	STA short retry count. More...
WifiRemoteStationState *	m_state
	Remote station state. More...
uint8_t	m_tid
	traffic ID More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

Hold per-remote-station state for PARF Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the PARF Wifi manager

Definition at line 40 of file parf-wifi-manager.cc.

Member Data Documentation

uint8_t ns3::ParfWifiRemoteStation::m_currentPower

Current power used by the remote station.

Definition at line 49 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

uint32_t ns3::ParfWifiRemoteStation::m_currentRate

Current rate used by the remote station.

Definition at line 48 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoGetDataTxVector(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

bool ns3::ParfWifiRemoteStation::m_initialized

For initializing variables.

Definition at line 51 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit(), and ns3::ParfWifiManager::DoCreateStation().

uint32_t ns3::ParfWifiRemoteStation::m_nAttempt

Number of transmission attempts.

Definition at line 42 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

uint32_t ns3::ParfWifiRemoteStation::m_nFail

Number of failed transmission attempts.

Definition at line 44 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

uint32_t ns3::ParfWifiRemoteStation::m_nRetry

Number of transmission retries.

Definition at line 47 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

uint32_t ns3::ParfWifiRemoteStation::m_nSuccess

Number of successful transmission attempts.

Definition at line 43 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

uint32_t ns3::ParfWifiRemoteStation::m_nSupported

Number of supported rates by the remote station.

Definition at line 50 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::CheckInit().

bool ns3::ParfWifiRemoteStation::m_usingRecoveryPower

If using recovery power.

Definition at line 46 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

bool ns3::ParfWifiRemoteStation::m_usingRecoveryRate

If using recovery rate.

Definition at line 45 of file parf-wifi-manager.cc.

Referenced by ns3::ParfWifiManager::DoCreateStation(), ns3::ParfWifiManager::DoReportDataFailed(), and ns3::ParfWifiManager::DoReportDataOk().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/parf-wifi-manager.cc
